The extent to which standardized uptake values reflect FDG phosphorylation in the liver and spleen as functions of time after injection of 18F-fluorodeoxyglucose



In FDG PET/CT, standardized uptake value (SUV) is used to measure metabolic activity but detects un-phosphorylated FDG as well as phosphorylated FDG (FDG6P). Our aim was to determine the proportions of intrahepatic and intrasplenic FDG that are phosphorylated after FDG injection and compare them with SUVs.


Sixty patients undergoing whole-body PET/CT 60 min post-injection of FDG first had dynamic PET imaging for 30 min with measurement of hepatic and splenic FDG clearances using Patlak-Rutland analysis. The gradient of the Patlak-Rutland plot, which is proportional to clearance (Ki), was normalized to the intercept, which is proportional to FDG distribution volume (V(0)) with the same proportionality constant. Using measured values of Ki/V(0), FDG6P/FDG ratios as functions of time in the two organs were measured for assumed FDG blood disappearance half-times of 40, 50 and 60 min. Hepatic and splenic SUVs were measured from whole-body PET/CT.


The mean (SD) Ki/V(0) was 0.0036 (0.0021) and 0.0060 (0.0041) ml/min/ml for the liver and spleen, respectively, but the hepatic SUV was 1.36-fold higher than the splenic SUV. This discrepancy was explained by the hepatic V(0) being 1.6-fold higher than the splenic V(0). The percentages of FDG phosphorylated 60 min post-injection were 27, 25 and 23% for the liver and 39, 36 and 34% for the spleen, for blood clearance half-times of 40, 50 and 60 min, respectively. SUV indices correlated poorly with Ki/V(0) for both organs.


SUV is largely determined by un-phosphorylated FDG in dynamic exchange with blood FDG, explaining the poor correlations between SUV indices and Ki/V(0).


Positron emission tomography (PET) with 2-deoxy-2-[18F]fluoro-D-glucose (FDG) is widely used to measure tissue glucose utilization rate (MRglu). MRglu is the generation rate of glucose-6-phosphate via glucokinase-mediated phosphorylation. FDG, which is an analogue of glucose, also undergoes glucokinase-mediated phosphorylation to FDG-6-phosphate (FDG6P) (Fig. 1). Taking into account a ‘lumped constant’, introduced to account for differing tissue uptake kinetics between glucose and FDG (for example differing extraction efficiencies), MRglu (μmol/min/ml) is measured as the tissue FDG clearance rate (ml/min/ml) multiplied by blood glucose (μmol/ml). Tissue FDG uptake, however, is often quantified as the standardized uptake value (SUV) recorded on whole-body imaging, conventionally 60 min post-injection of FDG. SUV is defined as follows:

Fig. 1
figure 1

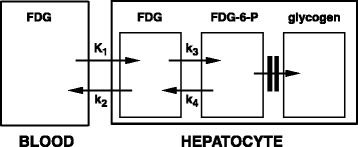

Model of intrahepatic FDG kinetics. K 1 is hepatic blood flow, k 2 is a diffusion constant, k 3 the glucokinase and k4 glucose-6-phosphatase. FDG is assumed to mix throughout its intrahepatic distribution volume via K 1 and k 2 by 2–3 min post-injection. De-phosphorylation (via k 4) is assumed to be slow enough to ignore in Patlak-Rutland analysis, which therefore measures phosphorylation rate. The corresponding model for the spleen is similar except k 4 is lacking

$$ \mathrm{S}\mathrm{U}\mathrm{V} = F/\mathrm{ml} \times \mathrm{whole}\ \mathrm{body}\ \mathrm{metric} $$

where F/ml is the fraction of administered activity per ml of tissue; the whole-body metric may be weight (SUW), lean body mass (LBM; SUL) or body surface area. Moreover, SUV may be based on the voxel with the maximum value (SUVmax) or taken as the mean of all voxels in the region of interest (ROI; SUVmean).

In addition to the amount of FDG6P in a tissue, SUV also depends on the amount of un-phosphorylated FDG, which is free to exchange between tissue and blood [1,2,3,4].

Like FDG clearance, SUV is inversely related to blood glucose in insulin-insensitive tissues such as tumours [5] and brain [6, 7]. SUV is therefore a surrogate of FDG clearance rather than of MRglu and becomes a closer surrogate of MRglu after normalization to (i.e. multiplication by) blood glucose, as recommended in the European Association of Nuclear Medicine guidelines on PET/CT [8].

There have been several recent studies of FDG accumulation in the liver, mostly in relation to hepatic steatosis, that have used SUV as the quantitative index of FDG accumulation and measure of hepatic metabolic activity [9,10,11,12,13]. However, these studies have largely ignored the issue of how much intrahepatic FDG is actually phosphorylated. The same applies to the spleen, the metabolic activity of which, almost exclusively based on SUV in previous PET studies, has attracted a great deal of recent attention in relation to atherosclerosis [14] and acute myocardial infarction [15, 16], the so-called cardio-splenic axis. Using a combined theoretical and experimental approach, the aim of this study was to determine the proportions of FDG in the liver and spleen that are phosphorylated at specific post-injection times and the extent to which SUV reflects FDG clearance in these two organs.



The concentration of FDG6P in tissue at time t post-injection can be calculated from the tissue FDG clearance (Ki) and the area under the blood time-concentration curve up to time t (A(t)) as follows.

$$ \begin{array}{l}\mathrm{FDG}6\mathrm{P}\kern0.5em = A(t) \times \mathrm{Ki}\\ {}\Big(\mathrm{MBq}/\mathrm{ml} = \left[\mathrm{MBq}/\mathrm{ml} \times \min \right] \times \mathrm{ml}/ \min /\mathrm{ml}\end{array} $$

The concentration of un-phosphorylated FDG (FDG) in tissue at time t post-injection can be calculated from the blood FDG concentration at time t (C(t)),

$$ \begin{array}{l}\mathrm{FDG} = C(t) \times V(0)\\ {}\left(\mathrm{MBq}/\mathrm{ml} = \mathrm{MBq}/\mathrm{ml} \times \mathrm{ml}/\mathrm{ml}\right)\end{array} $$

where V(0) is the volume of distribution of FDG in the tissue (i.e. the virtual volume within which FDG would be distributed to give an FDG concentration identical to plasma concentration). (If hepatic FDG concentration was identical to plasma concentration, then V(0) would be 1 ml/ml.)

Dividing Eq. 2 by Eq. 3

$$ \mathrm{F}\mathrm{D}\mathrm{G}6\mathrm{P}/\mathrm{F}\mathrm{D}\mathrm{G} = \left[ A(t)/ C(t)\right] \times \left[\mathrm{Ki}/ V(0)\right] $$

Note that A(t)/C(t) is normalised time in a Patlak-Rutland plot.

There is a very extensive literature on FDG arterial blood clearance data [1,18,19,20,21,22,23,24,25,26,27,, 2, 1728], but most publications aimed to validate simplifications of arterial input and very few to quantify the kinetics of blood FDG clearance. From an inspection of published data, the clearance curve can be seen to be a triple exponential with a very fast first exponential that is completed within seconds and a second exponential that is fast with a half-time of <5 min. The area enclosed by these early exponentials is small compared to the area under the slowest exponential and can be ignored. Three groups in particular have published clearance data in large patient numbers, and from their illustrations, the half-times of the slow exponentials can be seen to be about 40 min [23], 50 min [19] or 60 min [21, 22, 25].

Ignoring the fast exponentials, the area under the blood clearance curve is given as

$$ A(t) = \left( N/\beta \right)\ .\left.\left(1 - {\mathrm{e}}^{-\beta . t}\right)\right] $$

where N is the zero time intercept and β the rate constant of the slow exponential,


$$ C(t) = N.{\mathrm{e}}^{-\beta . t} $$


$$ A(t)/ C(t) = \left(1 - {\mathrm{e}}^{-\beta . t}\right)/\beta .{e}^{-\beta . t} $$

For blood disappearance half-times of 40, 50 and 60 min, A(t)/C(t) is 105, 94 and 87 min, respectively.

The total tissue concentration of FDG (FDG6P + FDG), which determines SUV, is given by Eqs. 2 and 3:

$$ \mathrm{F}\mathrm{D}\mathrm{G}6\mathrm{P} + \mathrm{F}\mathrm{D}\mathrm{G} = \left[ A(t).\ \mathrm{Ki}\right] + \left[ C(t). V(0)\right] $$
$$ \mathrm{F}\mathrm{D}\mathrm{G}6\mathrm{P} + \mathrm{F}\mathrm{D}\mathrm{G} = \left( V(0). A(t).\left[\mathrm{Ki}/ V(0)\right]\right) + \left[ C(t). V(0)\right] $$

It can be seen from Eq. 9 that the relationship between the total activity and Ki/V(0) has a gradient of V(0).A(t) and an intercept of V(0).C(t).

Combining Eqs. 5, 6 and 9

$$ \mathrm{F}\mathrm{D}\mathrm{G}6\mathrm{P} + \mathrm{F}\mathrm{D}\mathrm{G} = \left[ V(0).\left( N/\beta \right).\left(1 - {\mathrm{e}}^{-\beta . t}\right)\right].\ \mathrm{K}\mathrm{i}/ V(0) + \left[ V(0). N.{\mathrm{e}}^{-\beta . t}\right] $$

When t = infinity, it can be seen from Eq. 10 that

$$ \mathrm{F}\mathrm{D}\mathrm{G}6\mathrm{P} + \mathrm{F}\mathrm{D}\mathrm{G} = V(0).\left( N/\beta \right).\ \left(\mathrm{Ki}/ V(0)\right) $$

Therefore, when

$$ \mathrm{K}\mathrm{i}/ V(0) = \beta $$
$$ \mathrm{F}\mathrm{D}\mathrm{G}6\mathrm{P} + \mathrm{F}\mathrm{D}\mathrm{G} = V(0). N $$

That is, the total activity remains constant as a function of time following injection when Ki/V(0) = β.


Sixty patients had dynamic PET prior to routine clinically indicated PET/CT. These patients formed the study group for a previous study that investigated the relationships of hepatic MRglu with hepatic steatosis and obesity [29]. Thirty-eight (including 12 with metabolically active lymphoma) had FDG-avid malignancy on routine PET/CT. Forty-seven were men (age range 28–84) and 13 were women (age 40–67). Nineteen patients had hepatic steatosis (CT density ≤40 HU on whole-body PET/CT), 18 were obese (BMI ≥30 kg/m2) and 5 had type 2 diabetes mellitus (none with type 1). Five patients had blood glucose >7 mmol/l, including one with >10 mmol/ml (three of these five were diabetic). Twelve patients had received chemotherapy within 6 months of their scan, 19 had received chemotherapy >6 months previously and 29 were chemotherapy-naïve. Patients with known or suspected high ethanol intake were excluded. All patients gave written informed consent for the study, which was approved by a local institutional review board (NRES Committee South Central - Oxford C: ref 13/SC/0231).

Whole-body imaging and image analysis

Patients fasted for 6 h before FDG injection. Blood glucose was measured using a glucometer (ACCU-CHEK Performa; Inform ll strips; USA). Whole-body PET/CT was performed at 60 min post-injection of ~400 MBq FDG (not adjusted for body weight) using a Siemens Biograph 64-slice PET/CT scanner (Erlangen, Germany) with immediate non-enhanced CT scanning (120 Kvp/50 mA—Care dose 4D; slice 5 mm; pitch 0.8; rotational speed 0.5/s) for attenuation purposes only. 3D emission data was then acquired at 3 min per bed position (PET reconstruction: 4 iterations; subset 8; Gaussian pre-filter; FWHM 5 mm; matrix size 168 × 168; zoom 1).

Hepatic SUV indices and CT density were measured from a circular ROI of 3-cm diameter over the right lobe of the liver, and spleen SUV indices from a circular ROI of 2.5-cm diameter over the centre of the organ. Body weight and LBM, estimated from height and weight using the equations of Boer [30], were used as the whole-body metrics to give SUW and SUL, respectively. Both were expressed as the maximum voxel SUV (SUWmax and SULmax) and mean SUV in the ROI (SUWmean and SULmean). We assume that because it is soluble in water rather than fat, negligible FDG enters the fat droplets in hepatocytes. Using an equation relating fat content to CT density [31], hepatic SUV was therefore adjusted for the physical ‘dilutional’ effect of hepatic fat on the FDG signal, as previously described [32].

Dynamic imaging and image analysis

Prior to whole-body imaging, dynamic imaging was performed as 30 × 1-min frames following FDG injection with detectors positioned over the torso. Hepatic and splenic FDG clearances were measured using Patlak-Rutland graphical analysis from ROI over the liver (3 cm) and spleen (2.5 cm), each summed from 20 contiguous cranio-caudal transaxial slices, avoiding any suspected focal pathology in each slice, as previously described [29]. All frames were corrected for physical decay of 18F. Input function was derived from ROI over the abdominal aorta, within and avoiding the walls, summed from about 20 contiguous cranio-caudal transaxial slices drawn by a single operator (GK). The gradient of the plot, which represents tissue FDG clearance (Ki), was divided by the intercept, which represents tissue distribution volume of FDG (V(0)—see Eq. 3). There was no need for attenuation correction of the dynamic study because the factors that respectively relate gradient and intercept based on raw count rates to Ki and V(0) are identical, and cancel out in their ratio, as previously proven [29].

We did not measure the transport constants governing tissue FDG kinetics shown in Fig. 1. Previous workers have shown that K 1 (which represents tissue blood flow) and k 2 (the constant of diffusion of un-phosphorylated FDG from tissue to blood) are sufficiently high with respect to the liver that FDG mixes throughout its hepatic distribution volume within 2–3 min. The first two frames of the dynamic study (0–1 min and 1–2 min) over the liver were therefore excluded from the Patlak-Rutland plot to allow mixing of the FDG throughout its hepatic distribution volume. The validity of this is apparent from Fig. 2, which shows the Patlak-Rutland plot to be essentially linear from the third frame. Although the corresponding transport constants for the spleen have not, to our knowledge, been determined, the plots for the spleen were also linear from the third frame, suggesting that the mixing time of FDG in splenic V(0) is as rapid as in liver V(0). Linearity of the plots also suggests that de-phosphorylation of FDG6P is very slow. Otherwise, the plot would be convex upwards. De-phosporylation takes place via glucose-6-phosphatase (k 4), which is absent from the spleen. The essential requirement of the Patlak-Rutland plot for a single transport constant is therefore met for both tissues when the plot is started from 3 min.

Fig. 2
figure 2

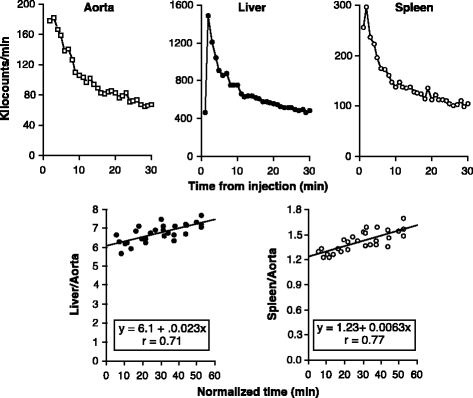

Examples of raw data and Patlak-Rutland plots for the liver and spleen in the same patient. Upper panels: abdominal aorta (left); liver (middle) and spleen (right). Lower panels: Patlak-Rutland plots for the liver (left) and spleen (right). Note that for both organs, the first two frame points have been excluded

The ratio of FDG6P to total tissue FDG concentration (FDG6P/[FDG6P + FDG]) was calculated from Eqs. 4 and 7 using A(t)/C(t) based on slow exponential half-times of 40, 50 and 60 min (corresponding to β of 0.0173, 0.0139 and 0.0115 min−1, respectively). Total 18F tracer concentrations were estimated using Eq. 9. C(t) and V(0) are unknown in Eq. 9, so the absolute concentration of tracer is unknown. However, the time courses of tissue FDG6P + FDG concentration for different values of Ki/V(0) can be derived because V(0) is independent of post-injection time.


Using the Shapiro-Wilk test, the W statistic gave p > 0.05 for all SUV indices and Ki/V(0), so parametric statistics were used. Values were expressed as mean ± standard deviation (SD). Pearson’s correlation analysis was used to assess relationships between SUV indices and Ki/V(0).



Representative examples of hepatic and splenic Patlak-Rutland plots from the same patient are shown in Fig. 2. Both Patlak-Rutland plots are essentially linear from the third frame. For all 60 patients, the mean (SD) Ki/V(0) of the liver was 0.0036 (0.0021) and of the spleen was 0.0060 (0.0041) ml/min/ml (p < 0.0001).

Estimations of phosphorylated (FDG6P) and un-phosphorylated FDG

Using the above mean values of Ki/V(0), the percentages of FDG phosphorylated 60 min post-injection for blood clearance half-times of 40, 50 and 60 min were calculated to be 28, 25, and 23% for the liver and 39, 36 and 34% for the spleen (Fig. 3). In either organ, percentages approaching 100% would not be achieved until about 4 h post-injection.

Fig. 3
figure 3

Percentage of tissue FDG that is phosphorylated as a function of time after FDG injection shown for slow exponential half-times of 40, 50 and 60 min; left panel: Ki/V(0) = 0.0036 ml/min/ml (typical for the liver); right panel: Ki/V(0) = 0.006 ml/min/ml (typical for the spleen)

Based on a slow exponential half-time of 40 min, it can be seen from Fig. 4 that total tissue concentration (FDG6P + FDG) increases or decreases as a function of post-injection time for values of Ki/V(0) respectively greater than or less than β (0.0173 ml/min/ml). For slow exponential half-times of 50 and 60 min, β is 0.0139 and 0.0115 min−1, so the boundary Ki/V(0) values are 0.0139 and 0.0115 ml/min/ml, respectively.

Fig. 4
figure 4

Time courses of total tissue activity estimated using Eq. 9 for slow exponential half-times of 40 min (left panel) and 60 min (right panel). V0 has been set to unity. The vertical axis is the total tissue activity (FDG6P + FDG) normalized to 100. When t is infinity, C t  = 0 and A t  = N/β (Eqs. 5 and 6). Therefore, when Ki/V(0) = β, the total activity is constant over post-injection time. For a slow exponential half-time of 40 min, β = 0.0173 min−1. Therefore, for values of Ki/V(0) > 0.0173 ml/min/ml, total activity increases as a function of post-injection time, and vice versa when Ki/V(0) < 0.0173 ml/min/ml. The boundary Ki/V(0) value for a slow exponential half-time of 60 min is 0.0115 ml/min/ml. Ignoring the small areas under the fast exponentials does not alter these time courses

SUV indices at 60 min post-injection

Hepatic SUV was higher than splenic SUV. Thus, the liver-to-spleen SUVmean and SUVmax ratios (which, as ratios, are independent of whole-body metric) were 1.23 (0.24) and 1.36 (0.26), respectively (p < 0.0001 versus 1 for both). SUV indices generally correlated weakly with Ki/V(0) with respect to both the liver and spleen (Table 1). With respect to the liver, but not the spleen, SUL indices correlated more strongly with Ki/V(0) than SUW indices, and SUVmax indices correlated more strongly than SUVmean indices. Adjusting the liver SUVmean indices for hepatic fat improved their correlations with Ki/V(0). Relationships of SUV indices with Ki/V(0) had relatively large intercepts (Fig. 5), which, because SUV reflects the total tissue concentration, is consistent with Eq. 9. With respect to the spleen, division of SUV indices by hepatic SUVmean improved their correlations with Ki/V(0) but no differences were seen between SUVmax and SUVmean indices.

Table 1 Correlation coefficients (p) of relationships of hepatic and splenic SUV indices with hepatic and splenic Ki/V(0)
Fig. 5
figure 5

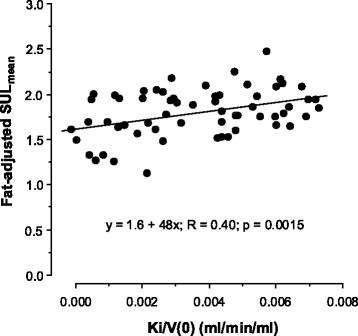

Relationship between fat-adjusted hepatic SULmean and Ki/V(0) (see Table 1). Note the large positive zero time intercept, consistent with Eq. 9


We found that at 60 min post-injection, only about 25% of FDG is phosphorylated in tissues, such as the liver, with Ki/V(0) of 0.0036 ml/min/ml, and about 35% in tissues, such as the spleen, with Ki/V(0) of 0.006 ml/min/ml. The half-time of the assumed exponential decrease in blood FDG concentration (40, 50 or 60 min) had little influence on these percentages, although, as would be expected, the percentages were slightly higher for faster half-times. The remaining FDG is un-phosphorylated, exchanging with blood FDG. These percentages increased at later times post-injection but did not approach 100% until several hours post-injection.

Whilst there has been much interest in measuring FDG clearance in several tissues for many years, there has been less interest in the physiological significance of tissue FDG distribution volume. Yet, as shown here, V(0) is critical in determining the proportion of FDG in a tissue that is actually phosphorylated. Several studies have reported how the SUVs of various tissues change between imaging at 60 min and delayed imaging, with some tissues showing an increase and others, notably the liver and spleen, showing a decrease in SUV [33,34,35,36,37]. The magnitudes and directions of the changes are determined by Ki/V(0). Thus, when Ki/V(0) is higher than β, there is an increase in SUV and vice versa when Ki/V(0) is lower than β. The issue of early versus delayed imaging is likely to increase in importance with the development of new whole-body PET machines such as UltraPET [38].

In the measurement, by computer modelling, of the transport constants in Fig. 1, previous workers have stressed the importance of considering the liver’s dual blood supply [1,2,3, 39]. There is general agreement, however, that Patlak-Rutland analysis, although less informative, is not influenced by the dual blood supply and is more robust than computer modelling for the measurement of Ki and V(0). Table 2 summarizes values of Ki and V(0) obtained by previous workers using computer modelling and Patlak-Rutland analysis. It can be seen from this Table that in humans, there is good agreement between modelling and Patlak-Rutland analysis [2] and that our mean value of Ki/V(0) for the liver, based on Patlak-Rutland analysis, is similar to previously published values in humans based on both modelling and Patlak-Rutland analysis [1, 2]. In anaesthetised pigs, Ki based on modelling was somewhat higher than human values [3]. Patlak-Rutland analysis, however, gave values of Ki/V(0) in line with other studies and our own values [1,2,3]. We can conclude therefore that our estimate of Ki/V(0) for the liver is reliable. We could find no corresponding literature values for the spleen.

Table 2 Hepatic Ki and V(0) determined by previous workers [1,2,3] using computer modelling and Patlak-Rutland graphical analysis

The spleen SUV was found to be less than the liver SUV even though it had a higher Ki/V(0). As shown in the Appendix, this is the result of a lower distribution volume in the spleen. Considering the relative values of hepatic and splenic SUVmax and Ki/V(0), hepatic V(0) can be calculated to be 1.6-fold higher than splenic V(0) (see Appendix).

SUV depends on the total tissue FDG concentration (FDG plus FDG6P), which partly explains the weak correlations we found between SUV indices and Ki/V(0) for both the liver and spleen. Interestingly, the strongest correlations were found with SUL indices, which support the use of LBM for calculating SUV [40]. The poor correlations of hepatic SUVmean indices with Ki/V(0) is explained by the physical effect of hepatic fat on the FDG signal—a ‘fat-diluting’ effect that has previously been described to affect SUVmax less than SUVmean [32]. Making the described adjustment for hepatic fat gave SUVmean a stronger correlation with Ki/V(0) compared with the corresponding unadjusted values (approximately doubling the correlation coefficients for both SUWmean and SULmean; Table 1). With respect to the spleen, correlations were similar for SUVmax and SUVmean indices because fat is not an issue in the spleen. Interestingly, the strongest correlation with Ki/V(0) was seen when splenic SUV was divided by hepatic SUV. Others have previously shown that division of tissue SUV by blood pool SUV makes it a better surrogate of clearance than SUV alone [41, 42]. As shown here, hepatic SUV is largely a blood pool SUV, explaining this finding.

A potential limitation of Patlak-Rutland analysis is the influence of glucose-6-phosphatase (k 4), which if active would invalidate the requirement for a single transport pathway. Previous workers in this field, however, also recorded linear hepatic Patlak-Rutkand gradients, suggesting that de-phosphorylation is very slow [1,2,3]. In any event, we avoided a longer acquisition period in order to minimize a possible influence of de-phosphorylation on the gradient.

Study limitations include firstly the recruitment of patients with co-existing morbidity. Secondly, hepatic fat distribution is heterogeneous [43], so measurement of CT density in a single ROI for the hepatic fat adjustment procedure may be misleading. Moreover, CT is not regarded as the gold standard imaging technique for quantifying steatosis, but probably instead MRI and MR spectroscopy [44]. The duration of our dynamic acquisition may be considered limited but longer acquisition periods risk patient movement artefacts, especially in patient participants rather than motivated normal volunteers [1, 2, 4], as well as a possible influence of de-phosphorylation, so 30 min seemed reasonable. Others used 40 [2, 4] or 60 min [1]. A 2-min mixing time of FDG throughout the hepatic distribution volume may seem brief but is consistent with previously reported values of K 1 and k 2, which respectively ranged from 0.01 to 0.015 and 0.013 to 0.016 s−1 [1,2,3], and which therefore give an equilibration rate constant of 0.023–0.031 s−1. This gives a time to 95% equilibration of FDG between compartments 1 and 2 of 97–130 s. Munk et al. also found from rapid early sampling that equilibration was achieved within a few minutes [3]. We used abdominal aorta for arterial input but others have validated the abdominal aorta for Patlak-Rutland analysis [28, 45], including for the liver [45].


In conclusion, tissue FDG6P concentration depends on FDG clearance per unit total volume but the FDG6P/FDG concentration ratio depends on tissue clearance per unit distribution volume. Because the majority of FDG is un-phosphorylated, SUV in both the liver and spleen largely reflects blood pool activity, especially the liver, explaining the poor correlations between SUV indices and Ki/V(0). If SUV is to be used as a measure of FDG clearance and metabolic activity, then LBM is the preferred whole-body metric with which to calculate it.


  1. Choi Y, Hawkins RA, Huang SC, et al. Evaluation of the effect of glucose ingestion and kinetic model configurations of FDG in the normal liver. J Nucl Med. 1994;35:818–23.

    CAS  PubMed  Google Scholar

  2. Iozzo P, Geisler F, Oikonen V, et al. Insulin stimulates liver glucose uptake in humans: an 18F-FDG PET Study. J Nucl Med. 2003;44:682–9.

    CAS  PubMed  Google Scholar

  3. Munk OL, Bass L, Roelsgaard K, Bender D, Hansen SB, Keiding S. Liver kinetics of glucose analogs measured in pigs by PET: importance of dual-input blood sampling. J Nucl Med. 2001;42:795–801.

    CAS  PubMed  Google Scholar

  4. Borra R, Lautamaki R, Parkkola R, et al. Inverse association between liver fat content and hepatic glucose uptake in patients with type 2 diabetes mellitus. Metabolism. 2008;57:1445–51.

    Article  CAS  PubMed  Google Scholar

  5. Lindholm P, Minn H, Leskinen-Kallio S, et al. Influence of the blood glucose concentration on FDG uptake in cancer—a PET study. J Nucl Med. 1993;34:1–6.

    CAS  PubMed  Google Scholar

  6. Namba H, Nakagawa K, Iyo M, et al. A simple method for measuring glucose utilization of insulin-sensitive tissues by using the brain as a reference. Eur J Nucl Med. 1994;21:228–31.

    Article  CAS  PubMed  Google Scholar

  7. Hasselbalch SG, Knudsen GM, Capaldo B, et al. Blood-brain barrier transport and brain metabolism of glucose during acute hyperglycemia in humans. J Clin Endocrinol Metab. 2001;86:1986–90.

    CAS  PubMed  Google Scholar

  8. Boellaard R, O’Doherty MJ, Weber WA, et al. FDG PET and PET/CT: EANM procedure guidelines for tumour PET imaging: version 1.0. Eur J Nucl Med Mol Imaging. 2010;37:181–200.

    Article  PubMed  Google Scholar

  9. Abikhzer G, Alabed YZ, Azoulay L, Assayag J, Rush C. Altered hepatic metabolic activity in patients with hepatic steatosis on FDGPET/CT. Am J Roentgenol. 2011;196:176–80.

    Article  Google Scholar

  10. Abele JT, Fung CI. Effect of hepatic steatosis on liver FDG uptake measured in mean standard uptake values. Radiology. 2010;254:917–24.

    Article  PubMed  Google Scholar

  11. Lin CY, Lin WY, Lin CC, et al. The negative impact of fatty liver on maximum standard uptake value of liver on FDG PET. Clin Imaging. 2011;35:437–41.

    Article  PubMed  Google Scholar

  12. Kumar R, Xiu Y, Yu JQ, et al. 18F-FDG PET in evaluation of adrenal lesions in patients with lung cancer. J Nucl Med. 2004;45:2058–62.

    PubMed  Google Scholar

  13. Bural GG, Torigian DA, Burke A, et al. Quantitative assessment of the hepatic metabolic volume product in patients with diffuse hepatic steatosis and normal controls through use of FDG-PET and MR imaging: a novel concept. Mol Imaging Biol. 2010;12:233–9.

    Article  PubMed  Google Scholar

  14. Kim EJ, Kim S, Kang DO, et al. Metabolic activity of the spleen and bone marrow in patients with acute myocardial infarction evaluated by 18F-fluorodeoxyglucose positron emission tomographic imaging. Circ Cardiovasc Imaging. 2014;7:454–60.

    Article  PubMed  Google Scholar

  15. Emami H, Singh P, MacNabb M, et al. Splenic metabolic activity predicts risk of future cardiovascular events: demonstration of a cardiosplenic axis in humans. JACC Cardiovasc Imaging. 2015;8:121–30.

    Article  PubMed  Google Scholar

  16. Wollenweber T, Roentgen P, Schafer A, et al. Characterizing the inflammatory tissue response to acute myocardial infarction by clinical multimodality noninvasive imaging. Circ Cardiovasc Imaging. 2014;7:811–8.

    Article  PubMed  Google Scholar

  17. Boellaard R, van Lingen A, Lammertsma AA. Experimental and clinical evaluation of iterative reconstruction (OSEM) in dynamic PET: quantitative characteristics and effects on kinetic modeling. J Nucl Med. 2001;42:808–17.

    CAS  PubMed  Google Scholar

  18. Wakita K, Imahori Y, Ido T, et al. Simplification for measuring input function of FDG PET: investigation of 1-point blood sampling method. J Nucl Med. 2000;41:1484–90.

    CAS  PubMed  Google Scholar

  19. Shiozaki T, Sadato N, Senda M, et al. Noninvasive estimation of FDG input function for quantification of cerebral metabolic rate of glucose: optimization and multicenter evaluation. J Nucl Med. 2000;41:1612–8.

    CAS  PubMed  Google Scholar

  20. Tsuchida T, Sadato N, Yonekura Y, et al. Noninvasive measurement of cerebral metabolic rate of glucose using standardized input function. J Nucl Med. 1999;40:1441–5.

    CAS  PubMed  Google Scholar

  21. Huang J, O’Sullivan F. An analysis of whole body tracer kinetics in dynamic PET studies with application to image-based blood input function extraction. IEEE Trans Med Imaging. 2014;33:1093–108.

    Article  PubMed  PubMed Central  Google Scholar

  22. Zhou S, Chen K, Reiman EM, Li DM, Shan B. A method of generating image-derived input function in a quantitative 18F-FDG PET study based on the shape of the input function curve. Nucl Med Commun. 2011;32:1121–7.

    Article  PubMed  Google Scholar

  23. Vriens D, de Geus-Oei L-F, Oyen WJG, Visser EP. A curve-fitting approach to estimate the arterial plasma input function for the assessment of glucose metabolic rate and response to treatment. J Nucl Med. 2009;50:1933–9.

    Article  PubMed  Google Scholar

  24. O’Sullivan F, Muzi M, Spence AM, et al. Nonparametric residue analysis of dynamic PET data with application to cerebral FDG studies in normals. J Am Stat Assoc. 2009;104(486):556–71.

    Article  PubMed  PubMed Central  Google Scholar

  25. O’Sullivan F, Kirrane J, Muzi M, et al. Kinetic quantitation of cerebral PET-FDG studies without concurrent blood sampling: statistical recovery of the arterial input function. IEEE Trans Med Imaging. 2010;29:610–24.

    Article  PubMed  Google Scholar

  26. Guo H, Renaut RA, Chen K. An input function estimation method for FDG-PET human brain studies. Nucl Med Biol. 2007;34:483–92.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  27. van der Weerdt AP, Klein LJ, Boellaard R, Visser CA, Visser FC, Lammertsma AA. Image-derived input functions for determination of MRGlu in cardiac (18)F-FDG PET scans. J Nucl Med. 2001;42:1622–9.

    PubMed  Google Scholar

  28. de Geus-Oei LF, Visser EP, Krabbe PF, van Hoorn BA, Koenders EB, Willemsen AT, et al. Comparison of image-derived and arterial input functions for estimating the rate of glucose metabolism in therapy-monitoring 18F-FDG PET studies. J Nucl Med. 2006;47:945–9.

    PubMed  Google Scholar

  29. Keramida G, Hunter J, Peters AM. Hepatic glucose utilisation in hepatic steatosis and obesity. Biosci Rep. 2016;36: article Identifier: e00402 DOI*: doi:10.1042/BSR20160381.

  30. Boer P. Estimated lean body mass as an index for normalization of body fluid volumes in man. Am J Physiol. 1984;247:F632–5.

    CAS  PubMed  Google Scholar

  31. Ricci C, Longo R, Gioulis E, et al. Noninvasive in vivo quantitative assessment of fat content in human liver. J Hepatol. 1997;27:108–13.

    Article  CAS  PubMed  Google Scholar

  32. Keramida G, Potts J, Bush J, Verma S, Dizdarevic, Peters AM. Accumulation of 18F-FDG in the liver in hepatic steatosis. Am J Roentgenol. 2014;203:643–8.

    Article  Google Scholar

  33. Cheng G, Alavi A, Lim E, Werner TJ, Del Bello CV, Akers SR. Dynamic changes of FDG uptake and clearance in normal tissues. Mol Imaging Bio. 2013;15:345–52.

    Article  Google Scholar

  34. Lee JW, Kim SK, Lee SM, Moon SH, Kim TS. Detection of hepatic metastases using dual-time-point FDG PET/CT scans in patients with colorectal cancer. Mol Imaging Biol. 2011;13:565–72.

    Article  PubMed  Google Scholar

  35. Basu S, Kung J, Houseni M, Zhuang H, Tidmarsh GF, Alavi A. Temporal profile of fluorodeoxyglucose uptake in malignant lesions and normal organs over extended time periods in patients with lung carcinoma: implications for its utilization in assessing malignant lesions. Q J Nucl Med Mol Imaging. 2009;53:9–19.

    CAS  PubMed  Google Scholar

  36. Chirindel A, Alluri KC, Tahari AK, et al. Liver standardized uptake value corrected for lean body mass at FDG PET/CT: effect of FDG uptake time. Clin Nucl Med. 2015;40:e17–22.

    Article  PubMed  Google Scholar

  37. Mejia AA, Nakamura T, Masatoshi I, Hatazawa J, Masaki M, Watanuki S. Estimation of absorbed doses in humans due to intravenous administration of fluorine-18-fluorodeoxyglucose in PET studies. J Nucl Med. 1991;32:699–706.

    CAS  PubMed  Google Scholar

  38. Price PM, Badawi RD, Cherry SR, Jones T. Ultra staging to unmask the prescribing of adjuvant therapy in cancer patients: the future opportunity to image micrometastases using total-body 18F-FDG PET scanning. J Nucl Med. 2014;55:696–7.

    Article  PubMed  PubMed Central  Google Scholar

  39. Tragardh M, Moller N, Sorensen M. Methodologic considerations for quantitative 18F-FDGPET/CT studies of hepatic glucose metabolismin healthy subjects. J Nucl Med. 2015;56:1366–71.

    Article  PubMed  Google Scholar

  40. Sugawara Y, Zasadny KR, Neuhoff AW, Wahl RL. Reevaluation of the standardized uptake value for FDG: variations with body weight and methods for correction. Radiology. 1999;213:521–5.

    Article  CAS  PubMed  Google Scholar

  41. van den Hoff J, Oehme L, Schramm G, et al. The PET-derived tumor-to-blood standard uptake ratio (SUR) is superior to tumor SUV as a surrogate parameter of the metabolic rate of FDG. EJNMMI Res. 2013;3(1):77.

    Article  PubMed  PubMed Central  Google Scholar

  42. Keramida G, Dizdarevic S, Bush J, Potts J, Peters AM. Quantification of tumour 18F-FDG uptake: normalise to blood glucose or scale to liver uptake? Eur Radiol. 2015;25:2701–8.

    Article  PubMed  Google Scholar

  43. Decarie PO, Lepanto L, Billiard JS, et al. Fatty liver deposition and sparing: a pictorial review. Insights Imaging. 2011;2:533–8.

    Article  PubMed  PubMed Central  Google Scholar

  44. Bohte AE, van Werven JR, Bipat S, Stoker J. The diagnostic accuracy of US, CT, MRI and 1H-MRS for the evaluation of hepatic steatosis compared with liver biopsy: a meta-analysis. Eur Radiol. 2011;21:87–97.

    Article  PubMed  Google Scholar

  45. Keiding S, Munk OL, Schiøtt KM, Hansen SB. Dynamic 2-[18F]fluoro-2-deoxy-D-glucose positron emission tomography of liver tumours without blood sampling. Eur J Nucl Med. 2000;27:407–12.

    Article  CAS  PubMed  Google Scholar

Download references


This study was not funded.

Authors’ contributions

GK designed the study, consented the patients, acquired the data and analysed the data. CDA co-wrote the paper. AMP obtained the ethical approval, designed the study, analysed the data and co-wrote paper. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Ethics approval and consent to participate

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards. All patients gave written informed consent for the study, which was approved by a local institutional review board (NRES Committee South Central - Oxford C: ref 13/SC/0231). No animals were involved in this study.

Author information

Authors and Affiliations


Corresponding author

Correspondence to A. Michael Peters.



Equation 9 can be re-written, replacing FDG6 + FDG with SUV, for both liver (L) and spleen (S).

$$ \frac{{\mathrm{SUV}}_S}{{\mathrm{SUV}}_L} = \frac{\left( V(0). A(t).{\left[\mathrm{Ki}/ V(0)\right]}_S\left)+ V{(0)}_S. C\right( t\right)}{\left( V(0). A(t).{\left[\mathrm{Ki}/ V(0)\right]}_L\left)+ V{(0)}_L. C\right( t\right)} $$

Note that administered activity and whole-body metric cancel out when the two SUVs are expressed as a ratio, which then becomes the ratio of the total FDG concentrations in the two organs.

Therefore, re-arranging and dividing numerator and denominator in Eq. A1 by C(t)

$$ \frac{{\mathrm{V}(0)}_L}{{\mathrm{V}(0)}_S} = \frac{{\mathrm{SUV}}_L\times \left[ A(t)/ C(t).\right]{\left[\mathrm{Ki}/ V(0)\right]}_S + 1\Big)}{{\mathrm{SUV}}_S\times \left[ A(t)/ C(t)\right].{\left[\mathrm{Ki}/ V(0)\right]}_L + 1\Big)} $$

For disappearance exponential half-times of 40, 50 and 60 min, A(t)/C(t) is 105, 94 and 87 min, respectively. So for SUVL/SUVS of 1.36 (see the “Results” section), the corresponding values of V(0)L/V(0)S would be 1.61, 1.59 and 1.58.
