Non-invasive molecular imaging of inflammatory macrophages in allograft rejection

EJNMMI Research volume 5, Article number: 69 (2015) Cite this article

Abstract

Background

Macrophages represent a critical cell type in host defense, development and homeostasis. The ability to image non-invasively pro-inflammatory macrophage infiltrate into a transplanted organ may provide an additional tool for the monitoring of the immune response of the recipient against the donor graft. We therefore decided to image in vivo sialoadhesin (Sn, Siglec 1 or CD169) using anti-Sn mAb (SER-4) directly radiolabelled with 99mTc pertechnetate.

Methods

We used a heterotopic heart transplantation model where allogeneic or syngeneic heart grafts were transplanted into the abdomen of recipients. In vivo nanosingle-photon emission computed tomography (SPECT/CT) imaging was performed 7 days post transplantation followed by biodistribution and histology.

Results

In wild-type mice, the majority of 99mTc-SER-4 monoclonal antibody cleared from the blood with a half-life of 167 min and was located predominantly on Sn+ tissues in the spleen, liver and bone marrow. The biodistribution in the transplantation experiments confirmed data derived from the non-invasive SPECT/CT images, with significantly higher levels of 99mTc-SER-4 observed in allogeneic grafts (9.4 (±2.7) %ID/g) compared to syngeneic grafts (4.3 (±10.3) %ID/g) (p = 0.0022) or in mice which received allogeneic grafts injected with 99mTc-IgG isotype control (5.9 (±0.6) %ID/g) (p = 0.0185). The transplanted heart to blood ratio was also significantly higher in recipients with allogeneic grafts receiving 99mTc-SER-4 as compared to recipients with syngeneic grafts (p = 0.000004) or recipients with allogeneic grafts receiving 99mTc-IgG isotype (p = 0.000002).

Conclusions

Here, we demonstrate that imaging of Sn+ macrophages in inflammation may provide an important additional and non-invasive tool for the monitoring of the pathophysiology of cellular immunity in a transplant model.

Background

Macrophages are tissue-resident components of the innate and adaptive immune systems and perform a variety of functions in host defense and maintenance of homeostasis [1]. As such, they are crucial in the progress and resolution of a variety of pathological conditions, including cancer, autoimmunity, atherosclerosis and rejection of transplanted organs [2]. There are a variety of antigens used in the ex vivo identification of human macrophages, and of these, the markers CD64, CD68 (Macrosialin), CD163, CD169 (sialoadhesin) and CD204 (macrophage scavenger receptor A) represent the set of trans-species pan-macrophage markers [3]. Due to the significant plasticity of macrophage phenotype, producing a single macrophage marker has eluded researchers and none is uniquely expressed on macrophages. CD64 is expressed on monocytes and subsets of germinal and blood dendritic cells, CD68 on various leukocytes, CD163 on monocytes, CD204 on monocytes and dendritic cells, and of the most myeloid restricted of these (CD163) significant amounts are found as soluble product [4], complicating its use for in vivo non-invasive imaging.

To date, the majority of macrophage imaging has been performed by magnetic resonance imaging (MRI) using non-specific nanoparticles such as superparamagnetic iron oxide (SPIO). SPIOs were injected intravenously (i.v.) and taken up in vivo by phagocytic cells [5]. This uptake is not unique to macrophages and cells such as dendritic cells can also take up iron oxide particles [6]. Other approaches have involved ex vivo non-specific labelling of macrophages with a contrast agent, such as a nanoparticle or a radiolabel, followed by MRI or single-photon emission computed tomography imaging (SPECT) imaging [7]. Recently, the targeting of macrophages with labelled antibodies has begun to be explored, with a number of groups reporting success with this technology in preclinical models. 111In-labelled anti-F4/80-A3-1 [8], 68Ga-labelled CD163 [9] and optically labelled CD206 [10] have shown the feasibility and utility of macrophage targeting in vivo. In addition, radiotracers targeting translocator protein (TSPO) as a biomarker of microglial activation and macrophage infiltration in the brain have been used [11].

Here, we report non-invasive in vivo imaging specific for inflammatory macrophages using the anti-sialoadhesin (Sn, Siglec 1 or CD169) monoclonal antibody, SER-4 [12]. Increasing attention is being paid towards the marker Sn [13, 14], which under quiescent conditions is expressed on subsets of macrophages in secondary lymphoid tissues, such as the lymph nodes and spleen [12]. However, Sn+ macrophages can also be found in a variety of pathological conditions [15–17]. Sn+ macrophages not only exhibit classic innate immune cell behaviour by acting as professional phagocytes but also display a close relation in promoting immune responses [18] through the activation of other immune effector cells including CD8 T cells [19], B cells [20] and iNKT cells [21]. This relationship is demonstrated by enhanced immunity resulting from the targeting of antigenic material to Sn+ macrophages [22, 23] and also by the amelioration of autoimmunity following Sn knock-down [24–26]. Increasingly, Sn expression is being linked clinically with disease progression in a variety of settings and is finding use as a marker of inflammation [27].

There is still a clinical necessity for further development of non-invasive imaging biomarkers not only for the diagnosis and staging of disease but also for interim assessment of therapies. Solid organ transplantation is one area where the development of a non-invasive imaging biomarker would aid therapy response assessment. The incidence of acute transplant rejection within the first year has decreased dramatically by the introduction of modern immunosuppressive therapies, while the rates of chronic transplant rejection have remained high [28]. While efforts are underway for the non-invasive imaging of ischemia reperfusion injury post transplantation [29], not much has been done in the way of non-invasive imaging of recipient macrophages in graft rejection. Thus, close surveillance of transplanted organs remains imperative. The current clinical standard of repetitive invasive endomyocardial biopsies is prone to sampling error, entails a risk of severe complications, causes discomfort and anxiety for the patients and, unlike for kidney transplants, is usually performed as a last resort. Therefore, developing non-invasive yet quantitative diagnostic tools for the monitoring of allograft rejection would fulfil an unmet clinical need.

The aim of this study is to test the biodistribution of 99mTc-SER-4 in normal animals and an inflammatory model such as an acute rejection model.

Methods

Mice, culture media, reagents and antibodies

C57BL/6 (H-2b) and BALB/c (H-2d) mice were ordered from Harlan Olac (Bicester, UK). Sn knockout (Sn-/-) mice were bred and maintained in the Biological Services Unit at King’s College London. RPMI 1640 medium (Sigma, Poole, UK), supplemented with 5 mM L-Glut (Invitrogen, Paisley, UK), 100 U/mL penicillin (Invitrogen), 100 μg/mL streptomycin (Invitrogen), 10 % IgG-depleted foetal calf serum (Source Bioscience UK Ltd., Nottingham, UK), 1 mM Hepes (Invitrogen) and 0.05 mM mercaptoethanol (Invitrogen), was used for antibody production, labelling and in vitro binding assays. Antibodies were purified using 5 mL HiTrap Protein G HP and 13.5 mL G-25 Sephadex desalting columns (PD-10) (GE Healthcare, Chalfont St. Giles, UK). Size exclusion chromatography (SEC) was performed using an Agilent 1200 series (Agilent, Oxford, UK) high-performance liquid chromatography (HPLC) system with in-line UV (280 nm) and radionuclide detector (Flow-Count, LabLogic, UK).

Purification and technetium-99 m radiolabeling of SER-4 antibody

Anti-mouse Sn SER-4 antibody was isolated as previously described using the SER-4 hybridoma [12]. Briefly, SER-4 hybridoma cells were grown in Celline CL350 (Integra Biosciences AG, Zissers, Switzerland) according to manufacturer’s instructions. Tissue culture media was then harvested and purified on a protein G column followed by dialysis into PBS (Gibco). The SER-4 and the anti-mouse IgG isotype control (AbD Serotec, Oxon, UK) antibodies were directly radiolabelled with 99mTc. Briefly, antibodies were concentrated to 10 mg/mL, using a Vivaspin 20 centrifugal concentrator (Sartorius Stedim, Epsom, UK), and 2 mg (200 μL, 13 nM) was then reduced by a molar excess of 2-mercaptoethanol (2-ME, 2000:1, 2 μl, 26 μM) at room temperature for 30 min. The reduced antibody was purified using a PD-10 desalting column and stored in PBS at −80 °C at 5 mg/mL. For antibody radiolabeling, 5 μl of a reconstituted MDP kit (Medronate Draximage, Draxis, USA) was added to 0.1 mg (20 μL, 0.67 nM) of reduced SER-4, followed by the addition of 150 MBq of sodium pertechnetate (provided by Department of Nuclear Medicine at Guys Hospital, UK). Labelling efficiency was measured using instant thin layer chromatography strips (ITLC-SA) (Varian Medical Systems UK, Ltd., Crawley, UK) with a mobile phase of 0.1 M citrate buffer, pH 5 and analysed using a gamma ray TLC scanner (Lablogic, UK). The amount of colloids has not been assessed but that large colloids anyway would have been eliminated by filtration prior to injection.

Stability assay

Fifty MBq of 99mTc SER-4 was added to AB type human serum (Sigma) or PBS at 1:4 v/v and incubated at 37 °C for 20 h. Samples were analysed at 0, 3, 6 and 20 h by HPLC-SEC using a BioSep SEC-300 column (Phenomenex, Macclesfield, UK) with an isocratic mobile phase of 100 mM phosphate buffer pH 7.0 at a flow rate of 1 mL/min. Stability was calculated as the area under the 99mTc-SER-4 peak (retention time = 8 min and 30 s) versus the area under the curve of the unbound 99mTc peak (retention time = 18 min).

In vitro 99mTc SER-4 binding assay

Of labelled antibody, 0.1 μg was added to 0.2 μg of recombinant Sn-Fc fusion protein (Sn-Fc, 6.7 μg/ml) and incubated at 37 °C for 10 min. The proteins were filtered through a 0.2-μm syringe filter and binding to Sn-Fc was measured by HPLC-SEC and compared to the 99mTc-IgG isotype binding. Specificity was shown in blocking studies using a 10-fold excess of cold SER-4. No Kd or immunoreactive fraction measurements were performed; as the authors felt that the in vitro competitive binding assay was sufficient to proceed to preclinical studies.

NanoSPECT/CT transplant imaging

Heterotopic cardiac transplantations were performed on 8- to 10-week-old male C57BL/6 mice (three groups, n = 5 for SER4 allogeneic and isotype allogeneic groups) with heart graft from BALB/c mice while syngeneic cardiac transplants (n = 4 for SER4 syngeneic group) with heart grafts from C57BL/6 mice as described by Corry et al [30]. All mice were imaged and ex vivo biodistribution was performed. Briefly, superior and inferior vena cava and pulmonary veins of the heart graft were ligated. The donor aorta was then anastomosed to the recipient abdominal aorta and the donor pulmonary artery anastomosed to the inferior vena cava, resulting in a fully vascularised heterotopic transplant. C57BL/6, Sn-deficient (Sn-/-) and transplanted mice were anesthetized with inhaled isoflurane gas (VetOne, UK) and ~10 μg (~20 MBq) of 99mTc-SER-4 or 99mTc-IgG isotype control was filtered through a 0.2-μm syringe filter and administered intravenously. Single-photon emission computed tomography (SPECT) images were obtained 3 h post injection using a nanoSPECT/computed tomography (CT) preclinical scanner (Bioscan Inc., Washington, DC, USA) equipped with four heads, each with 1-mm multipinhole collimator, in helical scanning mode in 24 projections over 30 min. The CT images were obtained with 45 kVP X-ray source, 1000 ms exposure time in 180 projections over 10 min. Images were reconstructed in a 256 by 256 matrix using the HiSPECT (Scivis GmBH) reconstruction software package and fused using InVivoScope software (Bioscan). Images shown here are maximum intensity projections (MIP). Animals were then euthanized at 4 h post injection and tissues explanted, weighed and gamma counted on a gamma counter (Wallac, 1282 Compugamma, PerkinElmer, UK). Uptake in each tissue was expressed as percent injected dose per gram of tissue (%ID/g). The transplanted heart to blood ratio was calculated by expressing the %ID/g of the transplanted heart divided by %ID/g in the blood. After imaging, C57BL/6 wild-type and Sn-/- spleens or grafted hearts and spleens from C57BL/6 recipients were removed for histology which was performed as previously described [12].

Immunostaining

After imaging and biodistribution, frozen tissues were stained for Sn using SER-4 followed by anti-rat-biotin then streptavidin-HRP. Sn+ macrophages were visualized with Vector NovaRED substrate (red) and sections counterstained with haemotoxylin.

Statistical analysis

To test for a significant differences between 99mTc-SER-4 in allogeneic and syngeneic transplants with 99mTc-IgG in allogeneic heart transplants, a one-way ANOVA was first performed; p values of <0.05 were considered significant. If the one-way ANOVA was significant, then a post hoc analysis was performed with Student–Newman–Keuls pairwise comparison; p values of <0.05 were considered significant.

Results

99mTc-SER-4 is stable in serum and binds to sialoadhesin

Anti-Sn antibody was produced using the SER-4 hybridoma. SER-4 antibody was reduced with mercaptoethanol and directly radiolabelled with sodium pertechnetate in the presence of methylene-diphosphonate ligand. The radiolabelling efficiency as measured by ITLC was >99 % with a specific activity of 1.5 MBq/μg of antibody. 99mTc-SER-4 remained stable in serum for 20 h with only one radioactive peak observed at a retention time of 8 min (see Additional file 1). However, when either the 99mTc-SER-4 or 99mTc-IgG was incubated in PBS alone, free pertechnetate was observed after 20 h (see Additional file 1).

To ensure that the radiolabelling procedure did not adversely affect the ability of SER-4 to bind to Sn, an in vitro binding assay was developed. Binding was determined by observing a shift in retention time from 8 min and 35 s of unbound 99mTc-SER-4 (Fig. 1a) to 99mTc-SER-4 bound to Sn-Fc with a retention time of 7 min and 20 s (Fig. 1b). The binding of 99mTc-SER-4 bound to Sn-Fc was inhibited by the addition of unlabelled SER-4 antibody (Fig. 1c). The 99mTc-IgG isotype control did not bind to Sn-Fc and eluted with a retention time of 8 min and 30 s similar to that of unbound 99mTc-SER-4 (Fig. 1d).

Fig. 1
figure 1

99mTc-SER-4 binds to Sn. Binding studies were performed by incubating 99mTc-SER-4 and Sn-Fc followed by analysis with radio-HPLC size exclusion chromatography. a 99mTc-SER-4 elutes at 8 min and 35 s. b 99mTc-SER-4 was added to Sn-Fc and an elution peak at 7 min and 20 s was observed corresponding to the 99mTc-SER-4 bound to Sn-Fc. c When 99mTc-SER-4 was added to Sn-Fc protein in the presence of unlabelled SER-4, no binding was observed and only the 99mTc-SER-4 elution peak was observed. d 99mTc-IgG isotype control did not bind to Sn-Fc with a peak elution time similar to 99mTc-SER-4 of 8 min and 35 s

Full size image

We did not run an SDS-PAGE to show that the antibody remains intact as the radiolabeled antibody is still able to bind >99 % to Sn antigen which is completely blocked by cold antigen in a competitive binding assay.

Biodistribution of 99mTc-SER-4 in mice

C57BL/6 wild-type mice, injected with 20 MBq of 99mTc-SER-4, were imaged at 0.5, 1, 3 and 6 h post injection (Fig. 2). At 1 h, 99mTc-SER-4 uptake was already observed in the spleen, liver and bone marrow, which were the expected locations of Sn+ macrophages. Additionally, bladder uptake is consistent with previous studies of directly labelled antibodies and is thought to result from transchelation of 99mTc from disulphides to endogenous cysteine [31]. It has been previously shown that antibodies labelled via the direct labelling method which were then challenged with cysteine led to ~10 % translocation of the Tc-99 m to the cysteine [32].

Fig. 2
figure 2

99mTc-SER-4 NanoSPECT/CT imaging and biodistribution of Sn+ macrophages. C57Bl/6 wild-type (WT) mice were imaged a 0.5 h, b 1 h, c 3 h and d 6 h post injection with 99mTc-SER-4. Arrows indicate uptake of tracer by Sn+ macrophages in the spleen (S), liver (L) and bone marrow (BM). After imaging, C57BL/6 wild-type (WT) mice were euthanized and tissues explanted, weighed and gamma counted. Maximum intensity projections are shown. e 99mTc-SER-4 biodistributions at 1, 3 and 6 h post injection were expressed as percentage injected dose per gram of tissue (%ID/g). Error bars represent the standard error of the mean of n = 3

Full size image

Blood levels of 99mTc-SER-4 continued to drop between 3 and 6 h. After imaging, mice were euthanized and standard radioactive biodistribution was performed. The biodistribution results confirmed the non-invasive SPECT/CT images (Fig. 2e). 99mTc-SER-4 clears the blood rapidly with 66.7 %ID/g in the blood immediately post injection to 15.0 ± 0.9 %ID/g at 6 h with a clearance half-life in blood of 167 min (p = 0.0004). This is significantly faster blood clearance than expected for most radiolabelled monoclonal antibodies.

As a control, 99mTc-SER-4 or 99mTc-IgG isotype was injected into Sn-/- or C57BL/6 wild-type mice, respectively, and imaged by nanoSPECT/CT at 3 h post injection (Fig. 3). Both 99mTc-SER-4 and 99mTc-IgG remained in the blood of Sn-/- or wild-type mice, respectively, and reflected the typical biodistribution expected of a 150-kDa radiolabelled monoclonal antibody. Biodistribution results confirmed the SPECT/CT images where the majority of the 99mTc-SER-4 (200 ± 66.0 %ID/g) was observed in the spleen of wild-type mice. Splenic uptake was lower for 99mTc-SER-4 (8.3 ± 1.1 %ID/g) or 99mTc-IgG (16.5 ± 2.6 %ID/g) in Sn-/- or wild-type mice, respectively (p = 0.0029 and 0.0025, respectively). The majority of 99mTc-IgG (52.9 ± 7.0 %ID/g) in wild-type mice was retained in the blood as compared to 99mTc-SER-4 in wild-type mice (26.1 ± 5.4 %ID/g) (Fig. 3d) (p = 0.002). Staining of spleen sections from wild-type mice with SER-4 gave the distinctive stain of Sn+ marginal metallophilic macrophages (MMM) in the internal border of the white pulp (Additional file 2). Raw biodistribution data for blood clearance and controls are available in supplemental data (Additional files 3 and 4).

Fig. 3
figure 3

99mTc-IgG and 99mTc-SER-4 nanoSPECT/CT imaging and biodistribution in C57Bl/6 wild-type (WT) and Sn-/- (KO) mice. Imaging was performed 3 h post injection on C57Bl/6 WT mice with a 99mTc-IgG isotype control or b 99mTc-SER-4 or c Sn-/- mice with 99mTc-SER-4. Arrows indicate signal arising from carotid arteries (CA), heart (H), aorta (A) and bladder (B). Maximum intensity projections are shown. d Biodistribution of 99mTc-SER-4 in C57Bl/6 wild-type, Sn-/- and 99mTc-IgG isotype control in C57Bl/6 wild-type mice were expressed as percentage injected dose per gram of tissue (%ID/g). Error bars represent the standard error of the mean of n = 5

Full size image

Non-invasive imaging of 99mTc-SER-4 targets Sn+ macrophages in heterotopic cardiac transplantations

Seven days after transplantation of allogeneic or syngeneic heart grafts into the abdomen, recipients underwent nanoSPECT/CT imaging at 3 h post injection of 99mTc-SER-4 (Fig. 4). Uptake was observed in the allogeneic graft in the abdomen of recipients (Fig. 4a) but not in recipients receiving a syngeneic graft (Fig. 4b). Again, high levels of 99mTc-SER-4 were observed in the spleen, liver and bone marrow with only low levels of uptake in non-target tissues.

Fig. 4
figure 4

99mTc-SER-4 nanoSPECT/CT imaging of Sn+ macrophages in heterotopic cardiac transplant model. Representative maximum intensity projection nanoSPECT/CT images of recipients with either a allogeneic or b syngeneic heart graft imaged 3 h post injection with 99mTc-SER-4. CT, SPECT and fused images from coronal (c, d, e, respectively) and transversal (f, g, h, respectively) planes are also shown. Arrows indicate site of abdominal cardiac transplant with uptake of tracer in allogeneic heart graft that are absent in the syngeneic heart graft model

Full size image

Biodistribution data confirmed a significantly higher uptake of 99mTc-SER-4 in the allogeneic heart grafts (9.4 ± 2.7 %ID/g) compared to syngeneic heart graft (4.3.0 ± 0.3 %ID/g) (p = 0.0022) or in mice which received allogeneic grafts and injected with 99mTc-IgG isotype control (5.9 ± 0.6 % ID/g) (p = 0.0185) (Fig. 4). Given that 50.3 ± 2.2 %ID/g of the 99mTc-IgG isotype control was observed at 4 h in the blood, transplanted heart to blood ratios were also calculated. The heart to blood ratio was significantly higher in recipients with allogeneic grafts receiving 99mTc-SER-4 as compared to recipients with syngeneic grafts (p = 0.000004) or recipients with allogeneic grafts receiving 99mTc-IgG isotype (p = 0.000002) (Fig. 5). Raw biodistribution data for transplanted mice is available in supplemental data (Additional file 5).

Fig. 5
figure 5

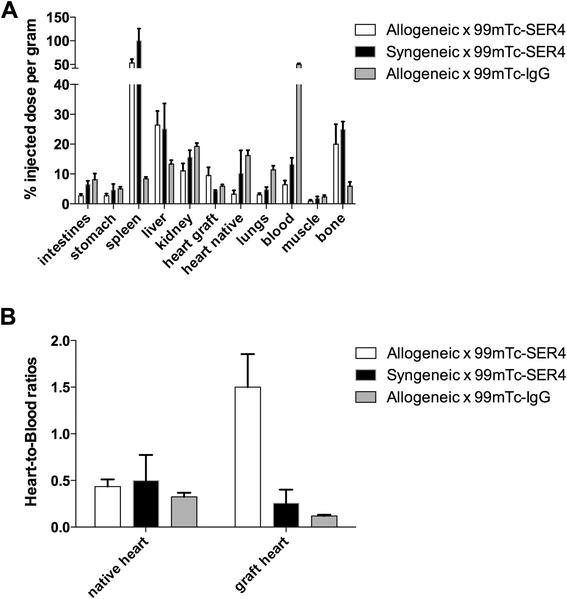

Biodistribution of 99mTc-SER-4 in heterotopic cardiac transplant model. a Biodistribution of 99mTc-SER-4 in recipients of allogeneic heart graft, syngeneic heart grafts or allogeneic heart grafts at 4 h post injection of 99mTc-IgG isotype control. b Transplanted heart to blood ratios for 99mTc-SER-4 in recipients of allogeneic heart graft, syngeneic heart grafts or allogeneic heart grafts injected with 99mTc-IgG isotype control. Error bars represent the standard error of the mean of n = 4–5

Full size image

The presence of Sn+ macrophages in allogeneic grafts was confirmed in transplants stained with anti-Sn. Allogeneic grafts showed an abundance of Sn+ macrophages while sporadic expression of Sn+ macrophages were observed in syngeneic grafts and minor staining in recipient’s native hearts (Fig. 6).

Fig. 6
figure 6

Cardiac histology. Histology of heterotopic cardiac sections from a allogeneic grafts and b syngeneic grafts are shown. Controls were performed by staining of both c allogeneic and d syngeneic recipient heart tissue. Images are shown at ×20 magnification (scale bar = 100 μm)

Full size image

Discussion

We have been able to perform non-invasive imaging specific for macrophages using a radiolabelled antibody. Although much is known about the phenotype of macrophages, these have not been exploited for the development of non-invasive imaging contrast agents. Monoclonal antibodies are being successfully used in immunotherapy of diseases such as cancer where they target antigens such as HER2 using trastuzumab (Herceptin), EGFR with panitumumab (Vectibix) and VEGF-A with bevacizumab (Avastin). Antibodies targeted specifically at immune cells, such as granulocytes, B and T cells, have also been evaluated as diagnostic contrast agents for the imaging of infection, rheumatoid arthritis and transplant rejection [33]. However, to date, few antibodies are used routinely for diagnostic imaging and many of these have been withdrawn from the market or are still under clinical development [34].

With macrophages being implicated, for better or worse, in many diseases, it is important to be able to target these cells non-invasively to assess prognosis as well as interim assessment of therapeutic interventions. We therefore decided to radiolabel one of the most restricted macrophage surface markers sialoadhesin (CD169). Low expression of Sn was observed in many tissue macrophages (such as in the liver, dermis and lung) but significant expression was observed in macrophages in the secondary lymphoid organs and bone marrow [12]. Sn expression can be upregulated in inflammation via inflammatory mediators such as TNF-α and type I IFN in humans, rats and pigs [15, 35, 36]. SER-4 was radiolabelled with the radioisotope 99mTc(99mTc-SER-4) and found to be stable in serum but lower stability was observed in PBS after 20 h. We then performed in vivo imaging and biodistribution studies in wild-type mice and in a murine model of heterotopic cardiac transplant. The majority of 99mTc-SER-4 monoclonal antibodies was cleared from the blood within 3 h and was located in predominately Sn+ M tissues such as the spleen, liver and bone marrow. 99mTc-SER-4 uptake was not observed in these tissues in Sn-/- mice, and 99mTc-IgG isotype control remained in the blood for the duration of the experiment. In the heterotopic cardiac transplants, it was possible to observe 99mTc-SER-4 in allogeneic heart grafts but not in syngeneic heart grafts. This was further quantified by the biodistribution studies which showed significant uptake of 99mTc-SER-4 as compared to radiolabelled isotype control or syngeneic. Histology of the transplanted grafts also demonstrated the presence of Sn+ macrophages in the allogeneic heart grafts, and only sporadic expression was observed in the syngeneic or native hearts.

Conventional wisdom tells us that monoclonal antibodies are too large for fast real-time in vivo imaging as they take several days to clear from the blood and also penetrate tissue slowly. However, if one is able to clear non-targeted radiolabelled antibodies quickly from circulation by either providing a fast excretion route via the kidney or liver (which is unlikely for large antibodies) or an endogenous “sink” (identified by biodistribution to be predominantly bone marrow, liver and spleen), then significant targeting of regions of interests may be possible even with low target to background ratios. We have previously also seen evidence of this sink when using antibodies targeting macrophages at 24 h post injection [8]. To note, we did see non-specific uptake in the kidney using 99mTc-SER-4 biodistribution data which may question its suitability for imaging macrophage infiltration in kidney transplants.

More recent studies have indicated a role for macrophage-mediated rejection as a contributing factor for the progressive decline in graft function, indicating that current immunosuppressive treatment protocols fail to keep at bay the potent effector responses of the adaptive immune system [37]. This imaging technique could equally be used in imaging a model of chronic rejection, and as with acute rejection, the current view is that macrophages promote worse graft outcome through the release of inflammatory mediators and regulation of the cytokine dynamics [38]. Macrophages are a major component of inflammatory infiltrates in rejecting allografts [39]. Macrophages are rapidly recruited to sites of inflammation including allografts where they are responsive to type I interferons, while at the same time potent producers of pro-inflammatory cytokines such as IL-1, IL-6 and TNF-beta [40]. The early infiltration of macrophages post organ transplantation has been observed in biopsies demonstrating acute cellular rejection as well as in acute humoral rejection and has been shown to be associated with relatively poor allograft survival [41]. More recently, increased monocyte expression of sialoadhesin was observed during acute cellular rejection after intestine transplantation in children [42].

Conclusions

Radiolabelled SER4 has demonstrated the ability to specifically image non-invasively pro-inflammatory macrophage infiltrate into rejected grafts, which may provide an important additional tool for the monitoring of transplanted organs.

Abbreviations

mAb:

monoclonal antibody

MRI:

magnetic resonance imaging

Sn:

sialoadhesin

SPECT:

single-photon emission computed tomography

SPIO:

superparamagnetic iron oxide

References

  1. Mosser DM, Edwards JP. Exploring the full spectrum of macrophage activation. Nat Rev Immunol. 2008;8:958–69.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  2. Pollard JW. Trophic macrophages in development and disease. Nat Rev Immunol. 2009;9:259–70.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  3. Taylor PR, Martinez-Pomares L, Stacey M, Lin HH, Brown GD, Gordon S. Macrophage receptors and immune recognition. Annu Rev Immunol. 2005;23:901–44.

    Article  CAS  PubMed  Google Scholar

  4. Zola H, Swart B, Nicholson I, Voss E. Leukocyte and stromal cell molecules: the CD markers. Hoboken: Wiley-Liss; 2007.

    Google Scholar

  5. Beckmann N, Cannet C, Babin AL, Ble FX, Zurbruegg S, Kneuer R, et al. In vivo visualization of macrophage infiltration and activity in inflammation using magnetic resonance imaging. Rev Nanomed Nanobiotechnol. 2009;1:272–98.

    Article  CAS  Google Scholar

  6. Berry DJ, Ma Y, Ballinger JR, Tavare R, Koers A, Sunassee K, et al. Efficient bifunctional gallium-68 chelators for positron emission tomography: tris(hydroxypyridinone) ligands. Chem Commun. 2011;47:7068–70.

    Article  CAS  Google Scholar

  7. Van Hemert FJ, Voermans C, Van Eck-Smit BL, Bennink RJ. Labeling monocytes for imaging chronic inflammation. J Nucl Med Mol Imaging. 2009;53:78–88.

    Google Scholar

  8. Terry SY, Boerman OC, Gerrits D, Franssen GM, Metselaar JM, Lehmann S, et al. 111In-anti-F4/80-A3-1 antibody: a novel tracer to image macrophages. Eur J Nucl Med Mol Imaging. 2015;42:1430–8.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  9. Eichendorff S, Svendsen P, Bender D, Keiding S, Christensen EI, Deleuran B, et al. Biodistribution and PET imaging of a novel [68Ga]-anti-CD163-antibody conjugate in rats with collagen-induced arthritis and in controls. Mol Imaging Biol. 2015;17:87–93.

    Article  PubMed  Google Scholar

  10. Sun X, Gao D, Gao L, Zhang C, Yu X, Jia B, et al. Molecular imaging of tumor-infiltrating macrophages in a preclinical mouse model of breast cancer. Theranostics. 2015;5:597–608.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  11. Boutin H, Murray K, Pradillo J, Maroy R, Smigova A, Gerhard A, et al. 18 F-GE-180: a novel TSPO radiotracer compared to 11C-R-PK11195 in a preclinical model of stroke. Eur J Nucl Med Mol Imaging. 2015;42:503–11.

    Article  CAS  PubMed  Google Scholar

  12. Crocker PR, Gordon S. Mouse macrophage hemagglutinin (sheep erythrocyte receptor) with specificity for sialylated glycoconjugates characterized by a monoclonal antibody. J Exp Med. 1989;169:1333–46.

    Article  CAS  PubMed  Google Scholar

  13. Klaas M, Crocker PR. Sialoadhesin in recognition of self and non-self. Semin Immunopathol. 2012;34:353–64.

    Article  CAS  PubMed  Google Scholar

  14. O'Neill AS, van den Berg TK, Mullen GE. Sialoadhesin—a macrophage-restricted marker of immunoregulation and inflammation. Immunology. 2013;138:198–207.

    Article  PubMed Central  PubMed  Google Scholar

  15. Hartnell A, Steel J, Turley H, Jones M, Jackson DG, Crocker PR. Characterization of human sialoadhesin, a sialic acid binding receptor expressed by resident and inflammatory macrophage populations. Blood. 2001;97:288–96.

    Article  CAS  PubMed  Google Scholar

  16. Ikezumi Y, Suzuki T, Hayafuji S, Okubo S, Nikolic-Paterson DJ, Kawachi H, et al. The sialoadhesin (CD169) expressing a macrophage subset in human proliferative glomerulonephritis. Nephrol Dial Transplant. 2005;20:2704–13.

    Article  CAS  PubMed  Google Scholar

  17. Nath D, Hartnell A, Happerfield L, Miles DW, Burchell J, Taylor-Papadimitriou J, et al. Macrophage-tumour cell interactions: identification of MUC1 on breast cancer cells as a potential counter-receptor for the macrophage-restricted receptor, sialoadhesin. Immunology. 1999;98:213–9.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  18. Martinez-Pomares L, Gordon S. CD169+ macrophages at the crossroads of antigen presentation. Trends Immunol. 2012;33:66–70.

    Article  CAS  PubMed  Google Scholar

  19. Asano K, Nabeyama A, Miyake Y, Qiu CH, Kurita A, Tomura M, et al. CD169-positive macrophages dominate antitumor immunity by crosspresenting dead cell-associated antigens. Immunity. 2011;34:85–95.

    Article  CAS  PubMed  Google Scholar

  20. Phan TG, Green JA, Gray EE, Xu Y, Cyster JG. Immune complex relay by subcapsular sinus macrophages and noncognate B cells drives antibody affinity maturation. Nat Immunol. 2009;10:786–93.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  21. Barral P, Polzella P, Bruckbauer A, van Rooijen N, Besra GS, Cerundolo V, et al. CD169(+) macrophages present lipid antigens to mediate early activation of iNKT cells in lymph nodes. Nat Immunol. 2010;11:303–12.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  22. Backer R, Schwandt T, Greuter M, Oosting M, Jungerkes F, Tuting T, et al. Effective collaboration between marginal metallophilic macrophages and CD8+ dendritic cells in the generation of cytotoxic T cells. Proc Natl Acad Sci U S A. 2010;107:216–21.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  23. Poderoso T, Martinez P, Alvarez B, Handler A, Moreno S, Alonso F, et al. Delivery of antigen to sialoadhesin or CD163 improves the specific immune response in pigs. Vaccine. 2011;29:4813–20.

    Article  CAS  PubMed  Google Scholar

  24. Ip CW, Kroner A, Crocker PR, Nave KA, Martini R. Sialoadhesin deficiency ameliorates myelin degeneration and axonopathic changes in the CNS of PLP overexpressing mice. Neurobiol Dis. 2007;25:105–11.

    Article  CAS  PubMed  Google Scholar

  25. Kobsar I, Oetke C, Kroner A, Wessig C, Crocker P, Martini R. Attenuated demyelination in the absence of the macrophage-restricted adhesion molecule sialoadhesin (Siglec-1) in mice heterozygously deficient in P0. Mol Cell Neurosci. 2006;31:685–91.

    Article  CAS  PubMed  Google Scholar

  26. Wu C, Rauch U, Korpos E, Song J, Loser K, Crocker PR, et al. Sialoadhesin-positive macrophages bind regulatory T cells, negatively controlling their expansion and autoimmune disease progression. J Immunol. 2009;182:6508–16.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  27. Xiong YS, Zhou YH, Rong GH, Wu WL, Liang Y, Yang ZX, et al. Siglec-1 on monocytes is a potential risk marker for monitoring disease severity in coronary artery disease. Clin Biochem. 2009;42:1057–63.

    Article  CAS  PubMed  Google Scholar

  28. Hariharan S, Johnson CP, Bresnahan BA, Taranto SE, McIntosh MJ, Stablein D. Improved graft survival after renal transplantation in the United States, 1988 to 1996. N Engl J Med. 2000;342:605–12.

    Article  CAS  PubMed  Google Scholar

  29. Badar A, DeFreitas S, McDonnell JM, Yahya N, Thakor D, Razavi R, et al. Recombinant complement receptor 2 radiolabeled with [99mTc(CO)3]+: a potential new radiopharmaceutical for imaging activated complement. PLoS One. 2011;6, e18275.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  30. Corry RJ, Winn HJ, Russell PS. Heart transplantation in congenic strains of mice. Transplant Proc. 1973;5:733–5.

    CAS  PubMed  Google Scholar

  31. Hnatowich DJ, Mardirossian G, Rusckowski M, Fogarasi M, Virzi F, Winnard Jr P. Directly and indirectly technetium-99 m-labeled antibodies—a comparison of in vitro and animal in vivo properties. J Nucl Med. 1993;34:109–19.

    CAS  PubMed  Google Scholar

  32. Sykes TR, Woo TK, Baum RP, Qi P, Noujaim AA. Direct labeling of monoclonal antibodies with technetium-99 m by photoactivation. J Nucl Med. 1995;36:1913–22.

    CAS  PubMed  Google Scholar

  33. Malviya G, Galli F, Sonni I, Pacilio M, Signore A. Targeting T and B lymphocytes with radiolabelled antibodies for diagnostic and therapeutic applications. J Nucl Med Mol Imaging. 2010;54:654–76.

    CAS  Google Scholar

  34. Goldsmith SJ, Signore A. An overview of the diagnostic and therapeutic use of monoclonal antibodies in medicine. J Nucl Med Mol Imaging. 2010;54:574–81.

    CAS  Google Scholar

  35. van den Berg TK, van Die I, de Lavalette CR, Dopp EA, Smit LD, van der Meide PH, et al. Regulation of sialoadhesin expression on rat macrophages. Induction by glucocorticoids and enhancement by IFN-beta, IFN-gamma, IL-4, and lipopolysaccharide. J Immunol. 1996;157:3130–8.

    PubMed  Google Scholar

  36. Delputte PL, Van Breedam W, Delrue I, Oetke C, Crocker PR, Nauwynck HJ. Porcine arterivirus attachment to the macrophage-specific receptor sialoadhesin is dependent on the sialic acid-binding activity of the N-terminal immunoglobulin domain of sialoadhesin. J Virol. 2007;81:9546–50.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  37. Li XC. The significance of non-T-cell pathways in graft rejection: implications for transplant tolerance. Transplantation. 2010;90:1043–7.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  38. Salehi S, Reed EF. The divergent roles of macrophages in solid organ transplantation. Curr Opin Organ Transplant. 2015;20:446–53.

    Article  CAS  PubMed  Google Scholar

  39. Langrehr JM, White DA, Hoffman RA, Simmons RL. Macrophages produce nitric oxide at allograft sites. Ann Surg. 1993;218:159–66.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  40. Kimura A, Naka T, Kishimoto T. IL-6-dependent and -independent pathways in the development of interleukin 17-producing T helper cells. Proc Natl Acad Sci U S A. 2007;104:12099–104.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  41. Pilmore HL, Painter DM, Bishop GA, McCaughan GW, Eris JM. Early up-regulation of macrophages and myofibroblasts: a new marker for development of chronic renal allograft rejection. Transplantation. 2000;69:2658–62.

    Article  CAS  PubMed  Google Scholar

  42. Ashokkumar C, Gabriellan A, Ningappa M, Mazariegos G, Sun Q, Sindhi R. Increased monocyte expression of sialoadhesin during acute cellular rejection and other enteritides after intestine transplantation in children. Transplantation. 2012;93:561–4.

    Article  CAS  PubMed  Google Scholar
