Open Access

Effect of postconditioning on dynamic expression of tenascin-C and left ventricular remodeling after myocardial ischemia and reperfusion

  • Junichi Taki1Email author,
  • Anri Inaki1,
  • Hiroshi Wakabayashi1,
  • Ichiro Matsunari2,
  • Kyoko Imanaka-Yoshida3,
  • Kazuma Ogawa4,
  • Michiaki Hiroe5,
  • Kazuhiro Shiba6,
  • Toshimichi Yoshida3 and
  • Seigo Kinuya1
EJNMMI Research20155:21

https://doi.org/10.1186/s13550-015-0100-8

Received: 6 February 2015

Accepted: 20 March 2015

Published: 2 April 2015

Abstract

Background

Tenascin-C (TNC), an extracellular matrix glycoprotein, is expressed transiently in distinct areas in association with active tissue remodeling. This study aimed to explore how ischemic postconditioning (PC) affects myocardial expression of TNC and ventricular remodeling using 125I-labeled anti-TNC antibody (125I-TNC-Ab) in a rat model of ischemia and reperfusion.

Methods

In control rats (n = 27), the left coronary artery (LCA) was occluded for 30 min followed by reperfusion for 1, 3, 7, and 14 days. PC (n = 27) was performed just after the reperfusion. At the time of the study, 125I-TNC-Ab (1.0 to 2.5 MBq) was injected. Six to 9 h later, to verify the area at risk, 99mTc-MIBI (100 to 200 MBq) was injected intravenously just after the LCA reocclusion, with the rats sacrificed 1 min later. Dual tracer autoradiography was performed to assess 125I-TNC-Ab uptake and area at risk. To examine the ventricular remodeling, echocardiography was performed 2 M after reperfusion in both groups.

Results

In control rats, 125I-TNC-Ab uptake ratio at 1 day after reperfusion was 3.73 ± 0.71 and increased at 3 days (4.65 ± 0.87), followed by a significant reduction at 7 days (2.91 ± 0.55, P < 0.005 vs 3 days) and14 days (2.01 ± 0.17, P < 0.005 vs 1 and 3 days). PC attenuated the 125I-TNC-Ab uptake throughout the reperfusion time from 1 to 14 days; 2.59 ± 0.59 at 1 day, P < 0.05: 3.10 ± 0.42 at 3 days, P < 0.005: 1.93 ± 0.37 at 7 days, P < 0.05: 1.40 ± 0.07 at 14 days, P < 0.001. In echocardiography, PC reduced the ventricular end-diastolic and systolic dimensions (1.00 ± 0.06 cm to 0.83 ± 0.14 cm (P < 0.05) and 0.90 ± 0.15 cm to 0.62 ± 0.19 cm (P < 0.05), respectively) and prevented a decline of ventricular percentage fractional shortening (10.5 ± 3.7 to 28.2 ± 10.7, P < 0.005).

Conclusions

These data indicate that 125I-TNC-Ab imaging may be a way to monitor myocardial injury, the subsequent repair process, and its response to novel therapeutic interventions like PC by visualizing TNC expression.

Keywords

Tenascin-CI-125-anti-tenascin-C antibodyPostconditioningVentricular remodelingMyocardial ischemia and reperfusion

Background

Extracellular matrix, in addition to cardiac cells, is essential to maintain the integrity of cardiac tissue and plays an important role not only in providing structural and mechanical support but also in modulating cell function. Cardiac repair after myocardial infarction is regulated through activation and suppression of the acute inflammatory process. Necrosis of cardiomyocytes provokes acute inflammation to remove dead cells and matrix debris, followed by timely infiltration of the infarcted myocardium with myofibroblasts. These secrete large amounts of extracellular matrix proteins, leading to replacement of myocardial dropout with mature collagen-based scar tissue in the infarct. These inflammatory and fibrotic processes are critically involved in the pathogenesis of ventricular remodeling, which is accompanied by changes in the structure and composition of the extracellular matrix and is a significant predictor of left ventricular dysfunction and an adverse prognosis [1].

Tenascin-C (TNC), an extracellular matrix glycoprotein, could provide important biological signaling that influences cell motility, proliferation, differentiation, survival, or apoptosis via cell-extracellular matrix interaction during tissue remodeling of various tissues [2,3]. TNC appears in the heart only in the early stages of embryonic development and is not normally expressed in the adult. However, it reappears transiently associated with myocardial injury such as myocardial infarction [4,5], hibernating myocardium [6], myocarditis [7-9], and dilated cardiomyopathy [10,11]. Its site-specific expression suggests that TNC plays important roles during tissue remodeling but also that it can serve as an indicator of myocardial disease activity.

Recently, other groups and we have reported increased serum TNC in heart failure patients, reflecting the severity and progression of ventricular remodeling [12-15]. Of particular interest is that serum levels of TNC within 1 week of infarction can be a possible predictor of ventricular remodeling and poor prognosis [16,17]. Also, our previous study implied that TNC expression might be altered if the ischemic insults were modified by cardioprotective interventions [18].

Postconditioning, defined as several repeated cycles of intermittent reperfusion and reocclusion after an index ischemia, is cardioprotective in a canine model of ischemia and reperfusion [19]. However, the effect of postconditioning on the TNC expression and left ventricular remodeling is unspecified. This prompted us to explore the effect of postconditioning on the spatial and temporal changes occurring in the expression of TNC after myocardial ischemia and reperfusion using 125I-labeled anti-tenascin-C antibody (125I-TNC-Ab) and left ventricular remodeling in a rat model of acute ischemia and reperfusion.

Methods

Animal model of acute ischemia and reperfusion

All experimental procedures involving animals were conducted in accordance with the institutional guidelines set by the Institute for Experimental Animals, Kanazawa University Advanced Science Research Center. Eight to 11-week-old male Wistar rats (n = 54) were anesthetized with an intraperitoneal administration of 40 mg of pentobarbital per kilogram and ventilated mechanically with room air. After left thoracotomy and exposure of the heart, a 7-0 polypropylene suture on a small curved needle was passed through the myocardium beneath the proximal portion of the left coronary artery (LCA), and both ends of the suture were passed through a small vinyl tube to make a snare. The suture material was pulled tight against the vinyl tube to occlude the LCA. Myocardial ischemia was confirmed by regional cyanosis of the myocardial surface and ST-segment elevation on the ECG. In control rats, LCA was occluded for 30 min and reperfusion was obtained by release of the snare and confirmed by the finding of a myocardial blush over the area at risk. In the group of rats with postconditioning, after the 30 min of LCA occlusion, 10 s of reperfusion followed by 10 s of LCA reocclusion was repeated six times at the beginning of the reperfusion. The snare was left loose on the surface of the heart for reocclusion of the LCA just before sacrifice to identify the area at risk (18). Groups of animals with and without postconditioning were studied at 1 (n = 5, 5), 3 (n = 6, 5), 7 (n = 4, 6), and 14 days (n = 6, 5, respectively) after reperfusion. At the time of the study, 125I-TNC-Ab (1.0 to 2.5 MBq) was administered via a tail vein. Six to 9 h afterward, 100 to 200 MBq of 99mTc-MIBI was injected via a tail vein just after the reocclusion of the proximal portion of the LCA for delineation of the area at risk. One minute later, the rat was euthanized and the heart was removed for analysis. The excised heart was rinsed in saline, frozen in isopentane, cooled in dry ice, and embedded in methyl cellulose. Serial short-axis heart sections 20 μm thick were obtained by sectioning on a cryostat to create a series of rings for autoradiography.

To evaluate the left ventricular remodeling 2 months after reperfusion, 30 min of LCA occlusion followed by reperfusion with (n = 6) and without postconditioning (n = 6) was performed. Two months later, echocardiography was performed to evaluate the left ventricular dimensions and function. After echocardiography, 100 to 200 MBq of 99mTc-MIBI was injected via a tail vein. One minute later, the rat was euthanized and the heart was removed for autoradiography.

Radiolabeling of anti-tenascin-C antibody

Anti-TNC mouse IgG Fab’, a mouse monoclonal antibody against TNC, clone 4F10TT, was raised by immunization of a TNC-null mouse with purified human TNC as described previously [7].

Radiolabeling of anti-TNC antibody with 125I was achieved by the chloramine-T method [20]. Briefly, [125I]sodium iodide solution (37 MBq/10 μL, Perkin Elmer, Waltham, MA) was added to 60 μL of antibody in PBS (0.32 mg/mL). Following mixing, 4 μL of chloramine-T aqueous solution (1 mg/mL) was added. After 15 min at room temperature, the reaction was quenched with 20 μL of Na2H2SO5. The crude product was purified with a PD-10 column (GE Healthcare UK Ltd., Buckinghamshire, England) with saline as the eluate. The radiochemical purity of 125I-TNC-Ab was determined by thin layer chromatography (TLC). TLC analyses were performed with silica plates (Art 5553, Merck, Darmstadt, Germany) with saline as the developing solvent. Radiochemical purity was defined as the percent protein-bound activity, which was assessed by dividing the counts at the TLC origin by the total TLC counts. Specificity of the 125I-TNC-Ab was approved by the autoradiography with 125I-labeled nonspecific antibody in the previous study [18].

Dual-tracer autoradiography

Dual tracer autoradiography of the left ventricular short axis slices was performed for the assessment of 125I-TNC-Ab uptake and ischemic area (or area at risk) demonstrated by 99mTc-MIBI image. The first autoradiographic exposure on an imaging plate (BAS-MS, Fuji Film) was performed for 15 to 20 min to visualize the area at risk expressed by 99mTc-MIBI distribution at 1 to 2 h after sacrifice. Three days later (12 half-lives of 99mTc), the second exposure was made for 7 days to image the distribution of 125I-TNC-Ab.

Data analysis

125I-TNC-Ab accumulation was evaluated in three myocardial slices at the mid-ventricular level spaced 1 mm apart. The distribution of the tracers was determined by analysis of the digitized autoradiographs. The photostimulated luminescence in each pixel (100 × 100 μm) was determined using a bioimaging analyzer (BAS-5000, Fuji Film). For quantitative analysis, the uptake values of each region of interest (ROI) were expressed as the background-corrected photostimulated luminescence per unit area (1 mm2). A background ROI was set adjacent to the left ventricle. Ischemic and normally perfused areas were defined from the 99mTc-MIBI image, and these ROIs were applied to the 125I-TNC-Ab images to evaluate the uptake of 125I-TNC-Ab. 125I-TNC-Ab uptake area was also set manually as a ROI by circumscribing the increased activity of the 125I-TNC-Ab. 125I-TNC-Ab uptake ratio was calculated by dividing the uptake value in an ischemic area by that of a normally perfused area. The ratio of 125I-TNC-Ab uptake ROI area to an ischemic ROI area was defined as the percentage of the 125I-TNC-Ab uptake area. All parameters in each rat were expressed as the average value obtained from the analysis of three representative slices.

The autoradiography in rats just administered 99mTc-MIBI after echocardiography 2 months after ischemia, and reperfusion was analyzed for myocardial viability. Area of infarction was defined arbitrarily with less than 60% of maximal 99mTc-MIBI uptakes in the three representative slices.

Immunohistochemical staining

Short axis frozen sections adjacent to the slices for autoradiography were mounted on slides. These short axial heart sections were washed with PBS and stained with mouse monoclonal anti-TNC mouse 4F10TT, the same antibody used for autoradiography, with direct immunoperoxidase technique. For paraffin sections, the heart was fixed in 4% paraformaldehyde, embedded in paraffin, and immunostained as previously described [5]. Briefly, after treatment with pepsin for 10 min for antigen retrieval, sections were incubated with anti-TNC antibody 4F10TT and subsequently with peroxidase-conjugated anti-mouse IgG Fab’ (Medical and Biological Lab Co. Ltd., Nagoya, Japan). After washing, diaminobenzidine/H2O2 solution was used to demonstrate antibody binding. The site and distribution of the expression of the TNC was examined with the aid of the hematoxylin-eosin stained slice adjacent to the immunohistochemical stained slice.

Echocardiography

Echocardiography was performed in rats with (n = 6) and without (n = 6) postconditioning at 2 months after ischemia and reperfusion under anesthesia with 1% to 2% isoflurane using Vivid 7 (GE Healthcare, Milwaukee, WI, USA) with a 14-MHz i13L linear array transducer. Three cardiac cycles of the parasternal short axis view at papillary muscle level were recorded at a frame rate of 265 per second. The images were processed offline using commercially available software (EchoPac 6.1, GE Healthcare, Milwaukee, WI, USA). The left ventricular internal dimensions at the end of diastole (LVEDD) and at the end of systole (LVESD) were measured digitally using anatomical M-mode feature. LV fractional shortening (%FS) was calculated as [(LVEDD–LVESD)/LVEDD] × 100.

Statistical analysis

All results were expressed as mean ± 1 SD. Statistical analyses were performed using a Macintosh computer with software JMP 5.0.1 J. Group comparisons were performed using Tukey-Kramer method to identify differences among groups. A value of P < 0.05 was considered statistically significant.

Results

Radiolabeling

125I-labeled anti-TNC antibody was prepared with high radiochemical yield (89%). After purification by PD-10, 125I-labeled anti-TNC antibody showed a radiochemical purity of over 99%.

Size of area with 125I-TNC-Ab uptake against area at risk

The percentages of 125I-TNC-Ab uptake areas against area at risk in rats without postconditioning at 1, 3, 7, and 14 days after reperfusion tended to decline over time (82.7% ± 8.6%, 70.6% ± 20.5%, 61.1% ± 15.1%, 63.8% ± 5.6%, respectively, P = ns) (Figure 1).

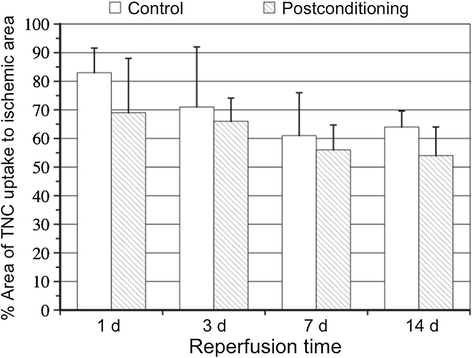

Figure 1

Time course of the percentages of 125 I-TNC-Ab uptake area against area at risk (percentage area). The percentages of 125I-TNC-Ab uptake areas without postconditioning at 1, 3, 7, and 14 days after reperfusion tended to decline over time but the differences were statistically insignificant (82.7% ± 8.6%, 70.6% ± 20.5%, 61.1% ± 15.1%, 63.8% ± 5.6%, respectively, P = ns). Postconditioning reduced the percentages of 125I-TNC-Ab uptake areas at all reperfusion times (at 1, 3, 7, and 14 days after reperfusion were 69.1% ± 6.6%, 65.9% ± 6.1%, 55.7% ± 6.5%, and 54.4% ± 3.5%, respectively) but not statistically significantly so (P = ns, vs without postconditioning).

Postconditioning reduced the percentages of 125I-TNC-Ab uptake areas against area at risk at all reperfusion times (values at 1, 3, 7, and 14 days after reperfusion were 69.1% ± 6.6%, 65.9% ± 6.1%, 55.7% ± 6.5%, and 54.4% ± 3.5%, respectively), with these differences not statistically significant (P = ns, vs without postconditioning) (Figure 1).

125I-TNC-Ab Uptake

In visual analysis, strong 125I-TNC-Ab uptake was observed in the area at risk at 1 and 3 days after reperfusion, followed by moderate uptake at 7 and 14 days after reperfusion. Postconditioning attenuated the 125I-TNC-Ab uptake throughout the course of reperfusion time (Figure 2).
Figure 2

Autoradiographies of 125 I-TNC-Ab and 99m Tc-MIBI in rats with and without postconditioning. Intense 125I-TNC-Ab uptake was observed in the area at risk that was represented by the perfusion defect of 99mTc-MIBI at 1 and 3 days after reperfusion, followed by moderate uptake at 7 and 14 days after reperfusion. Postconditioning attenuated the 125I-TNC-Ab uptake at all reperfusion times.

In the quantitative analysis, 125I-TNC-Ab uptake ratio of the rats without postconditioning at 1 day after reperfusion was 3.73 ± 0.71 and increased at 3 days (4.65 ± 0.87), followed by a significant reduction at 7 days after reperfusion (2.91 ± 0.55, P < 0.005 vs 3 days) and followed by further reduction at 14 days (2.01 ± 0.17, P < 0.005 vs 1 and 3 days).

Postconditioning reduced the 125I-TNC-Ab uptake ratio throughout the time from 1 to 14 days after reperfusion; 2.59 ± 0.59 at 1 day, P < 0.05: 3.10 ± 0.42 at 3 days, P < 0.005: 1.93 ± 0.37 at 7 days, P < 0.05, 1.40 ± 0.07 at 14 days, P < 0.001 (Figure 3).
Figure 3

Comparison between the 125 I-TNC-Ab uptake ratios in rats with and without postconditioning. 125I-TNC-Ab uptake ratio was calculated by dividing the 125I-TNC-Ab count density in the area at risk by that of non-ischemic area. 125I-TNC-Ab uptake ratio in rats without postconditioning at 1 day after reperfusion was 3.73 ± 0.71 and increased at 3 days (4.65 ± 0.87), followed by a significant reduction at 7 days after reperfusion (2.91 ± 0.55, P < 0.005 vs 3 days) and a further reduction at 14 days (2.01 ± 0.17, P < 0.005 vs 1 and 3 days). Postconditioning attenuated the 125I-TNC-Ab uptake ratio throughout the reperfusion time from 1 to 14 days; 2.59 ± 0.59 at 1 day, P < 0.05: 3.10 ± 0.42 at 3 days, P < 0.005: 1.93 ± 0.37 at 7 days, P < 0.05, 1.40 ± 0.07 at 14 days, P < 0.001.

Histopathological findings

At 1 to 3 days after ischemia and reperfusion, muscle lysis, muscle destruction, and coagulation necrosis of cardiomyocytes with severe inflammatory cell infiltration were observed in the infarcted area. TNC deposition was observed throughout the infarcted area with inflammation, though strong staining was limited to the border zone between infracted and intact areas. No TNC expression was detected in the intact area. This TNC expression pattern was not changed significantly by postconditioning, but staining of TNC tended to be weaker in both border zone and infarcted area. Then, necrotic tissue was gradually replaced by granulation tissue with attenuation of inflammation. TNC deposition gradually decreased until day 14. With postconditioning, the spatiotemporal pattern of TNC deposition came to resemble that of control animals, while the degree of staining became weaker (Figure 4).
Figure 4

Immunostaining for TNC at 3, 7, and 14 days after reperfusion with and without postconditioning is presented. Strong TNC brown staining was seen in border zone between intact and infarcted area, and also scattered brown staining was seen throughout the infarcted area at 3 days after reperfusion. With postconditioning, TNC staining tended to be weaker in both border zone and infarcted area. At 7 and 14 days after reperfusion, TNC staining became weaker at both border zone and infarcted area. With postconditioning, TNC staining at both border zone and infarcted area became weaker. Intact, intact area; Inf, infarcted area; Scale bars, 100 μm.

Left ventricular remodeling at 2 months after reperfusion

Echocardiographic data at 2 months after ischemia and reperfusion are given in Figure 4. Heart rate in control rats and postconditioning was similar (389 ± 8.7/min and 401 ± 32/min, respectively, P = 0.40). Postconditioning reduced the LVEDD (1.00 ± 0.063 cm to 0.83 ± 0.14 cm, P < 0.05) (Figure 5a) and LVESD (0.90 ± 0.15 cm to 0.62 ± 0.19 cm, P < 0.05) (Figure 5b). Postconditioning also mitigated the left ventricular dysfunction (%FS; 10.5% ± 3.7% to 28.2% ± 10.7%, P < 0.005) (Figure 5c). Infarct size (percentage of left ventricle) by autoradiography in rats with postconditioning was significantly smaller than those without postconditioning (44.5% ± 7.9% vs 59.7% ± 9.0%, P < 0.05).
Figure 5

Echocardiographic data 2 months after reperfusion in rats with and without postconditioning. Compared with control rats, postconditioning significantly reduced the LVEDD (A) (P < 0.05), LVESV (B) (P < 0.05), and improved %FS (C) (P < 0.005). Small squares indicate the mean values, and bars show standard deviation. LVEDD, left ventricular diastolic dimension; LVESD, left ventricular systolic dimension; %FS, percentage of fractional shortening; Poscon, postconditioning.

Discussion

The present study revealed that ischemic postconditioning significantly attenuated TNC expression as demonstrated by the accumulation of 125I-TNC-Ab throughout the entire period until 2 weeks after ischemia and reperfusion.

Postconditioning also attenuated left ventricular remodeling and reduced infarct size at 2 months after ischemia and reperfusion. These data suggest that attenuation of TNC expression during the acute to subacute phase of tissue healing after infarction by postconditioning might be related to the attenuation of ventricular remodeling at 2 months after myocardial infarction, although whether the relationship is cause and effect or simple association remained to be elucidated.

Since the discovery of the cardio-protective effect of postconditioning defined as rapid sequential intermittent interruption of blood flow applied during early moments of reperfusion in a canine model of 60 min of myocardial ischemia and reperfusion [19], the cardio-protective effect induced by postconditioning has been extensively investigated and confirmed in many species, including man [21]. The attenuation of cardiac injury afforded by postconditioning has been attributed to suppression of reperfusion injury with consequent attenuation of myocardial apoptosis and necrosis. Many of the primary physiological endpoints of protection during reperfusion have been investigated including delay in washout of endogeneous autacoids, reduction of inflammatory response, protection of vascular endothelium, stimulation of survival kinase and transmitter, inhibition of death kinase, preservation of mitochondrial function, and reduction of cardiomyocyte loss [21]. Although a number of protective mechanisms targeted by postconditioning have been explored, it is generally recognized that inhibition of mitochondrial permeability transition pore opening by postconditioning is the final step in a complicated series of cellular events responsible for cell protection [21-23]. After 30-m ischemia of the isolated rat heart, mitochondrial permeability transition pore opening does not occur during ischemia but does within the first 5 m of reflow [24]. Therefore, it is important to induce postconditioning just after reperfusion to inhibit mitochondrial permeability transition pore opening, at which time its effect on the reduction of tissue damage has been demonstrated.

On the other hand, the effect of postconditioning on tissue repair including interstitial signaling and remodeling has been scarcely investigated. After myocardial infarction in the permanent ligation model, TNC is markedly but transiently upregulated during the early phase of tissue repair, is predominantly produced by interstitial fibroblasts in the vicinity of the injured cardiomyocytes but not by cardiomyocytes themselves [25], and is localized in the border zone between infarcted and viable myocardium [4,5] while in a reperfusion model it is scattered throughout the infarcted area in addition to border zone [18]. TNC may exert conflicting effects on cardiac tissue repair, healing, and ventricular remodeling [26,27]. TNC may loosen the strong adhesion of cardiomyocytes from the matrix and upregulate the expression and activity of matrix metalloproteinases [28,29], promoting degradation of the extracellular matrix and slippage of myocytes and facilitate inflammatory cell infiltration within the ventricular wall, resulting in an increased risk of ventricular thinning and dilatation. However, these functions promote cell rearrangement and allow myofibroblasts and capillary vessels to spread into tissue during the restoration process. Because of the limited regenerative ability of cardiomyocytes, the interstitial cells become a major player in myocardial tissue repair, with especially myofibroblasts playing an important role in wound healing by synthesizing collagens and exerting strong contractile forces to promote wound healing [30]. It is suggested that TNC produced by interstitial cells at an early phase of myocardial infarction promotes recruitment of myofibroblasts to injured sites by accelerating migration and differentiation and enhancing traction forces [25]. Therefore, these functions of TNC may facilitate tissue healing, reinforcement of the cardiac matrix, and fibrosis and prevent ventricular dilatation by generating traction forces [5,7,25].

Although it is difficult to conclude whether TNC is more beneficial or detrimental for tissue healing and reconstruction after myocardial infarction, a timely and proper degree of TNC expression might be beneficial for myocardial tissue repair, whereas prolonged overexpression of TNC might interfere with sound tissue repair and cause inappropriate reconstruction of infarcted ventricle, resulting in so-called ventricular remodeling.

In the mice model of permanent ligation of the coronary artery, ventricular remodeling in the TNC knockout mouse was significantly reduced and cardiac function was improved compared with the wild type at day 28 after myocardial infarction [31]. In patients with acute myocardial infarction, peak serum TNC level at 5 days after infarction is an important independent predictor of prognosis, and higher TNC level is associated with a greater risk of left ventricular remodeling at 6 months after infarction, indicating that overexpression of TNC may aggravate ventricular remodeling [16]. The results of the present study were consistent with those of these animal and human studies in that less TNC expression due to postconditioning was found to be associated with less ventricular remodeling.

The application of target radionuclide imaging of regional TNC expression as proposed in the present study holds the potential to quantify the extent, amount, and localization of TNC expression and relate the pathophysiological events to the tissue repair and remodeling occurring after severe myocardial ischemia. The current study also demonstrated that the 125I-TNC-Ab imaging approach after myocardial ischemia and reperfusion provides an opportunity to monitor the effect of postconditioning, potentially leading to novel therapeutic interventions, directed at the reducing the extracellular matrix remodeling occurring after myocardial infarction.

One of the limitations of this study was that the left ventricular function was assessed on only short axis slices in echocardiography, because remodeling and dilation mainly occur on the apical part of the ventricle after anterior myocardial infarction.

For future clinical application as a SPECT agent, 123I-TNC-Ab is required. Labeling with 123I can easily be performed in the same way as for 125I. In vivo SPECT imaging by 111In-TNC-Ab has already been obtained successfully at 6 h after administration of the tracer in a rat model of 3 days after permanent coronary artery ligation. The biodistribution study of 111In-TNC-Ab showed that target-to-blood, target-to-lung, and target-to-liver ratios were 3.3, 2.0, and 0.35, respectively [32]. On the other hand, our previous study demonstrated that rapid blood clearance and retention of 125I-TNC-Ab in the infarcted area, resulting in a decent target-to-blood ratio (1.85 ± 0.14 at 5 h and 4.8 ± 1.0 at 24 h after injection) and good target-to-lung ratio (1.97 ± 0.19 at 5 h and 4.9 ± 1.2 at 24 h after injection), indicate the feasibility of in vivo imaging at 5 h or later after tracer injection [18]. However, relatively high liver uptake resulted in a low target-to-liver ratio (0.66 at 5 h and 0.82 at 24 h), suggesting that careful interpretation might be required for myocardial uptake adjacent to the liver, although the ratio was improved compared to that of 111In-TNC-Ab.

Conclusions

The present study demonstrated that postconditioning attenuates the whole process of TNC expression demonstrated by 125I-TNC-Ab after myocardial ischemia and reperfusion. Postconditioning also attenuated left ventricular remodeling at 2 months after ischemia and reperfusion. The obtained data also implied that radiolabeled TNC-Ab imaging may be useful as a noninvasive way to monitor the changes occurring during the process of myocardial injury and its repair by various therapeutic interventions after ischemia and reperfusion by visualizing TNC expression.

Abbreviations

TNC:

Tenascin-C

125I-TNC-Ab:

125I-labeled anti-tenascin-C antibody

LCA:

Left coronary artery

TLC:

Thin layer chromatography

ROI:

Region of interest

LVEDD:

Left ventricular internal dimensions at the end of diastole

LVESD:

Left ventricular internal dimensions at the end of systole

%FS:

LV fractional shortening

Declarations

Acknowledgements

This work has been supported by Grants-in-Aid for Scientific Research (C-26461847) from the Ministry of Education, Culture, Sports, Science, and Technology, Japan.

Authors’ Affiliations

(1)
Department of Nuclear Medicine, Kanazawa University Hospital
(2)
The Medical and Pharmacological Research Center Foundation
(3)
Department of Pathology and Matrix Biology, Mie University School of Medicine
(4)
Division of Pharmaceutical Sciences, Graduate School of Medical Sciences, Kanazawa University
(5)
Department of Nephrology and Cardiology, National Center for Global Health and Medicine
(6)
Division of Tracer Kinetics, Advanced Science Research Center, Kanazawa University

References

  1. White HD, Norris RM, Brown MA, Brandt PW, Whitlock RM, Wild CJ. Left ventricular end-systolic volume as the major determinant of survival after recovery from myocardial infarction. Circulation. 1987;76:44–51.View ArticlePubMedGoogle Scholar
  2. Midwood KS, Hussenet T, Langlois B, Orend G. Advances in tenascin-C biology. Cell Mol Life Sci. 2011;68:3175–99.View ArticlePubMed CentralPubMedGoogle Scholar
  3. Chiquet-Ehrismann R, Tucker RP. Tenascins and the importance of adhesion modulation. Cold Spring Harb Perspect Biol. 2011;3:a004960.View ArticlePubMed CentralPubMedGoogle Scholar
  4. Willems IE, Arends JW, Daemen MJ. Tenascin and fibronectin expression in healing human myocardial scars. J Pathol. 1996;179:321–5.View ArticlePubMedGoogle Scholar
  5. Imanaka-Yoshida K, Hiroe M, Nishikawa T, Ishiyama S, Shimojo T, Ohta Y, et al. Tenascin-C modulates adhesion of cardiomyocytes to extracellular matrix during tissue remodeling after myocardial infarction. Lab Invest. 2001;81:1015–24.View ArticlePubMedGoogle Scholar
  6. Frangogiannis NG, Shimoni S, Chang SM, Ren G, Dewald O, Gersch C, et al. Active interstitial remodeling: an important process in the hibernating human myocardium. J Am Coll Cardiol. 2002;39:1468–74.View ArticlePubMedGoogle Scholar
  7. Imanaka-Yoshida K, Hiroe M, Yasutomi Y, Toyozaki T, Tsuchiya T, Noda N, et al. Tenascin-C is a useful marker for disease activity in myocarditis. J Pathol. 2002;197:388–94.View ArticlePubMedGoogle Scholar
  8. Morimoto S, Imanaka-Yoshida K, Hiramitsu S, Kato S, Ohtsuki M, Uemura A, et al. Diagnostic utility of tenascin-C for evaluation of the activity of human acute myocarditis. J Pathol. 2005;205:460–7.View ArticlePubMedGoogle Scholar
  9. Sato M, Toyozaki T, Odaka K, Uehara T, Arano Y, Hasegawa H, et al. Detection of experimental autoimmune myocarditis in rats by 111In monoclonal antibody specific for tenascin-C. Circulation. 2002;106:1397–402.View ArticlePubMedGoogle Scholar
  10. Tamura A, Kusachi S, Nogami K, Yamanishi A, Kajikawa Y, Hirohata S, et al. Tenascin expression in endomyocardial biopsy specimens in patients with dilated cardiomyopathy: distribution along margin of fibrotic lesions. Heart. 1996;75:291–4.View ArticlePubMed CentralPubMedGoogle Scholar
  11. Tsukada B, Terasaki F, Shimomura H, Otsuka K, Otsuka K, Katashima T, et al. High prevalence of chronic myocarditis in dilated cardiomyopathy referred for left ventriculoplasty: high prevalence of chronic myocarditis in dilated cardiomyopathy referred for left ventriculoplasty: expression of tenascin C as a possible marker for inflammation. Hum Pathol. 2009;40:1015–22.View ArticlePubMedGoogle Scholar
  12. Hessel MH, Bleeker GB, Bax JJ, Henneman MM, den Adel B, Klok M, et al. Reverse ventricular remodeling after cardiac resynchronization therapy is associated with a reduction in serum tenascin-c and plasma matrix metalloproteinase-9 levels. Eur J Heart Fail. 2007;9:1058–63.View ArticlePubMedGoogle Scholar
  13. Milting H, Ellinghaus P, Seewald M, Cakar H, Bohms B, Kassner A, et al. Plasma biomarkers of myocardial fibrosis and remodeling in terminal heart failure patients supported by mechanical circulatory support devices. J Heart Lung Transplant. 2008;27:589–96.View ArticlePubMedGoogle Scholar
  14. Terasaki F, Okamoto H, Onishi K, Sato A, Shimomura H, Tsukada B, et al. Higher serum tenascin-c levels reflect the severity of heart failure, left ventricular dysfunction and remodeling in patients with dilated cardiomyopathy. Circ J. 2007;71:327–30.View ArticlePubMedGoogle Scholar
  15. Fujimoto N, Onishi K, Sato A, Terasaki F, Tsukada B, Nozato T, et al. Incremental prognostic values of serum tenascin-C levels with blood B-type natriuretic peptide testing at discharge in patients with dilated cardiomyopathy and decompensated heart failure. J Cardiac Failure. 2009;15:898–905.View ArticleGoogle Scholar
  16. Sato A, Aonuma K, Imanaka-Yoshida K, Yoshida T, Isobe M, Kawase D, et al. Serum tenascin-C might be a novel predictor of left ventricular remodeling and prognosis after acute myocardial infarction. J Am Coll Cardiol. 2006;47:2319–25.View ArticlePubMedGoogle Scholar
  17. Sato A, Hiroe M, Akiyama D, Hikita H, Nozato T, Hoshi T, et al. Prognostic value of serum tenascin-C levels on long-term outcome after acute myocardial infarction. J Card Fail. 2012;18:480–6.View ArticlePubMedGoogle Scholar
  18. Taki J, Inaki A, Wakabayashi H, Imanaka-Yoshida K, Ogawa K, Hiroe M, et al. Dynamic expression of tenascin-C after myocardial ischemia and reperfusion: assessment by 125I-anti-tenascin-C antibody imaging. J Nucl Med. 2010;51:1116–22.View ArticlePubMedGoogle Scholar
  19. Zhao ZQ, Corvera JS, Halkos ME, Kerendi F, Wang NP, Guyton RA, et al. Inhibition of myocardial injury by ischemic postconditioning during reperfusion: comparison with ischemic preconditioning. Am J Physiol Heart Circ Physiol. 2003;285:H579–88.View ArticlePubMedGoogle Scholar
  20. Wilbur DS, Hadley SW, Grant LM, Hylarides MD. Radioiodinated iodobenzoyl conjugates of a monoclonal antibody Fab fragment. In vivo comparisons with chloramine-T-labeled Fab. Bioconjug Chem. 1991;2:111–6.View ArticlePubMedGoogle Scholar
  21. Zhao ZO. Postconditioning in reperfusion injury: a status report. Cardiovasc Drugs Ther. 2010;24:265–79.View ArticlePubMedGoogle Scholar
  22. Argaud L, Gateau-Roesch O, Raisky O, Loufouat J, Robert D, Ovize M. Postconditioning inhibits mitochondrial permeability transition. Circulation. 2005;111:194–7.View ArticlePubMedGoogle Scholar
  23. Gateau-Roesch O, Argaud L, Ovize M. Mitochondrial permeability transition pore and postconditioning. Cardiovasc Res. 2006;70:264–73.View ArticlePubMedGoogle Scholar
  24. Griffiths EJ, Halestrap AP. Mitochondrial non-specific pores remain closed during cardiac ischaemia, but open upon reperfusion. Biochem J. 1995;307:93–8.PubMed CentralPubMedGoogle Scholar
  25. Tamaoki M, Imanaka-Yoshida K, Yokoyama K, Nishioka T, Inada H, Hiroe M, et al. Tenascin-C regulates recruitment of myofibroblasts during tissue repair after myocardial injury. Am J Pathol. 2005;167:71–80.View ArticlePubMed CentralPubMedGoogle Scholar
  26. Imanaka-Yoshida K, Hiroe M, Yoshida T. Interaction between cell and extracellular matrix in heart disease: multiple roles of tenascin-C in tissue remodeling. Histol Hisopathol. 2004;19:517–25.Google Scholar
  27. Imanaka-Yoshida K. Tenascin-C in cardiovascular tissue remodeling. Circ J. 2012;76:2513–20.View ArticlePubMedGoogle Scholar
  28. Kalembeyi I, Inada H, Nishiura R, Imanaka-Yoshida K, Sakakura T, Yoshida T. Tenascin-C upregulates matrix metalloproteinase-9 in breast cancer cells: direct and synergistic effects with transforming growth factor beta1. Int J Cancer. 2003;105:53–60.View ArticlePubMedGoogle Scholar
  29. Nishiura R, Noda N, Minoura H, Toyoda N, Imanaka-Yoshida K, Sakakura T, et al. Expression of matrix metalloproteinase-3 in mouse endometrial stromal cells during early pregnancy: regulation by interleukin-1alpha and tenascin-C. Gynecol Endocrinol. 2005;21:111–8.View ArticlePubMedGoogle Scholar
  30. Gabbiani G. The myofibroblast in wound healing and fibrocontractive diseases. J Pathol. 2003;200:500–3.View ArticlePubMedGoogle Scholar
  31. Nishioka T, Onishi K, Shimojo N, Toyozaki T, Tsuchiya T, Noda N, et al. Tenascin-C may aggravate left ventricular remodeling and function after myocardial infarction in mice. Am J Physiol Heart Circ Physiol. 2010;298:H1072–8.View ArticlePubMedGoogle Scholar
  32. Odaka K, Uehara T, Arano Y, Adachi S, Tadokoro H, Yoshida K, et al. Noninvasive detection of cardiac repair after acute myocardial infarction in rats by 111In Fab fragment of monoclonal antibody specific for tenascin-C. Int Heart J. 2008;49:481–92.View ArticlePubMedGoogle Scholar
