Comparison of 4′-[methyl-11C]thiothymidine (11C-4DST) and 3′-deoxy-3′-[18F]fluorothymidine (18F-FLT) PET/CT in human brain glioma imaging
EJNMMI Research volume 5, Article number: 7 (2015)
3′-deoxy-3′-[18F]fluorothymidine (18F-FLT) has been used to evaluate tumor malignancy and cell proliferation in human brain gliomas. However, 18F-FLT has several limitations in clinical use. Recently, 11C-labeled thymidine analogue, 4′-[methyl-11C]thiothymidine (11C-4DST), became available as an in vivo cell proliferation positron emission tomography (PET) tracer. The present study was conducted to evaluate the usefulness of 11C-4DST PET in the diagnosis of human brain gliomas by comparing with the images of 18F-FLT PET.
Twenty patients with primary and recurrent brain gliomas underwent 18F-FLT and 11C-4DST PET scans. The uptake values in the tumors were evaluated using the maximum standardized uptake value (SUVmax), the tumor-to-normal tissue uptake (T/N) ratio, and the tumor-to-blood uptake (T/B) ratio. These values were compared among different glioma grades. Correlation between the Ki-67 labeling index and the uptake values of 11C-4DST and 18F-FLT in the tumor was evaluated using linear regression analysis. The relationship between the individual 18F-FLT and 11C-4DST uptake values in the tumors was also examined.
11C-4DST uptake was significantly higher than that of 18F-FLT in the normal brain. The uptake values of 11C-4DST in the tumor were similar to those of 18F-FLT resulting in better visualization with 18F-FLT. No significant differences in the uptake values of 18F-FLT and 11C-4DST were noted among different glioma grades. Linear regression analysis showed a significant correlation between the Ki-67 labeling index and the T/N ratio of 11C-4DST (r = 0.50, P < 0.05) and 18F-FLT (r = 0.50, P < 0.05). Significant correlations were also found between the Ki-67 labeling index and the T/B ratio of 11C-4DST (r = 0.52, P < 0.05) and 18F-FLT (r = 0.55, P < 0.05). A highly significant correlation was observed between the individual T/N ratio of 11C-4DST and 18F-FLT in the tumor (r = 0.79, P = 0.0001).
The present study demonstrates that 11C-4DST is useful for the imaging of human brain gliomas with PET. A relatively higher background uptake of 11C-4DST in the normal brain compared to 18F-FLT limits the detection of low-tracer-uptake tumors. Moreover, no superiority was found in 11C-4DST over 18F-FLT in the evaluation of cell proliferation.

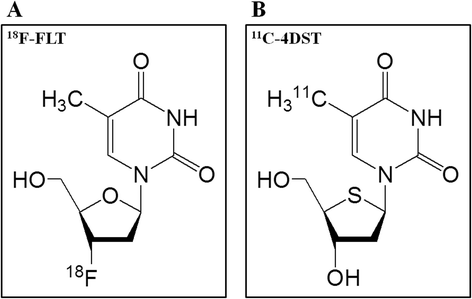

Imaging of cell proliferation and DNA synthesis is an attractive target for diagnosing and treating tumors. A fluorinated thymidine analogue, 3′-deoxy-3′-[18F]fluorothymidine (18F-FLT) (Figure 1A), has emerged as a promising positron emission tomography (PET) tracer for evaluating cell proliferation in various malignant brain tumors [1-4]. Fluorothymidine (FLT) is phosphorylated by thymidine kinase-1 (TK1) and trapped inside the cells. The application of 18F-FLT as a marker of cell proliferation is based on the assumption that cellular 18F-FLT trapping is a representation of thymidine incorporation into DNA [5,6]. However, previous studies including our recent report have shown that the major portion of 18F-FLT uptake is due to increased transport and influx through the disrupted blood-brain barrier (BBB) but not increased phosphorylation process by TK1 [7,8]. Non-enhancing tumors with an intact BBB have limited transport for the tracer, and their cell proliferation cannot be adequately assessed by 18F-FLT [4,9]. Moreover, little 18F-FLT is actually incorporated into DNA synthesis; rather, it is retained intracellularly after mono-phosphorylation by TK1 . Therefore, 18F-FLT uptake in the tumor does not reflect the whole DNA synthesis.
Recently, Toyohara et al. developed a new thymidine analogue, 4′-[methyl-11C]thiothymidine (11C-4DST) (Figure 1B), for cell proliferation PET-imaging tracer [11,12]. 11C-4DST is resistant to degradation by thymidine phosphorylase and incorporated into DNA synthesis . 11C-4DST showed high-tumor uptake (sensitivity) and high-tumor selectivity in a rodent tumor model . In a pilot study in human brain tumors, 11C-4DST showed little uptake in normal brain tissue, resulting in low-background activity for imaging brain tumors . 11C-4DST PET demonstrated rapid uptake in aggressive tumor masses, whereas no uptake of 11C-4DST was seen in clinically stable disease . 11C-4DST might be superior to 18F-FLT in evaluating cell proliferation and treatment response and predicting prognosis as 11C-4DST uptake represents the whole DNA synthesis process. The difference of radiopharmaceutical structure between 11C-4DST and 18F-FLT (Figure 1A,B) is small; however, it has been recognized that small molecular changes of the chemical structure sometimes make greater difference in the pharmacokinetics of PET tracers. The differences of thymidine kinase selectivity, nucleoside transporter subtype, and rate-limiting step enzyme between 11C-4DST and 18F-FLT may change the characterization of PET findings . No comparison has been reported between 11C-4DST and 18F-FLT for in vivo imaging tool of tumors. In the present study, we demonstrate our initial experience of 11C-4DST PET imaging and compare the images of 11C-4DST and 18F-FLT to evaluate usefulness in the diagnosis of human brain gliomas.
Twenty primary (n = 9) and recurrent (n = 11) human brain gliomas (9 men and 11 women; mean age, 52.9 ± 18.6 years; range, 22 to 79 years; median, 47 years) were included in this study (Table 1). Histopathology was examined on tissue specimens obtained by biopsy (n = 3) or resection (n = 17). Twelve patients had grade IV glioma (10 glioblastoma, 2 glioblastoma with oligodendroglioma component), 6 had grade III glioma (4 anaplastic astrocytoma, 2 anaplastic oligoastrocytoma), and 2 had grade II diffuse astrocytoma. The cellular proliferation activity of the tumor was determined by measuring the Ki-67 labeling index obtained by immunohistochemical staining with anti-Ki-67 antibody (1:50, Dako, Glostrup, Denmark). The percentage of tumor cells that stained positively for Ki-67 antigen was measured in the area containing the largest number of positive cells and was regarded as representative of the tumor proliferative activity. PET studies with 11C-4DST and 18F-FLT were performed within 1 week before the surgery. The two PET studies could be performed on the same day; however, we performed the examinations on two different days to decrease a physical burden on the patients because some of the patients were ill and the mean interval between the two examinations was 2.9 ± 1.7 days (median, 2 days). All patients underwent routine magnetic resonance imaging (MRI) examination including contrast-enhanced T1-weighted MRI. The use of 11C-4DST and 18F-FLT as a PET tracer was approved by Kagawa University, Faculty of Medicine Human Subjects Ethical Committees and informed consent was obtained from all patients before PET examination.
11C-4DST and 18F-FLT synthesis and PET acquisition
11C-4DST was synthesized according to the method described by Toyohara et al. , and the radiochemical purity of 11C-4DST was >95%. 18F-FLT was synthesized according to the method described by Martin et al. , and the radiochemical purity of 18F-FLT was >95%. All chemical reagents for tracer synthesis were purchased from commercial sources. PET examination was performed using a Biograph mCT64 PET/CT scanner (Siemens/CTI, Knoxville, TN, USA). The image systems enabled simultaneous acquisition of 74 transverses per field of view (FOV), with an intersection spacing of 3 mm, for a total axial FOV of 21.6 cm. The in-plane transverse-reconstructed resolution was 4.3 mm full width at half maximum (FWHM) in the brain FOV. No special dietary instructions were given to the patients before PET examination. Images were acquired with patients in the supine position, resting, with their eyes closed. CT data were acquired first (tube rotation time 0.6 s per revolution, 120 kV, 192 mAs, reconstructed slice thickness of 3 mm) and used for attenuation correction and anatomical localization of the tumors. For the 11C-4DST study, a dose of 229 to 587 MBq (mean, 391 ± 108 MBq) of 11C-4DST was injected intravenously, and regional emission images were obtained for 15 min, beginning 15 min after the 11C-4DST administration. For the 18F-FLT study, a dose of 237 to 342 MBq (mean, 309 ± 24 MBq) of 18F-FLT was injected intravenously, and regional emission images were obtained for 15 min, beginning 60 min after the 18F-FLT administration. Image reconstruction was performed using ordered subset expectation maximization (OSEM) with time of flight (TOF) and point spread function (PSF). The reconstruction parameters were 2 iterations and 21 subsets. The FWHM of the Gaussian filter was 3 mm.
11C-4DST and 18F-FLT uptakes were semiquantitatively assessed by evaluating the standardized uptake value (SUV). A region of interest (ROI) was set manually by an observer (N.K.) around the hottest area of each lesion or the area of tumor biopsy. The maximum value of SUV (SUVmax) of the ROI was regarded as the representative value of each tumor. To calculate the tumor-to-normal tissue uptake (T/N) ratio and the tumor-to-blood uptake (T/B) ratio, ROIs were set on the normal brain parenchyma (usually contralateral normal cerebral tissue excluding ventricles) and the vertical portion of the superior sagittal sinus with the aid of PET/CT fusion images. The mean values of SUV (SUVmean) of the ROIs were calculated. The T/N and T/B ratios were determined by dividing the SUVmax of the tumor with the SUVmean of the normal brain and the superior sagittal sinus.
All parametric data were expressed as mean ± SD. Paired Student t-test was used to compare the individual uptake values of 11C-4DST and 18F-FLT in the normal brain and tumor. Differences in the uptake values of 11C-4DST and 18F-FLT among different glioma grades were compared using analysis of variance. Linear regression analysis was used to evaluate the relationship between the uptake values of 11C-4DST and 18F-FLT and the Ki-67 labeling index of the tumor. The relationship between the individual 11C-4DST and 18F-FLT uptake in the tumor was also examined by linear regression analysis. Differences were considered statistically significant at a P value of less than 0.05.
Both 11C-4DST and 18F-FLT showed little uptake in the normal brain, and 11C-4DST uptake was visually higher than 18F-FLT in almost all cases. 11C-4DST showed a high uptake in the choroid plexus, whereas 18F-FLT showed a faint uptake. 11C-4DST and 18F-FLT provided identical PET images of the tumor in many cases (Figure 2A). Two primary diffuse astrocytomas that had no contrast enhancement in the tumor could not be visualized with 11C-4DST. One of the two diffuse astrocytomas could be visualized with 18F-FLT but the other could not. One recurrent glioblastoma with oligodendroglioma component that had multiple spotty enhancements in contrast-enhanced MRI was faintly visualized with 11C-4DST but well visualized with 18F-FLT (Figure 2B). In total, 2 of 20 tumors were well visualized only in 18F-FLT PET.
In the normal brain, 11C-4DST uptake was significantly higher than 18F-FLT (SUVmean; 0.34 ± 0.06 vs. 0.19 ± 0.04, P < 0.001 by paired t-test). Individual 11C-4DST SUVmax in the tumor was almost comparable to 18F-FLT except a few cases. Therefore, the average T/N ratio of 18F-FLT in the tumor was significantly higher than that of 11C-4DST (10.55 ± 5.45 vs. 5.96 ± 3.86, P < 0.001 by paired t-test) resulting in better tumor visualization with 18F-FLT. The average 11C-4DST T/N ratio in WHO grade II (n = 2), III (n = 6), and IV (n = 12) gliomas was 1.16 ± 0.14, 5.82 ± 2.8, and 6.75 ± 4.25, respectively. No significant differences of 11C-4DST T/N ratio were observed among different glioma grades. The average 18F-FLT T/N ratio in WHO grade II, III, and IV gliomas was 2.23 ± 0.68, 11.65 ± 5.63, and 11.39 ± 4.78, respectively. Again, no significant differences of 18F-FLT T/N ratio were observed among different glioma grades.
Correlation between Ki-67 index and uptake values of 11C-4DST and 18F-FLT
Linear regression analysis showed a significant correlation between the Ki-67 labeling index in the tumor and the SUVmax of 11C-4DST (r = 0.46, P < 0.05) and 18F-FLT (r = 0.49, P < 0.05) (Figure 3A). Moreover, a significant correlation was observed between the Ki-67 labeling index in the tumor and the T/N ratio of 11C-4DST (r = 0.50, P < 0.05) and 18F-FLT (r = 0.50, P < 0.05) (Figure 3B). A significant correlation was also observed between the Ki-67 labeling index and the T/B ratio of 11C-4DST (r = 0.52, P < 0.05) and 18F-FLT (r = 0.55, P < 0.05) (Figure 3C).
Correlation between individual 11C-4DST and 18F-FLT uptake values
A highly significant correlation was observed between the individual SUVmax of 11C-4DST and 18F-FLT in the tumor (r = 0.71, P < 0.001) (Figure 4A). A highly significant correlation was also observed between the individual T/N ratio of 11C-4DST and 18F-FLT in the tumor (r = 0.79, P = 0.0001) (Figure 4B).
In the present study, we demonstrate three important findings in the comparison of imaging between 11C-4DST and 18F-FLT for clinical application. Firstly, both tracers had low-background activity in the normal brain and were able to visualize the tumor well except one non-enhancing primary diffuse astrocytoma in which both tracers failed to visualize the tumor. Both tracers had similar uptake values in the tumor, but the 18F-FLT uptake in the normal brain was relatively lower than that of 11C-4DST, resulting in better tumor visualization with 18F-FLT. Secondly, a significant correlation was observed between the Ki-67 labeling index and the uptake values of 11C-4DST and 18F-FLT in the tumor. We hypothesized that 11C-4DST is superior to 18F-FLT in evaluating cell proliferation as 11C-4DST uptake represents the whole DNA synthesis process. However, the correlation coefficients of 11C-4DST uptake values to the Ki-67 labeling index were slightly lower than those of 18F-FLT. Finally, a strong correlation was observed between the individual 11C-4DST and 18 F-FLT uptake values in the tumor.
For oncological use, measurement of the cell proliferation and DNA synthesis is an attractive target for imaging. A fluorinated thymidine analogue, 18F-FLT, has emerged as a PET tracer for evaluating tumor-proliferating activity in various brain tumors [1-4]. However, 18F-FLT has several limitations in clinical use that have been reported in previous studies [4,7-9]. Most critically, little 18F-FLT is actually incorporated into DNA synthesis, and 18F-FLT uptake in the tumor does not reflect the whole of DNA synthesis [7,8,10]. With the drawbacks of 18F-FLT, efforts were made to produce a more attractive PET tracer that can be used to evaluate tumor malignancy and cell proliferation accurately. Toyohara et al. focused on the 4′-thiothymidine (4DST) because of its metabolic stability and close similar structure to native thymidine . They synthesized 14C-labeled 4DST (14C-4DST) as a model compound of 11C-labeled alternative and demonstrated the evidence that 11C-4DST matches the concept of the ideal DNA-synthesis-imaging agent . Feasibility studies of 11C-4DST in rodent tumor models showed higher uptake than that of 18F-FLT and reflect the DNA synthesis rate [12,13]. Usefulness of 11C-4DST for the imaging of human brain tumors with PET was investigated in a recent pilot study by comparing the images of 11C-4DST and [11C]methionine (11C-MET) in six patients with various brain tumors . There was little uptake of 11C-4DST in the normal brain and rapidly growing brain tumors that were well visualized in contrast-enhanced MRI and 11C-MET PET were clearly seen in 11C-4DST PET. Although 11C-MET detected all the enhanced lesions in MRI, clinically stable (non-aggressive) tumors with enhancement were not detected with 11C-4DST. In addition, the distribution pattern of 11C-4DST in the tumor was not always identical to that of 11C-MET. Here, we report the first clinical study of comparing two nucleoside PET tracers for DNA synthesis, 11C-4DST and 18F-FLT, for in vivo imaging of human brain gliomas. 11C-4DST PET images were acquired for 15 min, beginning 15 min after the administration. The start time for imaging 11C-4DST was earlier than that for 18F-FLT PET imaging (60 min). We confirmed that 11C-4DST uptake and distribution in the tumor was almost fixed 15 min after 11C-4DST administration in a preliminary dynamic acquisition study. Two non-enhanced diffuse astrocytomas could not be visualized with 11C-4DST suggesting that 11C-4DST does not readily cross the intact BBB, and 11C-4DST uptake in the tumor rather depends on the influx through the disrupted BBB similar to 18F-FLT. The distribution pattern and uptake value of 11C-4DST in the tumor are almost identical to those of 18F-FLT except one non-enhanced primary diffuse astrocytoma and one recurrent glioblastoma with oligodendroglioma component in which only 18F-FLT could detect the tumor well, whereas 11C-4DST showed no and a faint uptake in the tumors, respectively. 11C-4DST uptake in the normal brain was visually and semiquantitatively higher than 18F-FLT. A previous clinical study reported that 11C-4DST is mainly metabolized by glucuronidation in the human body and largely accumulated in the liver . Other metabolites could be nonspecifically accumulated in the normal brain. Furthermore, a recent study has demonstrated that 4DST but not FLT can be transported via the nucleoside transporters . The active transport may cause higher uptake of 11C-4DST than 18F-FLT through the intact BBB in the normal brain though the amount of 11C-4DST transport is small.
In the present study, we examined 20 patients with various grades of gliomas and a mixture of primary and recurrent cases. There are critical limitations in the present study. Firstly, the total number of gliomas enrolled in this study was small for evaluating the usefulness of this new tracer, especially low-grade glioma. Secondary, primary, and recurrent cases should be separated when evaluating the usefulness of a BBB-dependent PET tracer, such as 11C-4DST and 18F-FLT. Recently, our research group has demonstrated that 18F-FLT PET is less useful for evaluating tumor malignancy and cell proliferation in recurrent gliomas compared with newly diagnosed gliomas . In the present study, no significant differences in the T/N ratio of 18F-FLT were noted among different glioma grades. This finding is not in accordance with the findings of our previous  and recent  studies in newly diagnosed gliomas. Moreover, there is a significant correlation between the 18F-FLT uptake and the Ki-67 labeling index, but the correlation coefficient (r = 0.50) was lower compared with the findings of our previous (r = 0.89)  and recent (r = 0.81)  studies in newly diagnosed gliomas. These discrepancies might be due to the small number of patients and mixture of primary and recurrent cases. Radiotherapy used as an adjuvant treatment for malignant gliomas may cause loosening of the endothelial tight junctions, vascular leakage, or endothelial cell death and thus can increase vascular permeability not only in the BBB but also in the blood-tumor barrier . Besides increased cell proliferation in recurrent tumors, treatment-induced breakdown of the BBB and blood-tumor barrier might contribute to the degree of 18F-FLT in the tumor. This may also be the case in 11C-4DST.
Although the short physical half-life of 11C is a significant limitation for routine clinical use, 11C-4DST has benefits with regard to lower radiation burden and diagnosis using multiple tracers in 1 day. An alternative thymidine analogue labeled with a longer half-life isotope that can be incorporated into DNA synthesis is applied`easibly for clinical use and might provide additional and alternative information. As 11C-4DST uptake represents the whole DNA synthesis process, 11C-4DST PET might be superior for evaluating treatment response and predicting prognosis compared to other tracers in patients with brain gliomas.
The uptake pattern and uptake value of 11C-4DST in the tumor are similar to those of 18F-FLT, and both nucleoside tracers might be BBB dependent. Although no superiority was found in 11C-4DST over 18F-FLT in the detection of tumors and in the evaluation of cell proliferation, we consider that 11C-4DST is useful for the imaging of human brain gliomas with PET. Further studies are necessary to examine the usefulness of 11C-4DST for clinical application in evaluating treatment response and predicting prognosis.
Chen W, Cloughesy T, Kamdar N, Satyamurthy N, Bergsneider M, Liau L, et al. Imaging proliferation in brain tumors with 18F-FLT PET: comparison with 18F-FDG. J Nucl Med. 2005;46:945–52.
Choi SJ, Kim JS, Kim JH, Oh SJ, Lee JG, Kim CJ, et al. [18F]3′-deoxy-3′-fluorothymidine PET for the diagnosis and grading of brain tumors. Eur J Nucl Med Mol Imaging. 2005;32:653–9.
Saga T, Kawashima H, Araki N, Takahashi JA, Nakashima Y, Higashi T, et al. Evaluation of primary brain tumors with FLT-PET: usefulness and limitation. Clin Nucl Med. 2006;31:774–80.
Hatakeyama T, Kawai N, Nishiyama Y, Yamamoto Y, Sasakawa Y, Ichikawa T, et al. 11C-methionine (MET) and 18F-fluorothymidine (FLT) PET in patients with newly diagnosed glioma. Eur J Nucl Med Mol Imaging. 2008;35:2009–17.
Shiels AF, Grierson JR, Dohmen BM, Machulla HJ, Stayanoff JC, Lawhorn-Crews JM, et al. Imaging proliferation in vivo with [F-18]FLT and positron emission tomography. Nat Med. 1998;4:1334–6.
Been LB, Suumeijer AJH, Cobben DCP, Jager PL, Hoekstra HJ, Elsinga PH. [18F]FLT-PET in oncology: current status and opportunities. Eur J Nucl Med Mol Imaging. 2004;31:1659–72.
Shinomiya A, Kawai N, Okada M, Miyake K, Nakamura T, Kushida Y, et al. Evaluation of 3′-deoxy-3′-[18F]-fluorothymidine (18F-FLT) kinetics correlated with thymidine kinase-1 expression and cell proliferation in newly diagnosed gliomas. Eur J Nucl Med Mol Imaging. 2013;40:175–85.
Jacobs AH, Thomas A, Kracht LW, Li H, Dittmar C, Garlip G, et al. 18F-fluoro-L- thymidine and 11C-methylmethionine as markers of increased transport and proliferation in brain tumors. J Nucl Med. 2005;46:1948–58.
Muzi M, Spence AM, O’Sullivan F, Mankoff DA, Wells JM, Grierson JR, et al. Kinetic analysis of 3′-deoxy-3′-18F- fluorothymidine in patients with gliomas. J Nucl Med. 2006;47:1612–21.
Rasey JS, Grierson JR, Wiens LW, Kolb PD, Schwartz JL. Validation of FLT uptake as a measure of thymidine kinase-1 activity in A549 carcinoma cells. J Nucl Med. 2002;43:1210–7.
Toyohara J, Kumata K, Fukushi K, Irie T, Suzuki K. Evaluation of 4′-[methyl-14C] thiothymidine for in vivo DNA synthesis imaging. J Nucl Med. 2006;47:1717–22.
Toyohara J, Okada M, Toramatsu C, Suzuki K, Irie T. Feasibility studies of 4′-[methyl-11C]thiothymidine as a tumor proliferation imaging agent in mice. Nucl Med Biol. 2008;35:67–74.
Toyohara J, Elsinga PH, Ishiwata K, Sijbesma JW, Dierckx RA, van Waarde A. Evaluation of 4′-[methyl-11C]thiothymidine in a rodent tumor and inflammation model. J Nucl Med. 2012;53:488–94.
Toyohara J, Nariai T, Sakata M, Oda K, Ishii K, Kawabe T, et al. Whole-body distribution and brain tumor imaging with 11C-ADST: a pilot study. J Nucl Med. 2011;52:1322–8.
Plotnik DA, Wu S, Linn GR, Yip FCT, Comandante NL, Krohn KA, Toyohara J, Schwartz JL. In vitro analysis of transport and metabolism of 4′-thiothymidine in human tumor cells. Nucl Med Biol. 2015, http://dx.doi.org/10.1016/j.nucmedbio.2014.12.005
Martin SJ, Eisenbarth JA, Wagner-Utermann U, Mier W, Henze M, Pritzkow H, et al. A new precursor for the radiosynthesis of [18F]FLT. Nucl Med Biol. 2002;29:263–73.
Yamamoto Y, Ono Y, Aga F, Kawai N, Kudomi N, Nishiyama Y. Correlation of 18F-FLT uptake with tumor grade and Ki-67 immunohistochemistry in patients with newly diagnosed and recurrent gliomas. J Nucl Med. 2012;53:1911–5.
Cao Y, Tsien CI, Shen Z, Tatro DS, Ten Haken R, Kessler ML, et al. Use of magnetic resonance imaging to assess blood-brain/blood-glioma barrier opening during conformal radiotherapy. J Clin Oncol. 2005;23:4127–36.
This study was supported by a Grant-in-Aid for Scientific Research (B) 26293324 from the Japan Society for the Promotion of Science. We gratefully acknowledge the excellent technical support of the PET radiological technologist at our hospital.
The authors declare that they have no competing interests.
YT, KM, NK, and JT participated in the design of the study and performed the statistical analysis. Data acquisition and data analysis were performed by YY and YN. JT helped to synthesize 11C-4DST. The manuscript was prepared by YT and NK. YN and TT conceived of the study and participated in its design and coordination and helped to draft the manuscript. All authors read and approved the final manuscript.
