Potential synergy between PSMA uptake and tumour blood flow for prediction of human prostate cancer aggressiveness

EJNMMI Research volume 11, Article number: 12 (2021) Cite this article

Abstract

Background

Both prostate-specific membrane antigen (PSMA) uptake and tumour blood flow (TBF) correlate with International Society of Urological Pathology (ISUP) Grade Group (GG) and hence prostate cancer (PCa) aggressiveness. The aim of the present study was to evaluate the potential synergistic benefit of combining the two physiologic parameters for separating significant PCa from insignificant findings.

Methods

From previous studies of [82Rb]Rb positron emission tomography (PET) TBF in PCa, the 43 patients that underwent clinical [68Ga]Ga-PSMA-11 PET were selected for this retrospective study. Tumours were delineated on [68Ga]Ga-PSMA-11 PET or magnetic resonance imaging. ISUP GG was recorded from 52 lesions.

Results

[68Ga]Ga-PSMA-11 maximum standardized uptake value (SUVmax) and [82Rb]Rb SUVmax correlated moderately with ISUP GG (rho = 0.59 and rho = 0.56, both p < 0.001) and with each other (r = 0.65, p < 0.001). A combined model of [68Ga]Ga-PSMA-11 and [82Rb]Rb SUVmax separated ISUP GG > 2 from ISUP GG 1–2 and benign with an area-under-the-curve of 0.85, 96% sensitivity, 74% specificity, and 95% negative predictive value. The combined model performed significantly better than either tracer alone did (p < 0.001), primarily by reducing false negatives from five or six to one (p ≤ 0.025).

Conclusion

PSMA uptake and TBF provide complementary information about tumour aggressiveness. We suggest that a combined analysis of PSMA uptake and TBF could significantly improve the negative predictive value and allow non-invasive separation of significant from insignificant PCa.

Background

Prostate cancer (PCa) is a heterogeneous disease, and consequently, an important challenge in PCa management is differentiation of clinically significant PCa from insignificant PCa that will not cause symptoms or affect the patient’s lifetime [1]. Multiple potential predictive and prognostic biomarkers have been evaluated in studies for assessment of the tumour’s biological potential, including genetic profiling, and various imaging modalities [1,2,3].

Prostate-specific membrane antigen (PSMA) is a transmembrane protein, which is upregulated in most PCa. PSMA tracers are indisputably excellent for detection of PCa, both for detection of local recurrence and for staging of primary tumour, bone-, and lymph node metastases [4, 5]. The uptake of PSMA in the primary tumour have also been proposed as a marker of PCa aggressiveness in a number of studies [6,7,8,9]; however, in a recent large study on high-risk patients, we have demonstrated a large overlap in tumour PSMA uptake between International Society of Urological Pathology (ISUP) Grade Groups (GG) [10].

The PSMA protein is an enzyme called glutamate carboxypeptidase, which splices polygammaglutamate-folate into folate and glutamate. In the small intestine, it is referred to as folate hydrolase, which enables freeing of folate that can be absorbed from the diet. In nervous tissue it is often referred to as N-acetyl-L-aspartyl-L-glutamate peptidase, which increases the concentration of the excitatory neurotransmitter glutamate in the extracellular space, and was studied as a potential new drug target in treating various neurological and psychiatric diseases [11]. Two studies by Yao et al. showed that PSMA expression was associated with a higher cellular folate uptake [12, 13]. This could provide a rationale behind a correlation between PSMA expression and PCa aggressiveness, as folate is necessary for DNA synthesis and cell division, and hence, a higher accessibility may give a proliferative advantage. On the other hand, Ghosh et al. found that PSMA expression actually reduced the invasiveness of PCa cell lines and that a knock down of PSMA expression increased invasiveness fivefold [14]. Whether the enhanced availability of the glutamate neurotransmitter plays any role for PCa remains unanswered.

Blood flow is an essential physiologic parameter for cancer growth, and, hence, tumour blood flow (TBF) has been measured for characterization of tumours of various origins [3], amongst others in prostate-[15,16,17] lung-[18, 19], breast-[20,21,22,23], head and neck-[24], colorectal-[19, 25], and brain cancer [26].

[82Rb]Rb is an accessible clinical blood flow tracer for positron emission tomography (PET), which is used for myocardial blood flow measurement in many PET-Centres worldwide. As coincidental findings, increased [82Rb]Rb uptake was described in neuroendocrine tumours [27], breast-[28], lung-[29], and kidney cancer [30], amongst others. Recently, we validated [82Rb]Rb PET for TBF measurement in PCa [31, 32]. In a recent large clinical study, we consolidated the positive correlation between TBF and PCa aggressiveness and found [82Rb]Rb TBF superior to apparent diffusion coefficient (ADC) from multiparametric (mp) magnetic resonance imaging (MRI) in differentiating between clinically significant and insignificant PCa [33]. Inflammatory lesions displayed increased [82Rb]Rb TBF [33].

Both PSMA-uptake and TBF in PCa correlate with PCa aggressiveness. However, the two physiologic parameters have not previously been studied together. From our previous studies regarding TBF in clinical PCa patients, we have access to a sub-cohort, who underwent both [68Ga]Ga-PSMA-11- and [82Rb]Rb PET/computed tomography (CT). Hence, the aim of the present study was to evaluate whether the two physiologic parameters are associated and whether there is a synergistic benefit of combining them for separation of significant PCa from insignificant findings.

Methods

Patient population

Across our previous studies [31,32,33], 43 patients underwent both pelvic [82Rb]Rb PET/CT and clinical [68Ga]Ga-PSMA-11 PET/CT and thereby met the inclusion criteria for the present study. All patients were recruited at the time of primary staging and hence none had previous therapy. The designs of the three studies from which the patients originated varied, and hence, the available ISUP GG derived from either radical prostatectomy, MRI-guided biopsies, or trans-rectal ultrasound-guided biopsies. Twenty-four patients with in total 33 lesions had MR-guided in-bore biopsy. Nineteen patients had trans-rectal ultrasound-guided biopsy, and 23 patients underwent subsequent radical prostatectomy. Histopathological inflammation for each lesion was registered.

The study was approved by the institutional review board (Central Denmark Region Committees on Health Research Ethics) and all subjects signed an informed consent form.

Imaging

All [82Rb]Rb PET/CT scans but one were performed on GE Discovery MI Digital Ready PET/CT (GE Healthcare, Waukesha, Wisconsin, USA), and a single scan was performed on GE Discovery MI (5 ring) PET/CT. Details of the scan and reconstruction protocols have previously been described [31]. A bolus of [82Rb]RbCl (1110 MBq) was injected at scan start by the Cardiogen-82 generator infusion system (Bracco, Monroe Township, New Jersey, USA). The static image series of [82Rb]Rb PET (3 to7 min post-injection) were used for SUV analysis.

[68Ga]Ga-PSMA-11 PET/CT scans were performed one hour post-injection of 2.14 MBq [68Ga]Ga-PSMA-11 (68Ga-Glu-CO-Lys(Ahx)-HBED-CC) per kilogram body weight on a Siemens Biograph TruePoint PET/CT scanner (Siemens, Erlangen, Germany). 3D PET acquisitions with 3 min per bed position from vertex cranii to mid-femur were performed. Low-dose CT for attenuation correction was performed with all common corrections applied using the TrueX reconstruction algorithm (4 iterations and 21 subsets) and a 3-mm Gaussian post-filter (XYZ).

The mpMRI scans were performed according to clinical guidelines and the PIRADS v 2.1 minimum protocol [34] on 3 T platform Siemens Skyra (Siemens, Erlangen, Germany).

Image analysis

[68Ga]Ga-PSMA-11 PET/CT scans and [82Rb]Rb PET/CT scans were co-registered using the CT scan as bridge. Co-registrations with the T2 weighted sequence of the mpMRI were also carried out in the 24 patients where mpMRI was available, again using the CT scan as bridge. Volume-of-interests (VOI) were defined in two different ways. First, the tumour VOIs were defined by the [68Ga]Ga-PSMA-11 activity. The threshold used for automatic VOI drawing on [68Ga]Ga-PSMA-11 PET varied between individual patients, as no universal threshold could be defined. In two patients with basal tumour location, the bladder activity was masked. An external tumour VOI defined by the mpMRI was applied in the 24 patients with mpMRI scan available. The tumour VOIs were transferred to the [82Rb]Rb PET/CT and/or [68Ga]Ga-PSMA-11 PET/CT scans for measurement of TBF and [68Ga]Ga-PSMA-11-uptake, respectively. The analyses were mainly performed on the data from [68Ga]Ga-PSMA-11-guided VOIs; forty-eight lesions could be automatically drawn from the [68Ga]Ga-PSMA-11 hotspot, whereas the last four lesions (benign and ISUP GG-1) displayed too low activity and was drawn manually, guided by MRI. The cohort with MRI-guided VOIs was analysed for using an external modality to test the models on less biased data.

Image co-registration and VOI analysis were performed with Hermes Viewer version 5.0 (Hermes Medical Solutions, Stockholm, Sweden).

Statistical analysis

The ISUP GG used in analysis was a “best estimate”, using post-prostatectomy ISUP GG if available, otherwise MRI-guided biopsy ISUP GG if available and, if none of the previous were accessible, trans-rectal ultrasound-guided biopsy ISUP GG were used.

Q-Q-plots and histograms were used for testing data normality. Normally distributed data are reported as mean ± standard deviation and non-normally distributed data as median with range and log-transformation in parametric analysis. p values < 0.05 were considered statistically significant.

As ISUP GG is an ordinal scale, Spearman’s rank correlation (rho) was applied for analysis of correlations involving ISUP GG. For continuous variables, Pearson’s correlation (r) was applied. For correlation analysis, ISUP GG = 0 was used for benign lesions in some analyses. Receiver operating characteristic (ROC) analyses were used for calculating area under the curve (AUC), sensitivity and specificity. Negative predictive value (NPV) and positive predictive value (PPV) were calculated according to standard definitions. McNemar’s test for difference between paired nominal data was used to compare the diagnostic accuracies. The interaction between [68Ga]Ga-PSMA-11 SUVmax and [82Rb]Rb SUVmax for separation of ISUP GG was tested using ordinal and nominal logistic fit models.

Data were collected and managed using REDCap (Vanderbilt University Medical Center, Nashville, Tennessee, USA), hosted at Aarhus University [35]. Statistical analysis was performed in STATA version 16.1 (StataCorp LLC, College Station, Texas, USA) and JMP (SAS Institute Inc., Cary, North Carolina, United States).

Results

Patient characteristics are found in Table 1. In total, 52 lesions from 43 patients were analysed. The “best estimate” ISUP GG consisted of 23 lesions with post-prostatectomy ISUP GG, 17 lesions with MRI-guided biopsy ISUP GG, and 12 lesions with trans-rectal ultrasound-guided biopsy ISUP GG. Histopathological inflammation was found in six.

Table 1 Patient characteristics. Numbers represent median [range]
Full size table

The distribution of patients in different ISUP GG’s is displayed in Table 2. The heterogeneity of the cohort is caused by consecutive recruitment prior to primary histological staging for most patients. The tumour delineation was congruent on MRI, [68Ga]Ga-PSMA-11 and [82Rb]Rb PET in many cases as shown in Fig. 1a. However, as shown in Fig. 1b, [68Ga]Ga-PSMA-11-uptake and TBF could be inhomogeneous within the MRI-guided tumour VOI. In other cases, the [82Rb]Rb- and/or the [68Ga]Ga-PSMA-11-activity extended beyond the border of the MRI VOI.

Table 2 [68Ga]Ga-PSMA-11 and [82Rb]Rb uptake per ISUP GG including correlations. * Benign lesions are included as ISUP GG = 0
Full size table
Fig. 1
figure1

Demonstration of a MRI-guided tumour VOI with similar high uptake patterns of both [68Ga]Ga-PSMA-11 and [82Rb]Rb (a) and an example of inhomogeneous tracer distribution within the MRI-guided tumour VOI (b)

Full size image

Median values for [68Ga]Ga-PSMA-11 SUV-measures and mean values of [82Rb]Rb SUV-measures alongside correlations with ISUP GG are provided in Table 2.

lesions.

[68Ga]Ga-PSMA-11 SUVmax and [82Rb]Rb SUVmax are plotted against ISUP GG in Fig. 2a and 2c, respectively. ROC curves for separation based on "best estimate” ISUP GG are found in Fig. 2b and 2d for [68Ga]Ga-PSMA-11 SUVmax and [82Rb]Rb SUVmax, respectively. The results of the ROC analyses are found in Tables 3 and 4. The “model” used in these tables is extremely simple, if either the [68Ga]Ga-PSMA-11 SUVmax or [82Rb]Rb SUVmax is above their cut-off this results in a positive test. In contrast, if both are below their cut-off this results in a negative test. ISUP GG-0 and GG-1 consist of only six lesions in total, which makes the results in Table 3 uncertain.

Fig. 2
figure2

Plots of [68Ga]Ga-PSMA-11 SUVmax against ISUP GG (a) and [82Rb]Rb SUVmax against ISUP GG (c). An outlier (ISUP GG-3, SUVmax = 80) was excluded from the plot in (a) to minimize the extension of the y-axis. Bars are mean (blue square) with confidence interval (whiskers). ROC curves for [68Ga]Ga-PSMA-11 SUVmax and [82Rb]Rb SUVmax for the ability to separate at each ISUP GG (b, d)

Full size image
Table 3 ROC analysis data for separation of ISUP GG > 1 from GG-1 and benign lesions for [68Ga]Ga-PSMA-11 SUVmax and [82Rb]Rb SUVmax
Full size table
Table 4 ROC analysis data for separation of ISUP GG > 2 from GG-1–2 and benign lesions for [68Ga]Ga-PSMA-11 SUVmax, 82Rb SUVmax, and the combined model
Full size table

[68Ga]Ga-PSMA-11 SUVmax (log-transformed) and [82Rb]Rb SUVmax were correlated (Pearson’s r = 0.65, p < 0.001). The correlations for SUVmean and SUVpeak were equivalent. As shown in Fig. 3, the correlation was especially evident in the lower risk groups (ISUP GG-1–2), whereas it faded with increasing ISUP GG. The pattern for log-transformed data was equivalent.

Fig. 3
figure3

Plot of tumour [68Ga]Ga-PSMA-11 SUVmax against [82Rb]Rb SUVmax for each ISUP GG

Full size image

We tested a combined model of [68Ga]Ga-PSMA-11 SUVmax and [82Rb]Rb SUVmax for separation of ISUP GG (Fig. 4). Both parameters were highly significant (p < 0.001), meaning that both parameters contributed to the model, and as a result, the NPV improved significantly for separation of ISUP GG > 2 from ISUP GG1-2 and benign lesions, without compromising the PPV (Table 4). The interaction parameter between [68Ga]Ga-PSMA-11 SUVmax and [82Rb]Rb SUVmax for separation of ISUP GG was highly significant as well (p < 0.001). McNemar’s tests for difference between the combined analysis and [68Ga]Ga-PSMA-11 SUVmax alone (p = 0.008) and [82Rb]Rb SUVmax alone (p = 0.025) to separate ISUP GG > 2 from ISUP GG ≤ 2 and benign lesions were significant.

Fig. 4
figure4

ROC curves for the combined model of [68Ga]Ga-PSMA-11 SUVmax and [82Rb]Rb SUVmax to separate at each ISUP GG

Full size image

The model was subsequently tested on the sub-cohort with MRI-guided VOIs, considering the mpMRI as an external modality, to minimize the bias introduced by defining VOIs based on [68Ga]Ga-PSMA-11 hotspots. Furthermore, analysis with weight for the number of lesions per patient and the removal of multiple lesions per patient were performed. Analysis with registration of the inflammatory lesions was performed. Neither of these control analyses affected the results.

Soft tissue metastases as well as bone metastases with increased [68Ga]Ga-PSMA-11 uptake and increased blood flow were detected (shown in Figs. 5, 6).

Fig. 5
figure5

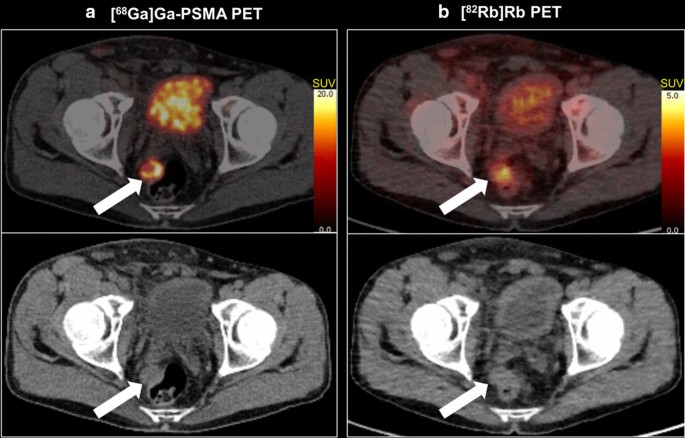

Large pararectal lymph node metastasis with both highly increased [68Ga]Ga-PSMA-11 uptake (a) and [82Rb]Rb uptake (b) on transaxial fused PET/CT images

Full size image
Fig. 6
figure6

Bone metastasis in the left iliac bone with avid [68Ga]Ga-PSMA-11 uptake (a) and highly increased blood flow in the metastatic area (b). The bone window of corresponding low-dose CT reveals slightly enhanced bone density (a, b)

Full size image

Discussion

The main results of the present study are that tumour [68Ga]Ga-PSMA-11 uptake and [82Rb]Rb TBF are associated and that both correlate with PCa aggressiveness. The present study suggests that a combined analysis of [68Ga]Ga-PSMA-11 uptake and TBF provides a synergetic effect that reduces the number of false negatives and gives a high accuracy for separation of clinically significant PCa from insignificant findings.

[68Ga]Ga-PSMA-11-uptake for prediction of PCa aggressiveness

The correlation between [68Ga]Ga-PSMA-11 SUVmax and ISUP GG varies greatly across the published studies. The present correlation is in line with the study by Chen et al. (rho = 0.55, p < 0.01, n = 51, radical prostatectomy Gleason Score) [8] and notably higher than in previous studies by our group (rho = 0.21, p < 0.001, n = 690, for biopsy ISUP GG) and (rho = 0.38, p < 0.001, n = 247, radical prostatectomy ISUP GG) [10] and by Cytawa et al. (rho = 0.35, p = 0.001, n = 82, biopsy Gleason Score) [9]. Another study by Demirci et al. found a good correlation (r = 0.66, p < 0.001) between SUVmax and ISUP GG in 141 patients [6]; however, they used Pearson’s correlation, which should not be applied for ordinal variables such as ISUP GG. A direct comparison between the above-mentioned studies is challenging, as some studies used Gleason Score while others used ISUP GG, Klingenberg et al. [10] included high-risk patients only, where the correlation seemed to disappear in the present study, and finally Cytawa et al. [9] used the [68Ga]Ga-PSMA-I&T ligand.

The AUC, sensitivity and specificity for [68Ga]Ga-PSMA-11 SUVmax in the present study (Table 4) were in line with the results from Demirci et al. [6], and again, substantially higher than the results from Klingenberg et al. [10]. A direct comparison is, again, not fair, as Klingenberg et al. examined high-risk patients exclusively. Meanwhile, the large overlap between the ISUP GGs, where even very aggressive ISUP GG-4–5 tumours can display very low [68Ga]Ga-PSMA-11 uptake, are also seen in the present study (Fig. 2a).

Tumour delineation is not always identical between the three modalities used in the present study, as the MRI VOI is occasionally expanded, especially by the [68Ga]Ga-PSMA-11 activity. As proposed by Zamboglou et al. [36], this could mean that the tumour delineation is more precise if not based on a sole modality. Hence, tumour delineation for radiation planning [36] and biopsy guidance [37] could be potential indications for [68Ga]Ga-PSMA-11 PET/MRI.

Tumour blood flow for prediction of PCa aggressiveness

The coherency between quantitative TBF and PCa aggressiveness is being established, and the present results are in line with our previous publications [31, 33]. However, the potential clinical role of quantitative TBF is undetermined in PCa management. The results of TBF measurement with [82Rb]Rb complements other studies using quantitative pharmacokinetic analysis of the dynamic contrast-enhanced series of MRI, which found an improvement in the PPV of mpMRI for primary local staging of PCa [38,39,40,41]. Meanwhile, the studies using the simpler qualitative analysis of the dynamic contrast-enhanced series generally report more limited additional value of the Gadolinium contrast examination [42]. Hence, there could be an unexploited potential in the quantitative pharmacokinetic analysis of prostate dynamic contrast-enhanced MRI at selecting which patients to biopsy, as absolute quantification of perfusion with DCE MRI might provide comparable information to perfusion PET. In PET studies on other cancers though, low blood flow—high metabolism mismatch, which is essentially a sign of hypoxia, was found to be the best predictor of tumour grade, treatment response, and/or survival [43,44,45,46].

Studies showed that the decrease in TBF as response to neoadjuvant chemotherapy in locally advanced breast cancer was a strong predictor of disease-free survival and overall survival [21, 23] and that TBF change in metastases from different primary tumours after sunitinib malate treatment was predictive of clinical benefit [19]. Another study showed that the change in TBF provides information on anti-angiogenic treatment response beyond prostate-specific antigen (PSA) in androgen independent PCa [15]. Hence, another potential gain could be to measure changes in TBF over time, for example during therapy or during active surveillance.

Potential synergy between PSMA uptake and TBF for prediction of significant PCa

Even though both PSMA uptake and TBF can classify most lesions correctly into significant or non-significant PCa, the accuracies of the methods individually are probably too low for clinical decision-making. The main limitation for both methods is the number of false negatives, which means that clinically significant PCa are missed. It is well known that cancers become increasingly heterogeneous as they dedifferentiate and becomes more aggressive. This heterogeneity regards PSMA expression [47]] and apparently, TBF too, as both parameters can occasionally be low in ISUP GG-4 and GG-5 patients (Fig. 2a, c). Due to the complex tumour biology, a single aspect of physiology seems too sparse for full separation of significant from insignificant PCa. The highly significant interaction parameter found in the present study shows a crossed interaction between PSMA uptake and TBF. This means that PSMA uptake and TBF are complementary in some of the high-risk patients, where the correlation between the two parameters is lost (Fig. 3). By utilizing this complementary tumour biology information with a combined analysis using both PSMA uptake and TBF, especially the NPV for separation of clinically significant PCa from insignificant findings improves, without compromising the PPV. This results in a significant reduction in the false negatives (missed significant PCa) from six to one in this cohort (Table 4). The model, including the interaction parameter, was significant regardless of VOI drawing methods and compensation for multiple lesions per patient. The model is preliminary though and needs further external validation in larger studies, but the basic principles should be generalizable. Such multiparametric PET approach may be the key to non-invasive risk evaluation. These results illustrate that two aspects of tumour biology characterizes the tumour more precisely than one. A similar synergy with other physiologic parameters, hypoxia for example, may very well show the same tendency. An advantage is that PSMA PET and TBF are very much within clinical reach, as PSMA PET is already a dominating imaging modality in PCa imaging, and TBF can be estimated with various modalities. Other studies found correlations between PCa aggressiveness and K1 influx of other tracers including [15O]-H2O [17], [18F]-flourocholine [48, 49], [11C]-donepezil [50], and [11C]-acetate [51]. The authors believe that the most promising applications of this combined analysis is characterization of tumour metabolism for primary risk evaluation and monitoring more than for detection of biochemical recurrence.

We found it important that the two tracers performed with such similarity in the analyses. The correlation between tumour [68Ga]Ga-PSMA-11- and [82Rb]Rb uptake suggests that the tumour PSMA uptake may be flow-limited (Fig. 3). We found this sufficiently interesting to design a future study with dynamic PSMA PET and 15O-H2O PET, which is gold standard of perfusion, to characterize the composition of the PSMA signal. If the PSMA uptake rate is an appropriate reflection of TBF in PCa, an approach with early dynamic plus late static PSMA PET scanning may examine both PSMA uptake and TBF and provide valuable additional information of biological potential of the tumour in selected patient categories. This could be a further step towards PSMA PET as a one-stop shop in PCa imaging to assess both whole body tumour burden and biological potential of the primary tumour.

Conclusions

PSMA uptake and TBF both correlate with PCa aggressiveness, but the number of false negatives in separating significant from insignificant PCa makes the methods insufficient for clinical use as a sole risk stratification parameter. The present study demonstrated an association between PSMA uptake and TBF, but that they also provided complementary insights into tumour biology. Thus, the present study suggests that a combined assessment of PSMA uptake and TBF could significantly reduce the number of false negatives and, hence, allow non-invasive separation of significant from insignificant PCa.

Availability of data and materials

The dataset supporting the conclusions of this article is included within the article.
