Generation and in vivo characterization of a chimeric αvβ5-targeting antibody 14C5 and its derivatives



Previous studies showed that radiolabeled murine monoclonal antibody (mAb) 14C5 and its Fab and F(ab')2 fragments, targeting αvβ5 integrin, have promising properties for diagnostic and therapeutic applications in cancer. To diminish the risk of generating a human anti-mouse antibody response in patients, chimeric variants were created. The purpose of this study was to recombinantly produce chimeric antibody (chAb) derivatives of the murine mAb 14C5 and to evaluate the in vitro and in vivo characteristics.


In vitro stability, specificity, and affinity of radioiodinated chAb and fragments (Iodo-Gen method) were examined on high-expressing αvβ5 A549 lung tumor cells. In vivo biodistribution and pharmacokinetic characteristics were studied in A549 lung tumor-bearing Swiss Nu/Nu mice.


Saturation binding experiments revealed high in vitro affinity of radioiodinated chAb, F(ab')2, and Fab, with dissociation constants (K D) of 1.19 ± 0.19, 0.68 ± 0.10, and 2.11 ± 0.58 nM, respectively. ChAb 14C5 showed highest tumor uptake (approximately 10%ID/g) at 24 h post injection, corresponding with other high-affinity Abs. ChF(ab')2 and chFab fragments showed faster clearance from the blood compared to the intact Ab.


The chimerization of mAb 14C5 and its fragments has no or negligible effect on the properties of the antibody. In vitro and in vivo properties show that the chAb 14C5 is promising for radioimmunotherapy, due to its high maximum tumor uptake and its long retention in the tumor. The chF(ab')2 fragment shows a similar receptor affinity and a faster blood clearance, causing less non-specific retention than the chAb. Due to their fast blood clearance, the fragments show high potential for radioimmunodiagnosis.


Tumorigenesis and cancer progression are multi-step processes. During cancer progression the ability to invade and metastasize is a very important aggravating factor. Modulation of crosstalk between cells and/or cell extracellular matrix (ECM) adhesive components is of key importance for the occurrence of metastasis [1]. This modulation includes the release of proteases that remodel the ECM, the deposition of new ECM molecules, and alterations in the expression of cell adhesion molecules such as integrins. Integrins are a family of transmembrane heterodimer glycoprotein cell surface receptors primarily responsible for exchanging information between cells and the surface surrounding ECM. Overexpression of certain integrins on tumor cells, tumor stroma, or neovasculature makes these receptors attractive targets for specific cancer therapy. Two interesting targets in this context are the vascular integrins αvβ3 and αvβ5 for which it is still unclear if they promote [2] or inhibit [3] neovascularization. However, antibodies targeting these molecules can inhibit neovasculature formation, making anti-αvβ3 and anti-αvβ5 antibody-based immunotherapy a viable option [4, 5]. Abegrin™, for example, is a humanized monoclonal antibody (mAb) specific for αvβ3, which has anti-angiogenic, tumor growth-inhibiting, and anti-bone metastatic capacities [610]. The murine mAb 14C5 binds the integrin αvβ5, a close relative of αvβ3. In vitro and in vivo studies showed the radioiodinated murine mAb 14C5 to have promising properties for diagnostic and therapeutic applications against integrin αvβ5-expressing tumor cells and/or tumor surrounding stromal cells, for example, fibroblasts [1114].

Full-sized Abs need to overcome some obstacles before penetrating into a tumor. Although big molecules are able to extravasate out of the ‘leaky vessels’ near the tumor, penetration of Abs into the tumor can still be hampered by some physiological barriers, such as high interstitial pressure and a ‘binding site barrier’ [15, 16]. In order to improve the penetration within tumor masses, fragments of mAb 14C5 have been created and evaluated. In vitro and in vivo studies demonstrated the efficient tumor targeting properties of murine 131I-Fab and 131I-F(ab')2 14C5 fragments [17]. Despite the promising pre-clinical results, the clinical application of Ab 14C5 and its derivatives could be hampered due to its murine origin. The development of a human anti-mouse Ab (HAMA) response can result in tachyphylaxis, i.e., reduced therapeutic effect caused by reduced targeting of the murine Ab due to immune complex formation after repetitive administration of the Ab. More severe, but rare, side effects of a HAMA response can range from hypersensitivity to life-threatening anaphylactic reactions [18, 19]. In order to diminish the risk of generating a HAMA response after Ab-based therapy and thus avoid the associated disadvantages, the murine Ab sequence is made to better resemble human Abs. Chimerization is the first major step towards a humanized molecule and includes the substitution of the mouse heavy and light constant regions with human Ab counterparts [20, 21].

In the current study, the mAb 14C5 was chimerized to reduce the risk of HAMA responses in patients. Due to alterations in the chimeric (ch) Ab sequences, conformational changes, changes in affinity, and/or alterations of in vivo characteristics can occur as compared to the established characteristics of the murine variant. Therefore, the in vitro and in vivo targeting properties of the chAb and its fragments were investigated to confirm their αvβ5 targeting properties in vitro and in vivo.



HEK293T, a human embryonic kidney cell line transfected with the SV40 large T-Ag (SV40TtsA1609) [22], was used for transient eukaryotic expression. A549 is a αvβ5 + non-small cell lung cancer cell line [13]. Both cell lines were grown in DMEM containing 10% fetal bovine serum (FBS) (Lonza, Verviers, Belgium). Colo16 is a αvβ5 squamous cell carcinoma cell line [13] grown in RPMI 1640 medium supplemented with 10% FBS. All cells were cultured in an incubator at 37°C with 5% CO2.

Expression plasmids

The pES31Hneo and pES33Ezeo expression plasmids have been described previously [23]. Restriction enzymes were purchased from Fermentas (St. Leon-Rot, Germany), primers (see Additional file 1) from Invitrogen (Life Technologies, Merelbeke, Belgium), and DNA-modifying enzymes and Vent-DNA polymerase from Biolabs (Beverly, MA, USA). All vector constructs were sequence-verified after cloning. The 14C5 VH region was amplified from the murine 14C5 heavy chain [24] by polymerase chain reaction (PCR) with primers 14C5 VH B SOE and NM 101F, and the PH1 CH1 was amplified from the IgG1 PH1 human Ab heavy chain [23] with PH1 CH1 F SOE and NM 263 B. After splice overlap extension (SOE) PCR, the product was cut with BspEI and XhoI, and introduced in the pES31Hneo vector. The chimeric kappa light chain was cloned in a pES33 vector in a similar way, using the NM 101F, 14C5 VL B SOE, PH1 CL F SOE, and NM 264 B primers. SOE PCR was followed by a BspEI and XhoI digest and introduced in the vector. The Fd fragment was further extended to a complete Ab heavy chain by SOE PCR extension with primers PH1 CH1 F SOE, CH1 Hi B, CH2 F, CH2 B, CH3 F, and CH3 B, using pBRhIG1 as template for the hinge, CH2, and CH3 regions. After digestion with AgeI and BamHI enzymes, the product was ligated in the pES33 vector. The heavy chain of the chF(ab')2 fragment was amplified by PCR based on the heavy-chain plasmid of the chAb by using NM 101F and the human hinge BSpEI B primer. This fragment was cut with XhoI and BspEI enzymes and ligated in the XhoI/BspEI-digested plasmid containing VH of Ab 14C5 and CH1 region of PH1. A variant of the ch(Fab')2 was made with the His-tag on the light chain instead of on the heavy chain. This was done by exchanging the gene fragments 3 of the BspEI between the heavy- and light-chain expression plasmids using a BspEI/PvuI digest.

Production and derivatization

Light- and heavy-chain expression plasmids were transiently cotransfected in HEK293T cells by the Ca3(PO4)2 precipitation method [25, 26]. Enzymatic digestion of chAb into chF(ab')2 and chFab was performed using the Pierce® F(ab')2 and Fab Preparation Kit (Thermo Scientific, Erembodegem, Belgium) according to the manufacturer's instructions.

Protein purification

Purification of the chFab 14C5 and the chF(ab')2 fragment was performed by cation-exchange chromatography and Ni2+ affinity chromatography as described before [26]. The chFab and chF(ab')2 were concentrated and desalted using Centricon centrifugal filter devices (Millipore, Brussels, Belgium) with a cutoff of 30 and 50 kDa, respectively. Purification of chAb 14C5 was performed on a protein A column (GE Healthcare, Diegem, Belgium) using 20 mM sodium phosphate running buffer (pH 7) and 0.1 M glycine (pH 2.7, Sigma-Aldrich, Bornem, Belgium) elution buffer. Eluted fractions were neutralized immediately with 0.1 M Tris (pH 9, 100 μl/ml elution buffer). Further purification was performed by size exclusion chromatography on a Superdex-200 column (Amersham, Bioscience, Uppsala, Sweden). All purification steps were performed at 4°C on an Akta purifier system (Amersham Bioscience, Uppsala, Sweden).

Analysis of protein fractions and stability determination

Primary antibodies used for detection of the Ab on Western blot and in enzyme-linked immunosorbent assay (ELISA) experiments were mouse anti-human kappa Ab or mouse anti-his Ab (Sigma-Aldrich, Bornem, Belgium). Alkaline phosphatase-conjugated anti-mouse IgG1 Ab (Becton Dickinson-Pharmingen Biosciences, Erembodegem, Belgium) was used as secondary Ab with the NBT/BCIP kit (Invitrogen, Life Technologies, Merelbeke, Belgium) for Western blot detection and p-nitrophenyl phosphate (Sigma-Aldrich, Bornem, Belgium) for the detection in the ELISA. Protein purity was analyzed by instant Coomassie brilliant blue dye (Expedeon, Cambridgeshire, UK), and specific detection of proteins was performed by immunodetection on a nitrocellulose membrane after Western blotting. Protein concentration was determined with the Micro BCA Protein Assay Kit (Pierce, Rockford, IL, USA) according to the manufacturer's instructions. All constructs were stored in different conditions (in phosphate-buffered saline (PBS), in cell medium at 37°C and 4°C, and in mouse serum at 37°C). Stability of the constructs was evaluated by SDS-PAGE followed by Coomassie staining and Western blot detection.

Cellular ELISA

A549 and Colo16 cells (104 cells/well) were coated in a 96-well plate and maintained at 37°C and 5% CO2 until confluence. Cells were gently washed with 300 μl PBS (Lonza, Verviers, Belgium). After fixation of cells with 100 μl PBS/acetone (2:3 (v/v), Sigma-Aldrich, Bornem, Belgium), cells were washed again. The wells were blocked with 2% PBS-M (2 g non-fat dry milk powder (Nestlé, Brussels, Belgium)/100 ml PBS) for 1.5 h. A ½ sample dilution series was prepared in PBS-M and added to the cells in triplicate. After 1.5 h of incubation at 37°C, the cells were washed three times and incubated with the primary detection Ab for 1 h at 37°C, washed again for three times, and incubated with the secondary detection Ab for 1 h at 37°C and washed again. Finally, the cells were washed a last time with substrate buffer (1 mM MgCl2 + 50 mM Tris (pH 9.5)), and detection was completed by adding detection buffer (1 tablet p-nitrophenyl phosphate (Sigma-Aldrich, Bornem, Belgium)/5 ml substrate buffer). Light absorbance at 405 nm was measured after approximately 2 h at 37°C in a microplate reader (Bio-Rad, Eke, Belgium).

Radioactive labeling and radiochemical stability

14C5 chAb and its derivatives were labeled with 125I or 131I (PerkinElmer, Zaventem, Belgium) by incubating 10 min at room temperature using the Iodo-Gen method [27]. Separation of protein-bound iodine from free iodine was accomplished by purification over a PD10 column (GE Healthcare, Diegem, Belgium). Radiochemical stability of the iodinated molecules was assessed by instant thin layer chromatography (iTLC; SG strips, Pall Corporation, Zaventem, Belgium), by analysis of phosphorescence image after SDS-PAGE, and by size-exclusion high-performance liquid chromatography (HPLC) using a Shodex KW 802.5 with a KW-G guard column (Thomson Instrument Company, Oceanside, CA, USA). iTLC was performed using 20 mM citric acid (pH 5.0, Sigma-Aldrich, Bornem, Belgium) as eluent, strips were divided into six parts, and radioactivity was counted with a NaI(Tl) scintillation detector (PerkinElmer, Zaventem, Belgium). The labeled compounds were incubated in medium (4°C and 37°C), in PBS (4°C and 37°C), and in mouse serum (37°C) and were analyzed for radiochemical purity after several time periods.

Saturation binding assay

A dilution series of the labeled Ab and fragments was added to 0.5 × 106 cells and incubated for 2 h at 4°C. After centrifugation (15 s, 5,000×g) and washing with ice-cold PBS (three times), the cell pellet was counted for radioactivity using a gamma counter (Cobra II, PerkinElmer, Zaventem, Belgium). The dissociation constants (KD) were estimated (GraphPad Prism Software 5.0, San Diego, CA, USA) to determine the binding capacity of the Ab and fragments. The non-specific binding curve was obtained in two different ways: by incubation of the labeled molecule with the negative control cell line Colo16 and by incubation in the presence of unlabeled mAb 14C5 with the antigen-positive cell line A549.


Nu/Nu athymic mice of 5 to 9 weeks old (Charles River, L'Arbresle, France) were subcutaneously inoculated with 106 tumor cells into the flank. When tumors reached a size of 0.5 to 1.0 g, biodistribution studies were performed. Mice were injected in a tail vein with 5 μg of 0.185 to 0.296 MBq 131I-labeled chAb or derivatives or negative control chAb MabThera (kind gift of Ghent University Hospital, Ghent, Belgium). Groups of four to five mice were sacrificed 0.02, 1, 3, 6, 8, 10, 24, 48, 72, and 168 h after injection. Tumor and organs were removed, washed in PBS, blotted dry, and weighed. Radioactivity in tumor, organs, and blood was detected with a NaI(Tl) scintillation detector (PerkinElmer, Zaventem, Belgium). Blood clearance studies were performed in 5- to 9-week-old Naval Medical Research Institute (NMRI) mice (n = 3) (Charles River, L'Arbresle, France). Data were analyzed by a two-phase exponential curve fit (GraphPad Prism 5.0). All animal experiments were approved by the Animal Experimental Ethical Committee of Ghent University Hospital (ECD 09/09). A non-parametric Mann–Whitney U test was used for statistical comparison.


Construction and production of 14C5 chAb and derivatives

Chimeric mAb 14C5 derivatives were generated by recombinantly removing the 14C5 variable domains from the mouse antibody and fusing them to the constant domains of human IgG1. A full-size ch IgG1 was made by fusing the 14C5 VH domain gene to the CH1 domain of a human IgG1 heavy-chain gene. Similarly, the 14C5 VL domain gene was attached to the CL of a human IgG1 light-chain gene. Both 14C5 gene constructs were integrated into the pES33 mammalian expression vector and were co-expressed in the mammalian HEK293T cell line. The cell supernatant containing the 14C5 chAb could be purified to a high degree by affinity purification on a protein A column, followed by polishing on a size-exclusion column (Figure 1a,b). Western blot analysis and Coomassie staining demonstrated that the 14C5 chAb was correctly produced and remained stable (Figure 2a,b, lane 2). Chimeric F(ab')2 and Fab fragments could then be successfully generated by pepsin and papain enzymatic digestion, respectively (Figure 2a,b, lanes 3 and 4). In order to simplify the production of these derivatives, a recombinant construct for 14C5 ch (Fab')2 was generated by removing the CH2 and CH3 domain genes from the heavy-chain construct. Also, removing the hinge-region gene from the heavy-chain vector led to a construct for a chFab 14C5. To facilitate purification, a C-terminal E-tag or His6-tag was added to the genes. After co-expressing the respective heavy- and light-chain vectors in HEK293T cells, the chAb derivatives were purified by cation-exchange chromatography followed by His-tag affinity purification (Figure 1c,d). However, Coomassie staining and Western blot analysis revealed that the majority of the chF(ab')2 was present in the form of dissociated F(ab') fragments (Figure 2a,b, lane 5). In an attempt to aid the formation of disulfide bridges, the F(ab') fragments were incubated with increasing concentrations of oxidized glutathione. However, this did not result in the formation of functional F(ab')2 dimers. Additionally, removing the His6-tag from the heavy chain did not result in improved dimerization of F(ab') fragments. In contrast, the proteolytically obtained chF(ab')2 (approximately 110 kDa, Figure 2a,b, lane 3) and the enzymatically and recombinantly produced chFab 14C5 fragment (approximately 50 kDa, Figure 2a,b, lanes 4 and 6) remained stable. Further in vitro and in vivo experiments with 14C5 chAb derivatives were performed with recombinantly produced chFab and proteolytically obtained chF(ab')2.

Figure 1

Purification of chAb and chF(ab') 2 14C5 produced by transfected HEKT293T cells. Protein A elution of chAb 14C5 (a), gel filtration elution of chAb 14C5 (arrow indicates the chAb 14C5) (b), cation-exchange chromatography elution of chF(ab')2 (c) and Hi-Trap elution of chF(ab')2 (d). OD, optical density.

Figure 2

SDS-PAGE analysis of the produced chimeric antibody and fragments 14C5. Visualized using Coomassie brilliant blue dye (a) and specific visualization by Western blotting detected by mouse anti-human kappa antibody (lanes 2, 4, 5, and 6), mouse anti-His antibody (lane 3), followed by anti-mouse IgG1 alkaline phosphatase (b): lane 1, protein marker; lane 2, ch antibody; lane 3, enzymatically produced chF(ab')2; lane 4, enzymatically produced chFab; lane 5, recombinant chF(ab')2; lane 6, recombinant chFab (a, b). Phosphorescence image after SDS-PAGE: lane 1, estimated protein ladder based on non-radioactive protein marker; lane 2, 125I-ch antibody; lane 3, 125I-chFab; lane 4, 125I-chF(ab')2 14C5 (c).

Cellular ELISA

The affinity of the chAb derivatives was determined through cellular ELISA on the αvβ5-expressing A549 cell line. The αvβ5 Colo16 cell line served as a negative control. The K D for the 14C5 chAb and its fragments were determined from the fitted specific binding curves (Figure 3). Due to their bivalent nature, 14C5 chF(ab')2 and chAb (K D = 0.6 ± 0.05 nM and K D = 1.4 ± 0.11 nM, respectively) showed a tenfold increase in relative affinity in comparison to the monovalent chFab 14C5 (K D = 11 ± 2.34 nM).

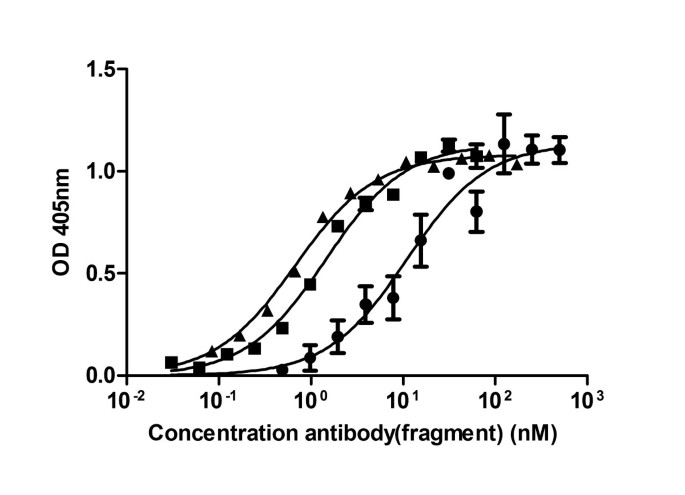

Figure 3

Saturation binding experiment of the chF(ab') 2 (triangle), ch antibody (square), and chFab (circle) 14C5. By cellular ELISA on A549 cells with mouse anti-human kappa antibody (IgG1) and anti-mouse IgG1-alkaline phosphatase. Data are expressed as mean ± SD (n = 3).

Radioactive labeling and radiochemical stability

Radioiodination of the chAb and fragments resulted in a typical yield between 75% and 85%. All labeled compounds showed a radiochemical purity of more than 95% as verified by iTLC and HPLC. No free iodine was present after HPLC and phosphorescence imaging after SDS-PAGE. No aggregation or degradation of 125I-labeled chAb 14C5 was observed (approximately 150 kDa, Figure 2c, lane 2). The 125I-chFab (approximately 50 kDa, Figure 2c, lane 3) and 125I-chF(ab')2 (approximately 110 kDa, Figure 2c, lane 4) revealed a low incidence of aggregation (>180 kDa) and degradation (approximately 37 kDa), accounting for less than 5% of the total sample radioactivity. All labeled constructs remained stable in several conditions (in PBS, medium, and mouse serum, at 4°C and 37°C) over a longer period with a radiochemical purity of more than 78% over a period of 3 days.

Saturation binding assay

The affinity of the three 125I-radiolabeled 14C5 chAb derivatives was compared in a saturation binding assay on A549 cells (Figure 4). The K D was determined at 1.19 ± 0.19 nM for the 125I-labeled chAb, 0.27 ± 0.05 nM for the parent murine Ab, 0.68 ± 0.10 nM for the chF(ab')2, and 2.11 ± 0.58 nM for the chFab. The non-specific binding curve obtained with the negative control Colo16 cells was similar to the non-specific curve obtained with unlabeled mAb 14C5 incubated on αvβ5 + A549 cells.

Figure 4

Saturation binding assay of iodinated derivatives of the mAb 14C5 to A549 tumor cells . Specific (circle) and non-specific binding (triangle) (binding to negative control Colo16 cell line) of 125I-chAb 14C5 (a), of 125I murine Ab 14C5 (b), of 125I-chF(ab')2 14C5 (c), and of 125I-chFab 14C5 (d). Data are expressed as mean ± SD (n = 3).


In order to determine the pharmacokinetic properties of the 14C5 chAb and its derivatives, blood clearance and biodistribution studies were performed. The blood clearance for all molecules was determined after injection of 5 to 10 μg of 131I-labeled product in NMRI mice (Figure 5a). The estimated t 1/2α was 19.6, 42.2, and 68.1 min for 131I-labeled chFab, chF(ab')2, and chAb, respectively. Furthermore, the t 1/2β values for chFab, chF(ab')2, and chAb were estimated at 575.9, 867.8, and 3305 min, respectively. Subsequently, A549 tumor-bearing athymic mice were injected with the 131I-labeled chAb and its derivatives to determine the biodistribution (see Additional file 2). Maximum tumor uptake was reached at 1 h post injection (p.i.) (2.51 ± 0.46%ID/g) for 131I-chFab 14C5, at 8 h p.i. (5.73 ± 1.62%ID/g) for 131I-chF(ab')2, and at 24 h (11.56 ± 3.88%ID/g) for 131I-chAb (Figures 5b and 6). Total radiation towards the tumor was assessed by integration of tumor uptake over time. This resulted in area under the curve (AUC)[0 → 2d] of 1.57%ID∙ d∙ g−1, AUC[0 → 3d] of 6.74%ID∙ d∙ g−1, and AUC[0 → 7d] 62.75%ID∙ d∙ g−1 for 131I-chFab, 131I-chF(ab')2, and 131I-chAb 14C5, respectively. Taking the amount of labeled compound in blood into account, the tumor-to-blood ratios (T/Bs) were calculated, which is an important characteristic for radioimmunodiagnosis (RID). The highest T/B of 131I-chFab was 0.88 from 3 h till 24 h p.i. The 131I-chF(ab')2 showed the highest T/B after 24 h till 72 h p.i. with a maximum of 2.79 ± 1.24 at 48 h p.i. The T/B of 131I-chAb ranged from 0.70 to 0.94 between 24 and 168 h p.i. (Figures 5c and 6). Another crucial property in RID and radioimmunotherapy (RIT) is the specificity of the tracer and the expression of the antigen. Exposure of normal tissue to radiation needs to be minimal to avoid non-specific damage. The highest non-specific uptake in the kidneys was seen with the 131I-chFab fragment 1 h p.i. The non-specific uptake of the tracer after 24 h p.i. in the lung, stomach, spleen, liver, and kidneys were markedly more elevated for the chAb 14C5 compared to its derivatives (Figure 6). Biodistribution of 131I-14C5 chAb in αvβ5 Colo16 tumor-bearing mice revealed a high initial uptake at 24 to 48 h p.i., which decreased significantly at 72 h p.i. (p < 0.05, non-parametric Mann–Whitney U test; Figure 7a). This is in contrast to the uptake seen in A549 tumors which was highest at 24 h p.i., remained high until 72 h p.i., and decreased only at 168 h p.i. (Figure 7a). The T/Bs in the Colo16 model also illustrate the diminished tumor retention as compared to the specific A549 tumor model (Figure 7b). The maximum Colo16 tumor uptake was 11.32 ± 2.48%ID/g at 48 h p.i., and the T/Bs increased to 1 (Figure 7). Additionally, experiments with a labeled negative control chAb, 131I-MabThera, demonstrated a significant lower uptake in the positive A549 tumor (maximum tumor uptake <5%ID/g) in comparison to the specific chAb 14C5 uptake A549 tumors (p < 0.05, non-parametric Mann–Whitney U test; Figure 7).

Figure 5

Blood clearance in NMRI mice and tumor uptake and tumor-to-blood ratio in A549 lung tumor-bearing mice. Blood clearance of 131I-labeled chFab, chF(ab')2, and chAb 14C5 in NMRI mice (a). Tumor uptake (%ID/g) (b) and tumor-to-blood ratio (c) of 131I-labeled chAb, chF(ab')2, and chFab 14C5 in A549 lung tumor-bearing mice. Values are corrected for decay of the radionuclide. Data are expressed as mean ± SD (n = 3 to 5).

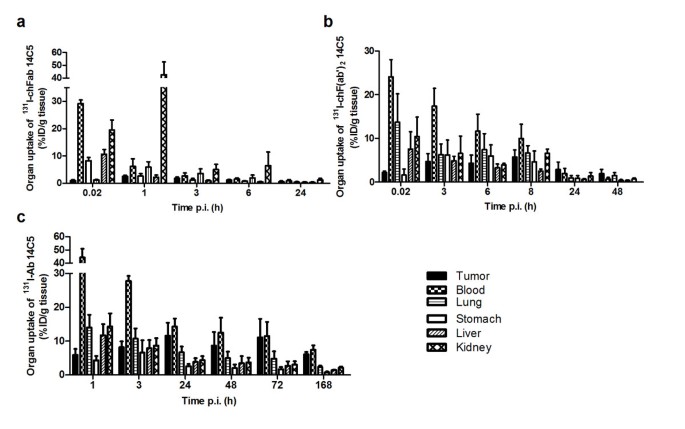

Figure 6

Organ uptake of 131 I-chFab, 131 I-chF(ab') 2 , and 131 I-chAb 14C5. Organ uptake (%ID/g tissue) of 131I-chFab (a), 131I-chF(ab')2 (b), and 131I-chAb 14C5 (c) in A549 lung tumor-bearing mice. Values are corrected for decay of the radionuclide. Data are expressed as mean ± SD (n = 3 to 5).

Figure 7

Tumor uptake and tumor-to-blood ratio of 131 I-labeled chAb 14C5 and 131 I-labeled ch MabThera. Tumor uptake (%ID/g) (a) and tumor-to-blood ratio (b) of 131I-labeled chAb 14C5 in A549 lung tumor-bearing mice and in Colo16-bearing mice and 131I-labeled ch MabThera in A549 lung tumor-bearing mice. Values are corrected for decay of the radionuclide. Data are expressed as mean ± SD (n = 3 to 5). The asterisk indicates p < 0.05, non-parametric Mann–Whitney U test.


Chimeric Ab derivatives of the anti-αvβ5 mAb 14C5 were recombinantly produced to reduce the risk of generating a HAMA response in humans. Chimerization is the first major and the most reliable step towards a more humanized therapeutic Ab molecule [28]. Complementarity-determining region grafting could decrease immunogenicity further but often results in reduced affinity or specificity for the target antigen. Safeguarding the desired characteristics involves several labor-intensive trial-and-error approaches [29, 30]. Integrin αvβ5 expression is involved in several crucial steps of cancer progression such as cell adhesion, angiogenesis, and metastasis [31, 32]. Overexpression of αvβ5 has been demonstrated not only on several tumor types, but also on non-transformed tumor-promoting cells from the tumor stroma, such as cancer-associated fibroblasts [33] and cells from the neovasculature [11, 14, 34]. These accessory cells are less likely to lose antigen expression, making αvβ5 a very attractive target for Ab-based RID and/or RIT. The murine mAb 14C5 was shown to hold great potential for these applications, given the tenfold higher affinity for αvβ5 of the 14C5 mAb (K D = 0.19 ± 0.07 nM) compared to the commercially available murine P1F6 mAb [13, 14, 17, 35]. However, despite its promising characteristics, the use of mAb 14C5 in humans might provoke a HAMA response due to its murine origin. HAMA responses generally lead to a reduced therapeutic effectiveness and can lead to potentially life-threatening severe allergic reactions. Replacing mouse Ab constant domains with their human counterparts in chimeric constructs generates less anti-chimeric Abs at lower titers as compared to HAMA in patients given the parent murine Ab [36]. A chimeric human IgG1 mAb 14C5 was recombinantly constructed, produced, and purified. After confirmation of its stability, the affinity of recombinantly produced chAb 14C5 for the integrin αvβ5 was determined by cellular ELISA assays and by saturation binding assays with radioiodinated chAb. Both experiments revealed a similar and high affinity of the chAb for its antigen (K D = 1.4 ± 0.11 nM and K D = 1.19 ± 0.19 nM, respectively). Although the dissociation constant for the murine 14C5 mAb was ten times lower [13] compared to the chAb, this still puts the chAb 14C5 on par with the P1F6 mAb. Blood clearance studies of 131I-chAb 14C5 conducted in NMRI mice revealed negligible differences in t 1/2α and t 1/2β in comparison with the murine mAb 14C5 (t 1/2α = 118 min and t 1/2β = 4067 min) [13], since human as well as mouse IgG binds the mouse neonatal Fc receptor (FcRn) which regulates serum half-lives of IgG in both species. However, significantly different clearance values are expected in human patients, since human FcRn binds to human but not to mouse IgG, resulting in longer retention of the chAb in the blood [37]. The highest tumor uptake for chAb as well as for the murine mAb 14C5 [13, 17] was seen at 24 h p.i. of approximately 10%ID/g, which corresponds to other high-affinity Abs, such as the humanized anti-αvβ3 mAb Abegrin™ (14%ID/g at 24 h p.i.) [38]. In mice bearing the αvβ5 Colo16 squamous tumor, an initial high uptake of chAb 14C5 (approximately 10%ID/g at 24 and 48 h p.i.) was observed which decreased more rapidly compared to the uptake in the αvβ5 + A549 tumor. In contrast, a negative control chAb MabThera showed significant less uptake (<5%ID/g, p < 0.05) in the αvβ5 + A549 tumor in comparison with the uptake of chAb 14C5 in both αvβ5 + and αvβ5 tumor types. Additionally, staining of different human tumor tissues with mAb 14C5 demonstrated tumor cell membrane and/or tumor surrounding stroma staining [14]. Tumor sections without tumor cell membrane staining did reveal stroma staining which was co-localized with a fibroblast-specific marker (data not shown). Consequently, expression of integrin αvβ5 on cancer-associated fibroblasts (CAFs) was confirmed. Therefore, the uptake of chAb 14C5 seen in αvβ5 Colo16-bearing animals is attributed to binding on CAFs in the tumor stroma and/or on neo-vasculature of the tumor. These results confirm αvβ5 as a promising target for RID and RIT. For RID smaller fragments with good tissue penetration and a fast clearance are needed, while RIT requires a good therapeutic index without too much collateral damage. 14C5 chAb Fab and F(ab')2 fragments were generated in order to examine their pharmacokinetic properties and find the best format for RID/RIT applications. Both the chFab and chF(ab')2 obtained from proteolytic cleavage of the chAb 14C5 as well as the recombinantly produced chFab were correctly produced and remained stable. However, expression of the chF(ab')2 vectors did not result in significant amounts of correctly dimerized chF(ab')2. Analysis on SDS-PAGE suggests that the stabilizing disulfide bridges between chFab' fragments were not properly formed. Procedures to oxidize the cysteine SH groups in order to form chF(ab')2 or the removal of peptide tags on the heavy chain did not result in increased yields of stable recombinant chF(ab')2, leaving only the proteolytically obtained chF(ab')2 for further experiments. In cellular ELISA, the avidity of the bivalent 14C5 chF(ab')2 (K D = 0.6 ± 0.05 nM) for the αvβ5 + A549 lung tumor cell line was ten times higher compared to the monovalent 14C5 chFab (K D = 11 ± 2.34 nM). However, saturation binding experiments with 125I-labeled compounds revealed a less pronounced difference between the affinity of both fragments, with a K D = 0.68 ± 0.10 nM and K D = 2.11 ± 0.58 nM for the 125I-chF(ab')2 and chFab 14C5, respectively. Similar results were obtained for the 14C5 murine F(ab')2 (K D = 0.37 ± 0.10 nM) and Fab (K D = 2.25 ± 0.44 nM) [17], indicating that the chimerization of the fragments had no influence on the in vitro binding characteristics. In vivo, for the chFab 14C5 fragment, the peak tumor-to-blood ratio (0.9) was reached at 6 h p.i. After 24 h the Fab was largely cleared from the system, which makes it an interesting probe for RID, despite high non-specific kidney uptake caused by renal clearance of the small fragment (<60 kDa). Behr et al. [39] demonstrated that administration of cationic amino acids, such as d-lysine, reduced the renal uptake of small peptides. The 131I-chF(ab')2 demonstrated improved tumor-to-blood ratios compared to the Fab fragment, although the molecule remained in circulation longer. The 131I-chF(ab')2 did however clear faster than the intact chAb. The AUC value is an indication for the total amount of radiation in the tumor. The chAb 14C5 AUC value (AUC[0 → 7d] 62.75%ID∙ d∙ g−1) was higher than the AUC value of its fragments, suggesting a higher therapeutic efficacy. However, the long residence time of the intact Ab in the blood may augment the risk of non-specific radiation damage (e.g., bone marrow). Consequently, the faster clearing chF(ab')2 might be an attractive alternative if dose-limiting toxicity occurs after administration of the intact Ab. The AUC values may be further improved by using radiometals such as 111In and 90Y, which have been shown to improve tumor retention times and AUC values of radiolabeled immunologicals [40]. Internalization studies with 111In-14C5 mAb have already demonstrated extended tumor retention times compared to radioiodinated Ab 14C5 [35].


In conclusion, this study demonstrated that chimerization of mAb 14C5 had little effect on the properties of the mAb. The characteristics of the 14C5 chAb are promising for RIT and monitoring, while the chF(ab')2 and chFab 14C5 have a high potential for RID of cancer. In addition to these fragments, other Ab constructs could be created with improved characteristics for both RID and RIT. Smaller constructs, such as diabodies and nanobodies for example, provide high penetration into the tumor and a rapid blood clearance, which is highly advantageous for RID. Larger constructs, such as minibodies for example, provide longer target retention and could be used in RIT [41].


  1. 1.

    Landen CN, Kim TJ, Lin YG, Merritt WM, Kamat AA, Han LY, Spannuth WA, Nick AM, Jennnings NB, Kinch MS, Tice D, Sood AK: Tumor-selective response to antibody-mediated targeting of alphavbeta3 integrin in ovarian cancer. Neoplasia 2008, 10: 1259–1267.

    PubMed Central  CAS  Article  Google Scholar

  2. 2.

    Friedlander M, Brooks PC, Shaffer RW, Kincaid CM, Varner JA, Cheresh DA: Definition of two angiogenic pathways by distinct alpha v integrins. Science 1995, 270: 1500–1502. 10.1126/science.270.5241.1500

    CAS  Article  Google Scholar

  3. 3.

    Hynes RO: A reevaluation of integrins as regulators of angiogenesis. Nat Med 2002, 8: 918–921. 10.1038/nm0902-918

    CAS  Article  Google Scholar

  4. 4.

    Hood JD, Cheresh DA: Role of integrins in cell invasion and migration. Nat Rev Cancer 2002, 2: 91–100. 10.1038/nrc727

    Article  Google Scholar

  5. 5.

    Scott AM, Wolchok JD, Old LJ: Antibody therapy of cancer. Nat Rev Cancer 2012, 12: 278–287. 10.1038/nrc3236

    CAS  Article  Google Scholar

  6. 6.

    Mulgrew K, Kinneer K, Yao XT, Ward BK, Damschroder MM, Walsh B, Mao SY, Gao C, Kiener PA, Coats S, Kinch MS, Tice DA: Direct targeting of alphavbeta3 integrin on tumor cells with a monoclonal antibody, Abegrin. Mol Cancer Ther 2006, 5: 3122–3129. 10.1158/1535-7163.MCT-06-0356

    CAS  Article  Google Scholar

  7. 7.

    Gramoun A, Shorey S, Bashutski JD, Dixon SJ, Sims SM, Heersche JN, Manolson MF: Effects of Vitaxin, a novel therapeutic in trial for metastatic bone tumors, on osteoclast functions in vitro. J Cell Biochem 2007, 102: 341–352. 10.1002/jcb.21296

    CAS  Article  Google Scholar

  8. 8.

    Delbaldo C, Raymond E, Vera K, Hammershaimb L, Kaucic K, Lozahic S, Marty M, Faivre S: Phase I and pharmacokinetic study of etaracizumab (Abegrin), a humanized monoclonal antibody against alphavbeta3 integrin receptor, in patients with advanced solid tumors. Invest New Drugs 2008, 26: 35–43. 10.1007/s10637-007-9077-0

    CAS  Article  Google Scholar

  9. 9.

    Veeravagu A, Liu Z, Niu G, Chen K, Jia B, Cai W, Jin C, Hsu AR, Connolly AJ, Tse V, Wang F, Chen X: Integrin alphavbeta3-targeted radioimmunotherapy of glioblastoma multiforme. Clin Cancer Res 2008, 14: 7330–7339. 10.1158/1078-0432.CCR-08-0797

    CAS  Article  Google Scholar

  10. 10.

  11. 11.

    Coene E, Schelfhout AM, De Ridder L, De Potter CR: Generation of a monoclonal antibody directed against a human cell substrate adhesion molecule and the expression of the antigen in human tissues. Hybridoma 1997, 16: 77–83. 10.1089/hyb.1997.16.77

    CAS  Article  Google Scholar

  12. 12.

    Lahorte CM, Bacher K, Burvenich I, Coene ED, Cuvelier C, De Potter C, Thierens H, Van de Wiele C, Dierckx RA, Slegers G: Radiolabeling, biodistribution, and dosimetry of (123)I-mAb 14C5: a new mAb for radioimmunodetection of tumor growth and metastasis in vivo. J Nucl Med 2004, 45: 1065–1073.

    CAS  Google Scholar

  13. 13.

    Burvenich I, Schoonooghe S, Cornelissen B, Blanckaert P, Coene E, Cuvelier C, Mertens N, Slegers G: In vitro and in vivo targeting properties of iodine-123- or iodine-131-labeled monoclonal antibody 14C5 in a non-small cell lung cancer and colon carcinoma model. Clin Cancer Res 2005, 11: 7288–7296. 10.1158/1078-0432.CCR-04-2503

    CAS  Article  Google Scholar

  14. 14.

    Burvenich I, Schoonooghe S, Vervoort L, Dumolyn C, Coene E, Vanwalleghem L, Van Huysse J, Praet M, Cuvelier C, Mertens N, De Vos F, Slegers G: Monoclonal antibody 14C5 targets integrin alphavbeta5. Mol Cancer Ther 2008, 7: 3771–3779. 10.1158/1535-7163.MCT-08-0600

    CAS  Article  Google Scholar

  15. 15.

    Adams GP, Schier R, McCall AM, Simmons HH, Horak EM, Alpaugh RK, Marks JD, Weiner LM: High affinity restricts the localization and tumor penetration of single-chain fv antibody molecules. Cancer Res 2001, 61: 4750–4755.

    CAS  Google Scholar

  16. 16.

    Lunt SJ, Chaudary N, Hill RP: The tumor microenvironment and metastatic disease. Clin Exp Metastasis 2009, 26: 19–34. 10.1007/s10585-008-9182-2

    Article  Google Scholar

  17. 17.

    Burvenich IJ, Schoonooghe S, Blanckaert P, Bacher K, Vervoort L, Coene E, Mertens N, De Vos F, Slegers G: Biodistribution and planar gamma camera imaging of (123)I- and (131)I-labeled F(ab')(2) and Fab fragments of monoclonal antibody 14C5 in nude mice bearing an A549 lung tumor. Nucl Med Biol 2007, 34: 257–265. 10.1016/j.nucmedbio.2006.12.006

    CAS  Article  Google Scholar

  18. 18.

    Weinberg WC, Frazier-Jessen MR, Wu WJ, Weir A, Hartsough M, Keegan P, Fuchs C: Development and regulation of monoclonal antibody products: challenges and opportunities. Cancer Metastasis Rev 2005, 24: 569–584. 10.1007/s10555-005-6196-y

    CAS  Article  Google Scholar

  19. 19.

    Presta LG: Engineering of therapeutic antibodies to minimize immunogenicity and optimize function. Adv Drug Deliv Rev 2006, 58: 640–656. 10.1016/j.addr.2006.01.026

    CAS  Article  Google Scholar

  20. 20.

    Chirino AJ, Ary ML, Marshall SA: Minimizing the immunogenicity of protein therapeutics. Drug Discov Today 2004, 9: 82–90. 10.1016/S1359-6446(03)02953-2

    CAS  Article  Google Scholar

  21. 21.

    Tanner JE: Designing antibodies for oncology. Cancer Metastasis Rev 2005, 24: 585–598. 10.1007/s10555-005-6197-x

    CAS  Article  Google Scholar

  22. 22.

    DuBridge RB, Tang P, Hsia HC, Leong PM, Miller JH, Calos MP: Analysis of mutation in human cells by using an Epstein-Barr virus shuttle system. Mol Cell Biol 1987, 7: 379–387.

    PubMed Central  CAS  Google Scholar

  23. 23.

    Schoonooghe S, Kaigorodov V, Zawisza M, Dumolyn C, Haustraete J, Grooten J, Mertens N: Efficient production of human bivalent and trivalent anti-MUC1 Fab-scFv antibodies in Pichia pastoris . BMC Biotechnol 2009, 9: 70. 10.1186/1472-6750-9-70

    PubMed Central  Article  Google Scholar

  24. 24.

    De Potter CR, Schelfhout AM, De Smet FH, Van Damme S, de Ridder L, Dhont E, van Emmelo J: A monoclonal antibody directed against a human cell membrane antigen prevents cell substrate adhesion and tumor invasion. Am J Pathol 1994, 144: 95–103.

    PubMed Central  CAS  Google Scholar

  25. 25.

    O'Mahoney JV, Adams TE: Optimization of experimental variables influencing reporter gene expression in hepatoma cells following calcium phosphate transfection. DNA Cell Biol 1994, 13: 1227–1232. 10.1089/dna.1994.13.1227

    Article  Google Scholar

  26. 26.

    Schoonooghe S, Burvenich I, Vervoort L, De Vos F, Mertens N, Grooten J: PH1-derived bivalent bibodies and trivalent tribodies bind differentially to shed and tumour cell-associated MUC1. Protein Eng Des Sel 2010, 23: 721–728. 10.1093/protein/gzq044

    CAS  Article  Google Scholar

  27. 27.

    Behr TM, Gotthardt M, Becker W, Behe M: Radioiodination of monoclonal antibodies, proteins and peptides for diagnosis and therapy. A review of standardized, reliable and safe procedures for clinical grade levels kBq to GBq in the Gottingen/Marburg experience. Nuklearmedizin 2002, 41: 71–79.

    CAS  Google Scholar

  28. 28.

    Hwang WY, Foote J: Immunogenicity of engineered antibodies. Methods 2005, 36: 3–10. 10.1016/j.ymeth.2005.01.001

    CAS  Article  Google Scholar

  29. 29.

    Queen C, Schneider WP, Selick HE, Payne PW, Landolfi NF, Duncan JF, Avdalovic NM, Levitt M, Junghans RP, Waldmann TA: A humanized antibody that binds to the interleukin 2 receptor. Proc Natl Acad Sci USA 1989, 86: 10029–10033. 10.1073/pnas.86.24.10029

    PubMed Central  CAS  Article  Google Scholar

  30. 30.

    Ohtomo T, Tsuchiya M, Sato K, Shimizu K, Moriuchi S, Miyao Y, Akimoto T, Akamatsu K, Hayakawa T, Ohsugi Y: Humanization of mouse ONS-M21 antibody with the aid of hybrid variable regions. Mol Immunol 1995, 32: 407–416. 10.1016/0161-5890(95)00017-9

    CAS  Article  Google Scholar

  31. 31.

    Enns A, Korb T, Schluter K, Gassmann P, Spiegel HU, Senninger N, Mitjans F, Haier J: Alphavbeta5-integrins mediate early steps of metastasis formation. Eur J Cancer 2005, 41: 1065–1072. 10.1016/j.ejca.2004.12.031

    CAS  Article  Google Scholar

  32. 32.

    Serini G, Valdembri D, Bussolino F: Integrins and angiogenesis: a sticky business. Exp Cell Res 2006, 312: 651–658. 10.1016/j.yexcr.2005.10.020

    CAS  Article  Google Scholar

  33. 33.

    Mueller MM, Fusenig NE: Friends or foes - bipolar effects of the tumour stroma in cancer. Nat Rev Cancer 2004, 4: 839–849.

    CAS  Article  Google Scholar

  34. 34.

    Vervoort L: Monoclonal antibody 14C5 and its potential application in radioimmunodetection and -therapy. PhD thesis. Ghent University: Laboratory of Radiopharmacy; 2010.

    Google Scholar

  35. 35.

    Vervoort L, Burvenich I, Staelens S, Dumolyn C, Waegemans E, Van Steenkiste M, Baird SK, Scott AM, De Vos F: Preclinical evaluation of monoclonal antibody 14C5 for targeting pancreatic cancer. Cancer Biother Radiopharm 2010, 25: 193–205. 10.1089/cbr.2009.0696

    CAS  Article  Google Scholar

  36. 36.

    DeNardo GL, Bradt BM, Mirick GR, DeNardo SJ: Human antiglobulin response to foreign antibodies: therapeutic benefit? Cancer Immunol Immunother 2003, 52: 309–316.

    CAS  Google Scholar

  37. 37.

    Ober RJ, Radu CG, Ghetie V, Ward ES: Differences in promiscuity for antibody-FcRn interactions across species: implications for therapeutic antibodies. Int Immunol 2001, 13: 1551–1559. 10.1093/intimm/13.12.1551

    CAS  Article  Google Scholar

  38. 38.

    Liu Z, Jia B, Zhao H, Chen X, Wang F: Specific targeting of human integrin alpha(v)beta (3) with (111)In-labeled Abegrin in nude mouse models. Mol Imaging Biol 2011, 13: 112–120. 10.1007/s11307-010-0302-4

    Article  Google Scholar

  39. 39.

    Behr TM, Goldenberg DM, Becker W: Reducing the renal uptake of radiolabeled antibody fragments and peptides for diagnosis and therapy: present status, future prospects and limitations. Eur J Nucl Med 1998, 25: 201–212. 10.1007/s002590050216

    CAS  Article  Google Scholar

  40. 40.

    Nayak TK, Garmestani K, Baidoo KE, Milenic DE, Brechbiel MW: Preparation, biological evaluation, and pharmacokinetics of the human anti-HER1 monoclonal antibody panitumumab labeled with 86Y for quantitative PET of carcinoma. J Nucl Med 2010, 51: 942–950. 10.2967/jnumed.109.071290

    PubMed Central  CAS  Article  Google Scholar

  41. 41.

    Hudson PJ, Souriau C: Engineered antibodies. Nat Med 2003, 9: 129–134. 10.1038/nm0103-129

    CAS  Article  Google Scholar

Download references


The authors wish to thank the Special Research Fund, BOF, University of Ghent.

Author information



Corresponding author

Correspondence to Caroline Dumolyn.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

CD designed and carried out the experimental studies and wrote the manuscript. SS contributed to the conception and design of the study and critically contributed to and revised the manuscript. LM and SN contributed to the carrying out of experimental studies and to the revision of the manuscript. JH participated in the design of protein purification. FDV participated in the design of the study and helped to draft the manuscript. All authors read and approved the final manuscript.

Caroline Dumolyn, Steve Schoonooghe contributed equally to this work.

Electronic supplementary material

Primers used in the construction of chimeric derivatives of antibody 14C5 expression plasmids.

Additional file 1: DNA sequences of the primers (5 to 3). (PDF 53 KB)


Additional file 2: Biodistribution of 131I-labeled chimeric antibody 14C5 and fragments (%ID/g tissue) in athymic mice bearing an A549 tumor. (PDF 93 KB)
