Predictive value of 99mTc-MAA-based dosimetry in personalized 90Y-SIRT planning for liver malignancies

EJNMMI Research volume 13, Article number: 63 (2023) Cite this article

Abstract

Background

Selective internal radiation therapy with 90Y radioembolization aims to selectively irradiate liver tumours by administering radioactive microspheres under the theragnostic assumption that the pre-therapy injection of 99mTc labelled macroaggregated albumin (99mTc-MAA) provides an estimation of the 90Y microspheres biodistribution, which is not always the case. Due to the growing interest in theragnostic dosimetry for personalized radionuclide therapy, a robust relationship between the delivered and pre-treatment radiation absorbed doses is required. In this work, we aim to investigate the predictive value of absorbed dose metrics calculated from 99mTc-MAA (simulation) compared to those obtained from 90Y post-therapy SPECT/CT.

Results

A total of 79 patients were analysed. Pre- and post-therapy 3D-voxel dosimetry was calculated on 99mTc-MAA and 90Y SPECT/CT, respectively, based on Local Deposition Method. Mean absorbed dose, tumour-to-normal ratio, and absorbed dose distribution in terms of dose-volume histogram (DVH) metrics were obtained and compared for each volume of interest (VOI). Mann–Whitney U-test and Pearson’s correlation coefficient were used to assess the correlation between both methods. The effect of the tumoral liver volume on the absorbed dose metrics was also investigated. Strong correlation was found between simulation and therapy mean absorbed doses for all VOIs, although simulation tended to overestimate tumour absorbed doses by 26%. DVH metrics showed good correlation too, but significant differences were found for several metrics, mostly on non-tumoral liver. It was observed that the tumoral liver volume does not significantly affect the differences between simulation and therapy absorbed dose metrics.

Conclusion

This study supports the strong correlation between absorbed dose metrics from simulation and therapy dosimetry based on 90Y SPECT/CT, highlighting the predictive ability of 99mTc-MAA, not only in terms of mean absorbed dose but also of the dose distribution.

Background

Liver cancer is currently the third leading cause of cancer death and the sixth most commonly diagnosed cancer worldwide [1]. Selective internal radiation therapy (SIRT) or Radioembolization (RE) with Yttrium-90 (90Y) labelled glass or resin microspheres is a widely used technique to treat primary and secondary liver malignancies, such as hepatocellular carcinoma (HCC), intrahepatic cholangiocarcinoma (ICC) and metastatic cancer spread to the liver, the first type being the most treated with this technique. SIRT aims to selectively irradiate liver tumours by administering radioactive microspheres through hepatic arteries, while sparing healthy tissue. Several studies demonstrated that the tumour absorbed dose is highly correlated with treatment response and tumour control probability, whereas non-tumoral liver absorbed dose correlates with induced toxicity and with radioembolization-induced liver disease (REILD) [2,3,4,5,6]. Therefore, an accurate treatment planning is required to ensure the safety and efficacy of the therapy by evaluation of the delivered dose to tumoral and non-tumoral liver tissue as well as extra-hepatic regions [7, 8]. Treatment planning based on patient-specific dosimetry is predicted to significantly improve clinical efficacy and cost-effectiveness and is therefore expected to be used in future trials of targeted internal radiation therapy [9, 10].

90Y-SIRT procedure applies a theragnostic concept for therapy planning and verification using similar radiopharmaceutical pairs. In the first step, the treatment is simulated using 99mTc-macroaggregated albumin (99mTc-MAA), as a surrogate for 90Y microspheres. Following the infusion of the 99mTc-MAA, the patient undergoes planar scintigraphy and Single-Photon Emission Computed Tomography/Computed Tomography (SPECT/CT), which allows the visualization of any extrahepatic distribution (in particular the lung localization caused by a high liver/lung shunt and the quantitative estimation of lung shunt fraction, LSF), the radiopharmaceutical biodistribution and pre-therapy dosimetry [8, 11] and furthermore guides for patient stratification and therapy optimization. In the second step, post-therapy imaging is performed to verify the distribution of the delivered dose from the 90Y-microsphere infusion, which can be performed using either a Bremsstrahlung SPECT/CT (bSPECT) or Positron Emission Tomography/Computed Tomography (PET/CT) [12].

The simulation technique is based on the hypothesis that the biodistribution of 99mTc-MAA and 90Y-microspheres is identical, due to the relatively similar size and density of the microspheres [13, 14]. However, studies indicated large variations in correlations between activity distribution of 99mTc-MAA and 90Y microspheres [15], ranging from good to poor correlations (mostly in tumoral tissue) [16,17,18,19,20,21,22,23,24,25]. The bremsstrahlung X-ray spectrum makes quantitative bSPECT imaging challenging, and 90Y PET suffers from high bias and variability because of the limited positron emission (32 per million decays). However, the latter has proven to be qualitatively and quantitatively superior when the radioactivity is highly concentrated, as is the case in RE [26,27,28]. Nevertheless, not only 90Y bSPECT is more affordable and widespread worldwide [29], but also PET/CT scanners recommended for this purpose are those having time-of-flight (TOF) capability, which are even less available to most centres than SPECT/CT [30, 31]. Therefore, personalized dosimetry studies in 90Y-SIRT based on bSPECT are still relevant and necessary [24].

The most basic dosimetry methods, such as the MIRD mono-compartment method [32], base the activity calculation on the desired mean absorbed dose to the target liver, independent of tumour burden, assuming a homogeneous absorbed dose distribution over the target tumour. A more personalized approach is the partition model (PM), which evaluates the activity on three compartments with different uptakes (tumours, non-tumoral tissue and lungs) [14], maximizing the absorbed dose to the tumour while limiting cytotoxic dose to healthy tissue. However, these methods do not account for the heterogeneity of the absorbed dose deposition. On the contrary, dosimetry at the voxel level (voxel-based dosimetry) accounts for the non-uniformity of activity distribution. This technique allows to compute dose volume histograms (DVHs) as in external beam radiation therapy (EBRT) [33], potentially providing useful knowledge on dose–effect relationships [12]. However, unlike EBRT, voxel-based dosimetry in RE relies on nuclear medicine images, with poorer image quality, making it difficult to directly quantify dose effects [12]. Thus, although there are recent studies confirming the validity of voxel dosimetry in SIRT [34, 35], some studies raised doubts on its real benefits of in this area [31, 36].

There is a growing interest in personalized radionuclide therapy with an increasing number of clinical trials striving to unify protocols and mitigating uncertainties, as the positive impact of a personalized regimen compared to the standard model in 90Y-SIRT has been demonstrated [10] (response rate: 79% vs. 43%, respectively). In this context, a robust relationship between the pre-therapy absorbed dose estimation and therapeutic delivered dose is required to be broadly investigated and further established [11]. Hence, this study aims to investigate the correlation between pre-therapy 99mTc-MAA SPECT/CT and post-therapy 90Y bSPECT/CT in a large cohort of patients, to try to mitigate uncertainty about the validity of 99mTc-MAA simulation in a voxel level dosimetry.

Methods

Patients

This retrospective study included a cohort of 90 patients treated by SIRT at the Geneva University Hospital (Geneva, Switzerland) from January 2011 to December 2021 with glass microspheres. Patients received a pre-treatment administration of 99mTc-MAA and a single treatment session with 90Y-microspheres. The study protocol was approved by the institution’s ethics committee, and all patients gave written informed content.

Radioembolization and imaging

SIRT was performed according to the general procedure described in the literature [37]. All patients were treated with glass microspheres (Therasphere™; Boston Scientific, Marlborough, Massachusetts). Simulation was performed (mean ± standard deviation, SD) 21 ± 7 days before treatment with 90Y, according to the manufacturer’s guidelines, with an intra-arterial injection of 154 ± 13 MBq of 99mTc-MAA. After simulation, planar and SPECT/CT imaging was performed to determine the extrahepatic shunts, in particular LSF, and confirm tumour coverage. Patients were excluded from therapy if the absorbed dose to the lungs was expected to exceed 30 Gy per treatment and/or 50 Gy in cumulative dose for those patients treated in several sessions. SPECT/CT images for simulation were obtained on a Symbia-T series camera (Siemens Healthcare, Erlangen, Germany) using low-energy high-resolution collimators, an energy window of 140 keV (15% energy window width) with 64 projections over a 180° angle (20–25 s per projection) within a 128 × 128 matrix. Tomograms were mostly reconstructed using a three-dimensional ordered-subset expectation maximization (OSEM3D) algorithm with 4 iterations and 8 subsets, including attenuation correction and a Gaussian filter of 5 mm. The 90Y treatment activity was determined based on the single-compartment partition model. Once the activity is defined, following the same procedure as during the simulation with 99mTc-MAA, after catheterization of the hepatic artery by the interventional radiologist, the nuclear medicine physician administers the glass microspheres (activity of 2.6 ± 1.2 GBq) using the TheraSphere™ Yttrium-90 glass microspheres delivery system. The residual activity left in the vial is measured with an activity meter. After treatment, the patient undergoes 90Y bSPECT/CT imaging to ensure the proper distribution of the microspheres. The images were performed on the same scanner as the simulation but with an energy window centred in 90 keV (30% window width), 150 keV (60% window width) and 170 (50% window width) for 9, 65 and 16 patients, respectively. For most patients, 64 projections were acquired (60 projections for 12 patients and 32 for 3 patients) over a 180° angle (15–30 s per projection) within a 128 × 128 matrix. The reconstruction was performed using OSEM3D algorithm with 4 iterations and 8 subsets, including attenuation correction and a Gaussian filter of 5 mm.

Workflow

Image segmentation

Three contours are performed according to the anatomical images: lesions, targeted lobe, and whole liver. Lesion and lobar segmentations are manually performed by an experienced nuclear medicine physician. The lesions were contoured on the diagnostic images on the baseline contrast-enhanced CT or magnetic resonance (MR), and the treated lobe on the attenuation-corrected CT (AC-CT) from the 99mTc-MAA simulation. As recommended [38], we avoided using threshold-based tumour segmentation on SPECT images as it often does not represent true anatomical extent due to heterogeneous microsphere distribution. In large lesions with a visible necrotic core in CT, the core was excluded from the lesion volume [8]. Small tumours with a volume under 4 ml, considered equivalent of a 2-cm-diameter spherical lesions, were excluded from the analysis, as recommended [31, 39]. Whole-liver segmentation was automatically performed by a commercially available Artificial Intelligence Software (Limbus AI Inc., Canada, v1.6.0) on the AC-CT from the 99mTc-MAA simulation.

Image registration

Hybrid images (SPECT/CT) are acquired under the same system matrix, thus are aligned by default. Simulation (99mTc-MAA SPECT/CT) and therapy (90Y bSPECT/CT) images are manually co-registered to each other based on the anatomical information from their AC-CTs with a rigid transformation. The targeted lobe and whole-liver contours may help the user to align them in this step. Secondly, the diagnostic image (CT or MR) is co-registered to the simulation and therapy AC-CTs using a rigid transformation, in order to localize the lesions on SPECT/CTs. In both registrations, rigid transformation is used since the deformable one may not always correctly handle the differences in matrix and voxel size [40]. The diagnostic image, the multimodal SPECT/CT from therapy, the SPECT/CT image from simulation and all the segments (lesions, lobe and whole-liver) were resampled to the AC-CT from the 99mTc-MAA simulation. All pre-processing was performed within 3D Slicer (v4.11.2).

Absorbed dose calculation

3D-voxel dosimetry was performed assuming the following statements: (1) there is permanent trapping of the microspheres (no biological clearance), (2) there is no activity shunt outside the liver, (3) there is no energy cross-talk among voxels by using the local energy deposition method, (4) the half-life (\({T}_{1/2})\) of 90Y is 64.1 h, mean energy 0.93 MeV and the density of the liver is 1.05 g/cm3. The dosimetry calculations were performed using an in-house developed MATLAB code (MATLAB (2021a), Natick, Massachusetts: The MathWorks Inc) based on the calculations described by Moran et al. [41]. A detailed description of the pipeline is provided in the Additional file 1.

We defined three volumes of interest (VOIs) to perform the dosimetry: Tumoral liver (TL), which is the sum of all the contoured lesions, and non-tumoral liver (NTL), discretizing this one into non-tumoral liver target (NTLt), which is the healthy tissue within the targeted lobe, and non-tumoral whole liver (NTLw), which is the healthy tissue within the whole liver. From the obtained dose maps, the mean absorbed dose (MAD) and the DVH curves were calculated for each VOI. From DVHs, we calculated the following absorbed dose metrics: D50, D70, D95, V120 and V205 for TL; and D50, D70 and D95, V20, V50, V90 for NTL (Dx: minimum dose received by x% of the volume; Vx: the percentage of the volume receiving at least x Gy). In addition, V205 was evaluated based on the recommended minimum dose-cut-off for therapy response in the literature, while V50 and V90 due to the dose limits recommended for the normal liver [33]. Finally, the tumour-to-normal liver ratio (TNR) was calculated for each patient for both simulation and therapy with respect NTLt (TNR-NTLt) and NTLw (TNR-NTLw) (i.e., considering the activities from 99mTc-MAA and 90Y SPECTs and the mass from NTLt and NTLw). In this equation, ATL and ANTL is the activity obtained from the TL and NTL VOIs, respectively, and MTL and MNTL is the mass of the corresponding VOIs. The followed workflow is summarized in Fig. 1.

$$\mathrm{TNR}= \frac{{A}_{\mathrm{TL}}/{M}_{\mathrm{TL}}}{{A}_{\mathrm{NTL}}/{M}_{\mathrm{NTL}}}$$
(1)
Fig. 1
figure 1

Followed workflow. The acquired images are the pre-treatment diagnostic CT or MR and the SPECT and AC-CT from both simulation and therapy. For the post-therapeutic verification, segmentation and registration is performed. From these images, we proceed to calculate the activity map and then, the dose map based on self-calibration strategy and the local energy deposition approach. Finally, the MAD, DVH and TNR are calculated within the three VOIs

Full size image

Statistical analysis

Absorbed dose metrics (MAD and DVH metrics) were obtained for each VOI (TL, NTLt, NTLw) for both simulation (99mTc-MAA) and therapy (90Y) and normalized by 90Y injected activity. Considering all patients, the mean ± SD from each metric was calculated. Values of TNRs (TNR-NTLt, TNR-NTLw) were also calculated for each patient and averaged over all patients.

Metrics based on simulation 99mTc-MAA SPECT and therapy 90Y SPECT were compared using the Wilcoxon’s rank sum test (Mann–Whitney U-test), assuming 95% significance level, thus considering statistically significant differences between simulation and therapy metrics if p-value (P) was less than 0.05. Pearson’s correlation coefficient (r) was used to assess the degree of linear correlation between both metrics, considering: 0 < r < 0.3 very weak; 0.3 < r < 0.5 weak; 0.5 < r < 0.7 moderate; 0.7 < r < 0.9 strong; and 0.9 < r < 1.0 very strong correlation [25]. A linear regression model was implemented to correlate the 90Y delivered dose with pre-therapy 99mTc-MAA images. The mean relative difference was also calculated for all metrics. The Kruskal–Wallis test was used to evaluate the potential effect of tumoral volume and the difference between absorbed dose metrics with respect to demographic variables. The statistical analysis was performed in Python 3.9.

Results

Study population

Of the 90 patients included in the study, 11 were excluded because the simulation and therapy activity maps did not visually match, in order to minimize the bias that physical differences between simulation and therapy can cause, such as differences in catheter positioning. An example of a patient showing visual agreement and disagreement is shown in Fig. 2, respectively, and example of the DVH curves in Fig. 3. Therefore, a total of 79 patients were analysed. Among these patients, 71 were treated of HCC, 4 of ICC and 4 of metastatic colorectal cancer (mCRC). A total of 98 lesions were analysed, 88 HCC, 4 ICC and 6 mCRC. Demographic information is summarized in Table 1.

Fig. 2
figure 2

An example of patient images showing agreement (top: a, b, c) and other example showing disagreement (bottom: d, e, f) between simulation SPECT with 99mTc-MAA and therapy bSPECT with 90Y. a, d Diagnostic contrast-enhanced CT. b, e SPECT/CT images of the pre-treatment simulation with 99mTc-MAA. c, f SPECT/CT images of the therapy session with 90Y. The segments corresponding to the perfused lobe and to the tumour are depicted in green and blue, respectively. Both examples correspond to HCC patients

Full size image
Fig. 3
figure 3

Dose-volume histograms of a patient with visual match from the SPECT (left) and mismatch (right) for all VOIs (TL, NTLt, NTLw), both patients of HCC with a single lesion

Full size image
Table 1 Baseline demographics and clinical characteristics
Full size table

Absorbed dose metrics for TL, NTLt and NTLw

The normalized MAD for the total tumoral tissue (TL) is 85.36 ± 79.97 Gy/GBq and 67.55 ± 55.34 Gy/GBq calculated on 99mTc-MAA and 90Y images, respectively (Table 2). There is a strong correlation between MAD, D50 and D70 (r = 0.95, P < 0.001) obtained from 99mTc-MAA with respect to those derived from 90Y imaging, followed by D95 (r = 0.89, P < 0.001), V120 (r = 0.89, P < 0.001) and V205 (r = 0.81, P < 0.001). No statistically significant differences were found according to the Wilcoxon’s test, except for D95 and V205. Figure 4 shows the correlation plots and linear regression models all absorbed dose metrics.

Table 2 Absorbed dose distribution parameters (MAD, D50, D70, D95 (Gy/GBq) and V120, V205, V20, V50, V90 (%)) compared between simulation (99mTc-MAA) and therapy (90Y) for all cases in TL, NTLt and NTLw
Full size table
Fig. 4
figure 4

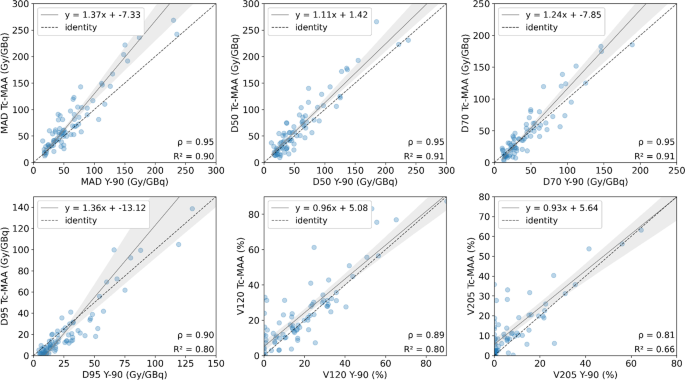

Correlations plots for different dosimetry metrics derived from TL: mean dose (MAD), D50 and D70 (top) and D95, V120 and V205 (bottom). For visualization purposes, in each graph the axes are set to equal length, leaving some points out of frame. The entire images are found on Additional file 1: Fig. S1

Full size image

For NTLt, normalized MAD from simulation resulted in 32.57 ± 20.37 Gy/GBq, and 32.28 ± 16.92 Gy/GBq from therapy. A strong correlation was found for MAD (r = 0.97, P < 0.001), D50 (r = 0.93, P < 0.001), V20 (r = 0.96, P < 0.001) and V50 (r = 0.92, P < 0.001), followed by D70 (r = 0.88, P < 0.001), D95 (r = 0.79, P < 0.001) and V90 (r = 0.88, P < 0.001). For NTLw, the strongest correlation is found for MAD (r = 0.95, P < 0.001) and less than 0.90 for the rest of the parameters. However, for both NTLt and NTLw only MAD and V90 presented no significant differences between simulation and therapy (P > 0.05). Regression plots are represented in Figs. 5 and 6, respectively, for NTLt and NTLw. Results are summarized in Table 2.

Fig. 5
figure 5

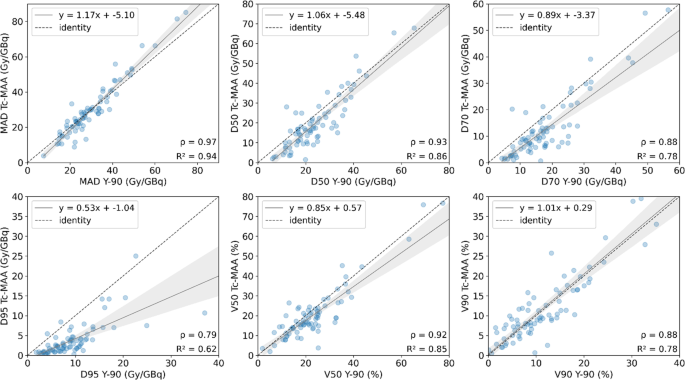

Correlations plots for different dosimetry metrics derived from NTLt: mean dose (MAD), D50 and D70 (top) and D95, V50 and V90 (bottom). For visualization purposes, the correlation for V20 is not shown, and in each graph the axes are set to equal length, leaving some points out of frame. The entire images are found on Additional file 1: Fig. S2

Full size image
Fig. 6
figure 6

Correlations plots for different dosimetry metrics derived from NTLw: mean absorbed dose (MAD), D50 and D70 (top) and D95, V50 and V90 (bottom). For visualization purposes, the correlation for V20 is not shown, and in each graph the axes are set to equal length, leaving some points out of frame. The entire images are found on Additional file 1: Fig. S3

Full size image

Tumoral volume

Tumoral volume was divided into two intervals (TL ≤ 200 ml; TL > 200 ml), and the absorbed dose metrics showing no significant differences in the previous step (namely MAD, D50, D70 and V120) were calculated for each one. The results are shown in Table 3. There is a strong correlation for all the metrics in both groups, although it seems higher for smaller volumes. On the other hand, their relative mean difference is larger, so there is less agreement. Figure 7 shows the correlation plot for both groups.

Table 3 Absorbed dose metrics MAD, D50, D70 (Gy/GBq) and V120 (%) compared between simulation (99mTc-MAA) and therapy (90Y) for TL divided by tumoral volume
Full size table
Fig. 7
figure 7

Correlation plots between MAD from simulation (Tc-MAA) and therapy (90Y) for TL < 200 ml and TL > 200 ml. For visualization purposes, in each graph the axes are set to equal length, leaving some points out of frame. The entire images are found on Additional file 1: Fig. S4

Full size image

In addition, the difference between the TL absorbed dose metrics between simulation and therapy was calculated for each patient. P-value of the Kruskal–Wallis test was not significant (P > 0.05) for all metrics except for D70, which resulted in P = 0.04.

TNR

The TNR was calculated in two ways: by considering the quotient of the activity measured in the TL and (1) NTLt (TNR-NTLt) and (2) NTLw (TNR-NTLw) for both activity maps from SPECTs simulation and therapy (Fig. 8). In addition, the effect of the volume was studied. Results are shown in Table 4. It can be seen that both TNR hold better correlation for TL < 200 ml, whereas larger tumours present significant differences (P ≤ 0.05) in both cases.

Fig. 8
figure 8

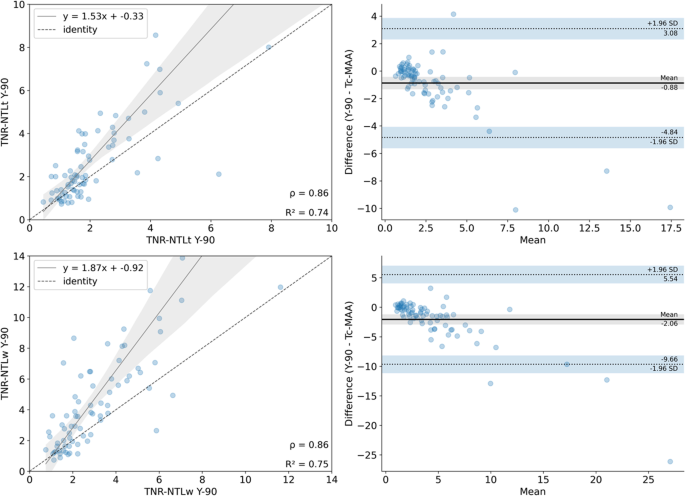

Correlation and Bland–Altman plots for TNR derived from NTLt and NTLw from simulation (top) and post-therapy (bottom)

Full size image
Table 4 Values of TNR (TNR-NTLt and TNR-NTLw) for simulation (99mTc-MAA) and therapy (90Y) across the different tumoral liver volumes
Full size table

Mean absorbed dose difference versus various parameters

A possible correlation between certain parameters and the difference in absorbed dose metrics between simulation and therapy has been evaluated. As parameters of interest, sex, treated lobe and number of lesions were chosen as discrete variables. Age, days between simulation and therapy, LSF and tumour involvement as continuous variables. The Kruskal–Wallis test showed no significant differences for any of the discrete parameters considered, as P = 0.80 for sex (masculine/feminine), P = 0.17 for treated lobe (right/left) and P = 0.57 for number of lesions (single/multiple). In the case of continuous variables, all the analysed parameters showed very weak correlation with the mean difference between 99mTc-MAA and 90Y, since r = − 0.11 for age, r = 0.23 for days between simulation and therapy, r = − 0.12 for LSF and r = 0.15 for tumour involvement.

Discussion

The role of personalized dosimetry in SIRT is clear, as it will be crucial in future clinical practice. However, there are still concerns about the use of 99mTc-MAA as a simulation step for therapy. The debate continues as to whether the existing discrepancies between 99mTc-MAA and 90Y simulation are related to MAA substitution issues or rather to the ability to administer both compounds under identical conditions [36]. The parameters that may have the greatest influence on a difference in absorbed dose distribution between simulation and therapy are reported to be the number of particles injected, the characteristics of the microspheres (in terms of size, shape, density, material, etc.), differences in catheter position, physiological variations in hepatic blood flow, possible disease progression between pre- and post-images, etc. [19, 22, 31, 38]. However, the quantification of these parameters is challenging.

Therefore, the objective of this study is to establish a practical open-source framework to compare absorbed dose metrics obtained from 99mTc-MAA SPECT images with respect to 90Y microsphere theragnostic SPECT images in SIRT in order to develop a suitable workflow for patient selection and personalized absorbed dose planning. We conducted 3D voxel-level dosimetry on a large cohort of 79 patients with 98 index tumours based on self-calibration and local energy deposition method.

According to several studies, there is a strong dose–response correlation with tumoricidal absorbed doses based on simulation with 99mTc-MAA within the range of 205 and 275 Gy [7, 13, 42, 43] and between 160 and 200 Gy for dosimetry based on 90Y SPECT/CT or PET/CT [44, 45]. For TL, considering an average about 2.65 ± 1.20 GBq of 90Y injected activity, the mean absorbed dose in tumours was estimated as 226 ± 211 Gy and 179 ± 146 Gy, from 99mTc-MAA and 90Y, respectively (Table 2), which is in agreement with the previously mentioned literature. The mean absorbed dose to healthy liver (NTLw) was measured in 49.47 ± 22.18 Gy and 54.53 ± 19.78 Gy for simulation and therapy, respectively, and the mean absorbed dose to healthy perfused lobe (NTLt) was measured 86.31 ± 53.98 Gy and 85.54 ± 44.83, respectively. According to the literature, these values are within the limits established for normal tissue impairment [33].

Pearson’s correlation coefficient showed that there is very strong correlation between simulation and therapy mean absorbed doses, either for TL, NTLt and NTLw. Generally, non-tumoral liver doses show stronger correlation than tumoral liver, which may be explained by the higher microsphere heterogeneity and the larger dose gradient within the tumour tissue [33, 41]. Some studies show Pearson r correlation coefficients ranging from 0.56 to 0.91 for the tumour simulation-therapy correlation and from 0.71 to 0.99 for non-tumoral liver [16, 17, 19, 23]. The strong correlation found in this study may come from the patient selection criteria (i.e., most of the patients are treated for only one primary lesion, the majority being HCC patients), the exclusion of visually non-matching pre- and post-therapy SPECT images (approximately 11% of the cases) and the normalization of the dose to the total 90Y injected activity. However, similarly to previous studies, our results show greater agreement for non-tumoral liver mean absorbed doses (Table 2, Figs. 5, 6).

On the other hand, the absorbed dose values in the tumour calculated with simulation 99mTc-MAA and post-therapy 90Y bSPECT were found to be related by a slope greater than unity in the regression curve, suggesting that the former are higher than the latter. The joint histograms (Additional file 1: Fig. S5) also support this trend. They show a pixel-by-pixel correlation between 99mTc-MAA SPECT and 90Y SPECT with the fitted line leaning towards 99mTc-MAA (indicated by a slope less than unity in this case). This was presented as a tendency of the simulation to overestimate absorbed doses with respect post-therapy.  A discrepancy between pre-therapy and post-therapy dosimetry has been also reported in both studies using PET [19, 38] and bSPECT [46] as the post-therapy imaging modality. However, as previously discussed, several studies have shown that 90Y PET is superior to 90Y bSPECT for post-therapy imaging, since the latter presents lower spatial resolution due to the Bremsstrahlung emission. Therefore, it is expected that a discrepancy between predictive and post-therapy dosimetry would be observed when bSPECT is used, which is one of the limitations of using this image modality. However, the main message of our study is showing the strong correlation of the predicted dose from 99mTc-MAA compared to the measured dose from post-therapy 90Y bSPECT in terms of microsphere distribution. Our finding is consistent with the results obtained in a phantom study [47] in which the activity of a radioactive source is compared with the activity detected by 99mTc-MAA SPECT, 90Y PET and 90Y bSPECT. According to their results, the ratio between 99mTc-MAA SPECT and 90Y bSPECT activity is 1.6, which is a similar value to the slope obtained in our study, whereas is almost the unity between 99mTc-MAA SPECT and 90Y PET. Therefore, it is expected that other studies showing correlation between simulation and therapy with 90Y PET will show slopes closer to the unity [17]. Our results in TL agree with another study [46] in which bSPECT is used for post-therapy imaging, presenting the linear correlations for 90Y vs. 99mTc-MAA voxel dose from tumours in catheter-matched cases. They obtain a slope of 1.37 with the 99mTc-MAA cases, which is consistent with the slope value obtained in our study for the absorbed dose (Fig. 4).

In addition, we obtained cumulative DVHs generated by voxel dosimetry to compare the heterogeneity of the activity distribution between 99mTc-MAA and 90Y. The obtained indices showed good correlation between simulation and therapy. However, significant differences were found for several metrics, mostly on NTL. For TL, D50, D70 and V120 were found to be more correlated, whereas it was V90 for NTL. To the best of our knowledge, there are no studies analysing the agreement and correlation between DVH metrics for glass microspheres on 90Y bSPECT.

Our results suggest that the effect of tumoral liver volume does not significantly affect the differences between simulation and therapy for MAD or the rest of DVH metrics. Although the linear correlation was better explained for smaller tumours (TL ≤ 200 ml) than for larger tumours (TL > 200 ml), the latter present less disparity. This is expected and is in agreement with another study [19], as the dosimetry of small lesions is more challenging than larger lesions. They suffer from higher risk of reflux [31], the partial volume effect (PVE) is more severe [31, 33, 48], and segmentation and registration are more complicated, since small variations may lead to large discrepancies on activity quantification [33]. For this reason, lesions smaller than 4 ml (estimated to be 2 cm of diameter) were excluded from the analysis, as recommended by other studies [31, 39].

We have calculated the TNR from simulation and therapy in two different ways, to obtain TNR-NTLt and TNR-NTLw. These results suggest that the TNR obtained from 90Y is less variable than from 99mTc-MAA SPECT/CT, either for NTLt and NTLw, which is in agreement with a study performed by Villalobos et al. comparing TNR values from 99mTc-MAA and 90Y bSPECT/CT from SIRT with glass microspheres [24]. Both TNR-NTLt and TNR-NTLw in simulation overestimate the TNR in therapy, the latter being statistically lower. This is also consistent with the previous study [24] but contrary to other study by d’Abadie et al. [39], as they found that TNR calculated with 90Y imaging is statistically higher than TNR calculated with 99mTc-MAA. Nevertheless, this study uses 90Y TOF-PET/CT for post-therapy imaging and is based on SIRT with resin microspheres. The smaller values of TNR found with 90Y bSPECT might come from the effect of scattering and PVE.

There is still need to demonstrate feasibility of simulation with 99mTc-MAA, as new methods are emerging to overcome the present discrepancies in the recent years, such as the use of a low-dose 90Y scout as a bioidentical surrogate [25] or the use of new radiotracers such as Holmium-166 (166Ho)-loaded microspheres as an alternative to 90Y-microspheres [49,50,51]. In addition, although it has been demonstrated that post-treatment dosimetry based on high-resolution PET/CT is superior to bSPECT/CT in terms of image quality [28], SPECT/CT scanners are more available and still widely used in the routine clinical practice [30, 31], so demonstrating the correlation between simulation and bSPECT-based therapy is very valuable in this scenario. There are also some studies showing a significant correlation between absorbed dose metrics calculated from 90Y-bSPECT and 90Y-PET images [52], paving the way for the use of 90Y-bSPECT to establish a robust dose–response relationship. On the other hand, the use of voxel-dosimetry also remains a subject of discussion, as some authors demonstrate its validity in TARE [36], while others [8] show that it does not improve over MIRD approaches.

Due to the lack of a single energy photo-peak in bSPECT, it is common to see wide and varying energy windows employed in different studies for 90Y-bSPECT imaging. For instance, Ito et al. [53] compared several energy windows and concluded that the 102–138 keV window provided the highest resolution and lowest uncertainty, Rhong et al. [54] found 80–180 keV to be the optimal window, and Roshan et al. [55] preferred 60–400 keV. In addition, another study comparing different window settings, similar to those used in this study, showed equivalent signal-to-background ratios [56]. In this study, patients were imaged after therapy with three different energy window settings, which may affect image quality. However, in a prior analysis, we verified that the correlations between simulation and therapy did not depend on the choice of window. Therefore, no distinction was made between window settings in this study.

Our findings support other studies claiming good agreement between simulation and therapy; however, there are several limitations. The reconstruction of SPECT images did not include scatter correction, which may influence the results, because as suggested by other studies, this may lead to an overestimation of up to 40% in the absorbed dose for non-tumoral tissue [57]. However, it represents real-life clinical practice, where these corrections are not always available. It should also be noted that the use of bSPECT instead of PET as a post-therapy imaging method exacerbates the discrepancies between simulation and therapy due to its poorer spatial resolution, as previously discussed. Cases that did not visually match simulation and therapy were excluded from the mean calculations. This selection of patients was done with the aim of eliminating the physical differences between simulation and therapy as a source of uncertainty, as a voxel-to-voxel analysis is expected to be different in these cases (Fig. 2), and to investigate possible sources of discrepancy in other factors. Nevertheless, it would be prudent to perform a separate analysis including these cases, as they represent approximately 11% of the total number of cases, a non-negligible percentage of patients, and are again representative of real-life scenarios. In addition, motion correction due to breathing was not applied for lesions dwelling in the superior hepatic lobe, which can cause a mismatch between CT and SPECT at the dome of the liver and attenuation correction issues [31].

Images were registered using rigid transformations, as recommended by other authors [31, 58], since deformable registration can cause differences in matrix and voxel size. On the other hand, rigid registration does not take into account changes in the geometry of the abdominal organs, which may result in missing counts when calculating activity and aggravate co-registration errors. In addition, no information was available on the time delay between 99mTc-MAA administration and 99mTc-MAA SPECT imaging. However, it would be worth investigating the effect of this factor on the predictive ability, as particle degradation may also become a source of uncertainty. As future work, it is intended to perform the same analysis but applying the previous corrections. Also, it would be interesting to study the behaviour of the excluded necrotic areas.

In this study, it has been shown that there is a strong correlation between the absorbed dose metrics extracted from 99mTc-MAA simulation SPECT/CT images and the post-therapy images with 90Y SPECT/CT based on voxel dosimetry, highlighting the predictive ability of 99mTc-MAA. In addition, different absorbed dose parameters derived from DVHs, representing the microspheres distribution, have been evaluated, confirming the strong correlation between simulation and therapy absorbed dose distribution.

Conclusion

The simulation step with 99mTc-MAA SPECT/CT in SIRT plays an important role in the selection of potential candidates to therapy as a theragnostic approach for treatment planning. Despite controversy about its usefulness, it has been found that there is a high correlation between mean absorbed doses on tumoral and non-tumoral liver, even with post-therapy bSPECT imaging, highlighting the predictive value of dosimetry based on 99mTc-MAA SPECT. In addition, DVH metrics provide important information on the heterogeneity of dose distribution within segments; hence, voxel-dosimetry is highly supported.

Availability of data and materials

The dataset analyzed during the current study is not publicly available and cannot be shared due to ethical standards.

Abbreviations

90Y:

Yttrium-90

99mTc:

Tecnecium-99 metastable

99mTc-MAA:

99MTc-macroaggregated albumin

166Ho:

Holmium-166

AC:

Attenuation-corrected

bSPECT:

Bremsstrahlung SPECT

CT:

Computed tomography

DVH:

Dose volume histogram

EBRT:

External beam radiation therapy

HCC:

Hepatocellular carcinoma

ICC:

Intrahepatic cholangiocarcinoma

LSF:

Lung shunt fraction

MAD:

Mean absorbed dose

mCRC:

Metastatic colorectal cancer

MR:

Magnetic resonance

NTL:

Non-tumoral liver

NTLt:

Non-tumoral liver target

NTLw:

Non-tumoral whole liver

OSEM3D:

Three-dimensional ordered-subset expectation maximization

PET:

Positron emission tomography

PVE:

Partial volume effect

RE:

Radioembolization

REILD:

Radioembolization induced liver disease

SD:

Standard deviation

SIRT:

Selective internal radiation therapy

SPECT:

Single-photon emission computed tomography

TL:

Tumoral liver

TNR:

Tumour-to-normal liver ratio

TOF:

Time-of-flight

VOI:

Volume of interest
