Hypoxia and glucose metabolism assessed by FMISO and FDG PET for predicting IDH1 mutation and 1p/19q codeletion status in newly diagnosed malignant gliomas

EJNMMI Research volume 11, Article number: 67 (2021) Cite this article

Abstract

Background

Tumor hypoxia and glycolysis have been recognized as determinant factors characterizing tumor aggressiveness in malignant gliomas. To clarify in vivo hypoxia and glucose metabolism in relation to isocitrate dehydrogenase (IDH) mutation and chromosome 1p and 19q (1p/19q) codeletion status, we retrospectively analyzed hypoxia as assessed by positron emission tomography (PET) with [18F]-fluoromisonidazole (FMISO) and glucose metabolism as assessed by PET with [18F]-fluoro-2-deoxy-d-glucose (FDG) in newly diagnosed malignant gliomas.

Methods

In total, 87 patients with newly diagnosed supratentorial malignant (WHO grade III and IV) gliomas were enrolled in this study. They underwent PET studies with FMISO and FDG before surgery. The molecular features and histopathological diagnoses based on the 2016 WHO classification were determined using surgical specimens. Maximal tumor-to-normal ratio (TNR) was calculated for FDG PET, and maximal tumor-to-blood SUV ratio (TBR) was calculated for FMISO PET. The PET uptake values in relation to IDH mutation and 1p/19q codeletion status were statistically analyzed.

Results

In all tumors and malignant astrocytomas, the median FMISO TBR in IDH-wildtype tumors was significantly higher than that in IDH-mutant tumors (P < 0.001 and P < 0.01, respectively). In receiver operating characteristic (ROC) analysis, the area under the curve showed that the sensitivity for the discrimination was moderate (0.7–0.8) and the specificity was low (0.65–0.68). In the same population, the median FDG TNR in IDH-wildtype tumors tended to be higher than that in IDH-mutant tumors, but the difference was not statistically significant. In WHO grade III anaplastic astrocytomas, there were no significant differences in median FMISO TBR or FDG TNR between IDH-mutant and IDH-wildtype tumors. In IDH-mutant WHO grade III anaplastic gliomas, there were no significant differences in median FMISO TBR or FDG TNR between anaplastic astrocytomas and anaplastic oligodendrogliomas.

Conclusions

Tumor hypoxia as assessed by FMISO PET was informative for prediction of the IDH mutation status in newly diagnosed malignant gliomas. However, the accuracy of the discrimination was not satisfactory for clinical application. On the other hand, glucose metabolism as assessed by FDG PET could not differentiate the IDH-mutant status. Moreover, PET studies using FMISO and FDG could not predict IDH mutation and 1p/19q codeletion status in WHO grade III tumors.

Introduction

Tumor hypoxia and accelerated glycolysis have been recognized as determinant factors characterizing tumor aggressiveness [1, 2]. Tumor hypoxia is caused by the rapid depletion of oxygen that occurs with aberrant tumor cell proliferation and temporary cessation of blood flow due to disorganized vasculatures in malignant gliomas [2]. Hypoxia promotes neovascularization through a variety of molecular signals [3] and is associated with the propagation and progression of malignant gliomas [4]. One of the main early cellular events evoked upon exposure to hypoxia is the activation of hypoxia-inducible factor 1 (HIF-1) [5], an oxygen-regulated transcription factor that mediates the adaptation of cells to decreased oxygen supply. On the other hand, accumulating studies have demonstrated that accelerated aerobic glycolysis, also known as the Warburg effect, participates in the clinical aggressiveness of tumors including gliomas [6]. In contrast to normal cells, malignant cells use pyruvate for energy production instead of fluxing it into acetyl-CoA in the tricarboxylic acid (TCA) cycle, even under normoxic conditions. This effect is an adapted metabolic phenotype in cancer. The rate of glucose metabolism through aerobic glycolysis is higher, so the production of lactate from glucose occurs much faster than the complete oxidation of glucose in the TCA cycle at the expense of inefficient ATP production [7]. As a result, cancer cells overexpress glucose transporters to compensate for their high energy demand with their abnormally high rate of glucose uptake [6].

The updated 2016 edition of the World Health Organization (WHO) classification of tumors of the central nervous system (CNS) uses molecular parameters and histology to define the main tumor categories [8]. Among several molecular parameters, isocitrate dehydrogenase (IDH) mutation and chromosome 1p and 19q (1p/19q) codeletion status have pivotal roles in the characterization of gliomas and have been integrated in the new classification. Mutations of the enzyme cytosolic IDH in gliomas have drawn particular attention in the field of neuro-oncology in recent years [9]. Postoperative immunohistochemistry and sequencing have been commonly used to detect these molecular profiles. However, in some patients, tumor localization hinders ample sample collection for pathological assessment. Given that different IDH mutation statuses need different treatment strategies and exhibit different prognoses in gliomas [8, 10], it is essential to predict the IDH mutation status preoperatively and even in patients not undergoing surgery.

A recent study showed that IDH-mutant cells shift glucose metabolism from glycolysis to the TCA cycle [11, 12]. In addition, several clinical studies demonstrated that the glucose uptake of IDH-mutant gliomas was significantly lower than that of IDH-wildtype gliomas [13,14,15]. Recently, an exploratory study using oxygen-sensitive molecular MRI revealed that IDH-mutant gliomas exhibit lower hypoxia and acidity compared with IDH-wildtype gliomas [16]. Additionally, a study by Grassian et al. observed increased oxidative TCA metabolism and reduced tumor growth rates in IDH-mutant glioma cells under hypoxic conditions, suggesting that IDH-mutant gliomas prefer a more oxygenated microenvironment for cell proliferation [17]. Tumor hypoxia and glycolysis highlight an emerging theme in human malignant glioma, as they are major resistance factors responsible for the failure of chemo- and radiotherapy in malignant gliomas [6, 18].

Based on these studies, we hypothesized that IDH-mutant gliomas would exhibit both less hypoxia and lower glucose consumption compared with IDH-wildtype gliomas. To clarify in vivo hypoxia and glucose metabolism in relation to IDH mutation and 1p/19q codeletion status, we retrospectively analyzed the hypoxia as assessed by positron emission tomography (PET) with [18F]-fluoromisonidazole (FMISO) and glucose metabolism as assessed by PET with [18F]-fluoro-2-deoxy-d-glucose (FDG) in newly diagnosed malignant (WHO grade III and IV) gliomas.

Materials and methods

Patients

From April 2013 to March 2019, 87 patients with newly diagnosed supratentorial malignant gliomas (45 men and 42 women; median age 64 years, range 26–86 years) were retrospectively enrolled in this study. All patients underwent routine magnetic resonance imaging (MRI) examinations including T2-weighted fluid-attenuated inversion recovery (FLAIR) and gadolinium (Gd)-enhanced T1-weighted (T1 + Gd) sequences. Both PET studies were performed within a short period before surgery. Histopathology including immunohistochemistry (IHC) was performed on tissue specimens obtained by biopsy or resection using a multimodal navigation system (StealthStation®, Medtronic Sofamor Danek Co., Ltd., Tokyo, Japan) by integrating PET/CT images with anatomical MR images. The highest PET tracer uptake area was selected for tumor sampling. All gliomas were classified using the 2016 WHO classification. The presence of IDH1 mutation was assessed by IHC to detect IDH1 R132H (codon 132 of the IDH1 gene) protein expression using a monoclonal antibody (clone H09, 1:50; Dianova, Hamburg, Germany). In cases where IHC was negative, IDH1 and IDH2 (R172) were directly sequenced using the Sanger method. The presence or absence of 1p/19q codeletion was determined by fluorescence in situ hybridization analysis. The 1p/19q codeletion status is another important genetic alteration in the 2016 WHO classification. The presence of both the IDH mutation and 1p/19q codeletion characterizes oligodendrogliomas, whereas the presence of the IHD mutation without 1p/19q codeletion is indicative of astrocytoma [8].

The patients’ characteristics, including histopathological and genetic diagnoses according to the 2016 WHO classification, are summarized in Table 1: 18 patients had grade III astrocytoma (anaplastic astrocytoma, AA), 11 patients had grade III oligodendroglioma (anaplastic oligodendroglioma, AO), and 58 patients had grade IV astrocytoma (glioblastoma, GBM). IDH mutation was found in 21 tumors (24.1%; 18 grade III, 3 grade IV), and 66 tumors were classified as IDH-wildtype tumors (75.9%; 11 grade III, 55 grade IV).

Table 1 Summary of 87 patients
Full size table

Radiotracer synthesis

The clinical use of FMISO as a PET tracer was approved by the Kagawa University Faculty of Medicine Human Subjects Ethical Committees, and informed consent was obtained from all patients with written consent received before the PET examination. FMISO was prepared by a modified method of Oh et al. [19]. The radiochemical purity of the produced FMISO was greater than 99%. FDG was produced by proton bombardment of 18O-enriched water by the method of Toorongian et al. [20], with some modifications. The radiochemical purity of the produced FDG was greater than 95%.

PET/CT imaging

PET studies were performed using an ECAT EXACT HR + scanner (Siemens/CTI, Knoxville, TN, USA) or a Biograph mCT PET/CT scanner (Siemens/CTI, Knoxville, TN, USA). Attenuation correction was performed using 68Ge rod sources rotating around the head or CT maps. The interval between FMISO and FDG PET scans was 2 weeks at most. No treatments were started until both PET scans had been completed. For FMISO PET, no special dietary instructions were given to the patients. Regional emission scans were acquired for 10 min, beginning 120 min after an intravenous bolus injection of FMISO (262 ± 54.3 MBq). For FDG PET, patients were instructed to fast for at least 6 h before imaging, and serum glucose levels were analyzed before the injection of FDG and were within normal levels. Each patient received an intravenous injection of FDG (235 ± 48.8 MBq). After 45–60 min, regional emission images of the brain were obtained for 10 min. Images were acquired with the patients resting in the supine position with their eyes closed. The PET data were acquired in three-dimensional mode and were reconstructed with the baseline ordered-subsets expectation maximization (OSEM) algorithm. For FMISO PET, a venous blood sample was obtained during emission tomography. A 1-mL whole blood sample was counted in a calibrated gamma well counter (ALOKA, Tokyo, Japan). Blood activity of the sample was expressed as MBq/mL of decay corrected to the time of injection.

PET data analysis

Experienced nuclear medicine physicians analyzed the PET data. They were blinded to the results of the histopathological and immunohistochemical analyses.

The FMISO PET images were scaled to the venous blood concentration of FMISO activity to produce tumor-to-blood (T/B) values. This allowed for a pixel-by-pixel calculation of T/B activity ratios for all image planes. The maximum tumor-to-blood ratio (TBR) was calculated as the representative value for each tumor.

For FDG PET analysis, the region of interest (ROI) was outlined within areas of the hypermetabolic region in each slice of the SUV image. The SUVmax was calculated accordingly and considered the representative value for each tumor. The maximal tumor-to-normal ratio (TNR) was calculated by dividing the tumor SUVmax by the mean SUV of the normal brain parenchyma (usually contralateral normal brain excluding the ventricles). The PET and MRI datasets were transferred to a Linux workstation, and coregistration was performed using Dr. View/Linux (AJS, Tokyo, Japan).

Statistical analysis

The Mann–Whitney U test was used to compare the TBR values for FMISO and TNR values for FDG in relation to IDH mutation and 1p/19q codeletion status. ROC analysis was performed to compare the diagnostic usefulness of the TBR for FMISO in predicting IDH mutation status. We determined the cutoff value at which the point is closest to (1, 1) corner in the ROC plane. All statistical analyses were performed using EZR version 1.40 (Saitama Medical Center, Jichi Medical University, Saitama, Japan). A P value less than 0.05 was considered statistically significant.

Results

PET uptake values in relation to IDH mutation status in all tumors

In all tumors, the median FMISO TBRs for IDH-mutant and IDH-wildtype tumors were 1.60 (IQR 1.49–1.97) and 2.52 (1.86–3.21), respectively (Fig. 1a and Table 2). The median FMISO TBR for IDH-wildtype tumors was significantly higher than that for IDH-mutant tumors (P < 0.001). The ROC analysis performed to differentiate IDH-mutant tumors from IDH-wildtype tumors showed that the area under the curve (AUC) for the FMISO TBR was 0.777 (95% CI 0.669–0.885; Fig. 2a). When the cutoff value for the FMISO TBR in the ROC curve was set at 2.22, the sensitivity for the differential diagnosis was 81.0%, and the specificity was 65.2%.

Fig. 1
figure 1

a Box plots showing the FMISO TBR in relation to IDH1 mutation status in all gliomas (n = 87). The FMISO uptake in IDH1-wildtype (wt) tumors was significantly higher than that in IDH1-mutant (mut) tumors (P < 0.001). b Box plots showing the FMISO TBR in relation to IDH1 mutation status in malignant astrocytomas (n = 76; 18 AAs and 58 GBMs). The FMISO uptake in IDH1-wildtype (wt) tumors was significantly higher than that in IDH1-mutant (mut) tumors (P < 0.01)

Full size image
Table 2 Summary of FMISO TBRs and FDG TNRs
Full size table

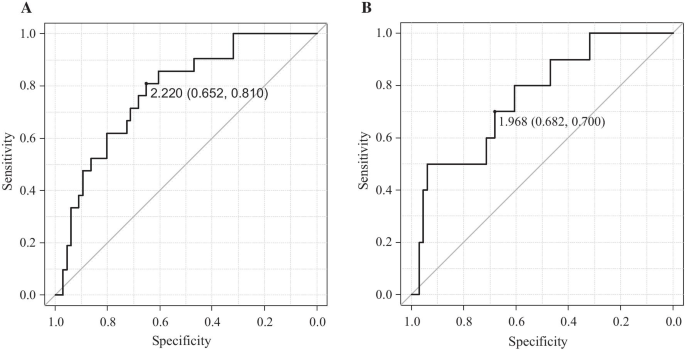

Fig. 2
figure 2

a ROC curve of FMISO PET for differentiating IDH1-wildtype tumors from IDH1-mutant tumors in all malignant gliomas (n = 87). The area under the curve (AUC) of the FMISO TBR was 0.777 (95% CI 0.669–0.885). When the cutoff value for the FMISO TBR in the ROC curve was set at 2.22, the sensitivity for the differential diagnosis was 81.0%, and the specificity was 65.2%. b ROC curve of FMISO PET for differentiating IDH1-wildtype tumors from IDH1-mutant tumors in malignant astrocytomas (n = 76; 18 AAs and 58 GBMs). The AUC of the FMISO TBR was 0.758 (95% CI 0.598–0.917). When the cutoff value for the FMISO TBR in the ROC curve was set at 1.968, the sensitivity for the differential diagnosis was 70%, and the specificity was 68.2%

Full size image

The median FDG TNRs for IDH-mutant and IDH-wildtype tumors were 2.17 (IQR 1.50–3.45) and 2.55 (1.97–4.35), respectively (Table 2). The median FDG TNR for IDH-wildtype tumors tended to be higher than that for IDH-mutant tumors, but the difference did not reach statistical significance (P = 0.077).

PET uptake values in relation to IDH mutation status in AAs and GBMs

In malignant astrocytomas (18 AAs and 58 GBMs) excluding AOs, the median FMISO TBRs for IDH-mutant and IDH-wildtype tumors were 1.70 (IQR 1.44–2.21) and 2.52 (1.86–3.21), respectively (Fig. 1b and Table 2). The median FMISO TBR for IDH-wildtype tumors was significantly higher than that for IDH-mutant tumors (P < 0.01). The ROC analysis performed to differentiate IDH-mutant tumors from IDH-wildtype tumors showed that the AUC for the FMISO TBR was 0.758 (95% CI 0.598–0.917; Fig. 2b). When the cutoff value for the FMISO TBR in the ROC curve was set at 1.968, the sensitivity for the differential diagnosis was 70%, and the specificity was 68.2%.

The median FDG TNRs for IDH-mutant and IDH-wildtype tumors were 1.76 (IQR 1.31–3.62) and 2.55 (1.97–4.35), respectively (Table 2). The median FDG TNR for IDH-wildtype tumors tended to be higher than that for IDH-mutant tumors, but the difference did not reach statistical significance (P = 0.105).

PET uptake values in relation to IDH mutation and 1p/19q codeletion status in WHO grade III anaplastic tumors

We further analyzed the PET uptake values for WHO grade III anaplastic tumors (7 AAs with IDH mutation, 11 AAs without IDH mutation, and 11 AOs with 1p/19q codeletion and IDH mutation).

In WHO grade III AAs, the median FMISO TBRs for IDH-mutant and IDH-wildtype AAs were 1.47 (IQR 1.42–1.70) and 1.57 (IQR 1.46–1.86), respectively (Table 2). There was no significant difference in FMISO TBR between the two groups. The median FDG TNRs for IDH-mutant and IDH-wildtype AAs were 1.50 (IQR 1.23–2.55) and 1.90 (IQR 1.54–2.39), respectively (Table 2). There was no significant difference in FDG TNR between the two groups.

In IDH1-mutant WHO grade III anaplastic gliomas, the median FMISO TBRs for AAs and AOs were 1.47 (IQR 1.42–1.70) and 1.60 (IQR 1.53–1.80), respectively (Table 2). There was no significant difference in FMISO TBR between the two groups. The median FDG TNRs for AAs and AOs were 1.50 (IQR 1.23–2.55) and 2.21 (IQR 1.83–3.11), respectively (Table 2). There was no significant difference in FDG TNR between the two groups.

Illustrative cases

Figure 3 shows representative MRI and FMISO and FDG PET images in each molecular genomic subtype.

Fig. 3
figure 3

MRI (FLAIR and T1 + Gd) and PET images (FMISO and FDG) in representative glioma patients. a A 66-year-old male patient with GBM-wt showing high uptake of FMISO (TBR = 3.54) and FDG (TNR = 4.54). b A 36-year-old male with AA-wt showing slightly increased uptake of FMISO (TBR = 1.57) and FDG (TNR = 2.28). c A 31-year-old female with AA-mut showing slightly increased uptake of FMISO (TBR = 1.43) and high uptake of FDG (TNR = 3.09). d A 38-year-old female with AO showing slightly increased uptake of FMISO (TBR = 1.55) and FDG (TNR = 2.17)

Full size image

Discussion

In the present study, it was clearly demonstrated that hypoxia as assessed by FMISO PET was significantly higher in IDH-wildtype tumors than in IDH-mutant tumors in newly diagnosed malignant (WHO grade III and IV) gliomas. A significant difference was also observed in malignant astrocytomas (AAs and GBMs) excluding AOs. These results are hardly surprising, as 58 of 87 patients (66.7%) enrolled in the present study had GBMs and 55 of the 58 GBMs (94.8%) were IDH-wildtype tumors. Previous studies have shown that FMISO uptake is significantly higher in GBMs compared with lower-grade tumors and that FMISO does not highly accumulate in most non-GBM patients [21, 22]. On the other hand, glucose metabolism as assessed by FDG PET in IDH-wildtype tumors tended to be higher than that in IDH-mutant tumors in the present study, but the difference did not reach statistical significance. This result was not in agreement with previous studies, in which the FDG uptake of IDH-wildtype tumors was significantly higher than that of IDH-mutant tumors [13,14,15]. This could be because the previous studies included all grades of diffuse gliomas (WHO grade II–IV), but the present study examined FDG PET only in malignant tumors (WHO grade III and IV). The great majority of WHO grade II tumors fall into the IDH-mutant category, and IDH-wildtype is an uncommon diagnosis [8]. FDG PET was suggested to be useful for imaging brain tumors because of increased glucose metabolism in high-grade tumors as well as positive correlation between the glycolysis rate and malignancy [23]. However, the diagnostic accuracy of FDG PET is hampered by the high physiologic glucose metabolism in surrounding brain areas and poor reliability in predicting the neoplastic nature of the lesions [24]. Moreover, studies have revealed that FDG PET has low sensitivity in differentiating low-grade tumors from high-grade tumors [25].

Anaplastic gliomas, which are defined as WHO grade III tumors, are considered to be malignant because of the short survival of patients with them. Furthermore, the prognosis of these patients varies and depends on the molecular genomic subtype. Recent genome-wide mutational analyses revealed that this clinical heterogeneity was largely related to IDH mutation and 1p/19q codeletion status [26]. AOs typically present with 1p/19q-codeletion combined with IDH mutation and have the best prognosis of all WHO grade III tumors. AA can be further differentiated into subgroups based on the IDH mutation status. The prognosis of IDH-mutant AA is intermediate, whereas IDH-wildtype AA is linked to a poor prognosis and bears many similarities to GBM [26]. A previous study reported that the prognostic role of IDH mutation status was prominent, especially in AAs, and the median overall survival was 65 months in patients with IDH mutations and 20 months in those without mutations [9]. Therefore, we further analyzed the FMISO and FDG uptakes in WHO grade III tumors to evaluate the actual relationships of IDH mutation and 1p/19q codeletion status with in vivo hypoxia and glucose metabolism. Although the number of tumors was small, hypoxia and glucose metabolism as assessed by PET were not significantly different between IDH-wildtype and IDH-mutant tumors in newly diagnosed AAs. This result was not in agreement with a previous study in which Takei et al. examined WHO grade III AAs and showed that IDH-wildtype tumors had significantly higher FDG uptakes compared with IDH-mutant tumors [14]. They examined the IDH mutation status using only IHC analysis, whereas we examined it more accurately using both IHC analysis and direct DNA sequencing. There are some reports describing a discrepancy between the results of IHC analysis and direct DNA sequencing [27]. The present study also showed that in vivo hypoxia and glucose metabolism as assessed by FMISO and FDG PET were not significantly different between AOs and AAs in IDH1-mutant WHO grade III tumors. This was in agreement with a previous study, in which Takei et al. showed that there was no significant difference in FDG uptake between IDH-mutant AOs and IDH-mutant AAs [14]. The overall survival for AOs has been reported to be significantly longer than that for AAs [28]. These results raise a question about the diagnostic and prognostic accuracy of in vivo hypoxic and glycolytic biomarkers assessed by FMISO and FDG PET and molecular biomarkers such as IDH mutation and 1p/19q codeletion status in WHO grade III tumors.

In the present study, we used FMISO and FDG PET with the assumption that these tracers can detect hypoxia and glucose metabolism accurately in human brain tumors. However, they have specific characteristics requiring considerable attention for detecting hypoxia and evaluating glycolysis. For FMISO, the threshold of oxygen partial pressure that determines whether FMISO is accumulated or extracted is generally believed to be approximately 10 mmHg [29]. FMISO accumulates only in severely hypoxic tissue, and these hypoxic conditions might be to induce tissue necrosis. Moreover, we obtained a static image 120 min after intravenous bolus injection of FMISO. There are several reports that a dynamic scan mode and the time activity curve of the tumors can evaluate hypoxia and other characteristics of the tumor biology better than using the static scan [30]. Later, 62Cu-diacetyl-bis(N4-methylthiosemicarbazone) (Cu-ATSM) has been proposed as a promising hypoxic tracer for PET [31]. In vivo studies have demonstrated that tissue Cu-ATSM uptake is dependent on the oxygen concentration and is retained in hypoxic cells at a higher level than FMISO [32]. For FDG, a previous study reported that it was successfully employed in the evaluation of cancer patients under the assumption that an increase in aerobic glycolysis would be reflected by an increase in the total glucose consumption of the tissue, although false-negative results do occur [33]. The degree to which these false-negative results would reflect a discrepancy between glucose metabolism as determined by conventional FDG PET scan and actual aerobic glycolysis is not well known. Recently, an 18F-labeled specific radiotracer, DASA-23, has been synthesized for evaluating in vivo pyruvate kinase 2 expression, which catalyzes the final and rate-limiting step in tumor glycolysis [34].

The present study has several limitations. First, this study was a retrospective nature based on postoperative histopathological diagnosis. In a clinical setting, preoperative prediction of IDH mutation status in all grade gliomas is more important. In our hospital, all of the patients suspected having glioma were also examined using [11C]-methionine (MET) and [18F]-fluorothymidine (FLT). Recently, we have reported the tracer uptake in grade III gliomas was significantly higher than that in grade II gliomas in MET and FLT PET in IDH-mutant tumors [35]. We also demonstrated that there was a significant correlation between FMISO uptake and glioma grade, with all low-grade gliomas (grade I and II) demonstrating no hypoxia and all high-grade gliomas (grade III and IV) showing hypoxia in newly diagnosed gliomas [22]. Therefore, we could accurately discriminate malignant gliomas from low-grade gliomas using several PET tracers preoperatively. Second, we could not statistically compare FMISO and FDG uptake values between IDH-wildtype and IDH-mutant tumors in newly diagnosed GBMs because there were only 3 GBMs with IDH mutation. The incidence of IHD-mutant GBM is rare (less than 10%) in the general population [8]. Third, we could not perform volumetric analyses between IDH-wildtype and IDH-mutant tumors. According to previous reports, both the intensity and volume of glucose metabolism and hypoxic burden are associated with prognosis in GBM patients [36]. The metabolically active hypoxic volume can be segmented as the volume showing both FMISO and FDG uptakes [36]. In the present study, we investigated PET images using two types of PET scanner (ECAT EXACT HR+ and Biograph mCT PET/CT). Therefore, the differences in spatial resolution and image contrast could have affected delineation of FMISO- and FDG-positive lesions. Finally, the present study was retrospective in nature, and no follow-up data were evaluated. Therefore, the findings need to be analyzed in relation to prognosis with a long follow-up period.

Conclusion

The present study demonstrated that tumor hypoxia as assessed by FMISO PET in IDH-wildtype tumors was significantly higher than that in IDH-mutant tumors and that the FMISO uptake value was able to predict the IDH mutation status in newly diagnosed malignant gliomas. However, the sensitivity for the discrimination was moderate (0.7–0.8), and the specificity was low (0.65–0.68) in ROC analysis. On the other hand, glucose metabolism as assessed by FDG PET could not differentiate the IDH-mutant status. Moreover, conventional PET studies using FMISO and FDG could not predict the IDH mutation and 1p/19q codeletion status in WHO grade III tumors. The absence of hypoxic and glycolytic signatures in relation to IDH mutation status might reflect specific characteristics of FMISO and FDG for detecting hypoxia and glucose metabolism in in vivo PET study. Further research using alternative or advanced radiotracers for hypoxic and glycolytic imaging is warranted to precisely predict molecular biomarkers, especially for the IDH1 mutation status.

Availability of data and materials

Due to the sensitive nature of human participant information, all datasets used during the current study are not publicly open but are available upon reasonable request by contacting the corresponding author.

Abbreviations

AA:

anaplastic astrocytoma

AO:

anaplastic oligodendroglioma

ATP:

adenosine triphosphate

AUC:

area under the curve

CNS:

central nervous system

CT:

computed tomography

EZR:

easy R

FDG:

18F-fluoro-2-deoxy-d-glucose

FLAIR:

fluid-attenuated inversion recovery

FMISO:

18F-fluoromisonidazole

FOV:

field of view

FWHM:

full-width at half maximum

GBM:

glioblastoma multiforme

Gd:

gadolinium

HIF-1:

hypoxia-inducible factor 1

IDH:

isocitrate dehydrogenase

IHC:

immunohistochemistry

IQR:

interquartile range

MBq:

megabecquerel

MRI:

magnetic resonance imaging

OSEM:

ordered subset expectation maximization

PET:

positron emission tomography

ROC:

receiver operating characteristic

ROI:

region of interest

SUV:

standardized uptake value

TBR:

tumor-to-blood ratio

TCA:

tricarboxylic acid

TNR:

tumor-to-normal ratio

WHO:

World Health Organization

References

  1. Kroemer G, Pouyssegur J. Tumor cell metabolism: cancer’s Achilles’ heel. Cancer Cell. 2008;13:472–82.

    Article  CAS  Google Scholar

  2. Brown JM, Wilson WR. Exploiting tumour hypoxia in cancer treatment. Nat Rev Cancer. 2004;4:437–47.

    Article  CAS  Google Scholar

  3. Hardee ME, Zagzag D. Mechanism of glioma-associated neovascularization. Am J Pathol. 2012;181:1126–41.

    Article  CAS  Google Scholar

  4. Kaur B, Khwaja FW, Severson EA, Matheny SL, Brat DJ, Van Meir EG. Hypoxia and the hypoxia-inducible-factor pathways in glioma growth and angiogenesis. Neuro Oncol. 2005;7:134–53.

    Article  CAS  Google Scholar

  5. Forsythe JA, Jiang BH, Iyer NV, Agani F, Leung SW, Koos RD, et al. Activation of vascular endothelial growth factor gene transcription by hypoxia-inducible factor 1. Mol Cell Biol. 1996;16:4604–13.

    Article  CAS  Google Scholar

  6. Han W, Shi J, Cao J, Dong B, Guan W. Emerging roles and therapeutic interventions of aerobic glycolysis in glioma. Onco Targets Ther. 2020;13:6937–55.

    Article  CAS  Google Scholar

  7. Liberti MV, Locasale JW. The Warburg effect: how does it benefit cancer cells? Trends Biochem Sci. 2016;41:211–8.

    Article  CAS  Google Scholar

  8. Louis DN, Perry A, Reifenberger G, von Deimling A, Figarella-Branger D, Cavenee WK, et al. The 2016 World Health Organization classification of tumors of the central nervous system: a summary. Acta Neuropathol. 2016;131:803–20.

    Article  Google Scholar

  9. Yan H, Parsons DW, Jin G, McLendon R, Rasheed BA, Yuan W, et al. IDH1 and IDH2 mutations in gliomas. N Engl J Med. 2009;360:765–73.

    Article  CAS  Google Scholar

  10. Beiko J, Suki D, Hess KR, Fox BD, Cheung V, Cabral M, et al. IDH1 mutant malignant astrocytomas are more amenable to surgical resection and have a survival benefit associated with maximal surgical resection. Neuro Oncol. 2014;16:81–91.

    Article  CAS  Google Scholar

  11. Mustafa DA, Swagemakers SM, Buise L, van der Spek PJ, Kros JM. Metabolic alterations due to IDH1 mutation in glioma: opening for therapeutic opportunities? Acta Neuropathol Commun. 2014;2:6.

    Article  Google Scholar

  12. Dekker LJM, Wu S, Jurriëns C, Mustafa DAN, Grevers F, Burgers PC, et al. Metabolic changes related to the IDH1 mutation in gliomas preserve TCA-cycle activity: an investigation at the protein level. FASEB J. 2020;34:3646–57.

    Article  CAS  Google Scholar

  13. Kim D, Kim S, Kim SH, Chang JH, Yun M. Prediction of overall survival based on isocitrate dehydrogenase 1 mutation and 18F-FDG uptake on PET/CT in patients with cerebral gliomas. Clin Nucl Med. 2018;43:311–6.

    Article  Google Scholar

  14. Takei H, Shinoda J, Ikuta S, Maruyama T, Muragaki Y, Kawasaki T, et al. Usefulness of positron emission tomography for differentiating gliomas according to the 2016 World Health Organization classification of tumors of the central nervous system. J Neurosurg. 2019. https://doi.org/10.3171/2019.5.JNS19780.

    Article  PubMed  Google Scholar

  15. Liu FM, Gao YF, Kong Y, Guan Y, Zhang J, Li SH, et al. The diagnostic value of lower glucose consumption for IDH1 mutated gliomas on FDG-PET. BMC Cancer. 2021;21:83.

    Article  Google Scholar

  16. Yao J, Chakhoyan A, Nathanson DA, Yong WH, Salamon N, Raymond C, et al. Metabolic characterization of human IDH mutant and wild type gliomas using simultaneous pH- and oxygen-sensitive molecular MRI. Neuro Oncol. 2019;21:1184–96.

    CAS  PubMed  PubMed Central  Google Scholar

  17. Grassian AR, Parker SJ, Davidson SM, Divakaruni AS, Green CR, Zhang X, et al. IDH1 mutations alter citric acid cycle metabolism and increase dependence on oxidative mitochondrial metabolism. Cancer Res. 2014;74:3317–31.

    Article  CAS  Google Scholar

  18. Chédeville AL, Madureira PA. The role of hypoxia in glioblastoma radiotherapy resistance. Cancers (Basel). 2021;13:542.

    Article  Google Scholar

  19. Oh SJ, Chi DY, Mosdzianowski C, Kim JY, Gil HS, Kang SH, et al. Fully automated synthesis of [18F]fluoromisonidazole using a conventional [18F]FDG module. Nucl Med Biol. 2005;32:899–905.

    Article  CAS  Google Scholar

  20. Toorongian SA, Mulholland GK, Jewett DM, Bachelor MA, Kilbourn MR. Routine production of 2-deoxy-2-[18F]fluoro-d-glucose by direct nucleophilic exchange on a quaternary 4-aminopyridinium resin. Int J Rad Appl Instrum B. 1990;17:273–9.

    Article  CAS  Google Scholar

  21. Cher LM, Murone C, Lawrentschuk N, Ramdave S, Papenfuss A, Hannah A, et al. Correlation of hypoxic cell fraction and angiogenesis with glucose metabolic rate in gliomas using 18F-fluoromisonidazole, 18F-FDG PET, and immunohistochemical studies. J Nucl Med. 2006;47:410–8.

    CAS  PubMed  Google Scholar

  22. Yamamoto Y, Maeda Y, Kawai N, Kudomi N, Aga F, Ono Y, et al. Hypoxia assessed by 18F-fluoromisonidazole positron emission tomography in newly diagnosed gliomas. Nucl Med Commun. 2012;33:621–5.

    Article  CAS  Google Scholar

  23. Di Chiro G, DeLaPaz RL, Brooks RA, Sokoloff L, Kornblith PL, Smith BH, et al. Glucose utilization of cerebral gliomas measured by [18F] fluorodeoxyglucose and positron emission tomography. Neurology. 1982;32:1323–9.

    Article  Google Scholar

  24. Zhao C, Zhang Y, Wang J. A meta-analysis on the diagnostic performance of (18)F-FDG and (11)C-methionine PET for differentiating brain tumors. AJNR Am J Neuroradiol. 2014;35:1058–65.

    Article  CAS  Google Scholar

  25. Dunet V, Pomoni A, Hottinger A, Nicod-Lalonde M, Prior JO. Performance of 18F-FET versus 18F-FDG-PET for the diagnosis and grading of brain tumors: systematic review and meta-analysis. Neuro Oncol. 2016;18:426–34.

    Article  CAS  Google Scholar

  26. Grimm SA, Chamberlain MC. Anaplastic astrocytoma. CNS Oncol. 2016;5:145–57.

    Article  CAS  Google Scholar

  27. Li J, Zhang H, Wang L, Yang C, Lai H, Zhang W, et al. Comparative study of IDH1 mutations in gliomas by high resolution melting analysis, immunohistochemistry and direct DNA sequencing. Mol Med Rep. 2015;12:4376–81.

    Article  CAS  Google Scholar

  28. Otani R, Uzuka T, Higuchi F, Matsuda H, Nomura M, Tanaka S, et al. IDH-mutated astrocytomas with 19q-loss constitute a subgroup that confers better prognosis. Cancer Sci. 2018;109:2327–35.

    Article  CAS  Google Scholar

  29. Hirata K, Yamaguchi S, Shiga T, Kuge Y, Tamaki N. The Roles of hypoxia imaging using 18F-fluoromisonidazole positron emission tomography in glioma treatment. J Clin Med. 2019;8:1088.

    Article  CAS  Google Scholar

  30. Grkovski M, Schöder H, Lee NY, Carlin SD, Beattie BJ, Riaz N, et al. Multiparametric imaging of tumor hypoxia and perfusion with 18F-fluoromisonidazole dynamic PET in head and neck cancer. J Nucl Med. 2017;58:1072–80.

    Article  CAS  Google Scholar

  31. Fujibayashi Y, Taniuchi H, Yonekura Y, Ohtani H, Konishi J, Yokoyama A. Copper-62-ATSM: a new hypoxia imaging agent with high membrane permeability and low redox potential. J Nucl Med. 1997;38:1155–60.

    CAS  PubMed  Google Scholar

  32. Lewis JS, McCarthy DW, McCarthy TJ, Fujibayashi Y, Welch MJ. Evaluation of 64Cu-ATSM in vitro and in vivo in a hypoxic tumor model. J Nucl Med. 1999;40:177–83.

    CAS  PubMed  Google Scholar

  33. Vlassenko AG, McConathy J, Couture LE, Su Y, Massoumzadeh P, Leeds HS, et al. Aerobic glycolysis as a marker of tumor aggressiveness: preliminary data in high grade human brain tumors. Dis Markers. 2015;2015:874904.

    Article  Google Scholar

  34. Beinat C, Alam IS, James ML, Srinivasan A, Gambhir SS. Development of [18F]DASA-23 for imaging tumor glycolysis through noninvasive measurement of pyruvate kinase M2. Mol Imaging Biol. 2017;19:665–72.

    Article  CAS  Google Scholar

  35. Ogawa T, Kawai N, Miyake K, Shinomiya A, Yamamoto Y, Nishiyama Y, et al. Diagnostic value of PET/CT with 11C-methionine (MET) and 18F-fluorothymidine (FLT) in newly diagnosed glioma based on the 2016 WHO classification. EJNMMI Res. 2020;10:44.

    Article  CAS  Google Scholar

  36. Toyonaga T, Yamaguchi S, Hirata K, Kobayashi K, Manabe O, Watanabe S, et al. Hypoxic glucose metabolism in glioblastoma as a potential prognostic factor. Eur J Nucl Med Mol Imaging. 2017;44:611–9.

    Article  CAS  Google Scholar

Download references

Acknowledgements

We gratefully acknowledge the excellent technical support of the PET radiological technologists at our institution.

Funding

This study was supported by a Grant-in-Aid for Scientific Research (KAKENHI; C: 19k09483) to KM from the Ministry of Education, Culture, Sports, Science and Technology of Japan.

Author information

Authors and Affiliations

  1. Department of Neurological Surgery, Faculty of Medicine, Kagawa University, Miki-cho, Kagawa, Japan

    Kenta Suzuki, Tomoya Ogawa, Keisuke Miyake, Aya Shinomiya & Takashi Tamiya

  2. Department of Neurological Surgery, Kagawa Rehabilitation Hospital, 1114 Tamura-cho, Takamatsu-shi, Kagawa, 761-8057, Japan

    Nobuyuki Kawai

  3. Department of Diagnostic Radiology, Faculty of Medicine, Kagawa University, Miki-cho, Kagawa, Japan

    Yuka Yamamoto & Yoshihiro Nishiyama

Authors
  1. Kenta Suzuki
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Nobuyuki Kawai
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Tomoya Ogawa
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Keisuke Miyake
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Aya Shinomiya
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Yuka Yamamoto
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Yoshihiro Nishiyama
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Takashi Tamiya
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

KS, NK, TO, KM, and TT performed conception and design of the study. AS was involved in immunohistochemistry. YY and YN contributed to PET/CT examination and ROI setting. KS, TO, YY, and YN done data analysis and interpretation. KS, NK, and TO prepared the manuscript. All authors contributed to discussion of the results. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Nobuyuki Kawai.

Ethics declarations

Ethics approval and consent to participate

All procedures involving human participants were performed in accordance with the ethical standards of the institutional research committee of Kagawa University Faculty of Medicine and in accordance with the principles of the 1964 Declaration of Helsinki and its later amendments or comparable ethical standards.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Suzuki, K., Kawai, N., Ogawa, T. et al. Hypoxia and glucose metabolism assessed by FMISO and FDG PET for predicting IDH1 mutation and 1p/19q codeletion status in newly diagnosed malignant gliomas. EJNMMI Res 11, 67 (2021). https://doi.org/10.1186/s13550-021-00806-6

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s13550-021-00806-6

Keywords
