Initial evaluation of (4S)-4-(3-[18F]fluoropropyl)-l-glutamate (FSPG) PET/CT imaging in patients with head and neck cancer, colorectal cancer, or non-Hodgkin lymphoma

Abstract

Purpose

(4S)-4-(3-[18F]Fluoropropyl)-l-glutamic acid ([18F]FSPG) measures system xC transporter activity and shows promise for oncologic imaging. We present data on tumor uptake of this radiopharmaceutical in human subjects with head and neck cancer (HNC), colorectal cancer (CRC), and non-Hodgkin lymphoma (NHL).

Methods

A total of 15 subjects with HNC (n = 5), CRC (n = 5), or NHL (n = 5) were recruited (mean age 66.2 years, range 44–87 years). 301.4 ± 28.1 MBq (8.1 ± 0.8 mCi) of [18F]FSPG was given intravenously to each subject, and 3 PET/CT scans were obtained 0–2 h post-injection. All subjects also had a positive [18F]FDG PET/CT scan within 1 month prior to the [18F]FSPG PET scan. Semi-quantitative and visual comparisons of the [18F]FSPG and [18F]FDG scans were performed.

Results

[18F]FSPG showed strong uptake in all but one HNC subject. The lack of surrounding brain uptake facilitated tumor delineation in the HNC patients. [18F]FSPG also showed tumor uptake in all CRC subjects, but variable uptake in the NHL subjects. While the absolute [18F]FDG SUV values were comparable or higher than [18F]FSPG, the tumor-to-background SUV ratios were greater with [18F]FSPG than [18F]FDG.

Conclusions

[18F]FSPG PET/CT showed promising results across 15 subjects with 3 different cancer types. Concordant visualization was mostly observed between [18F]FSPG and [18F]FDG PET/CT images, with some inter- and intra-individual uptake variability potentially reflecting differences in tumor biology. The tumor-to-background ratios were greater with [18F]FSPG than [18F]FDG in the cancer types evaluated. Future studies based on larger numbers of subjects and those with a wider array of primary and recurrent or metastatic tumors are planned to further evaluate the utility of this novel tracer.

Introduction

Tumor cells require an adequate supply of nutrients to meet anabolic and energetic needs while maintaining appropriate redox balance for growth, proliferation, and survival. Recent research revealed several interesting insights into tumor metabolism, including how tumor cells adopt metabolic pathways to cope with such demands in challenging environments [1, 2]. Whereas the upregulation of the glycolytic pathways has long been described and [18F]FDG PET is widely used in clinical routine for tumor imaging, other dominant metabolic pathways in tumors such as the glutaminolytic pathway or glutathione biosynthesis/redox-balancing pathway are now being explored in more detail. The glutaminolytic pathway provides both energy and building blocks for tumor growth [3] and can be investigated by PET probes targeting the alanine serine cysteine-preferring transporter 2 (ASCT2 or SLC1A5) [4]. The glutathione biosynthesis/redox-balancing pathway can be investigated by targeting the system xC transporter [5]. This antiporter consist of two subunits, SLC7A11 (also known as xCT subunit), which is the catalytic subunit that mediates transport function, and SLC3A2 (also known as 4F2hc or CD98hc subunit), which functions as a chaperone and recruits the SLC7A11 subunit to the plasma membrane. Extracellular cystine gets imported in exchange for efflux of intracellular glutamate. Cystine is then reduced intracellularly to two molecules of cysteine. The sulfur-containing cysteine molecules can be incorporated into proteins or used in the biosynthesis of the antioxidant agent glutathione. Improved access to glutathione provides advantages for tumor cell survival by allowing better detoxification of chemotherapeutics and reactive oxygen species while inhibition of system xC has been shown to induce tumor-selective ferroptosis and suppresses tumor growth in various tumor models [6, 7].

[18F]FDG remains the primary radiotracer used clinically in the evaluation of various cancers [8,9,10]. However, [18F]FDG also has its known limitations. Prominent background uptake in the brain, kidneys, and often the gastrointestinal tract can reduce the sensitivity of [18F]FDG in those regions. Another challenge is the prominent [18F]FDG uptake seen in benign, inflammatory lesions such as infections, granulomatous processes, and sarcoidosis [11,12,13]. This can reduce the specificity of [18F]FDG for malignancy and make the interpretation of certain scans difficult, demanding the development of other tumor imaging probes. [18F]FDG PET uptake shows correlation with many parameters such as tumor aggressiveness, proliferative activity, and prognosis [14, 15] but does not necessarily inform about other tumor characteristics. These limitations stimulated the development of new PET tracers to study other important aspects of tumor metabolism.

For example, (4S)-4-(3-[18F]fluoropropyl)-l-glutamate (previously BAY 94-9392 and herein referred to as [18F]FSPG) is an investigational 18F-labeled glutamate derivative for PET imaging of system xC transporter activity. Specific transport of [18F]FSPG via the xC transporter was demonstrated in cell competition assays and xCT knock-down cells, and excellent tumor visualization was achieved in animal tumor models [16]. Biodistribution analysis in rodents showed rapid blood clearance via the kidneys and low background activity from healthy tissue, providing high contrast for tumor imaging. In cancer models, [18F]FSPG demonstrated the ability to identify drug-resistance by detecting upregulated antioxidant pathways and provides an early redox indicator of tumor response to treatment, preceding other markers such as tumor shrinkage and decreased glucose utilization [17, 18]. [18F]FSPG did not accumulate in the inflammatory model tested in animals [16], although subsequent clinical studies reported uptake in sarcoidosis [19]. Pilot clinical studies examining dosimetry and biodistribution in healthy volunteers [20, 21] and tumor detection in patients with non-small cell lung cancer, hepatocellular carcinoma, and brain tumors showed promising results and confirmed preclinical data [22,23,24,25]. In particular, low background uptake in the brain, lung, and bowel was observed. Other PET agents targeting the system xC transporter, [18F]hGTS13 and [18F]FASu, have also been recently described in preclinical models [26,27,28].

Preclinical research has recently shown that increased system xC activity enhances cancer cell dependency on glucose and a previously unappreciated role of system xC was uncovered [29, 30]. This demonstrates that both the glycolytic and the glutathione pathways are connected. Limiting glucose supply with inhibitors of glucose transporters can selectively kill cancer cells with high levels of system xC or suppress tumor growth. This may further assist with future therapeutic strategies to target the metabolic vulnerability in tumors with high system xC expression.

The work presented here is the initial evaluation of [18F]FSPG in patients with head and neck cancer (HNC), colorectal cancer (CRC), or non-Hodgkin lymphoma (NHL). The selection of these malignancies was based upon the tracer’s favorable performance in preclinical studies. For example, strong tumor uptake was demonstrated in subcutaneous human NCI-HT29 colon tumor models [16]. Moreover, xCT-targeted therapy has shown potential use for arresting tumor growth and/or sensitizing these cancer cells, reemphasizing the transporter’s role in disease pathogenesis [31,32,33,34]. The physiologic biodistribution of [18F]FDG was also considered for this selection of malignancies, as high [18F]FDG accumulation in the brain and bowel inevitably limits the contrast for tumor imaging in these regions. Due to the pilot nature of this investigation with [18F]FSPG, imaging with [18F]FDG was an inclusion criterion and was used for general comparison.

The purpose of this study was twofold: (1) to provide preliminary data regarding the pattern of [18F]FSPG PET uptake in patients with HNC, CRC, or NHL and (2) to compare these profiles with [18F]FDG PET, thus exploring possible clinical applications for this radiotracer in these disease entities.

Methods

The protocol for this study was reviewed and approved by the U.S. Food and Drug Administration (eIND 108509), the Institutional Review Board at Stanford University, and the Scientific Review Committee at the Stanford Cancer Institute. Fifteen subjects with histologically confirmed, newly diagnosed, or recurrent head and neck cancer (HNC, n = 5), colorectal cancer (CRC, n = 5), or non-Hodgkin lymphoma (NHL, n = 5) were recruited (ClinicalTrials.gov Identifier: NCT01186601). Detailed inclusion and exclusion criteria are listed in the Supplementary data section. To be eligible, each subject was required to have a positive whole-body [18F]FDG scan beforehand. The average time between the [18F]FDG scan and the [18F]FSPG scan was 10 ± 6 days. [18F]FDG PET/CT studies were done as a standard-of-care clinical scan, approximately 60 (± 15) min after a standard radioactive dose of 555 MBq ± 20% (15 mCi ± 20%) was administered. A low-dose, non-contrast CT was performed for attenuation correction and anatomic localization for all scans [35, 36].

Prior to the [18F]FSPG PET/CT scan, a brief physical exam was performed, and vital signs, blood, and urine samples were collected. [18F]FSPG was administered as a slow intravenous bolus injection over 60 s. The mean ± standard deviation of the radioactive dose given was 301.4 ± 28.1 MBq (8.1 ± 0.8 mCi), with a range of 270.1–336.7 MBq (7.3–9.1 mCi). After each respective tracer injection, the cannula and injection system were flushed with 10 mL normal saline (0.9% NaCl).

Three [18F]FSPG PET/CTs were then acquired sequentially to capture different time points after tracer injection for evaluation of temporal change in biodistribution. The images were obtained using a GE Discovery PET/CT scanner (either model D600 or D690). The first image acquisition, with a total duration of 45 min, was performed immediately after the injection of tracer. It was performed as five sequential whole-body (vertex to mid-thigh) PET scans after obtaining one CT (140 kV, range 10–85 mAs) for attenuation correction and anatomic localization. Each of the 5 PET scans gradually increased in the number of minutes per bed position as follows: 30 s/bed, 30 s/bed, 1 min/bed, 2 min/bed, and 2 min/bed. The second and third whole-body PET/CT scans, each with a duration of approximately 30 min (3 min/bed position), were started at 60 and 105 min post-tracer injection, respectively. The patients were asked to void before the second and third scan session to reduce their radiation exposure and to improve visualization of the pelvic structures.

After the scans were completed, and again the next day, additional sets of ECG, vital signs, and blood and urine samples were obtained. Any adverse events either noted by the participant or the research team were recorded. Seven days later, the patient was contacted by phone to determine if there were any interim adverse events or medication changes.

[18F]FSPG and [18F]FDG PET images were analyzed as described previously [23].

Statistical analysis

The Mann–Whitney U test was applied to compare [18F]FDG and [18F]FSPG SUV tumor values and SUV tumor-to-background ratios at 60 min across different tumor indications. P values < 0.05 were considered as statistically significant.

Results

Twelve men and three women, with an average age of 66 years (range 45–87), were recruited. All five subjects with HNC had squamous cell carcinoma (SCC), and all CRCs were adenocarcinomas. The subjects with NHL had a variety of subtypes including diffuse large B cell (n = 1), follicular (n = 1), cutaneous T cell (n = 1), and mantle cell (n = 2). The full patient demographics are given in Table 1. Whole-body maximum intensity projection (MIP) images are shown in Fig. 1 of a representative participant with HNC, CRC, or NHL.

Table 1 Demographic information for the 15 human participants imaged with [18F]FSPG PET
Fig. 1
figure1

Whole-body maximum intensity projection (MIP) images are shown of a representative participant with HNC, CRC, or NHL. The [18F]FDG PET images (front and side views) are shown on the left, and the [18F]FSPG PET images (front and side views) are shown on the right. Red arrows indicate sites of malignancy on each scan

No adverse events were observed, either in terms of self-described symptoms or clinically relevant deviations in their vital signs or laboratory values. As observed before in prior studies [21], visual analysis of the PET images showed consistent physiologic biodistribution of [18F]FSPG across the subjects, with prominent diffuse activity throughout the pancreas (average SUV at 60 min was 7.2 ± 1.5). There was additional low-grade and variable activity in the oral cavity and oropharynx, salivary glands, thyroid gland, mediastinal blood pool, and liver. Some subjects also showed mild diffuse activity in the stomach. The tracer showed predominant clearance through the kidneys and excretion into the bladder. Beyond this, there was very low background activity in the brain, chest, abdomen, and pelvis. Time-activity-curve analysis for all seven time points per subject showed rapid clearance of the radiotracer from the blood pool (Supplementary Figure 1). More specific results separated by cancer type are presented next.

Head and neck cancer

Of the five subjects with head and neck squamous cell cancer, four were newly diagnosed, and one had recurrent disease. Each had disease involvement of different regions including the nasal cavity, left tongue base, left maxillary sinus, and larynx (patients 1–5, Table 1). Figure 2 shows a combination image of two of these subjects highlighting the primary tumor as seen on MRI, CT, [18F]FDG PET, and [18F]FSPG PET. In these two examples, the tumor is evident on all modalities. In comparison to the [18F]FDG PET scan, the lack of any background brain activity in the [18F]FSPG scans is of particular note. Figure 3 shows examples of regional nodal metastases and distant lung metastases as seen on CT, [18F]FDG PET, and [18F]FSPG PET.

Fig. 2
figure2

Combined image set shows two representative subjects with primary head and neck cancer (HNC). Shown from left to right are the axial T1-weighted MRI, CT, [18F]FDG PET, and [18F]FSPG PET images. The first subject (row a) has a large nasal mass while the second subject (row b) has a mass in the clivus/nasopharynx. The black arrows indicate the lesions. Any unmarked uptake on the PET scans is physiologic. All modalities show the lesions, although MRI and PET are clearer than CT. The relative uptake of [18F]FSPG and [18F]FDG within all 5 HNC subjects is similar (SUV of 2.76 ± 2.13 for [18F]FSPG and 4.92 ± 2.16 for [18F]FDG), although the complete lack of [18F]FSPG background uptake in normal brain (SUV of 0.1) versus [18F]FDG (SUV of 7.88 ± 1.45) makes evaluation of the [18F]FSPG images much easier and more suitable, for example, in radiation treatment planning

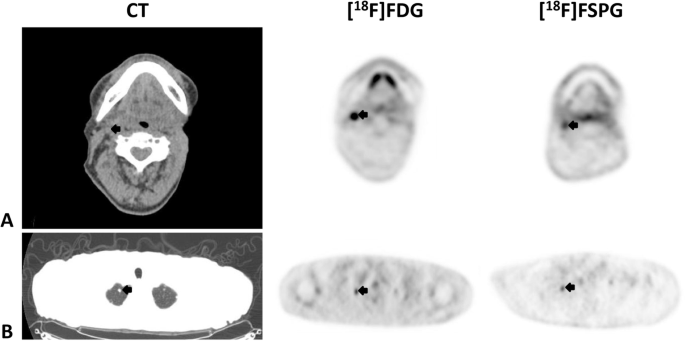

Fig. 3
figure3

Combined image set shows two representative subjects with metastatic head and neck cancer (HNC). Shown from left to right are the axial CT (upper is soft-tissue window, lower is lung window), [18F]FDG PET, and [18F]FSPG PET images. The first subject (row a) has a right level 2 cervical lymph node, while the second subject (row b) has multiple pulmonary nodules of which a right apical nodule is shown. The black arrows indicate the lesions. Any unmarked uptake on the PET scans is physiologic. Of note, both the cervical node and the pulmonary nodule are subcentimeter in size (9 mm for the cervical node (a) and 7 mm for the right upper lobe pulmonary nodule (b)). The lesions are seen on all modalities, and both the [18F]FDG and [18F]FSPG PET images have uptake in both the cervical node (SUV of 8.7 and 2.6, respectively) and the pulmonary nodule (SUV of 2 and 1.5, respectively)

Time-activity-curve analysis for [18F]FSPG was performed for all 7 scans per subject (except subject 1 who had only three scans). The mean activity in both the primary and metastatic tumor lesions remained relatively constant throughout the duration of imaging (Supplementary Figure 2A). The activity in the primary tumor is higher than blood pool activity from 15 min post-injection (p.i.) onwards, and the activity in the metastases is higher than blood pool activity at 40 min p.i. onwards. Supplementary Figure 2A also highlights again the very low background brain activity throughout the duration of imaging. At 60 min p.i., the mean lesion SUV for [18F]FSPG was significantly lower than [18F]FDG for both the primary (2.8 ± 2.1 versus 4.9 ± 2.2) and metastatic (1.3 ± 0.7 versus 3.0 ± 1.4) lesions (Table 2), whereas the tumor-to-background values using various reference organs including the brain, mediastinal blood pool, gluteal muscle, and liver tended to be higher for [18F]FSPG compared to [18F]FDG.

Table 2 Average SUVmean values obtained at 60 min post-injection of [18F]FSPG and [18F]FDG for each of the cancer types

Colorectal cancer

All five subjects had recurrent metastatic adenocarcinoma (patients 6–10, Table 1). Sites of metastases include the lungs, liver, and regional lymph nodes. Figure 4 shows a combination image of three of these subjects highlighting the primary tumor and metastases as seen on CT, [18F]FDG PET, and [18F]FSPG PET. In these examples, the tumor is evident on all modalities, although one of the liver lesions was not well evaluated due to lack of intravenous contrast on CT. However, both the [18F]FDG and [18F]FSPG PET scans showed the lesions well.

Fig. 4
figure4

Combined image set shows three representative subjects with metastatic colorectal cancer (CRC). Displayed from left to right are the axial CT (upper two rows are soft-tissue window, lowest row is lung window), [18F]FDG PET, and [18F]FSPG PET images. The first subject (row a) has a rectal mass and an adjacent small perirectal lymph node, the second subject (row b) has a liver metastasis, and the third subject (row c) has pulmonary metastases on the left and an ipsilateral mediastinal lymph node metastasis. The black arrows indicate the lesions. Any unmarked uptake on the PET scans is physiologic. The lesions are seen on all modalities, and both the [18F]FDG and [18F]FSPG PET images have similar uptake across all lesions (SUV rectal mass (a) 15.8 and 12, liver lesion (b) 17.4 and 16.1, and pulmonary metastasis (c) 7.4 and 8.3, for [18F]FDG and [18F]FSPG, respectively)

Time-activity-curve analysis for [18F]FSPG was done for all 7 scans per subject. The mean activity in the primary tumor continues to rise to a peak at 60 min p.i. and is above the mediastinal blood pool activity from 10 min p.i. onwards. The metastatic lesions demonstrate stable increased uptake throughout the duration of imaging and remain above blood pool activity from 15 min p.i. onwards (Supplementary Figure 2B). The background liver SUVmean also demonstrates rapid washout. Liver background activity is below the primary lesion at 10 min p.i., below the metastatic lesions from the initial time point onwards, and above the aortic blood pool activity at 40 min p.i. At 60 min p.i., the mean lesion SUV for [18F]FSPG was lower than [18F]FDG for both the primary tumor (5.4 ± 1.3 versus 6.9 ± 0.8) and metastases (2.5 ± 2.4 versus 3.5 ± 3.5) (Table 2). However, the tumor-to-background ratios for [18F]FSPG were significantly higher than [18F]FDG values with gluteal muscle as background.

Non-Hodgkin lymphoma

Different subtypes of NHL were represented in this cohort including one with diffuse large B cell, one with follicular, one with cutaneous T cell, and two with mantle cell lymphoma. Some had localized (stage I) disease while several others had diffuse (stage IV) disease, including bone marrow involvement. None had pulmonary or splenic involvement. Across all the subjects, sites of nodal involvement include cervical, axillary, mediastinal, retroperitoneal, mesenteric, pelvic, and inguinal stations. Figure 5 shows a combination image of four of these subjects highlighting some of these lesions as seen on CT, [18F]FDG PET, and [18F]FSPG PET. In these examples, the tumor is evident on most modalities, but with some variability. In particular, depending on the subtype of NHL, the nodal lesions, which are all evident on the [18F]FDG scans, demonstrate very little to very high uptake with [18F]FSPG.

Fig. 5
figure5

Combined image set shows four representative subjects with non-Hodgkin lymphoma (NHL). Displayed from left to right are the axial CT (soft-tissue window shown at various cranio-caudal levels), [18F]FDG PET, and [18F]FSPG PET images. The first subject (row a) with diffuse large B cell lymphoma has a large soft-tissue mass in the right hip invading the bone, the second subject (row b) with follicular lymphoma has a large mesenteric lymph node on the left, the third subject (row c) with mantle cell lymphoma has small bilateral axillary lymph nodes, and subject 4 (row d) with mantle cell lymphoma has a large central mesenteric mass. The black arrows indicate the lesions. Any unmarked uptake on the PET scans is physiologic. The lesions are seen on all modalities, although the [18F]FSPG PET scan shows very little uptake for some of the lesions (SUV right hip mass (a) 11.3 and 2.9, left mesenteric lymph node (b) 9.2 and 3.2, right axillary lymph node (c) 3.5 and 1.1, and central mesenteric mass (d) 11.1 and 21.9, for [18F]FDG and [18F]FSPG, respectively)

The nodal lesions show stable increased uptake throughout the duration of imaging and uptake is above blood pool activity from 30 min p.i. onwards (Supplementary Figure 2C). At 60 min p.i., the mean lesion SUV for [18F]FSPG was comparable to [18F]FDG (1.9 ± 3.1 versus 1.9 ± 1.6), but with greater variability (Table 2), and the tumor-to-background values using gluteal muscle were significantly higher for [18F]FSPG than for [18F]FDG.

Per-lesion analysis

A direct comparison of [18F]FSPG and [18F]FDG lesion uptake for each tumor indication at 60 min p.i. is given in Fig. 6a with further detailed sub-analysis for each individual primary tumor and metastatic lesion. In general, those lesions that showed high uptake with one tracer also showed high uptake with the other tracer with some exceptions. [18F]FSPG showed lower uptake than [18F]FDG in the majority of head and neck and colorectal cancer cases, whereas the two tracers showed comparable uptake in most non-Hodgkin lymphoma lesions. Figure 6b shows the corresponding tumor-to-muscle ratios. Higher tumor-to-background ratios for [18F]FSPG support the notion of at least comparable lesion detection in these three indications despite the lower absolute uptake in HNC and CRC lesions.

Fig. 6
figure6

a Box plots of the SUV values for [18F]FSPG and [18F]FDG at 60 min post-injection (p.i.). The actual SUV values of the individual lesions from the primary tumor are shown as blue dots, and the individual metastatic lesions are shown as red dots. Corresponding [18F]FDG and [18F]FSPG lesion uptake is shown by connecting lines. b Box plots of the tumor-to-muscle (T/M) ratio for [18F]FSPG and [18F]FDG lesion uptake at 60 min p.i.

Discussion

A consistent physiologic biodistribution pattern for [18F]FSPG was found in patients with HNC, CRC, or NHL. The subjects with HNC all showed uptake in tumor lesions with both [18F]FSPG and [18F]FDG PET, although there were some key differences between these scans. Most notably, the lack of any [18F]FSPG background uptake in the normal brain allows for easier interpretation of [18F]FSPG PET scans, especially for skull base lesions close to the brain (Fig. 2). This includes one subject with a large nasal mass and another with a nasopharyngeal mass extending to the clivus. Evaluation of regional nodal and distant pulmonary metastases was visually indistinguishable between the two radiopharmaceuticals, although several of these lesions were quite small (subcentimeter in size). SUV analysis showed that the primary tumors had a higher SUV value on the [18F]FSPG PET scan (by approximately 1.0 SUV more) in comparison to the metastases. The absolute [18F]FSPG SUV values for these lesions were also lower than for the comparative [18F]FDG PET scan, although the tumor-to-background ratios were higher. The only exception was a patient with recurrent SCC of the left tongue base. In that particular case, the [18F]FDG PET scan had a notably higher uptake than the [18F]FSPG PET scan. Subsequent biopsy confirmed SCC recurrence. Incidentally, this subject was given antibiotic therapy for a presumed oral infection for 1 week between his [18F]FDG and [18F]FSPG PET scans. As such, the [18F]FDG PET signal presumably reflects both the tumor and the associated infection and may also have been lower if done after the antibiotic therapy. [18F]FSPG uptake has been associated with an active inflammatory disease state by measuring xCT activity in activated M1 macrophages [19], but its role in inflammatory or infectious lesions remains to be explored in more detail.

Epstein-Barr virus (EBV) status was available for three patients. EBV-positive lesions showed lower SUV values on both scans in comparison to those that were EBV-negative. [18F]FDG PET functional parameters have previously been shown to be significantly associated with plasma EBV DNA load [37], and the roles of both have been demonstrated for prognostication in HNC [38]. As a core biomarker in the setting of tumorigenesis, the possibility of [18F]FSPG also correlating with EBV would be noteworthy.

All subjects with CRC showed uptake on both [18F]FSPG and [18F]FDG PET scans. In these subjects, all of whom had recurrent, metastatic adenocarcinoma, both radiopharmaceuticals visually performed quite similarly with no major discrepancies noted in terms of lesion detection. SUV analysis shows a very similar pattern to the HNC cases where the absolute SUV values for the primary and metastatic lesions were lower for the [18F]FSPG PET scan than in comparison to the [18F]FDG PET scan, but with higher tumor-to-background levels. Overall, these findings indicate that both radiopharmaceuticals were similarly effective for detecting CRC in this small patient cohort. K-ras mutation status was also available for three patients with thoracic metastases. Mutated k-ras has been shown to increase [18F]FDG uptake, possibly by upregulation of GLUT1 [39, 40]. The pulmonary nodule positive for k-ras mutation showed higher uptake with [18F]FDG than the wildtype (3.5 versus 1.9), whereas the [18F]FSPG SUV values were comparable (1.2 versus 1.0), which may allude to the different pathways targeted by the two tracers.

The subjects with NHL showed the greatest amount of variability between the [18F]FSPG and [18F]FDG PET scans. In fact, not all the subjects with NHL showed significant uptake above background with [18F]FSPG PET. One subject with diffuse large B cell lymphoma and another with follicular lymphoma both had uptake levels essentially equivalent to the liver background. Both of these subjects showed mild-to-moderate uptake with [18F]FDG. Another subject with cutaneous T cell lymphoma showed very similar mildly increased uptake in comparison to [18F]FDG. The most interesting subtype of NHL was mantle cell lymphoma, of which there were two subjects. The first showed the lowest SUV values of all 5 subjects with NHL, while the other showed the highest. In fact, the latter subject’s [18F]FSPG SUV values were nearly double that of the comparative [18F]FDG scan although both scans were visually intensely active. As a marker of the proliferative index, the Ki-67 staining for the first subject with mantle cell lymphoma was 6% while for the second subject was 20%. The SUV of [18F]FDG rises with increased proliferative activity and biological aggressiveness of the tumor tissue. SUV was shown to have a statistically significant positive correlation with the proliferative index Ki-67 across a variety of subtypes of non-Hodgkin’s lymphoma [41]. This may explain some of the discrepancy between their [18F]FSPG and [18F]FDG scans. Moreover, the lesions from the indolent follicular and cutaneous T cell lymphomas had lower [18F]FSPG SUV and uptake ratios than the more aggressive types (mean SUV of 3.4 versus 5.4; mean uptake ratio of 1.7 versus 3.0). Counterintuitive to the consensus in the literature which supports lower [18F]FDG uptake in indolent lymphomas as well [42], the corresponding [18F]FDG values were comparable between the two groups (mean SUV of 5.2 versus 5.0; mean uptake ratio of 1.9 versus 1.9).

As in other [18F]FSPG PET studies, the scalp showed incidental prominent physiologic uptake, possibly corresponding to the xC transporter’s role in hair pigmentation [43]. Intense diffuse activity was also noted throughout the pancreas on [18F]FSPG PET, which would limit evaluation of primary pancreatic cancers. However, [18F]FSPG PET has been recently studied in patients with metastasized pancreatic ductal adenocarcinoma with promising results [44]. Due to prominent radioactive clearance through the kidneys and urinary bladder, evaluation of these regions is additionally difficult, although concomitant diuretic administration was not utilized.

The results of this pilot study are encouraging but have limitations. Foremost is the small sample size for each of the cancer indications associated with the preliminary nature of this project. However, the goal was not to definitively characterize the behavior of [18F]FSPG for each of these cancer indications, but rather to understand whether there is any uptake or role at all for this radiopharmaceutical in each cancer type. Indeed, the cancer types chosen were based on known increased activity and the proven role by [18F]FDG. It is noteworthy that this also poses a strong inherent potential bias against [18F]FSPG due to an underestimation of the added clinical impact in non-FDG-avid disease. The goal was not to outperform [18F]FDG in these indications, but to learn about the potential utility of [18F]FSPG in these indications while addressing a different metabolic pathway for imaging. In this light, the results of this study show that [18F]FSPG indeed performed well for all these cancer types except for certain subtypes of lymphoma. However, since only 1–2 subjects per type were imaged, results should be cautiously evaluated. Overall, the SUV for [18F]FSPG was generally similar but slightly lower than [18F]FDG across all 15 subjects, and when evaluated as a ratio relative to background uptake, it was slightly higher than [18F]FDG. Statistically significant differences were observed in some instances (absolute uptake in HNC and the tumor-to-muscle ratios in CRC and NHL) but should be interpreted with caution since, again, the small sample sizes limit the power for each of these evaluations.

It is generally well accepted that system xC mediated uptake of cystine and glutathione biosynthesis have pro-survival functions under stress conditions. The unexpected and unique observation made by Koppula et al. [29] on the pro-cell death function of system xC in the context of glucose starvation is of special interest. It was reported from preclinical investigations that tumor cells with high system xC activity would have a more limited metabolic flexibility and more reliance on glucose for survival than those with low system xC activity. High intracellular levels of cystine from increased system xC activity can be potentially toxic, if the constitutive reduction to the more soluble cysteine is limited. Constant replenishing of the cellular NADPH pool is required and renders such cells dependent on the pentose phosphate pathway and high glycolytic activity [30]. This may also explain the high concordance between [18F]FDG and [18F]FSPG in this study. Another publication reports about similar observations on reduced nutrient flexibility upon increased system xC expression [45]. Accordingly, tumors with high [18F]FSPG uptake could represent those that would be more vulnerable than those with low [18F]FSPG uptake when glucose is limited. More research is needed to verify the model for the proposed role of system xC on glucose dependence to better understand the possible implications of these observations.

These initial promising results with [18F]FSPG warrant further evaluation in a larger cohort of cancer patients to confirm these preliminary findings. Moreover, it would be beneficial to investigate the possible role of [18F]FSPG PET in imaging [18F]FDG non-avid disease and assessing therapy response. Additional information on the metabolic phenotype and adaptations of tumors against oxidative stress may provide a better understanding of the underlying tumor biology and chemoresistance mechanisms that can potentially be useful for therapy selection and monitoring with [18F]FSPG PET.

Conclusion

[18F]FSPG is a promising PET radiopharmaceutical that specifically targets the xC transporter. Avid uptake of [18F]FSPG was observed in subjects with HNC and CRC, and variable uptake was seen in subjects with NHL. Overall, the results are encouraging and show concordant visualization with [18F]FDG PET across 15 subjects with 3 different cancer types. Future studies based on larger numbers of subjects and those with a wider array of primary and recurrent or metastatic tumors are planned to further evaluate the utility of this novel radiopharmaceutical.
