Abstract

Background

P-glycoprotein (ABCB1) and breast cancer resistance protein (ABCG2) are two efflux transporters expressed at the blood–brain barrier which effectively restrict the brain distribution of the majority of currently known anticancer drugs. High-grade brain tumors often possess a disrupted blood–brain tumor barrier (BBTB) leading to enhanced accumulation of magnetic resonance imaging contrast agents, and possibly anticancer drugs, as compared to normal brain. In contrast to high-grade brain tumors, considerably less information is available with respect to BBTB integrity in lower grade brain tumors.

Materials and methods

We performed positron emission tomography imaging with the radiolabeled ABCB1 inhibitor [11C]tariquidar, a prototypical ABCB1/ABCG2 substrate, in seven patients with non-contrast -enhancing brain tumors (WHO grades I–III). In addition, ABCB1 and ABCG2 levels were determined in surgically resected tumor tissue of four patients using quantitative targeted absolute proteomics.

Results

Brain distribution of [11C]tariquidar was found to be very low across the whole brain and not significantly different between tumor and tumor-free brain tissue. Only one patient showed a small area of enhanced [11C]tariquidar uptake within the brain tumor. ABCG2/ABCB1 ratios in surgically resected tumor tissue (1.4 ± 0.2) were comparable to previously reported ABCG2/ABCB1 ratios in isolated human micro-vessels (1.3), which suggested that no overexpression of ABCB1 or ABCG2 occurred in the investigated tumors.

Conclusions

Our data suggest that the investigated brain tumors had an intact BBTB, which is impermeable to anticancer drugs, which are dual ABCB1/ABCG2 substrates. Therefore, effective drugs for antitumor treatment should have high passive permeability and lack ABCB1/ABCG2 substrate affinity.

Trial registration

European Union Drug Regulating Authorities Clinical Trials Database (EUDRACT), 2011-004189-13. Registered on 23 February 2012, https://www.clinicaltrialsregister.eu/ctr-search/search?query=2011-004189-13.

Introduction

Malignant brain tumors are considered as the most debilitating tumor types, mostly due to a bad quality of life, poor prognosis and limited therapeutic success [1]. In 2010, in the USA alone, more than 130,000 patients with primary malignant brain tumors were identified [1].

The updated World Health Organization (WHO) classification of tumors of the central nervous system not only considers histological but as of 2016 also molecular criteria to guarantee for a more refined diagnosis of the tumors with the main goal to optimize the treatment strategies for each individual patient [2]. Depending on the tumor type and localization, treatment recommendations comprise surgical removal, adjuvant radiotherapy and/or chemotherapy (e.g., temozolomide) [1, 3]. However, current treatment approaches have shown unsatisfactory outcomes. In particular, chemotherapy has failed to improve survival leading to a lethal course of the disease within 12–18 months in particular in high-grade brain tumors.

Sequencing studies have identified molecular alterations in brain tumors which may constitute promising targets for their treatment with molecularly targeted anticancer drugs [4]. However, small-molecule inhibitors of these pathways have not demonstrated significant therapeutic efficacy in the clinic [5]. This has been attributed to the inability of most of these drugs to cross the blood–brain barrier (BBB) and achieve therapeutically effective concentrations inside the brain. The BBB consists of brain capillary endothelial cells linked by tight junctions, which limit paracellular diffusion of drugs into the brain [6]. The protective function of the BBB is further enhanced by efflux transport proteins in the luminal membrane of brain capillary endothelial cells, i.e., P-glycoprotein (ABC subfamily B member 1, ABCB1) and breast cancer resistance protein (ABC subfamily G member 2, ABCG2), which were shown to work together in restricting the brain entry of dual ABCB1/ABCG2 substrate drugs [7,8,9]. The majority of currently known molecularly targeted anticancer drugs are ABCB1/ABCG2 substrates and show very limited brain distribution [8, 9]. ABCB1 and ABCG2 may also be overexpressed in the membrane of brain tumor cells, which may thus form a second barrier to the effective treatment of brain tumors [10,11,12,13,14].

There is strong evidence that significant BBB disruption, as evidenced by contrast enhancement in T1-weighted magnetic resonance imaging (MRI) sequences following intravenous administration of gadolinium-based contrast agents, occurs in primary high-grade brain tumors [14, 15]. However, this BBB disruption is mostly restricted to the central, necrotic areas of brain tumors and does not extend to regions distant from the tumor core, where infiltrative tumor cells remain protected by an intact BBB [14, 15]. Moreover, gadolinium-based contrast agents possess distinct physicochemical properties as compared with small-molecule anticancer drugs and may, therefore, not be representative of brain tumor delivery of such drugs. In contrast to high-grade brain tumors, considerably less information is available with respect to BBB permeability in lower grade brain tumors, which encompass a heterogeneous group of tumors that are clinically, histologically and molecularly diverse and often progress to high-grade tumors [14,15,16]. These types of brain tumors usually show no or only little contrast enhancement on MRI.

We have developed [11C]tariquidar as a prototypical dual ABCB1/ABCG2 substrate radiotracer for positron emission tomography (PET) imaging [17]. [11C]Tariquidar is derived from the third-generation ABCB1 inhibitor tariquidar [18]. It is a metabolically stable substrate of mouse and human ABCB1 and ABCG2 [17, 19] and shows very low brain distribution when ABCB1 and ABCG2 are functional and markedly increased brain uptake when ABCB1 and ABCG2 are pharmacologically inhibited or genetically knocked out [17]. As such, tariquidar closely resembles many molecularly targeted anticancer agents, which may be of interest for the treatment of brain tumors (e.g., gefitinib, erlotinib, dasatinib, imatinib and pictilisib) [20]. The aim of the present exploratory study was to investigate regional brain distribution of [11C]tariquidar in patients suffering from non-contrast-enhancing brain tumors (WHO grades I–III) by means of PET imaging. In addition, quantitative targeted absolute proteomics (QTAP) was applied to determine ABCB1 and ABCG2 levels in surgically resected tumor tissue.

Materials and methods

All study-related procedures were performed at the Medical University of Vienna in accordance with the International Conference on Harmonization-Good Clinical Practice guidelines and the Declaration of Helsinki. Standard protocol approval was obtained from the Ethics Committee of the Medical University of Vienna and the national competent authority. The study was registered under the European Union Drug Regulating Authorities Clinical Trials Database (EUDRACT) number 2011-004189-13 (date of registration: February 23, 2012; https://www.clinicaltrialsregister.eu/ctr-search/search?query=2011-004189-13). Prior to study participation, all subjects gave oral and written consent.

Study population

A total of seven patients (p01–p07, four female and three male, mean age of 44 years at the time of the PET scan, range 37–57 years) with an intrinsic, non-contrast-enhancing brain tumor and elected for neurosurgery were enrolled in this study. However, one patient denied surgical intervention after study inclusion. PET scans were performed between June 2014 and October 2015. Tumor entities were based on histopathological and molecular analyses and ranged from low-grade to high-grade brain tumors according to the 2016 WHO Classification of Tumors of the Central Nervous System [2]. Patient recruitment was performed in close cooperation with the Department of Neurosurgery at the Medical University Vienna.

Radiotracer synthesis

[11C]Tariquidar was synthesized and formulated in sterile 0.9% (w/v) aqueous saline solution/ethanol (9/1, v/v) containing 0.7% (v/v) polysorbate-80 for intravenous injection into study participants as described previously [21]. Molar activity at the time of injection was 31 ± 8 GBq/μmol and radiochemical purity was 97 ± 1%.

PET imaging protocol and general study procedures

Prior to surgical brain tissue removal, all patients included in this study were scheduled for a 60-min dynamic [11C]tariquidar PET scan acquired in three-dimensional mode using an Advance PET scanner (General Electric Medical System, Milwaukee, WI). On the study day, a venous catheter was placed in a cubital vein for radiotracer injection and an additional arterial catheter was applied for arterial blood sampling. Subjects were placed in supine position on the imaging bed with the head stabilized in a fixing mold attached to the imaging bed. A brief transmission scan (duration: 5 min) was performed for tissue attenuation of photons prior to the brain PET scan. Subsequently, [11C]tariquidar was injected intravenously over 20 s (injected activity: 371 ± 26 MBq, corresponding to 11 ± 3 μg of unlabeled tariquidar) while simultaneous dynamic PET imaging was accompanied by arterial blood sampling. Arterial blood samples were collected initially at intervals of 7 s during the first 3 min after radiotracer injection and further on at 3.5, 5, 10, 20, 30, 40 and 60 min after injection. Whole blood was centrifuged to obtain plasma. Selected plasma samples were analyzed with a previously described solid-phase extraction protocol for radiolabeled metabolites of [11C]tariquidar [21]. In brief, plasma (2–4 mL) was diluted with water (2 mL), spiked with unlabeled tariquidar (10 μL, 20 mg/mL in DMSO), acidified with 5 M aqueous hydrochloric acid (40 μL), and loaded on a Sep-Pak vac tC18 cartridge (Waters Corp.), which had been pre-activated with methanol (3 mL) and water (5 mL). The cartridge was first washed with water (5 mL) and then eluted with methanol (2 mL) followed by aqueous ammonium acetate buffer (0.2 M, pH 5.0, 1.5 mL). Radioactivity in all three fractions (plasma, water, and methanol/buffer) was quantified in a gamma counter. Radioactivity in the plasma and water fractions contained polar radiolabeled metabolites, whereas unchanged [11C]tariquidar was recovered in the methanol/buffer fraction.

PET data analysis

T1-weighted (pre- and post-gadolinium enhanced) as well as T2-weighted FLAIR MRI data (Siemens Magnetom Trio, Tim System, Siemens Healthcare Diagnostics GmbH, Austria) were available from routine clinical examinations. Summation PET images and T2-weighted FLAIR MRIs were co-registered. The tumor and a contralateral tumor-free brain area, which were both of comparable size (Additional file 1: Table S1), were manually defined as volumes of interest (VOIs) using PMOD 3.6 imaging software (PMOD Technologies LLC, Zürich, Switzerland), whereby adjacent major blood vessels or ventricular structures were avoided. In one patient (p03), an additional VOI was outlined on the PET images, which corresponded visually to enhanced radioactivity uptake within the tumor (tumor PET enhanced). In addition, a gray matter VOI for normal brain tissue covering the brain hemisphere contralateral to the tumor was extracted for all patients using the Hammersmith n30r83 3D maximum probability atlas of the human brain [22] as described previously [19]. Time–activity curves (TACs) in units of kBq/mL were generated for the entire 60-min scanning period.

As the percentage of radiolabeled metabolites in arterial plasma samples was < 10% at all studied time points and as a previous study has shown that modeling outcome parameters were very similar in healthy volunteers for metabolite corrected and uncorrected input functions [21], no metabolite correction was applied to the arterial plasma input function in the present study. The area under the brain and plasma TACs (AUC) was calculated using Prism 8.0 software (Software, La Jolla, CA, USA). The ratio between the brain AUC and plasma AUC, designated as AUCR, was calculated as a parameter of radiotracer brain distribution [19]. In addition, Logan graphical analysis [19, 23] was performed in Microsoft Excel using the arterial plasma input function (not corrected for metabolites) to determine total distribution volume (VT), which equals the brain-to-plasma radioactivity ratio at steady state.

Preparation of plasma membrane fraction from brain tumor samples

Plasma membrane fractions were isolated as described previously with minor modifications [24]. Frozen tumor tissues collected during neurosurgery of four patients (p01, p02, p03, p05) were thawed at +4°C, washed at least twice with isotonic buffer solution A (10 mM phosphate buffer pH 7.4, 0.1 M KCl) containing a protease inhibitor cocktail, minced into 1-mm pieces and homogenized using an Ultra-Turrax® (IKA®-Werke GmbH & Co. KG, Staufen, Germany) for 5 min at +4°C. The homogenates obtained were centrifuged at 10,800g for 15 min at +4°C and the supernatants were collected and ultracentrifuged at 100,000g for 60 min at +4°C. The plasma membrane fraction was obtained from the resulting pellet which was suspended in buffer B (20 mM Tris, pH 7.4, 0.25 M sucrose, 5.4 mM EDTA) containing protease inhibitor cocktail. The BCA protein assay kit (ThermoFisher Scientific, Villebon sur Yvette, France) was used for the total protein quantification.

Protein digestion

Plasma membrane fractions were digested as described previously without modifications [25, 26]. Briefly, proteins were solubilized in denaturing buffer (7 M guanidine hydrochloride, 10 mM EDTA, 500 mM Tris, pH 8.5), reduced by DTT and alkylated by iodoacetamide. The alkylated proteins were precipitated with methanol–chloroform–water, resolubilized in 1.2 M urea and 0.1 M Tris, pH 8.5. Samples were first digested using rLysC endoprotease (enzyme:protein ratio = 1:50) for 3 h at room temperature. Then trypsin (enzyme:protein ratio = 1:100) and 0.05% (W/W) ProteaseMAX were added and samples were incubated at 37°C overnight. The stable isotope-labeled peptide mixture (750 fmol of each labeled peptide/50 μg of total protein) was added in trypsic digest before ultrahigh-performance liquid chromatography–tandem mass spectrometry (UHPLC–MS/MS) analysis.

Protein quantification by UHPLC–MS/MS

ABCB1, ABCG2 and Na+/K+-ATPase proteins were quantified by the determination of the peptide concentration using UHPLC–MS/MS in multiplexed selected reaction monitoring (SRM) method. Each peptide analyzed was specific to each protein and was released after protein digestion by trypsin. The selected peptides were FYDPLAGK (human specific), VGTQFIR (human and mouse specific) [27], and AAVPDAVGK [28] for ABCB1, ABCG2 and Na+/K+-ATPase, respectively. Samples were injected into an Acquity UPLC® system (Waters, Manchester, UK), equipped with an Acquity UPLC BEH® C18 column (Peptide BEH® C18 Column, 300Å, 1.7 μm, 2.1 mm × 100 mm) supplied by Waters (Guyancourt, France). The mobile phase consisted of mixture of water (formic acid 0.1% (v/v)) and acetonitrile. It was operated with a flow rate of 0.3 mL/min in gradient mode. The total duration of analysis was 34 min. Data were recorded with a Waters Xevo® TQ-S mass spectrometer (Waters, Manchester, UK). Measurements were performed using positive electrospray ionization (ESI) with ion spray capillary voltage at 2.80 kV. Drying gas temperature was set to 650°C at a flow rate of 800 L/h. Detection was performed in multiplexed SRM mode using three or four transitions per native or labeled peptide and the quantification CV% between transitions was lower than 5%. Skyline® software [29] was used for the optimization of the specific transition parameters (i.e., collision energy (CE) and peak integration). The area ratios of light to labeled peptide were exported from Skyline® and quantification was performed from calibration curves using Microsoft Excel®.

Statistical analysis

This study was exploratory; sample size was based on feasibility and not on power to test a statistical hypothesis. Differences in PET imaging outcome parameters between tumor and tumor-free brain tissue were assessed with a Wilcoxon matched-pairs signed rank test. To assess correlations, the Spearman's rank correlation coefficient (ρ) was calculated. A p value < 0.05 was considered statistically significant.

Results

Patient population

Table 1 summarizes demographic data of the enrolled brain tumor patients. Out of the seven included patients, three were diagnosed with diffuse astrocytic and oligodendroglial tumors, grade II or III (p02, p03 and p06, Table 1). Further, p03 and p06 had already undergone previous brain surgery in the past and were re-evaluated towards brain tumor progression by their responsible physicians. P07 refused neurosurgical intervention after inclusion and PET imaging. Therefore, histopathological entity was unknown. At the time of the PET scan, five out of seven patients received antiepileptic therapy for seizure prophylaxis (Additional file 1: Table S2). P01, p03 and p04 were treated with antidepressants. P02 received a statin and p07 was under treatment for hypertension. Further, p06 received thyroid hormone replacement therapy. One subject (p05) was free of any medication.

Table 1 Demographic data of enrolled brain tumor patients
Full size table

Imaging data

Following intravenous injection of [11C]tariquidar, only a very low amount of radiolabeled metabolites was detected in plasma for the duration of the PET scan. At 60 min after radiotracer injection, 91.1 ± 3.1% of total radioactivity in plasma was in the form of unchanged [11C]tariquidar. Brain uptake of radioactivity was very low. Tumors were best visualized by T2-weighted FLAIR MRI with a median tumor volume of 12.0 cm3 (range 4.2–81.8 cm3) (Additional file 1: Table S1). None of the tumors showed appreciable gadolinium-enhanced areas on T1-weighted MRIs (not shown). In Fig. 1, T2-weighted FLAIR MR images, co-registered PET/T2-weighted FLAIR MR images and PET images are shown for all patients. In the PET images, no major visual differences in radioactivity distribution between tumor and tumor-free brain areas were evident (Fig. 1). However, in one patient (p03), a small area of enhanced radioactivity uptake (1.6 cm3) was observed within the tumor volume (44.9 cm3) (Fig. 1). As outcome parameters of [11C]tariquidar brain distribution, we determined AUCR and VT [19], which are shown in Fig. 2 (based on the VOIs defined with PMOD). Normal brain gray matter VT values from the entire brain hemisphere contralateral to the tumor (not shown in Fig. 2) were higher than those in contralateral tumor-free brain area containing both gray and white matter (0.38 ± 0.26 versus 0.16 ± 0.09). There was a good correlation between VT values and AUCR values (ρ = 0.8762; p < 0.0001, not shown). AUCR and VT values were very low and rather variable among patients, both in tumor and contralateral tumor-free brain areas. No significant differences in AUCR and VT values between tumor and tumor-free areas were found (Fig. 2). In p03, the small area of enhanced radioactivity uptake within the tumor had higher AUCR and VT values than the entire tumor and normal brain tissue.

Fig. 1
figure 1

Transversal T2-weighted FLAIR MR images (left image), co-registered PET/T2-weighted FLAIR MR images (middle image) and [11C]tariquidar PET average images (0–60 min) (right image) in all patients. The contours for the tumor and contralateral tumor-free brain area are shown in pink and green colors, respectively. For p03, a tumor area with enhanced radioactivity uptake as compared with the rest of the tumor was visible (indicated by white arrow)

Full size image
Fig. 2
figure 2

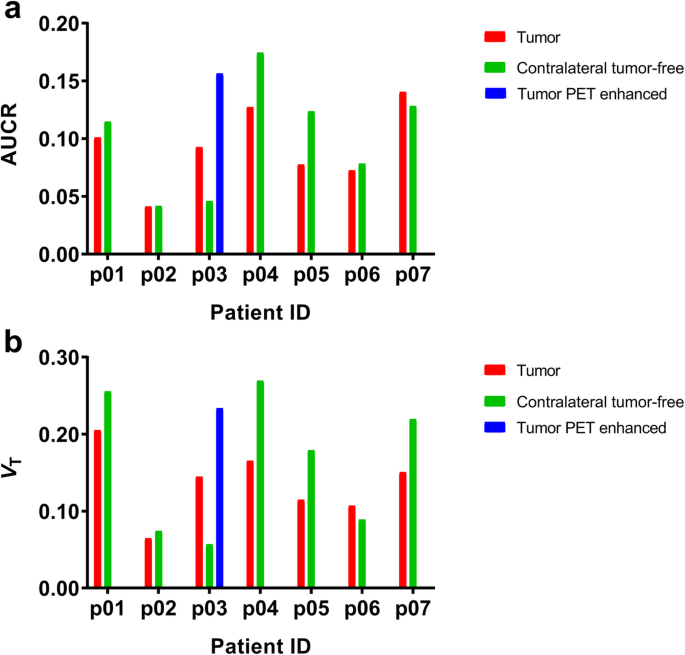

Outcome parameters for [11C]tariquidar brain distribution (a AUCR, b VT) in the tumor and contralateral tumor-free brain area (based on PMOD analysis). For p03, a tumor area with enhanced radioactivity uptake as compared with the rest of the tumor was visible (tumor PET enhanced)

Full size image

Tissue levels of ABCB1 and ABCG2

In four subjects (p01, p02, p03 and p05), surgically resected tumor tissue was analyzed for ABCB1 and ABCG2 levels with QTAP (Table 2). For the other two patients, not enough material was available for this analysis. As surgical specimens were only available as frozen tissue samples, the isolation of brain capillary micro-vessels was not feasible, so that the measured ABCB1 and ABCG2 levels represent an average value of membrane fractions of all cell types present in the sample. Mean ABCB1 and ABCG2 levels were 0.8 ± 0.1 and 1.2 ± 0.3 fmol/μg protein, respectively.

Table 2 Absolute ABCB1, ABCG2 and ATPase levels in plasma membrane fractions of surgically removed tumor tissue determined with quantitatively targeted absolute proteomics
Full size table

Discussion

In this exploratory study, we used PET imaging to assess regional brain delivery of [11C]tariquidar as a small-molecule model ABCB1/ABCG2 substrate in patients with non-contrast-enhancing brain tumors. The main finding of our study was that brain delivery of [11C]tariquidar was comparably low in tumor and tumor-free brain tissue, which suggested that ABCB1/ABCG2 transport activity was sufficiently intact in tumor tissue to restrict brain entry of anticancer drugs which are dual ABCB1/ABCG2 substrates.

The blood–brain tumor barrier (BBTB) is formed by the capillaries supplying brain tumors. Depending on the tumor type and size, the BBTB may substantially differ from the BBB [30]. While low-grade brain tumors possess continuous non-fenestrated capillaries, which resemble normal brain capillaries, high-grade brain tumors often possess leaky, fenestrated vessels [31], as manifested by increased permeability to MRI contrast agents [32]. There is evidence that efflux transporters localized in the BBB can also be found in endothelial cells forming the BBTB [33, 34]. MRI contrast agents are hydrophilic, gadolinium-containing complexes which are believed to cross the BBTB via the paracellular route through fenestrated capillaries. On the other hand, molecularly targeted anticancer drugs are small, lipophilic molecules which mainly cross the BBB via the transcellular route and which are, in most cases, subject to efflux transport by ABCB1/ABCG2. Even in the presence of a disrupted BBTB with fenestrated capillaries, endothelial cells may have sufficient ABCB1/ABCG2 transport capacity to limit tumor distribution of such drugs [34, 35].

A limited number of previous studies have determined brain tumor concentrations of anticancer drugs [36,37,38,39,40]. Three studies assessed intratumoral concentrations of protein kinase inhibitors (gefitinib, imatinib and lapatinib) in surgically resected tumor tissue of glioblastoma patients and found very variable tumor concentrations of these agents, which in part exceeded the corresponding plasma concentrations, which pointed to an increased permeability relative to normal brain [36, 39, 40]. Blakely et al used intraoperative microdialysis to measure the intratumoral pharmacokinetics of methotrexate in patients with recurrent gliomas and found considerably higher drug concentrations in contrast-enhancing regions of the tumor as compared with non-enhancing tissue [38]. Finally, Brown et al. performed PET with the radiolabeled focal adhesion kinase inhibitor [11C]GSK2256098 in eight patients with recurrent glioblastoma [37]. Brain uptake (VT) of [11C]GSK2256098 was found to be very low, but approximately two times higher in tumor tissue as compared with surrounding T2 enhancing areas and normal brain. All these data supported a focal disruption of the BBTB in high-grade gliomas, which led to enhanced brain distribution of small-molecule drugs, which were subject to ABCB1 and/or ABCG2 efflux transport.

As opposed to these previous studies, we examined in the present study patients with non-contrast enhancing, low- to high-grade brain tumors and used a radiolabeled model ABCB1/ABCG2 substrate instead of a drug which is used for treatment of tumors. Previous experiments showed that [11C]tariquidar had very low brain uptake in wild-type, Abcb1a/b(-/-) and Abcg2(-/-) mice, but approximately sixfold higher brain uptake in triple knockout Abcb1a/b(-/-)Abcg2(-/-) mice [17], which was in line with the typical behavior of a dual ABCB1/ABCG2 substrate [7]. In healthy human volunteers, brain uptake of [11C]tariquidar was very low, but significantly increased in carriers of the ABCG2 single-nucleotide polymorphism c.421C>A following ABCB1 inhibition [19]. These data suggested that brain distribution of [11C]tariquidar is dependent on ABCB1/ABCG2 transport activity in rodents and humans. This is also true for the majority of currently known molecularly targeted kinase inhibitors, which have been proposed for the treatment of brain tumors [20, 41]. In fact, [11C]tariquidar behaved very similar in rodents and humans in terms of its brain distribution as [11C]erlotinib [42, 43], a radiolabeled epidermal growth factor receptor (EGFR) targeted tyrosine kinase inhibitor, which is also a dual ABCB1/ABCG2 substrate and which failed in a phase II trial in patients with glioblastoma multiforme [44]. In our study, brain distribution of [11C]tariquidar was found to be very low throughout the brain including tumor tissue, except for one patient with a grade III brain tumor, who had undergone previous surgery and in whom a small area of increased radiotracer uptake was observed within the tumor (Fig. 1). This suggested that the investigated tumors received their blood supply through intact capillaries, which efficiently restrict brain distribution of small-molecule ABCB1/ABCG2 substrates. The standard treatment for malignant brain tumors is temozolomide. While temozolomide is believed to penetrate the BBB relatively well, a recent study has shown that brain entry of temozolomide is increased in the absence of ABCB1 and ABCG2 activity in mice which translated into an improved antitumor response in experimental intracranial tumor models [45]. It can, therefore, be expected that brain delivery of temozolomide in tumor patients is also restricted, at least to some extent, by ABCB1/ABCG2 activity.

In comparison to our previous study in healthy volunteers [19], mean VT of [11C]tariquidar in normal brain tissue was approximately threefold lower (0.16 ± 0.09 in this study versus 0.43 ± 0.10 in healthy volunteers). The percentage of unmetabolized [11C]tariquidar in plasma at the end of the PET scan was comparable in tumor patients and in healthy volunteers (91.1 ± 3.1% in tumor patients versus 89.7 ± 3.6% in healthy volunteers), which rules out an effect of the concomitant medication taken by the tumor patients (Additional file 2: Table S2) on radiotracer metabolism as an explanation for the observed differences in radiotracer brain distribution. One possible explanation for the observed differences may be differences in the applied VOIs. In healthy volunteers, whole brain gray matter was analyzed [19], while in tumor patients, the position of the applied (contralateral) VOI for normal brain tissue depended on the localization of the brain tumor and contained both gray and white matter. This assumption is supported by additional analysis of the data in brain tumor patients with the same methodology as employed in reference [19], which provided a normal brain gray matter VT value of 0.38 ± 0.26 in patients. It is noteworthy that distribution of [11C]tariquidar to normal brain tissue displayed a considerably higher inter-individual variability in tumor patients as compared with healthy volunteers.

Tariquidar is a third-generation ABCB1 inhibitor which has undergone clinical development as a multidrug resistance reversal agent in patients with systemic tumors [18]. However, its clinical development has been stopped due to lack of efficacy in tumor patients. In the past decade, tariquidar has been investigated as a potential inhibitor of ABCB1-mediated efflux transport at the human BBB. PET imaging studies in healthy volunteers revealed up to fivefold increases in brain distribution of the radiolabeled model ABCB1 substrates (R)-[11C]verapamil and [11C]N-desmethyl-loperamide following tariquidar administration [46, 47]. Pharmacological inhibition of efflux transporters at the BBB has also been proposed for a more effective treatment of brain tumors with anticancer drugs, for which brain distribution is limited by ABCB1/ABCG2-mediated efflux transport [14, 30]. In this context, it has been suggested that ABCB1 inhibition may additionally improve access of anticancer drugs to tumor cells which overexpress ABCB1 in their cell membranes [13, 14]. However, to achieve effective ABCB1 inhibition in brain tumor cells, an ABCB1 inhibitor would first need to cross the BBTB. The data presented in this work show that tariquidar very poorly penetrates the BBTB and may, therefore, not be effective to overcome ABCB1-mediated multidrug resistance of brain tumors.

To examine ABCB1 and ABCG2 levels, we performed QTAP on surgically resected brain tissue samples of four patients included in this study (Table 2). QTAP allows for obtaining absolute levels of proteins in the brain and has been applied to measure ABCB1 and ABCG2 levels in human brain micro-vessels [48]. In our study, micro-vessels could not be isolated; therefore, the measured ABCB1 and ABCG2 levels represented membrane-bound transporters of all cell types present in the sample (e.g., micro-vessels, glia cells, neurons and tumor cells). Accordingly, mean ABCB1 levels (0.8 ± 0.1 fmol/μg protein) and ABCG2 levels (1.2 ± 0.3 fmol/μg protein) were approximately seven times lower than those previously reported in isolated human brain capillary micro-vessels (ABCB1: 6.1 ± 1.7 fmol/μg protein, ABCG2: 8.1 ± 2.3 fmol/μg protein) [48]. However, ABCG2/ABCB1 ratios in our samples were comparable (1.4 ± 0.2, range: 1.1-1.7) to previously reported values from isolated human brain micro-vessels (1.3) [48], which suggested that no major ABCB1 or ABCG2 overexpression occurred in the investigated tumors.

Conclusion

We found very low brain delivery of the model ABCB1/ABCG2 substrate [11C]tariquidar in patients with non-contrast-enhancing brain tumors without significant differences between tumor and tumor-free brain tissue. This supports the presence of an intact BBTB, which is impermeable to small-molecule ABCB1/ABCG2 substrates. This potentially applies to a range of small-molecule kinase inhibitors, which are dual ABCB1/ABCG2 substrates and which are discussed as potential treatment for brain tumors. The best strategy for an effective treatment of brain tumors may thus be the development of drugs with good passive permeability which are not subject to ABCB1/ABCG2-mediated efflux transport at the BBTB [41, 49, 50].

Availability of data and materials

The datasets generated during and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

ABCB1:

ABC subfamily B member 1 also known as P-glycoprotein

ABCG2:

ABC subfamily G member 2 also known as breast cancer resistance protein

AUC:

Area under the curve

AUCR:

AUC ratio

BBB:

Blood–brain barrier

BBTB:

Blood–brain tumor barrier

MRI:

magnetic resonance imaging

PET:

Positron emission tomography

QTAP:

Quantitative targeted absolute proteomics

SUV:

Standardized uptake value

TAC:

Time–activity curve

V T :

Total distribution volume

VOI:

Volume of interest

WHO:

World Health Organization

References

  1. Omuro A, DeAngelis LM. Glioblastoma and other malignant gliomas: a clinical review. JAMA. 2013;310:1842–50.

    Article  CAS  PubMed  Google Scholar

  2. Louis DN, Perry A, Reifenberger G, et al. The 2016 World Health Organization classification of tumors of the central nervous system: a summary. Acta Neuropathol. 2016;131:803–20.

    Article  PubMed  Google Scholar

  3. Weller M, van den Bent M, Tonn JC, et al. European Association for Neuro-Oncology (EANO) guideline on the diagnosis and treatment of adult astrocytic and oligodendroglial gliomas. Lancet Oncol. 2017;18:e315–e29.

    Article  PubMed  Google Scholar

  4. Parsons DW, Jones S, Zhang X, et al. An integrated genomic analysis of human glioblastoma multiforme. Science. 2008;321:1807–12.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  5. Miller JJ, Wen PY. Emerging targeted therapies for glioma. Expert Opin Emerg Drugs. 2016;21:441–52.

    Article  CAS  PubMed  Google Scholar

  6. Abbott NJ, Patabendige AA, Dolman DE, Yusof SR, Begley DJ. Structure and function of the blood-brain barrier. Neurobiol Dis. 2010;37:13–25.

    Article  CAS  PubMed  Google Scholar

  7. Kodaira H, Kusuhara H, Ushiki J, Fuse E, Sugiyama Y. Kinetic analysis of the cooperation of P-glycoprotein (P-gp/Abcb1) and breast cancer resistance protein (Bcrp/Abcg2) in limiting the brain and testis penetration of erlotinib, flavopiridol, and mitoxantrone. J Pharmacol Exp Ther. 2010;333:788–96.

    Article  CAS  PubMed  Google Scholar

  8. Durmus S, Hendrikx JJ, Schinkel AH. Apical ABC transporters and cancer chemotherapeutic drug disposition. Adv Cancer Res. 2015;125:1–41.

    Article  CAS  PubMed  Google Scholar

  9. Agarwal S, Hartz AM, Elmquist WF, Bauer B. Breast cancer resistance protein and P-glycoprotein in brain cancer: two gatekeepers team up. Curr Pharm Des. 2011;17:2793–802.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  10. Fattori S, Becherini F, Cianfriglia M, Parenti G, Romanini A, Castagna M. Human brain tumors: multidrug-resistance P-glycoprotein expression in tumor cells and intratumoral capillary endothelial cells. Virchows Arch. 2007;451:81–7.

    Article  CAS  PubMed  Google Scholar

  11. Demeule M, Shedid D, Beaulieu E, et al. Expression of multidrug-resistance P-glycoprotein (MDR1) in human brain tumors. Int J Cancer. 2001;93:62–6.

    Article  CAS  PubMed  Google Scholar

  12. Declèves X, Amiel A, Delattre JY, Scherrmann JM. Role of ABC transporters in the chemoresistance of human gliomas. Curr Cancer Drug Targets. 2006;6:433–45.

    Article  PubMed  Google Scholar

  13. Lin F, de Gooijer MC, Roig EM, et al. ABCB1, ABCG2, and PTEN determine the response of glioblastoma to temozolomide and ABT-888 therapy. Clin Cancer Res. 2014;20:2703–13.

    Article  CAS  PubMed  Google Scholar

  14. Agarwal S, Sane R, Oberoi R, Ohlfest JR, Elmquist WF. Delivery of molecularly targeted therapy to malignant glioma, a disease of the whole brain. Expert Rev Mol Med. 2011;13:e17.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  15. Sarkaria JN, Hu LS, Parney IF, et al. Is the blood-brain barrier really disrupted in all glioblastomas? A critical assessment of existing clinical data. Neuro Oncol. 2018;20:184–91.

    Article  CAS  PubMed  Google Scholar

  16. Bready D, Placantonakis DG. Molecular pathogenesis of low-grade glioma. Neurosurg Clin N Am. 2019;30:17–25.

    Article  PubMed  PubMed Central  Google Scholar

  17. Bankstahl JP, Bankstahl M, Römermann K, et al. Tariquidar and elacridar are dose-dependently transported by p-glycoprotein and bcrp at the blood-brain barrier: a small-animal positron emission tomography and in vitro study. Drug Metab Dispos. 2013;41:754–62.

    Article  CAS  PubMed  Google Scholar

  18. Fox E, Bates SE. Tariquidar (XR9576): a P-glycoprotein drug efflux pump inhibitor. Expert Rev Anticancer Ther. 2007;7:447–59.

    Article  CAS  PubMed  Google Scholar

  19. Bauer M, Römermann K, Karch R, et al. Pilot PET study to assess the functional interplay between ABCB1 and ABCG2 at the human blood-brain barrier. Clin Pharmacol Ther. 2016;100:131–41.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  20. Parrish KE, Sarkaria JN, Elmquist WF. Improving drug delivery to primary and metastatic brain tumors: strategies to overcome the blood-brain barrier. Clin Pharmacol Ther. 2015;97:336–46.

    Article  CAS  PubMed  Google Scholar

  21. Bauer M, Karch R, Zeitlinger M, et al. Interaction of 11C-tariquidar and 11C-elacridar with P-glycoprotein and breast cancer resistance protein at the human blood-brain barrier. J Nucl Med. 2013;54:1181–7.

    Article  CAS  PubMed  Google Scholar

  22. Hammers A, Allom R, Koepp MJ, et al. Three-dimensional maximum probability atlas of the human brain, with particular reference to the temporal lobe. Hum Brain Mapp. 2003;19:224–47.

    Article  PubMed  PubMed Central  Google Scholar

  23. Logan J, Fowler JS, Volkow ND, et al. Graphical analysis of reversible radioligand binding from time-activity measurements applied to [N-11C-methyl]-(-)-cocaine PET studies in human subjects. J Cereb Blood Flow Metab. 1990;10:740–7.

    Article  CAS  PubMed  Google Scholar

  24. Ohtsuki S, Schaefer O, Kawakami H, et al. Simultaneous absolute protein quantification of transporters, cytochromes P450, and UDP-glucuronosyltransferases as a novel approach for the characterization of individual human liver: comparison with mRNA levels and activities. Drug Metab Dispos. 2012;40:83–92.

    Article  CAS  PubMed  Google Scholar

  25. Hoshi Y, Uchida Y, Tachikawa M, Inoue T, Ohtsuki S, Terasaki T. Quantitative atlas of blood-brain barrier transporters, receptors, and tight junction proteins in rats and common marmoset. J Pharm Sci. 2013;102:3343–55.

    Article  CAS  PubMed  Google Scholar

  26. Uchida Y, Tachikawa M, Obuchi W, et al. A study protocol for quantitative targeted absolute proteomics (QTAP) by LC-MS/MS: application for inter-strain differences in protein expression levels of transporters, receptors, claudin-5, and marker proteins at the blood-brain barrier in ddY, FVB, and C57BL/6J mice. Fluids Barriers CNS. 2013;10:21.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  27. Gomez-Zepeda D, Taghi M, Smirnova M, et al. LC-MS/MS-based quantification of efflux transporter proteins at the BBB. J Pharm Biomed Anal. 2019;164:496–508.

    Article  CAS  PubMed  Google Scholar

  28. Kamiie J, Ohtsuki S, Iwase R, et al. Quantitative atlas of membrane transporter proteins: development and application of a highly sensitive simultaneous LC/MS/MS method combined with novel in-silico peptide selection criteria. Pharm Res. 2008;25:1469–83.

    Article  CAS  PubMed  Google Scholar

  29. MacLean B, Tomazela DM, Shulman N, et al. Skyline: an open source document editor for creating and analyzing targeted proteomics experiments. Bioinformatics. 2010;26:966–8.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  30. van Tellingen O, Yetkin-Arik B, de Gooijer MC, Wesseling P, Wurdinger T, de Vries HE. Overcoming the blood-brain tumor barrier for effective glioblastoma treatment. Drug Resist Updat. 2015;19:1–12.

    Article  PubMed  Google Scholar

  31. Groothuis DR. The blood-brain and blood-tumor barriers: a review of strategies for increasing drug delivery. Neuro Oncol. 2000;2:45–59.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  32. Dhermain FG, Hau P, Lanfermann H, Jacobs AH, van den Bent MJ. Advanced MRI and PET imaging for assessment of treatment response in patients with gliomas. Lancet Neurol. 2010;9:906–20.

    Article  PubMed  Google Scholar

  33. Tanaka Y, Abe Y, Tsugu A, et al. Ultrastructural localization of P-glycoprotein on capillary endothelial cells in human gliomas. Virchows Arch. 1994;425:133–8.

    Article  CAS  PubMed  Google Scholar

  34. Adkins CE, Mittapalli RK, Manda VK, et al. P-glycoprotein mediated efflux limits substrate and drug uptake in a preclinical brain metastases of breast cancer model. Front Pharmacol. 2013;4:136.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  35. Goutal S, Gerstenmayer M, Auvity S, et al. Physical blood-brain barrier disruption induced by focused ultrasound does not overcome the transporter-mediated efflux of erlotinib. J Control Release. 2018;292:210–20.

    Article  CAS  PubMed  Google Scholar

  36. Hofer S, Frei K. Gefitinib concentrations in human glioblastoma tissue. J Neurooncol. 2007;82:175–6.

    Article  PubMed  Google Scholar

  37. Brown NF, Williams M, Arkenau HT, et al. A study of the focal adhesion kinase inhibitor GSK2256098 in patients with recurrent glioblastoma with evaluation of tumor penetration of [11C]GSK2256098. Neuro Oncol. 2018;20:1634–42.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  38. Blakeley JO, Olson J, Grossman SA, et al. Effect of blood brain barrier permeability in recurrent high grade gliomas on the intratumoral pharmacokinetics of methotrexate: a microdialysis study. J Neurooncol. 2009;91:51–8.

    Article  CAS  PubMed  Google Scholar

  39. Vivanco I, Robins HI, Rohle D, et al. Differential sensitivity of glioma- versus lung cancer-specific EGFR mutations to EGFR kinase inhibitors. Cancer Discov. 2012;2:458–71.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  40. Holdhoff M, Supko JG, Gallia GL, et al. Intratumoral concentrations of imatinib after oral administration in patients with glioblastoma multiforme. J Neurooncol. 2010;97:241–5.

    Article  CAS  PubMed  Google Scholar

  41. Heffron TP. Challenges of developing small-molecule kinase inhibitors for brain tumors and the need for emphasis on free drug levels. Neuro Oncol. 2018;20:307–12.

    Article  CAS  PubMed  Google Scholar

  42. Traxl A, Wanek T, Mairinger S, et al. Breast cancer resistance protein and P-glycoprotein influence in vivo disposition of 11C-erlotinib. J Nucl Med. 2015;56:1930–6.

    Article  CAS  PubMed  Google Scholar

  43. Bauer M, Karch R, Wulkersdorfer B, et al. A proof-of-concept study to inhibit ABCG2- and ABCB1-mediated efflux transport at the human blood-brain barrier. J Nucl Med. 2019;60:486–91.

    Article  CAS  PubMed  Google Scholar

  44. Peereboom DM, Shepard DR, Ahluwalia MS, et al. Phase II trial of erlotinib with temozolomide and radiation in patients with newly diagnosed glioblastoma multiforme. J Neurooncol. 2010;98:93–9.

    Article  CAS  PubMed  Google Scholar

  45. de Gooijer MC, de Vries NA, Buckle T, et al. Improved brain penetration and antitumor efficacy of temozolomide by inhibition of ABCB1 and ABCG2. Neoplasia. 2018;20:710–20.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  46. Kreisl WC, Bhatia R, Morse CL, et al. Increased permeability-glycoprotein inhibition at the human blood-brain barrier can be safely achieved by performing PET during peak plasma concentrations of tariquidar. J Nucl Med. 2015;56:82–7.

    Article  CAS  PubMed  Google Scholar

  47. Bauer M, Karch R, Zeitlinger M, et al. Approaching complete inhibition of P-glycoprotein at the human blood-brain barrier: an (R)-[11C]verapamil PET study. J Cereb Blood Flow Metab. 2015;35:743–6.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  48. Uchida Y, Ohtsuki S, Katsukura Y, et al. Quantitative targeted absolute proteomics of human blood-brain barrier transporters and receptors. J Neurochem. 2011;117:333–45.

    Article  CAS  PubMed  Google Scholar

  49. van Hoppe S, Schinkel AH. What next? Preferably development of drugs that are no longer transported by the ABCB1 and ABCG2 efflux transporters. Pharmacol Res. 2017;123:144.

    Article  PubMed  Google Scholar

  50. Colclough N, Chen K, Johnström P, Friden M, McGinnity DF. Building on the success of osimertinib: achieving CNS exposure in oncology drug discovery. Drug Discov Today. 2019;24:1067–73.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

The authors wish to thank their colleagues from the Department of Anesthesiology (Medical University of Vienna) for arterial cannulation and Johann Stanek for assistance during the study days. Furthermore, Meryam Taghi and Lucien Tchara are acknowledged for tumor sample treatment and digestion, and Cerina Chhuon and Chiara Guerrera for proteomic analysis (Université Paris Descartes).

Funding

This study was funded by the Austrian Science Fund (FWF) (KLI 139-B00, to M. Müller).

Author information

Authors and Affiliations

  1. Department of Clinical Pharmacology, Medical University of Vienna, Vienna, Austria

    Beatrix Wulkersdorfer, Martin Bauer, Maria Weber, Markus Zeitlinger, Markus Müller & Oliver Langer

  2. Centre for Medical Statistics, Informatics, and Intelligent Systems, Medical University of Vienna, Vienna, Austria

    Rudolf Karch

  3. Department of Neurosurgery, Medical University of Vienna, Vienna, Austria

    Harald Stefanits & Thomas Czech

  4. Division of Nuclear Medicine, Department of Biomedical Imaging and Image-guided Therapy, Medical University of Vienna, Vienna, Austria

    Cécile Philippe, Marcus Hacker & Oliver Langer

  5. Inserm, U1144, Paris, France

    Marie-Claude Menet & Xavier Declèves

  6. Université Paris Descartes, UMR-S 1144, Paris, France

    Marie-Claude Menet & Xavier Declèves

  7. Université Paris Descartes, Sorbonne Paris Cité, Paris, France

    Marie-Claude Menet & Xavier Declèves

  8. Institute of Neurology, Medical University Vienna, Vienna, Austria

    Johannes A. Hainfellner

  9. Division of Oncology, Department of Medicine I, Medical University of Vienna, Vienna, Austria

    Matthias Preusser

  10. Preclinical Molecular Imaging, AIT Austrian Institute of Technology GmbH, Seibersdorf, Austria

    Oliver Langer

Authors
  1. Beatrix Wulkersdorfer
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Martin Bauer
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Rudolf Karch
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Harald Stefanits
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Cécile Philippe
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Maria Weber
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Thomas Czech
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Marie-Claude Menet
    View author publications

    You can also search for this author in PubMed Google Scholar

  9. Xavier Declèves
    View author publications

    You can also search for this author in PubMed Google Scholar

  10. Johannes A. Hainfellner
    View author publications

    You can also search for this author in PubMed Google Scholar

  11. Matthias Preusser
    View author publications

    You can also search for this author in PubMed Google Scholar

  12. Marcus Hacker
    View author publications

    You can also search for this author in PubMed Google Scholar

  13. Markus Zeitlinger
    View author publications

    You can also search for this author in PubMed Google Scholar

  14. Markus Müller
    View author publications

    You can also search for this author in PubMed Google Scholar

  15. Oliver Langer
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

BW, MB, TC, MP, MH, MZ, MM and OL were responsible for the study design. BW, HS and TC recruited the patients. BW, MB, CP, MW and OL conducted the study. CP performed the radiotracer synthesis. BW, MB, RK, M-CM, XD, JAH and OL analyzed the data. JAH performed histopathological analysis. M-CM and XD performed quantitative targeted absolute proteomics. OL and BW wrote the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Oliver Langer.

Ethics declarations

Ethics approval and consent to participate

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee (Ethics Committee of the Medical University of Vienna, reference number: 1031/2011) and with the 1964 Helsinki declaration and its amendments or comparable ethical standards. Informed consent was obtained from all individual participants included in the study.

Consent for publication

Not applicable.

Competing interests

Dr. Preusser reports personal fees from Bayer, Bristol-Myers Squibb, Novartis, Gerson Lehrman Group (GLG), CMC Contrast, GlaxoSmithKline, Mundipharma, Roche, BMJ Journals, MedMedia, Astra Zeneca, AbbVie, Lilly, Medahead, Daiichi Sankyo, Sanofi, Merck Sharp & Dome., grants from Böhringer-Ingelheim, Bristol-Myers Squibb, Roche, Daiichi Sankyo, Merck Sharp & Dome, Novocure, GlaxoSmithKline, AbbVie., outside the submitted work. Dr. Müller reports grants from Austrian Science Fund during the conduct of the study. The other authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Additional file 1: Table S1.

Volumes of interest (cm3) for analyzed brain tissue. Table S2. List of continuous medication at the time of the PET scan.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Wulkersdorfer, B., Bauer, M., Karch, R. et al. Assessment of brain delivery of a model ABCB1/ABCG2 substrate in patients with non-contrast-enhancing brain tumors with positron emission tomography. EJNMMI Res 9, 110 (2019). https://doi.org/10.1186/s13550-019-0581-y

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s13550-019-0581-y

Keywords
