[18F]-BMS-747158-02PET imaging for evaluating hepatic mitochondrial complex 1dysfunction in a mouse model of non-alcoholic fatty liver disease
EJNMMI Research volume 7, Article number: 96 (2017)
Mitochondrial dysfunction is one of the main causes of non-alcohol fatty liver disease (NAFLD). [18F]-BMS-747158-02 (18F-BMS) which was originally developed as a myocardial perfusion imaging agent was reported to bind mitochondrial complex-1 (MC-1). The aim of this study was to investigate the potential use of 18F-BMS for evaluating hepatic MC-1 activity in mice fed a methionine- and choline-deficient (MCD) diet.
Male C57BL/6J mice were fed a MCD diet for up to 2 weeks. PET scans with 18F-BMS were performed after 1 and 2 weeks of the MCD diet. 18F-BMS was intravenously injected into mice, and the uptake (standardized uptake value (SUV)) in the liver was determined. The binding specificity for MC-1 was assessed by pre-administration of rotenone, a specific MC-1 inhibitor. Hepatic MC-1 activity was measured using liver homogenates generated after each positron emission tomography (PET) scan. Blood biochemistry and histopathology were also assessed.
In control mice, hepatic 18F-BMS uptake was significantly inhibited by the pre-injection of rotenone. The uptake of 18F-BMS was significantly decreased after 2 weeks of the MCD diet. The SUV at 30–60 min was well correlated with hepatic MC-1 activity (r = 0.73, p < 0.05). Increases in plasma ALT and AST levels were also noted at 1 and 2 weeks. Mild hepatic steatosis with or without minimal inflammation was histopathologically observed at 1 and 2 weeks in mice liver on the MCD diet. However, inflammation was observed only at 2 weeks in mice on the MCD diet.
The present study demonstrated that 18F-BMS is a potential PET probe for quantitative imaging of hepatic MC-1 activity and its mitochondrial dysfunction induced by steatosis and inflammation, such as in NAFLD.
Non-alcoholic fatty liver disease (NAFLD) is one of the most common forms of chronic liver disease in patients without a history of alcoholic abuse . NAFLD encompasses a wide spectrum of conditions ranging from simple steatosis to non-alcoholic steatohepatitis (NASH), which progress to fibrosis in 30–40% of patients and to cirrhosis in 10–15% of patients . Despite the poor prognosis, diagnosis of NAFLD including NASH is difficult because liver biopsy, which is an invasive method, is the gold standard to identify steatohepatitis . This has both made it difficult to diagnose NAFLD and to identify the mechanism of progression from simple steatosis to NASH, exacerbated by its complicated pathogenesis. One of the key factors in the acceleration of progression from simple steatosis to NASH is the formation of reactive oxygen species (ROS) [4, 5]. ROS directly damage respiratory chain polypeptides and oxidize the unsaturated lipids of cytoplasmic hepatic fat deposits to cause lipid peroxidation. Both ROS and lipid peroxidation products attack mitochondrial DNA . Oxidative mitochondrial DNA lesions and mitochondrial DNA depletion may cause mitochondrial dysfunction including in energy metabolism. Mitochondrial alterations have been reported in patients with NASH  and are associated with impairment of hepatic ATP synthesis . Therefore, mitochondrial dysfunction is a key factor in the progression from steatosis to steatohepatitis. In rats fed a choline-deficient diet, which is well known as a fatty liver disease model, mitochondrial membrane potential was decreased with no inflammation . Thus, mitochondrial dysfunction might occur in the early phase of NAFLD.
99mTc-MIBI is a single photon emission computed tomography (SPECT) probe which accumulates mitochondrial membrane potential [10, 11]. Previously, we reported that SPECT using 99mTc-MIBI could detect mitochondrial dysfunction in mice fed a methionine- and choline-deficient (MCD) diet, a commonly used NAFLD model . In clinical studies, it has been reported that 99mTc-MIBI uptake correlated with NAFLD activity score . Therefore, evaluation of mitochondrial dysfunction enables detection of the early phase of NAFLD. It is known that positron emission tomography (PET) has a higher resolution and better quantitation than SPECT . [18F]-BMS-747158-02 (18F-BMS) was originally developed as a myocardial perfusion imaging agent [15, 16]. The uptake of 18F-BMS was reported to depend on mitochondrial complex-1 (MC-1) activity, which is the first component of the mitochondrial respiratory electron transport chain. Recently, Ohba et al. reported that [18F]-BCPP-BF, which was used as a PET probe for MC-1 like 18F-BMS, detected liver dysfunction in an acetaminophen-treated rat hepatic injury model . These findings suggest that 18F-BMS might also have the potential to detect mitochondrial dysfunction as a cause of NAFLD. In our previous study, 99mTc-MIBI could detect the mitochondrial membrane dysfunction in 2 weeks in MCD diet-fed mice. In addition, significant loss of body weight was observed in 3 weeks in MCD diet-fed mice.
In the present study, we evaluated the ability of 18F-BMS to act as a PET ligand for the detection of hepatic MC-1 activity using mice fed a MCD diet to clarify the mitochondrial dysfunction in the early phase of NAFLD.
Animals and experimental design
Male C57BL/6J mice, aged 8 weeks old, were purchased from CLEA Japan (Shizuoka, Japan). The mice were studied after 1 or 2 weeks on a MCD diet (Dyets, Bethlehem, PA, USA) or a normal diet (control group). They were allowed free access to chow and tap water and were housed in a temperature-controlled room maintained on a 12-h light/dark cycle with lights on at 8:00 am. The experimental protocols were reviewed and approved by the Institutional Animal Care and Use Committee of Shionogi Research Laboratories and Osaka University Graduate School of Medicine.

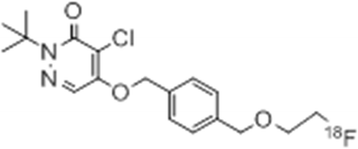

The chemical structure of 18F-BMS is shown in Fig. 1. 18F-BMS was synthesized as reported previously . Briefly, after the solvent of the 22–30 GBq 18F-F− eluate was evaporated under a stream of nitrogen, approximately 5.0 mg of tosylate precursor dissolved in anhydrous acetonitrile was added. After 20 min incubation at 110 °C and then cooling to room temperature, the reaction mixture was injected onto a semi-preparative HPLC column (COSMOSIL 5C18 MS-II 10 × 250 mm Nacalai Tesque Kyoto, Japan), mobile phase 30 mM ammonium acetate and acetonitrile (3:2), and flow rate 5.0 mL/min for purification. The desired radioactive fraction was collected in a round-bottom flask, and the solvent was removed in vacuo and the residue was dissolved in 1.5 mL of saline:EtOH:Tween80 (4:0.3:0.05) solution. The radiochemical yield was 20–30% (non-decay-corrected). Radiochemical purity and specific activity were 98.7% ± 1.2% and 162.9 ± 57.8 GBq/μmol, respectively, with a radiosynthesis and purification time of 60 min.
PET scan and X-ray CT imaging were performed with a Pre-Clinical Imaging System Triumph LbPET12/CT (TriFoil Imaging Inc., Chatsworth, CA, USA). Control mice, rotenone-injected mice, and mice fed a MCD diet for 1 and 2 weeks were anesthetized with 2% isoflurane. In the group of rotenone, control mice were injected with rotenone (1 mg/kg, i.p.) 20 min before 18F-BMS injection. Six to seven mice per group were used for PET imaging. Under isoflurane anesthesia, a venous catheter was introduced through the tail vein and used for the administration of 18F-BMS. Approximately 10–20 MBq 18F-BMS was continuously injected (0.2 mL/30 s) into the tail vein. PET scans were started immediately after 18F-BMS injection was started. Dynamic data acquisition was performed for 60 min. After the PET scans, CT scans were performed to acquire anatomical information and to obtain the data for attenuation collection of PET images. The CT images were reconstructed using the filtered back-projection method (512 slices), and acquired PET images were reconstructed by the 3D-MLEM method with CT-based attenuation collection. Dynamic images (6 × 10 s, 4 × 1 min, 11 × 5 min) for time activity curve (TAC) as well as summation images (30–60 min) were reconstructed. CT and PET images were automatically fused by AMIDE 0.9.2 software. Two regions-of-interest (ROI) were put on the liver tissue, excluding the portal area. Liver uptake of radioactivity was decay-corrected to the injection time and was expressed as the standardized uptake value (SUV), where SUV = tissue radioactivity concentration (MBq/cm3)/injected radioactivity (MBq) × body weight (g). After the PET/CT scan, each mouse was euthanized and the liver collected. Livers were immediately frozen on dry ice and stored at − 80 °C until the MC-1 complex activity measurement or processed for histology.
Measurement of hepatic MC-1 activity
Hepatic MC-1 activity was measured on liver homogenates using the Complex 1 Enzyme Activity Dipstick Assay Kit (#MS130; MitoSciences, Eugene, OR, USA). Briefly, MC-1 was immunocaptured and immunoprecipitated in active form on the dipstick. Then, the dipstick was immersed in MC-1 activity buffer solution containing NADH as a substrate and nitrotetrazolium blue as the electron acceptor. Immunocaptured MC-1 oxidized NADH and the resulting H+ reduced nitrotetrazolium blue to form a blue-purple precipitate. The signal intensity of this precipitate corresponded to the level of MC-1 enzyme activity in the sample. The total protein concentration of the liver homogenate samples were measured using a Protein Assay Kit (Bio-Rad, Hercules, CA, USA).
Blood biochemistry and histopathology
Mice were euthanized by exsanguination under isoflurane anesthesia. Plasma was collected and assayed for the content of alanine aminotransferase (ALT), aspartate aminotransferase (AST), triglyceride (TG), total cholesterol (TC), and high-density lipoprotein cholesterol (HDLC). The right hepatic lobes were fixed in 10% formalin and sectioned, and the 4 μm sections were stained with hematoxylin and eosin (H&E). Steatosis and inflammation in the liver were comprehensively assessed by two pathologists based on severity and size of the lesion. Histopathological scores ranged from 0 to 4 (normal 0, minimal 1, mild 2, moderate 3, marked 4).
Quantitative data are expressed as the means ± SEM. Means were compared using Dunnett’s test. p values < 0.05 were considered to indicate statistically significant differences. The Pearson product-moment correlation coefficient was used to evaluate the relationship between SUV of 18F-BMS in the liver and the hepatic MC-1 activity.
Physiological characteristics and hepatic pathology
Plasma ALT and AST levels were significantly elevated after 1 and 2 weeks of the MCD diet as compared with those of the control mice (p < 0.05) (Table 1). In mice fed the MCD diet for 1 week, weak steatosis, but no inflammation, was observed in the liver. In mice fed a MCD diet for 2 weeks, mild steatosis and minimal inflammation were observed (Fig. 2, Table 1).
Mitochondrial complex 1 activity
Hepatic MC-1 activity was evaluated after PET imaging. MC-1 activity was decreased by 12% (p < 0.05) in mice fed a MCD diet for 1 week and by 27% (p < 0.01) in mice fed a MCD diet for 2 weeks compared with the control group (Fig. 3).
18F-BMS PET scans were performed on control mice, rotenone-injected mice, and mice fed a MCD diet. Typical summed axial slice PET images and time activity curves (TACs) of the liver are shown in Figs. 4 and 5a. 18F-BMS was taken up rapidly by the liver and slowly washed out (Fig. 5a). SUV at 30–60 min revealed that 18F-BMS uptake was 50% lower in rotenone-injected mice than control mice (1.09 vs 0.55, p < 0.01) (Fig. 5b). As shown in Fig. 5, a prolonged MCD diet accelerated 18F-BMS clearance from the liver. In mice fed a MCD diet for 1 week, uptake of 18F-BMS was slightly decreased, but there was no significant difference compared with control mice (1.09 vs 1.00, p > 0.05) (Fig. 5). In contrast, 18F-BMS uptake of mice fed a MCD diet for 2 weeks was decreased by 27% as compared with control mice (1.09 vs 0.79, p < 0.05).
Correlation analysis between 18F-BMS uptake and MC-1 activity indicated a positive correlation (r = 0.73, p < 0.0001) (Fig. 6).
In the present study, 18F-BMS was used to evaluate hepatic MC-1 activity in mice fed MCD diet as a model of NAFLD. 18F-BMS has been investigated as a PET myocardial perfusion imaging agent for both clinical and non-clinical use [19, 20]. 18F-BMS was reported to bind tightly to cellular MC-1, which is the first component of the four electron transport complexes in the inner mitochondrial membrane . 18F-BMS is selectively taken up into the heart because of the high density of mitochondria in the cardiac muscle. There are some reports that uptake of MC-1 probes, including 18F-BMS, was inhibited by pre-injection of rotenone, a MC-1 inhibitor not only in the heart but also in the brain [21, 22]. In the present study, hepatic uptake of 18F-BMS was also reduced by pre-injection of rotenone, indicating that 18F-BMS is bound to MC-1 in the liver. Furthermore, the most interesting finding of the present study was that hepatic MC-1 activity was correlated with hepatic 18F-BMS uptake. Thus, these results indicate that hepatic uptake of 18F-BMS also depends on MC-1 activity. In the present study, a MC-1 immunocaptured dipstick assay kit, which measured MC-1-specific NADH oxidase activity was used. This method has been used in several tissues, including mouse liver, and was previously used to detect a tetracycline-induced decrease in hepatic MC-1 activity . Notably, MC-1 activity was also significantly decreased at 2 weeks in mice fed a MCD diet. In a rat study, 11 weeks of a MCD diet decreased MC-1 activity over 70% . It was also reported that a prolonged MCD diet progressed NAFLD pathology [24, 25]. In our previous study, NAFLD severity increased with duration of MCD diet . Although after 2 weeks of the MCD diet no fibrosis was observed, 4 weeks of a MCD diet induced weak fibrosis and liver fibrosis was clearly observed at 6 weeks . In the present study, 1 and 2 weeks of a MCD diet revealed weak or mild steatosis and weak inflammation in mice. Therefore, up to 2 weeks of a MCD diet represents a model for early-stage NAFLD. Multiple studies support the observation that mitochondrial dysfunction is involved in the development of NASH [8, 26, 27]. Mitochondria generate ROS which damage the mitochondrial respiratory complex, decrease mitochondrial membrane potential, and cause ATP depletion . In the setting of NAFLD, there are reports regarding mitochondrial respiratory chain enzymes in NASH patients. Perez et al. reported a lower activity of the five mitochondrial respiratory complexes in patients with NASH . Thus, our study indicated that 18F-BMS might be useful as a high-resolution imaging method for the diagnosis of patients with NAFLD.
In an in vivo microscopic study, blood perfusion of the liver of mice fed MCD diet for 3 and 5 weeks was decreased by 13 and 19% respectively . There was no study to evaluate blood perfusion of the liver of mice fed a MCD diet for 1 or 2 weeks. In our previous dynamic enhanced MRI study, T max and T 1/2 after injection of gadolinium-ethoxybenzyl-diethylenetriamine penta-acetic acid (Gd-EOB-DTPA) were not changed at MCD diet for 2 weeks fed mice and were prolonged at MCD diet for 6 weeks fed mice . Therefore, in the evaluation of 18F-BMS uptake, there may be little influence of hepatic blood flow. Further study will be needed to clarify the effect of blood flow on 18F-BMS uptake in the liver of MCD mice. Thus, the decrease of 18F-BMS hepatic uptake might be due to the decrease of MC-1 activity rather than the hepatic perfusion in mice fed a MCD diet for 2 weeks. In our previous study, hepatic clearance of 99mTc-MIBI was changed in mice fed with MCD diet for 2 weeks. These changes have indicated that hepatic mitochondrial membrane potential was decreased at 2 weeks after MCD diet. Thus, non-invasive mitochondrial function imaging such as 18F-BMS and 99mTc-MIBI might be useful for NAFLD evaluation.
Hepatic uptake of 18F-BMS was decreased early in mice fed a MCD diet and correlated with hepatic MC-1 activity. This study indicated that 18F-BMS PET imaging might be useful for evaluating mitochondrial dysfunction in the early phase of NAFLD in patients.
Bhala N, Angulo P, van der Poorten D, Lee E, Hui JM, Saracco G, et al. The natural history of nonalcoholic fatty liver disease with advanced fibrosis or cirrhosis: an international collaborative study. Hepatology. 2011;54(4):1208–16.
Angulo P. Medical progress: nonalcoholic fatty liver disease. N Engl J Med. 2002;346:1221–31.
Day CP, James OF. Hepatic steatosis: innocent bystander or guilty party? Hepatology. 1998;27(6):1463–6.
Fukunishi S, Nishio H, Fukuda A, Takeshita A, Hanafusa T, Higuchi K, et al. Development of fibrosis in nonalcoholic steatosis through combination of a synthetic diet rich in disaccharide and low-dose lipopolysaccharides in the livers of Zucker (fa/fa) rats. J Clin Biochem Nutr. 2009;45:322–8.
Pessayre D, Fromenty B. NASH: a mitochondrial disease. J Hepatol. 2005;42:928–40.
Gao D, Wei C, Chen L, Huang J, Yang S, Diehl AM. Oxidative DNA damage and DNA repair enzyme expression are inversely related in murine models of fatty liver disease. Am J Physiol Gastrointest Liver Physiol. 2004;287:G1070–7.
Caldwell SH, Swerdlow RH, Khan EM, Iezzoni JC, Hespenheide EE, Parks JK, et al. Mitochondrial abnormalities in non-alcoholic steatohepatitis. J Hepatol. 1999;31:430–4.
Cortez-Pinto H, Chatham J, Chacko VP, Arnold C, Rashid A, Diehl AM. Alterations in liver ATP homeostasis in human nonalcoholic steatohepatitis: a pilot study. JAMA. 1999;282:1659–64.
Teodoro JS, Rolo AP, Duarte FV, Simoes AM, Palmeira CM. Differential alterations in mitochondrial function induced by a choline-deficient diet: understanding fatty liver disease progression. Mitochondrion. 2008;8(5-6):367–76.
Jones AG, Abrams MJ, Davison A, Brodack JW, Toothaker AK, Adelstein SJ, et al. Biological studies of a new class of technetium complexes: the hexakis(alkylisonitrile)technetium(I) cations. Int J Nucl Med Biol. 1984;11:225–34.
Strauss HW. MIBI and mitochondria. JACC. 2013;61(19):2018–9.
Rokugawa T, Uehara T, Higaki U, Matsushima S, Obata A, Arano Y, et al. Potential of 99mTc-MIBI SPECT imaging for evaluating non-alcoholic steatohepatitis induced by methionine choline-deficient diet in mice. EJNMMI Res. 2014;4:57.
Masuda K, Ono M, Fukumoto M, Hirose A, Munekage K, Ochi T, et al. Usefulness of Technetium-99 m-2-methoxy-isobutyl-isonitrile liver scintigraphy for evaluating disease activity of non-alcoholic fatty liver disease. Hepatol Res. 2012;42:273–9.
Schwaiger M. Myocardial perfusion imaging with PET. J Nucl Med. 1994;35(4):693–8.
Yalamanchili P, Wexler E, Hayes M, Yu M, Bozek J, Kagan M, et al. Mechanism of uptake and retention of F-18 BMS-747158-02 in cardiomyocytes: a novel PET myocardial imaging agent. J Nucl Cardiol. 2007;14(6):782–8.
Huisman MC, Higuchi T, Reder S, Nekolla SG, Poethko T, Wester HJ, et al. Initial characterization of an 18F-labeled myocardial perfusion tracer. J Nucl Med. 2008;49(4):630–6.
Ohba H, Kanazawa M, Kaikushu T, Tsukada H. Effect of acetaminophen on mitochondrial complex 1 activity in the rat liver and kidney: a PET study with 18F-BCPP-BF. EJNMMI Res. 2016;6:82.
Mou T, Zhao Z, Fang W, Peng C, Guo F, Liu B, et al. Synthesis and preliminary evaluation of 18F-labeled pyridaben analogues for myocardial perfusion imaging with PET. J Nucl Med. 2012;53(3):472–9.
Sherif HM, Saraste A, Weidl E, Weber AW, Higuchi T, Reder S, et al. Evaluation of a novel 18F-labeled positron-emission tomography perfusion tracer for the assessment myocardial infarct size in rats. Circ Cardiovasc Imaging. 2009;2:77–84.
Maddahi J, Czernin J, Lazewatsky J, Huang SC, Dahlbom M, Schelbert H, et al. Phase I, first-in-human study of BMS747158, a novel 18F-labeled tracer for myocardial perfusion PET: dosimetry, biodistribution, safety, and imaging characteristics after a single injection at rest. J Nucl Med. 2011;52(9):1490–8.
Fukumoto D, Nishiyama S, Harada N, Yamamoto S, Tsukada H. Detection of ischemic neuronal damage with [18F]BMS-747158-02, a mitochondrial complex-1 positron emission tomography ligand: small animal PET study in rat brain. Synapse. 2012;66:909–17.
Tsukada H, Nishiyama S, Fukumoto D, Kanzawa M, Harada N. Novel PET probes 18F-BCPP-EF and 18F-BCPP-BF for mitochondrial complex 1: a PET study in comparison with 18F-BMS-747158-02 in rat brain. J Nucl Med. 2015;55:473–80.
Beutner G, Eliseev RA, Porter GA. Initiation of electron transport chain activity in the embryonic heart coincides with the activation of mitochondrial complex 1 and the formation of supercomplexes. PLoS One. 2014;9(11):e113330.
Serviddio G, Bellanti F, Tamborra R, Rollo T, Romano AD, Giudetti AM, et al. Alterations of hepatic ATP homeostasis and respiratory chain during development of non-alcoholic steatohepatitis in a rodent model. Eur J Clin Investig. 2008;38(4):245–52.
Yamada T, Obata A, Kashiwagi Y, Rokugawa T, Matsushima S, Hamada T, et al. Gd-EOB-DTPA-enhanced-MR imaging in the inflammation stage of nonalcoholic steatohepatitis (NASH) in mice. Magn Reson Imag. 2016;34:724–9.
Serviddio G, Saster J, Bellanti F, Vina J, Vendemial G, Altomare E. Mitochondrial involvement in non-alcoholic steatohepatitis. Mol Asp Med. 2008;29:22–35.
Begriche K, Igoudjil A, Pessayre D, Fromentry B. Mitochondrial dysfunction in NASH: cause. Consequences and possible means to prevent it. Mitochondrion. 2006;6:1–28.
Perez-Carreras M, Del HP, Martin MA, Rubio JC, Martin A, Gastellano G, et al. Defective hepatic mitochondrial respiratory chain in patients with nonalcoholic steatohepatitis. Hepatology. 2003;38(4):999–1007.
Mc Cuskey RS, Ito Y, Robertson GR, Mc Cuskey MK, Perry M, Farrell GC. Hepatic microvascular dysfunction during evolution of dietary steatohepatitis in mice. Hepatology. 2004;40(2):386–93.
