All that glitters is not gold: high uptake on PSMA PET in non-prostate cancers does not mean that treatment with [¹⁷⁷Lu]Lu-PSMA-radioligand will be successful

Abstract

Background

The main objective is to discuss why treatment of non-prostate cancers with [¹⁷⁷Lu]Lu-PSMA-radioligand achieved only low tumor dose in most published cases, despite high uptake on PSMA PET. We use a patient with renal cell carcinoma as an illustrative example. Furthermore, we discuss how the problem with early washout and low tumor dose might be overcome by using a radionuclide with shorter half-life, matching the target binding residence time.

Case presentation

[⁶⁸Ga]Ga-PSMA-11 PET/CT of a 56-year old man with metastatic renal cell carcinoma showed high lesion uptake. One dose of 6.9 GBq [¹⁷⁷Lu]Lu-PSMA-I&T was administrated. Post-therapy dosimetry was performed with SPECT/CT and whole-body planar imaging after 5, 24 and 48 h. Doses to target lesions were only 0.2–0.5 Gy. No treatment effect was achieved.

Conclusion

Rapid tumor washout of [¹⁷⁷Lu]Lu-PSMA-I&T and low tumor dose despite high uptake of [⁶⁸Ga]Ga-PSMA-11 are most likely caused by localization of PSMA-receptors on neovasculature rather than on the tumor cells, and unlike in prostate cancer cells, the PSMA-RL / PSMA-receptor complex is not internalized. To overcome the problem with early washout, the use of a radionuclide with shorter half-life matching the target binding residence time will be needed.

Background

«All that glitters is not gold»

William Shakespeare,

(Merchant of Venice)

Treatment of metastatic castration-resistant prostate cancer with [¹⁷⁷Lu]Lu-PSMA-radioligand ([¹⁷⁷Lu]Lu-PSMA-RL) is safe and effective [1]. A prerequisite for treatment is high tumor uptake on [⁶⁸Ga]Ga- or [¹⁸F]F-PSMA-radioligand PET (PSMA PET), which reflects high expression of PSMA-receptors on the prostate cancer cells.

Multiple articles have reported high uptake on PSMA PET in a number of non-prostate, solid cancers, and treatment with [¹⁷⁷Lu]Lu-PSMA-RL has been suggested, e.g. glioblastoma, differentiated and medullary thyroid cancer, triple negative breast cancer, hepatocellular carcinoma and renal cell carcinoma (RCC) [1,2,3]. In contrast to prostate cancer, the high tumor uptake on PSMA PET in these tumors is primarily caused by a high expression of PSMA-receptors on the endothelial cells in neovasculature rather than on the cancer cells [1,2,3].

In this article we report the results of post-treatment tumor dosimetry based on the gamma emission of lutetium-177 after a single dose of [¹⁷⁷Lu]Lu-PSMA-I&T of a patient with metastatic RCC. We discuss likely explanations for why we achieved only low tumor dose despite high uptake on PSMA PET. Furthermore, we discuss whether our considerations might be valid also for other solid cancers showing high uptake on PSMA PET but early washout and low tumor dose.

Case presentation

Methods

A 56-year old male with metastatic chromophobe RCC did not respond to standard treatment. When unapproved treatment with the approved (“off-label”) drugs sacituzmab govicetan-hziy followed by enfortumabvedotin-ejfv both failed, experimental treatment with [¹⁷⁷Lu]Lu-PSMA-I&T was considered. PSMA-PET showed high uptake in numerous lesions (Fig. 1). A single dose of 6.9 GBq [¹⁷⁷Lu]Lu-PSMA-I&T (Curium OY, Finland) was administered. Post-therapy dosimetry for target lesions based was performed on the gamma emission from lutetium-177 with SPECT/CT (GE Discovery 670, GE HealthCare, Cincinnati, Ohio, USA) after 5, 24 and 48 h, in close accordance with the EANM dosimetry committee recommendations [4]. In addition to post-therapy SPECT/CT after 5, 24 and 48 h, whole-body planar images were also performed. After the 48 h SPECT/CT, a dynamic [⁶⁸Ga]Ga-PSMA-11 PET/CT (Biograph Vision, Siemens Healthineers, Forchheim, Germany) was acquired for 3.8 h to provide the initial [⁶⁸Ga]Ga-PSMA-11 pharmacokinetics. The patient did not receive any anticancer drugs within the 6 weeks before or during treatment with [¹⁷⁷Lu]Lu-PSMA-I&T.

Fig. 1

[⁶⁸Ga]Ga-PSMA-11 PET/CT showing heterogeneous, high uptake in a large kidney tumor (arrow) and numerous metastases to lymph nodes, liver, muscles and bone. SUVmax in primary tumor and metastases: 10 to 18. SUVmax in reference organs: liver 5, parotids 14

The Norwegian Medical Products Agency and The Institutional Review Board had approved the unapproved use of [¹⁷⁷Lu]Lu-PSMA-I&T. The patient has given a written consent to the use of images and data for publications.

Results

Calculated doses to target lesions were 0.2–0.5 Gy. The dynamic PSMA PET showed that about 20% of [⁶⁸Ga]Ga-PSMA-11 was washed out from the tumors within 3.8 h. Post-therapy planar images after 5, 24 and 48 h are shown in Fig. 2. No treatment effect was achieved; the disease continued to progress as confirmed by MRI at 3 months, and the patient died from the disease 2 months later.

Fig. 2

Post-therapy planar gamma camera images acquired 5, 24 and 48 h after injection of 6.9 GBq [¹⁷⁷Lu]Lu-PSMA-I&T. Tracer uptake in the primary tumor and metastatic lesions on the 5 h image corresponds to the pre-therapeutic PSMA PET (Fig. 1). Primary tumor (red arrow) and retroperitoneal lymph node metastases (blue arrow). There is very low tumor retention after 24 and almost complete washout after 48 h (Fig. 3). High intestinal uptake (black dotted arrow) is caused by intestinal dilation caused by opioid treatment

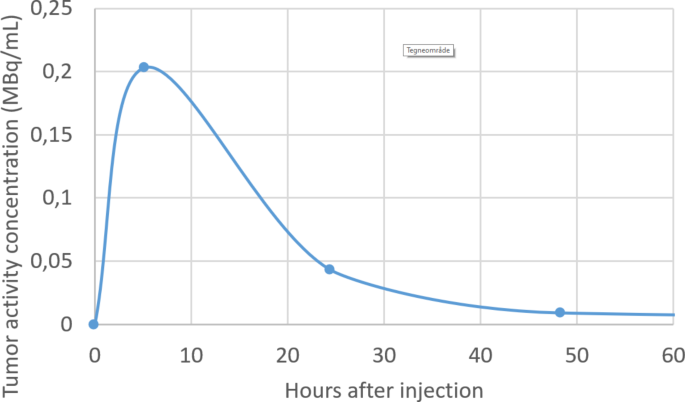

Fig. 3

Graph showing mean activity retention (MBq/mL) in target lesions at 5, 24 and 48 hours after injection of 6.9 GBq [¹⁷⁷Lu]Lu-PSMA-I&T

Discussion

In this patient treated with a single administration of 6.9 GBq [¹⁷⁷Lu]Lu-PSMA-I&T for metastatic RCC, doses to target lesions were 0.2–0.5 Gy, far too low for treatment effect. For comparison, a median dose of 14.1 Gy was needed for adequate treatment response in prostate cancer [5]. A 3.8 h dynamic PSMA PET performed after 48 h is not according to our standard dosimetry procedure. It was performed because of the early washout to provide information on initial [⁶⁸Ga]Ga-PSMA-11 pharmacokinetics. The dynamic study showed a 20% washout from target lesions during a 3.5 h acquisition, indicating that the washout may have been even faster than the curve in Fig. 2 indicates. However, it must be clarified that the PSMA PET and the treatment/post-therapy dosimetry were performed with two different radioligands with somewhat different chemical structure and pharmacokinetics despite identical urea receptor binding motif (PSMA-11 vs. PSMA-I&T). An optimal theranostic approach would be using the same ligand for PET imaging and treatment, e.g. a radiohybrid ligand [6].

The low tumor dose corresponds with most other reports on treating solid malignant tumors, other than prostate, with [¹⁷⁷Lu]Lu-PSMA-RL, despite high uptake on PSMA PET [7,8,9]. Zang et al. also reported rapid tumor washout of [¹⁷⁷Lu]Lu-PSMA-I&T from RCC and no treatment effect was achieved [7]. Hirmas et al. reported two patients with hepatocellular carcinoma that showed high tumor uptake on [⁶⁸Ga]Ga-PSMA-11 PET/CT, but achieved only 0.1 and 0.6 Gy when treated with one cycle of 6.9 GBq [¹⁷⁷Lu]Lu-PSMA-617 [8]. Three patients with glioblastoma reported by Graef et al. treated with a median activity of 6.03 GBq [¹⁷⁷Lu]Lu-PSMA-RL achieved a median tumor dose of only 0.56 Gy despite high uptake on PSMA PET/MRI [9]. One exception is a case report on a patient with glioblastoma in which a tumor dose of 14 Gy was achieved after treatment with 8.39 GBq [¹⁷⁷Lu]Lu-PSMA-617 [10]. A few reports are published on temporary stable disease and pain relief in a few patients with salivary gland cancer [1]. However, in salivary gland cancers the PSMA uptake is not fully described in the literature. The binding may not be restricted to neovasculature, but specific as well as non-specific binding to the cancer cells may be present [11].

It is important to point out that few articles, mainly case reports, of short retention of PSMA-RL and low tumor doses in non-prostate malignancies have been published. It is reasonable to assume that a publication bias against negative treatment attempts may exist. Notably, most patients treated so far have been heavily pretreated with very advanced disease [7,8,9]. We suggest that further attempts of therapy with [¹⁷⁷Lu]Lu-PSMA-RL of non-prostate cancers showing high uptake on PSMA PET should best be done as pilot studies after pre-treatment dosimetry. PSMA-RL used for dosimetry, however, will need to be labeled with a radionuclide with longer physical half-life (T_1/2) than fluorine-18 or gallium-68, e.g. copper-64 (T_1/2=12.7 h).

Unlike in prostate cancer, in the neovasculature the PSMA-RL / PSMA-receptor complex might not be internalized. One article reported on internalization in endothelial cells, however, they tested monoclonal antibodies and nanoparticles [12]. We have not found any other article reporting on internalization in endothelial cells of neovasculature. We might speculate that absence of internalization may be the main reason for short tumor retention time despite high density of PSMA-receptors on the endothelial cells. This does not necessarily mean that PSMA-receptors on non-prostate cancers are not a potential target for radioligand treatment. It may, however, indicate that the radionuclides clinically used today, lutetium-177 (T_1/2=6.7 days) and actinium-225 (T_1/2=10 days), have too long half-lives and are thus suboptimal. A very important basic principle for targeted radionuclide therapy is that the half-life of the radionuclide should match the biological tumor/receptor residence time to provide efficient tumor dose and to reduce toxicity by off target accumulation of longer-lived radionuclides [13, 14]. Thus, radionuclides with relatively short physical half-life may be needed for successful PSMA-RL therapy targeting PSMA-receptors on neovasculature, e.g. the alpha emitter astatine-211 (T_1/2 =7.2 h), or the beta-/alpha emitter lead-212 (T_1/2=10.7 h) [14, 15].

It is worth noting that the distance between capillaries of neovasculature is shorter than the range of alpha particles, which means that alpha particles emitted from radioligands targeting neovasculature should be able to kill not only endothelial cells but cancer cells and supporting cells in the tumor microenvironment as well [16]. Alpha particles have such a short range that they may potentially kill micrometastases of prostate cancer. However, this may not work for other malignancies, as small micrometastases may not yet have neovasculature [16].

Important for the tumor retention and thus the tumor dose is the internalization fraction, i.e. the proportion of radioligand bound to receptors on the cell membrane that is internalized. Internalization fraction of the commonly used PSMA-RL in prostate cancer cells, based on in vitro cell experiments, seems to be as low as 10–20% [17]. Thus, relatively short-lived radionuclides like astatine-211 and lead-212 may have an advantage over lutetium-177 and actinium-225 labeled PSMA-RL not only for targeting neovasculature, but for prostate cancer as well [13, 14]. In addition to more optimal half-life, astatine-211 emits only one alpha particle per decay, in contrast to actinium-225, which has multiple alpha-emitting daughters that may escape the target site and result in low tumor dose and unwanted radiation to normal tissue. The advantage of using an alpha emitter for radioligand therapy is the higher biological effectiveness including indirect effects. In addition to the favorable half-life, ligand-labeling is easy for lead-212, and the radionuclide decays to stable lead-208 emitting two alpha- and three beta particles. The mix of both beta and alpha may be an advantage, particularly in heterogenous tumors [15]. Several publications have reported on successful labeling of PSMA-RL with lead-212, as well as astatine-211 [15]. Both astatine-211 and lead-212 can be imaged with SPECT/CT post-therapy for dosimetry, and lead-212 constitutes an attractive theranostic pair with lead-203.

The internalization fraction of radioligands targeting somatostatin receptors (SSTR) and fibroblast activating protein (FAP) also seems to be as low as 10–20% [18, 19]. Thus, the considerations above about radionuclides with shorter half-lives for therapy and the potential advantages of alpha particles, or a combination of alpha and beta should also be considered for treatment with radionuclides targeting SSTR and FAP [20].

Conclusion

Rapid tumor washout of [¹⁷⁷Lu]Lu-PSMA-RL from non-prostate cancers, despite high uptake on PSMA PET, is probably due to uptake on the endothelial cells in neovasculature, rather than on the tumor cells, and lack of internalization of PSMA-RL / PSMA-receptor complex in the endothelial cells. To overcome the problem with early washout, the use of radionuclides with shorter half-lives matching the target binding residence time will be needed, i.e. astatine-211 or lead-212.
