Inflammatory markers and long term hematotoxicity of holmium-166-radioembolization in liver-dominant metastatic neuroendocrine tumors after initial peptide receptor radionuclide therapy

EJNMMI Research volume 12, Article number: 7 (2022) Cite this article

Abstract

Purpose

In patients with neuroendocrine tumor liver metastases, additional tumor reduction can be achieved by sequential treatment with [166Ho]-radioembolization after peptide receptor radionuclide therapy (PRRT). The aim of this study was to analyze hematotoxicity profiles, (i.e. lymphocyte and neutrophile toxicity) and the prognostic value of neutrophil-to-lymphocyte ratio (NLR) and thrombocyte-to-lymphocyte ratio (TLR).

Methods

All patients included in the prospective HEPAR PLuS study were included in this study. Blood testing was performed at baseline (before radioembolization) and at regular intervals during 1-year follow-up. Radiological response was assessed at 3, 6, 9, and 12 months according to RECIST 1.1. Logistic regression was used to analyze the prognostic value of NLR and TLR on response.

Results

Thirty-one patients were included in the toxicity analysis; thirty were included in the response analysis. Three weeks after radioembolization, a significant decrease in lymphocyte count (mean change − 0.26 × 109/L) was observed. Ten patients (32.2%) experienced grade 3–4 lymphocyte toxicity. This normalized at 6 weeks and 3 months after treatment, while after 6 months a significant increase in lymphocyte count was observed. An increase in NLR and TLR at 3 weeks, compared to baseline, significantly predicted response at 3 months (AUC = 0.841 and AUC = 0.839, respectively) and at 6 months (AUC = 0.779 and AUC = 0.765). No significant relation with survival was found.

Conclusions

Toxicity after sequential treatment with PRRT and [166Ho]-radioembolization is limited and temporary, while significant additional benefit can be expected. Change in NLR and TLR at 3-weeks follow-up may be valuable early predictors of response.

Trial registration ClinicalTrials.gov, NCT02067988. Registered 20 February 2014, https://clinicaltrials.gov/ct2/show/record/NCT02067988.

Key points

  • Question

Are inflammatory markers a relevant predictor of response after [166Ho]-radioembolization in neuroendocrine tumor patients?

  • Pertinent findings

In a cohort study, following 31 patients who underwent [166Ho]-radioembolization shortly after PRRT, a temporary increase in neutrophil-to-lymphocyte ratio (NLR) and thrombocyte-to-lymphocyte ratio (TLR) three weeks after treatment was found to be indicative of objective response at three months.

  • Implications for patient care

NLR and TLR may be of use in both identifying early response and providing insight in the biological process of tumor response after [166Ho]-radioembolization in neuroendocrine tumor patients.

Introduction

Peptide receptor radionuclide therapy (PRRT) with [177Lu]Lu-DOTA-TATE is standard of care in patients with somatostatin receptor (SSTR) positive grade 1 or 2 gastroenteropancreatic neuroendocrine tumors (NET). It is indicated following progression after initial treatment with somatostatin analogs (SSA). However, large liver metastases (i.e. > 3 cm) or a high tumor burden (i.e. > 25%) indicate worse overall and disease-specific survival after PRRT [1, 2]. The additional benefit of radioembolization/selective internal radiotherapy (SIRT) to boost the effect of PRRT was recently studied in the HEPAR PLuS study, as well as the hepatic toxicity of combining both treatments [3]. After [166Ho]-radioembolization of one or both liver lobes, objective response was achieved in 43% of the patients, and toxicity was limited. However, within a 6-month follow-up period, grade 3 lymphopenia was observed in 23% of patients. This is a phenomenon that is known to occur after both PRRT and radioembolization, and is thought to be caused by the immune response initiated after radiation therapy of the tumors, direct irradiation of white blood cells, and targeting of B-lymphocytes by overexpression of SST2-receptors [4, 5]. Furthermore, some studies showed a relationship between baseline neutrophil-to-lymphocyte ratio (NLR) or thrombocyte-to-lymphocyte ratio (TLR) and recurrence or survival after surgery and chemoembolization in NET [6,7,8]. A high NLR or TLR at baseline was associated with a worse prognosis after different treatment strategies in various types of tumor, among which breast, colorectal, gastric, oesophageal, pancreatic, lung, renal, bladder, ovarian, hepatocellular and cholangiocarcinoma [9]. As markers of the systemic inflammatory response in cancer patients, NLR and TLR are thought to be of prognostic value. Therefore, the NLR and TLR were also proposed as prognostic factors after radioembolization [10].

It is not known whether the combined treatment of PRRT and [166Ho]-radioembolization has an additional effect on post-treatment lymphopenia and hematological toxicity in general. In this study, the 1-year hematotoxicity was assessed after combined therapy consisting of PRRT and [166Ho]-radioembolization.

Materials and methods

Patients

Data was analyzed from the prospective HEPAR PLuS study, which was conducted at the University Medical Center Utrecht, The Netherlands (Clinical Trials identifier: NCT02067988) [3, 11]. Patients with a well differentiated NET (grade 1–2) were treated with additional [166Ho]-radioembolization after receiving four cycles of PRRT with [177Lu]Lu-DOTA-TATE. The full protocol and primary endpoints were published previously [3, 12]. In short, patients were eligible for inclusion in de HEPAR PLuS study if they were ≥ 18 years old; had Eastern Cooperative Oncology Group (ECOG) performance score ≤ 2; had at least three measurable liver metastases according to Response Evaluation Criteria In Solid Tumors version 1.1 (RECIST 1.1); had treatment with [166Ho]-radioembolization within 20 weeks after the final cycle of PRRT. Patients were excluded if laboratory toxicity grade 3 or higher according to the Common Terminology Criteria for Adverse Events (CTCAE 4.03) was present, except for lymphopenia and γ-glutamyltransferase, for which all toxicity was accepted. Written informed consent was obtained from all participants. The local medical ethics committee approved the study and the study was conducted according to the declaration of Helsinki.

Study procedures

Blood samples were taken at multiple time points: at screening (i.e. 2–4 weeks before [166Ho]-radioembolization), on the day of treatment, 3 and 6 weeks, and 3, 6, 9, and 12 months after treatment with [166Ho]-radioembolization. If available, baseline laboratory tests before PRRT were collected as well (pre-PRRT). All patients were planned to receive a mean target volume absorbed dose of 60 Gy. To determine response after [166Ho]-radioembolization, contrast-enhanced computed tomography of the chest (single-phase) and abdomen (multi-phase) was performed at baseline screening and at 3, 6, 9, and 12 months after treatment.

Outcomes

Toxicity was classified according to the CTCAE 4.03 and was assessed in each patient at each time point independently. Toxicity profiles at screening (i.e. prior to [166Ho]-radioembolization) were defined as baseline, and only parameters that showed changes compared to baseline according to CTCAE 4.03 were reported. The NLR and TLR were calculated by dividing the absolute neutrophil count or absolute thrombocyte count by the absolute lymphocyte count, respectively. Pre-existing hematotoxicity after PRRT was quantified at baseline (i.e. prior to [166Ho]-radioembolization), with the aim to assess its effect on post-[Ho166]-radioembolization hematotoxicity.

Two radiologists, who were blinded for patient characteristics, independently assessed response. The objective response at 3, 6, 9, and 12 months after [166Ho]-radioembolization was assessed using RECIST 1.1. If disagreement between the two radiologists occurred, the mean of both sums of the diameter of the target lesions was calculated and the response was re-classified. Patients discontinued follow-up in the study if they showed either clinical or radiological progression of disease and/or were referred for additional treatment.

Statistical analysis

Categorical variables, including the response after treatment using RECIST 1.1 criteria, were compared by means of Chi-square or Fisher’s exact test, depending on group size. Differences in continuous variables were tested using t-tests. When analyzing predictors for lymphocytopenia, linear mixed models were used, to incorporate the correlation within the longitudinal data of laboratory tests. Tested variables were gender, age, tumor grade, hepatic tumor burden (defined as the fraction of the liver volume occupied by tumor tissue, segmented on CE-CT), ECOG score, extrahepatic disease (excluding lymph nodes), and total liver dose (Gy), because these factors were considered potential clinically relevant prognostic factors. Individual testing of potential factors in univariate analysis was performed, as well as multivariate analysis. Logistic regression analysis was performed to test the predictive value of baseline and change in NLR and TLR at 3 and 6 weeks post-treatment on the occurrence of objective response according to RECIST 1.1 at 3, 6, 9, or 12 months. Objective response was defined as partial or complete response. In order to improve comparability of the developed models, response assessment at 6, 9, and 12 months was inflated to the same amount of cases of which response was available at 3 months, by counting cases that were lost to follow-up as showing progressive disease. Backward step model reduction was used to reduce the model with the full set of predictors to a reduced model containing only significantly contributing predictors. From the resulting models, ROC curves were constructed and if multiple predictor variables were included, optimism-corrected area-under-the-curve (AUC) values were calculated by bootstrapping the dataset. Odds ratios (OR) with the corresponding confidence intervals (CI) were calculated. The total follow-up time of patients was used for calculating the overall survival (OS), censoring those patients that were lost to follow-up due to other reasons than death. Progression-free-survival (PFS) was determined for each patient, censoring patients showing enduring response at the time of analysis. A possible relation between NLR and TLR and OS or PFS was tested using Cox Proportional Hazards Regression analysis, from which hazard ratios (HR) and CIs were calculated.

Statistical analysis was performed in R (version 4.0.1). All statistical tests were performed two-sided. A p value of < 0.05 was considered significant.

Results

In total, 31 patients were included in the analysis (Table 1). A total of two out of 31 patients (6%) died before follow-up was completed. Follow-up was prematurely ended in 3/31 patients (9%) because of progressive disease, which required initiation of a new therapy. Follow-up was completed in all other patients (26/31 patients; 84%). Median time between the last cycle of PRRT and treatment with [166Ho]-radioembolization was 12.7 weeks (IQR [9.7; 15.8]). Any unresolved hematotoxicity after PRRT (CTCAE grade ≥ 1) was found in 27 patients (87%). At baseline (i.e. after PRRT, prior to [166Ho]-radioembolization), grade 1–2 lymphopenia was observed in 11 patients (35.5%), grade 3 lymphopenia in 7 (22.6%), grade 1 leucopenia in 11 (35.5%), and grade 1–2 anemia in 17 (55%, Table 2). Grade 1 renal toxicity was present in 3 patients (9.7%) and bilirubin elevation was absent in all patients. When only considering newly observed toxicity after PRRT (i.e. compared to pre-PRRT results), lower CTCAE grades were observed at baseline, prior to radioembolization (Table 3).

Table 1 Baseline characteristics of included patients in the HEPAR-PLuS trial
Full size table
Table 2 Raw baseline toxicity prior to PRRT and at screening (i.e. prior to [166Ho]-radioembolization)
Full size table
Table 3 All new observed hematological and biochemical toxicity after [166Ho]-radioembolization during 1 year of follow-up
Full size table

Most hematotoxicity was caused by PRRT, but some additional toxicity after [166Ho]-radioembolization was observed (Fig. 1). After 3 weeks of follow-up, a significant further reduction in average lymphocyte levels was observed. Compared to baseline, this change was more pronounced than any of the other hematologic tests. Grade 3–4 lymphopenia occurred in ten patients (32.2%) and grade 1–2 lymphopenia in seven patients (22.6%; Table 3). Lymphocyte counts rapidly increased in the following weeks and months. There was a significant decrease at 3-weeks follow-up (− 0.26 × 109/L; p < 0.001) compared to baseline, and an increase at six (+ 0.14 × 109/L), nine (+ 0.13 × 109/L), and twelve (+ 0.19 × 109/L) months (p = 0.023, p = 0.039 and p = 0.003 respectively). The increase in lymphocyte counts at 6, 9, and 12 months indicated further recovery from pre-existent hematotoxicity after PRRT. No patient- or disease specific factors were associated with lymphocytic toxicity at any point in time during follow-up (Additional file 1: Table S1).

Fig. 1
figure 1

Laboratory test trends indicating hematologic toxicity. Points indicate median change compared to baseline. FU follow-up

Full size image

Hemoglobin, leukocyte, and thrombocyte specific hematotoxicity was limited (Table 3). In terms of CTCAE grading, one patient (3.2%) suffered from grade 3 anemia, eight patients (25.8%) had grade 1–2 anemia, eleven patients (35.5%) had grade 1–2 leukopenia, and nine patients (29.1%) had grade 1–2 thrombopenia. For all hematologic laboratory values, a recovery trend was observed in the second half-year of follow-up.

Response assessment (according to RECIST 1.1) was available in 30 patients at 3-months follow-up, 29 patients at 6-months follow-up, 28 at 9-months follow-up, and 25 at 12-months follow-up. After 3, 6, 9, and 12 months, partial response was observed in 43%, 47%, 37%, and 37%, stable disease in 43%, 37%, 30% and 30%, and progressive disease in 13%, 17%, 33% and 33% respectively. One patient died before any response assessment could be performed.

In 22 patients, a temporary increase in NLR or TLR (of whom 13 had an increase > 50%) was observed at 3-weeks follow-up, which recovered during further follow-up (Fig. 2). Median baseline NLR was 4.3, median baseline TLR was 238 (Table 1). Correlation between NLR and TLR within patients was moderate at baseline (r = 0.57, p < 0.001), 6-weeks follow-up (r = 0.67, p < 0.001), and 12-months follow-up (r = 0.52, p = 0.001). Correlation between NLR and TLR was strong at 3-weeks follow-up (r = 0.84, p < 0.001), as well as the correlation between change in NLR and TLR after 3 weeks (r = 0.77, p < 0.001). NLR or TLR did not differ between patients with grade 1 or grade 2 NET at any point in time (p > 0.05). The increase in NLR and TLR can be mostly attributed to a mean decrease in lymphocytes of 28.8% (95% CI [18.6; 39.1]), and in a lesser degree to an increase in neutrophils (mean increase 11.7%, 95% CI [− 0.8; 24.2]) or decrease in thrombocytes (mean decrease 7.7%, 95% CI [− 2.0; 17.5]). Baseline NLR and TLR did not predict response at three (ORNLR = 1.05, 95% CI [0.72; 1.54] and ORTLR = 1.00, 95% CI [0.99; 1.00]) or 6 months FU (ORNLR = 0.93, 95% CI [0.64; 1.36] and ORTLR = 1.00, 95% CI [0.99; 1.01]). The relative change in both NLR and TLR at 3-weeks follow-up was significantly associated with response at 3 months based on RECIST 1.1, meaning that an increase in NLR or TLR could predict response to treatment (OR per 100% increase NLR = 7.06, 95% CI 1.47–34.03, p = 0.001 and OR per 100% increase TLR = 14.33, 95% CI 1.66–123.4, p = 0.001; Fig. 3). The relative change in NLR and TLR at 3-weeks follow-up was also significantly associated with response at 6 months (OR per 100% increase NLR = 4.08, 95% CI 1.20–13.94, p = 0.001 and OR per 100% increase TLR = 7.59, 95% CI 1.23–46.96, p = 0.001). The change in NLR was also significantly associated with response at 9 and 12 months (OR per 100% increase NLR = 2.78, 9%% CI 1.05–7.34), while the change in TLR was not significantly associated with response at 9 or 12 months (p = 0.08). At 6-weeks follow-up, the change in NLR and TLR could not predict response at 3 months (p = 0.402 and p = 0.318 respectively). The ROC curve of using change in NLR or TLR in the current dataset yielded an AUC of 0.864 and 0.843 for predicting response at 3 months, and an AUC of 0.781 and 0.772 for predicting response at 6 months (Fig. 4). Adding both variables in the model did not improve the bootstrap-corrected AUC (AUC = 0.821). Using several cut-offs, sensitivity and specificity were calculated (Additional file 2: Table S2). An example of a patient showing a marked peak in NLR and TLR at 3 weeks while having partial response on imaging at 3 months is shown in Fig. 5.

Fig. 2
figure 2

Trends in absolute NLR and TLR after [166Ho]-radioembolization, with a significant peak 3 weeks after treatment. FU follow-up

Full size image

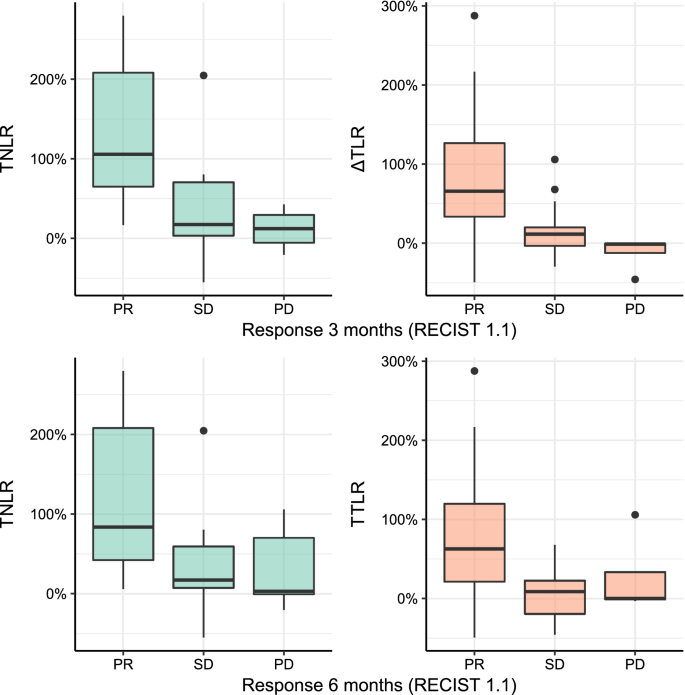

Fig. 3
figure 3

Differences in relative change in NLR and TLR at 3-weeks follow-up after [166Ho]-radioembolization plotted against response according to RECIST 1.1 at 3 months (top-left and top-right) and 6 months (bottom-left and bottom-right)

Full size image
Fig. 4
figure 4

ROC curves of relative change in NLR and TLR from baseline at 3-weeks follow-up in predicting objective response at 3 months (top row) and 6 months (bottom row), according to RECIST 1.1. AUC area under the curve

Full size image
Fig. 5
figure 5

A male patient with hepatic neuroendocrine tumor metastases, with the largest lesion measuring 60 mm at screening (A), was treated with whole-liver [166Ho]-radioembolization (B). After 3 months partial response was observed, with the largest lesion measuring 41 mm (C). A clear peak in NLR and TLR can be observed at 3 weeks follow-up (D). FU follow-up

Full size image

Median OS in the entire study population (n = 31) was 30.5 months after [166Ho]-radioembolization (mean 35.4, 95% CI [21.7; 47.4]), and 40.8 months after start of PRRT (mean 44.4, 95% CI [31.2; 56.3]). Median PFS was 21.2 months (mean 28.4, 95% CI [14.0; 31.5]) after [166Ho]-radioembolization, and 30.1 months after PRRT (mean 37.9, 95% CI [24.7; 40.8]). Nine patients were alive at the time of analysis, and five patients did not show progression in the time they were followed-up. No significant relation could be found between change in NLR or TLR and OS, with a HR per 100% increase in NLR of 0.8262 (95% CI 0.49–1.39, p = 0.474) and a HR for TLR of 0.97 (95% CI 0.49–1.92, p = 0.94), nor for PFS (HRNLR = 0.98, 95% CI [0.65; 1.62]; HRTLR = 1.03, 95% CI [0.58; 1.82]). Presence of extrahepatic disease did not influence median OS (41 vs 26 months, p = 0.14) or median PFS significantly (21 vs 20 months, p = 0.619; Fig. 6).

Fig. 6
figure 6

Difference in overall survival and progression-free survival in patients with or without extrahepatic disease (excluding lymph node involvement)

Full size image

Discussion

After sequential PRRT and [166Ho]-radioembolization, additional short-term lymphopenia was observed in 55% of the treated patients with well-differentiated (grade 1–2) NET, 32% had grade 3–4 lymphopenia. After 12 months, additional lymphopenia was present in only two patients. Other hematologic parameters (i.e. thrombocytes, neutrophils, leukocytes and hemoglobin) were mainly limited to grade 1–2 toxicity. Additionally, trends indicated that after a radiation boost to the liver using [166Ho]-radioembolization, patients recovered from additional radioembolization-related toxicity, and partially from pre-existent PRRT-related hematologic toxicity within 1 year of follow-up. In the current study, no baseline factors could be identified that correlated with an increased risk of hematologic toxicity. Most notably, the NLR and TLR at 3-weeks follow-up after [166Ho]-radioembolization seem to be predictors of response at 3 months after treatment according to RECIST 1.1. Specifically, an increase of NLR or TLR compared to baseline improved the chance of objective response in our population. This observation was independent of pre-existing lymphopenia, indicating that lymphopenia is not a contra-indication for [166Ho]-radioembolization.

Multiple studies assessed the toxicity profiles after yttrium-90 [90Y]-radioembolization monotherapy in patients with hepatic NET metastases. In a study by Zuckerman et al., using glass microspheres (TheraSphere™, Boston Scientific), grade 3 lymphopenia occurred in 14/59 patients (23.7%), similar to the number of patients with grade 3 lymphopenia in the current study [13]. Thrombopenia was mainly limited to grade 1 or 2 toxicity, further confirming our findings. In another study, performed by Tomozawa et al., 52 patients with hepatic NET metastases were followed 1 year after [90Y]-radioembolization using resin microspheres (SIR-Spheres; Sirtex Medical Ltd), of whom 11 were followed 4 years. Within 1 year, hematologic toxicity occurred rather infrequently, with no grade 3 hematologic toxicity, and grade 1–2 anemia, grade 1–2 thrombopenia, and grade 1–2 leukopenia in only a limited number of patients. However, the WHO grade was not reported and only late (6–12-months) follow-up was presented, while in the current study hematologic toxicity occurred after 3 weeks. In a previously published study by Braat et al., 244 patients with well-differentiated (grade 1–3) NET treated with resin [90Y]-radioembolization were included in a retrospective international multicenter study [14]. Toxicity during follow-up was very comparable with this study, with grade 1–2 lymphopenia occurring in 52% of patients, grade 1–2 thrombopenia in 17%, and grade 1–2 anemia or leukopenia in less than 8%. Lymphopenia was the most frequent cause for grade 3–4 toxicity. However, hematologic toxicity was only analyzed up to 3 months after treatment. The current study showed similar toxicity profiles compared to previously published studies on [166Ho]-radioembolization [15, 16]. Lymphocyte levels showed the most significant toxicity. Overall, given the available toxicity profiles after radioembolization, there seems to be only limited added hematotoxicity from radioembolization when given sequentially after PRRT.

In earlier publications, the value of NLR and TLR was studied in different fields of medicine and for different types of tumors [6, 8]. It is well established, that baseline NLR can predict the OS, PFS and disease-free survival for many cancers, including colorectal cancer, breast cancer, hepatocellular carcinoma, gastric cancer, esophageal cancer and NET [17,18,19,20,21,22]. A high NLR is thought to be an indicator of systemic inflammatory response, and can be used as an index for severity of disease in cancer patients [23]. From the acknowledged hallmarks of cancer, inflammatory response can be seen as both a cause for as well as a result from tumor growth [24,25,26]. Thus, a high NLR is thought to reflect a more severe disease phenotype. In most studies, for a wide variety of treatments, both systemic (such as chemotherapy) and locoregional (such as radiotherapy), NLR is used as a baseline index for the systemic inflammatory status of patients, their capability to induce reduction in tumor growth, and therefore response to treatment and survival [6,7,8, 10]. In the current study, an increase in NLR or TLR shortly after treatment appeared to be indicative of response at 3 and 6 months, which contrasts earlier publications, even though the currently presented relation is between change in NLR and TLR and response, rather than baseline NLR and TLR. For example, Estrade et al. found that in HCC patients, lymphopenia 3 months after radioembolization, and therefore an increased NLR, was associated with poor survival (14.3 months vs 23.4 months) [27]. The difference might be due to the effect of radioembolization on short-term systemic availability of lymphocytes, granulocytes and thrombocytes. Therefore, the observed increase in NLR and TLR must be seen more as a treatment effect, than as a disease effect. It is also noteworthy that the short-term NLR and TLR trends (i.e. change within one month after radioembolization) have not been studied before. Furthermore, there may be certain unknown confounders that explain the observed relationship. The pre-[166Ho]-radioembolization NLR and lymphocyte counts seems to be in accordance with ranges found earlier in NET patients, so a bias in patient selection seems unlikely [22, 28].

Another marker recently studied in NET is the inflammation-based index (IBI), based on c-reactive protein and albumin levels [29]. It was demonstrated by Black et al. to show prognostic value in hepatocellular patients, and was proposed as a selection tool for PRRT in NET patients [30,31,32]. In the study, an increased IBI was found to be a significant prognosticator for decreased overall and progression-free survival, while NLR and TLR at baseline were not found to be significant prognosticators. This approach may be analogous to measuring NLR and TLR at baseline, as both markers represent the inflammatory status of the patient. However, the role of the inflammatory status of the patient in patient selection is not yet fully understood. As both PRRT and radioembolization may be beneficial even in patients with a high inflammatory status, it is unfeasible to withhold therapy from these patients. Therefore, this study proposes these inflammatory markers to be used during follow-up as well, as these parameters may be predictive of response.

For [90Y]-radioembolization, it was shown that an increase in baseline NLR or TLR was indicative of a worse prognosis in patients with primary or secondary liver malignancies [10]. In the study by D’emic et al., patients with hepatocellular carcinoma, colorectal cancer, breast cancer, bile duct cancer or NET, OS and PFS were significantly worse in patients with higher NLR and TLR at 20 days post-treatment in univariate analysis. In multivariate analysis, a post-treatment increase in TLR was most significantly associated with worse OS and PFS [10]. However, the study population was very heterogeneous, with a wide variety of tumor types included, among which only 8 (6.8%) patients with NET. Contrary to the study by D’emic, the current study focused on response in relation to the relative change in NLR and TLR after [Ho166]-radioembolization, in patients with NET. A temporary increase in NLR at 3 weeks post-treatment was associated with objective response at 3, 6, 9, and 12 months, which may seem contrary to previous findings. However, we could not find a relation with overall survival. It is important to note that our study is the first study to focus solely on the relation between NLR and TLR and response in neuroendocrine tumor patients. This is essentially different from studies focusing on the prognostic value of baseline NLR and TLR, as the change in NLR and TLR after treatment may reflect the effect of the treatment on the disease, rather than baseline NLR and TLR, which reflect the disease status of the patient prior to treatment. This is also essentially different from NLR and TLR several months post-treatment, which may potentially be obscured by disease progression and subsequently increased systemic inflammation. Although the prognostic value of NLR (and TLR) has been evaluated in multiple studies, it is rarely used in clinical practice.

There are some limitations in this study. First, the sample size for prognostic studies in general should preferably be larger. Unfortunately, multivariate prognostic models are difficult to build in small samples, as frequently encountered in NET studies. Second, there was some missing data, as not all patients completed follow-up. However, toxicity data up to and including the 3 weeks follow-up visit and response after three months was available in all patients. Third, our study consists of both grade 1 and grade 2 NET, which tend to have a very different course of disease over the years. Because of this heterogeneity, survival analysis is less accurate. Finally, all patients in the study were treated with a mean target liver volume absorbed dose of 60 Gy, which was calculated using the MIRD model which assumes the injected activity to be distributed evenly throughout the healthy liver tissue and tumor tissue. Toxicity in patients treated with [166Ho]-radioembolization can be further reduced by calculating the therapeutic activity using the so-called partition or multicompartment model [33].

Patients who are initially treated with PRRT can be safely referred for additional [166Ho]-radioembolization, as a boost in treatment of liver metastases [3]. In clinical practice, a significant treatment boost can safely be pursued in patients with bulky NET liver disease. Based on this study, measurement of NLR and TLR at baseline and during short-term follow-up visits may provide early information on response to treatment. In the future, prospective studies on the benefit of monitoring inflammatory markers on overall and progression-free survival should be conducted, because much is still unclear. Especially in patients with NET, predictive and prognostic markers may be difficult to find due to the heterogeneous nature of the tumor.

In conclusion, no clinically significant or permanent additional hematologic toxicity was observed after sequential treatment with PRRT and [166Ho]-radioembolization, while inflammatory markers such as NLR or TLR may provide early information on treatment response.

Availability of data and materials

The data that support the findings of this study are available upon reasonably request via contacting the corresponding author.

Abbreviations

PRRT:

Peptide receptor radionuclide therapy

SSTR:

Somatostatin receptor

NET:

Neuroendocrine tumor

SIRT:

Selective internal radiotherapy

NLR:

Neutrophil-to-lymphocyte ratio

TLR:

Thrombocyte-to-lymphocyte ratio

References

  1. Strosberg J, Kunz PL, Hendifar A, Yao J, Bushnell D, Kulke MH, et al. Impact of liver tumour burden, alkaline phosphatase elevation, and target lesion size on treatment outcomes with 177Lu-Dotatate: an analysis of the NETTER-1 study. Eur J Nucl Med Mol Imaging. 2020. https://doi.org/10.1007/s00259-020-04709-x.

    Article  PubMed  PubMed Central  Google Scholar

  2. Kwekkeboom DJ, de Herder WW, Kam BL, van Eijck CH, van Essen M, Kooij PP, et al. Treatment with the radiolabeled somatostatin analog [177 Lu-DOTA 0, Tyr3]octreotate: toxicity, efficacy, and survival. J Clin Oncol. 2008;26:2124–30. https://doi.org/10.1200/JCO.2007.15.2553.

    Article  CAS  PubMed  Google Scholar

  3. Braat AJAT, Bruijnen RCG, van Rooij R, Braat MNGJA, Wessels FJ, van Leeuwaarde RS, et al. Additional holmium-166 radioembolisation after lutetium-177-dotatate in patients with neuroendocrine tumour liver metastases (HEPAR PLuS): a single-centre, single-arm, open-label, phase 2 study. Lancet Oncol. 2020;21:561–70. https://doi.org/10.1016/S1470-2045(20)30027-9.

    Article  CAS  PubMed  Google Scholar

  4. Sierra ML, Agazzi A, Bodei L, Pacifici M, Aricò D, De Cicco C, et al. Lymphocytic toxicity in patients after peptide-receptor radionuclide therapy (PRRT) with 177 Lu-DOTATATE and 90 Y-DOTATOC. Cancer Biother Radiopharm. 2009;24:659–65. https://doi.org/10.1089/cbr.2009.0641.

    Article  CAS  PubMed  Google Scholar

  5. Zuckerman DA, Kennard RF, Roy A, Parikh PJ, Weiner AA. Outcomes and toxicity following Yttrium-90 radioembolization for hepatic metastases from neuroendocrine tumors—a single-institution experience. J Gastrointest Oncol. 2018;10:118–27. https://doi.org/10.21037/jgo.2018.10.05.

    Article  Google Scholar

  6. Harimoto N, Hoshino K, Muranushi R, Hagiwara K, Yamanaka T, Ishii N, et al. Prognostic significance of neutrophil–lymphocyte ratio in resectable pancreatic neuroendocrine tumors with special reference to tumor-associated macrophages. Pancreatology. 2019;19:897–902. https://doi.org/10.1016/j.pan.2019.08.003.

    Article  CAS  PubMed  Google Scholar

  7. McDermott SM, Saunders ND, Schneider EB, Strosberg D, Onesti J, Dillhoff M, et al. Neutrophil lymphocyte ratio and transarterial chemoembolization in neuroendocrine tumor metastases. J Surg Res. 2018;232:369–75. https://doi.org/10.1016/j.jss.2018.06.058.

    Article  PubMed  Google Scholar

  8. Bowen RC, Little NAB, Harmer JR, Ma J, Mirabelli LG, Roller KD, et al. Neutrophil-to-lymphocyte ratio as prognostic indicator in gastrointestinal cancers: a systematic review and meta-analysis. Oncotarget. 2017;8:32171–89. https://doi.org/10.18632/oncotarget.16291.

    Article  PubMed  PubMed Central  Google Scholar

  9. Guthrie GJK, Charles KA, Roxburgh CSD, Horgan PG, McMillan DC, Clarke SJ. The systemic inflammation-based neutrophil-lymphocyte ratio. Exp Patients Cancer. 2013;88:218–30.

    Google Scholar

  10. D’emic N, Engelman A, Molitoris J, Hanlon A, Sharma NK, Moeslein FM, et al. Prognostic significance of neutrophil-lymphocyte ratio and platelet-lymphocyte ratio in patients treated with selective internal radiation therapy. J Gastrointest Oncol. 2015;7:269–77. https://doi.org/10.3978/j.issn.2078-6891.2015.108.

    Article  Google Scholar

  11. Holmium-166-radioembolization in NET After Lutetium-177-dotatate; an Efficacy Study ClinicalTrials.gov [Internet]. [cited 2021 Oct 11]. https://clinicaltrials.gov/ct2/show/NCT02067988

  12. Braat AJAT, Kwekkeboom DJ, Kam BLR, Teunissen JJM, de Herder WW, Dreijerink KMA, et al. Additional hepatic 166Ho-radioembolization in patients with neuroendocrine tumours treated with 177Lu-DOTATATE; a single center, interventional, non-randomized, non-comparative, open label, phase II study (HEPAR PLUS trial). BMC Gastroenterol. 2018;18:84. https://doi.org/10.1186/s12876-018-0817-8.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  13. Zuckerman DA, Kennard RF, Roy A, Parikh PJ, Weiner AA. Outcomes and toxicity following Yttrium-90 radioembolization for hepatic metastases from neuroendocrine tumors—a single-institution experience. J Gastrointest Oncol. 2019;10:118–27. https://doi.org/10.21037/jgo.2018.10.05.

    Article  PubMed  PubMed Central  Google Scholar

  14. Braat AJAT, Kappadath SC, Ahmadzadehfar H, Stothers CL, Frilling A, Deroose CM, et al. Radioembolization with 90 Y resin microspheres of neuroendocrine liver metastases: international multicenter study on efficacy and toxicity. Cardiovasc Intervent Radiol. 2019;42:413–25. https://doi.org/10.1007/s00270-018-2148-0.

    Article  CAS  PubMed  Google Scholar

  15. Smits MLJ, Nijsen JFW, van den Bosch MAAJ, Lam MGEH, Vente MAD, Mali WPTM, et al. Holmium-166 radioembolisation in patients with unresectable, chemorefractory liver metastases (HEPAR trial): a phase 1, dose-escalation study. Lancet Oncol. 2012;13:1025–34. https://doi.org/10.1016/S1470-2045(12)70334-0.

    Article  CAS  PubMed  Google Scholar

  16. Prince JF, Van Den Bosch MAAJ, Nijsen JFW, Smits MLJ, Van Den Hoven AF, Nikolakopoulos S, et al. Efficacy of radioembolization with 166Ho-Microspheres in salvage patients with liver metastases: a phase 2 study. J Nucl Med. 2018;59:582–8. https://doi.org/10.2967/jnumed.117.197194.

    Article  CAS  PubMed  Google Scholar

  17. Ethier JL, Desautels D, Templeton A, Shah PS, Amir E. Prognostic role of neutrophil-to-lymphocyte ratio in breast cancer: a systematic review and meta-analysis. Breast Cancer Res. 2017;19:2. https://doi.org/10.1186/s13058-016-0794-1.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  18. Haram A, Boland MR, Kelly ME, Bolger JC, Waldron RM, Kerin MJ. The prognostic value of neutrophil-to-lymphocyte ratio in colorectal cancer: a systematic review. J Surg Oncol. 2017;115:470–9. https://doi.org/10.1002/jso.24523.

    Article  CAS  PubMed  Google Scholar

  19. Wang Y, Peng C, Cheng Z, Wang X, Wu L, Li J, et al. The prognostic significance of preoperative neutrophil-lymphocyte ratio in patients with hepatocellular carcinoma receiving hepatectomy: a systematic review and meta-analysis. Int J Surg. 2018;55:73–80.

    Article  PubMed  Google Scholar

  20. Miyamoto R, Inagawa S, Sano N, Tadano S, Adachi S, Yamamoto M. The neutrophil-to-lymphocyte ratio (NLR) predicts short-term and long-term outcomes in gastric cancer patients. Eur J Surg Oncol. 2018;44:607–12. https://doi.org/10.1016/j.ejso.2018.02.003.

    Article  PubMed  Google Scholar

  21. Yodying H, Matsuda A, Miyashita M, Matsumoto S, Sakurazawa N, Yamada M, et al. Prognostic significance of neutrophil-to-lymphocyte ratio and platelet-to-lymphocyte ratio in oncologic outcomes of esophageal cancer: a systematic review and meta-analysis. Ann Surg Oncol. 2016;23:646–54. https://doi.org/10.1245/s10434-015-4869-5.

    Article  PubMed  Google Scholar

  22. Panni RZ, Lopez-Aguiar AG, Liu J, Poultsides GA, Rocha FG, Hawkins WG, et al. Association of preoperative monocyte-to-lymphocyte and neutrophil-to-lymphocyte ratio with recurrence-free and overall survival after resection of pancreatic neuroendocrine tumors (US-NETSG). J Surg Oncol. 2019;120:jso25629. https://doi.org/10.1002/jso.25629.

    Article  CAS  Google Scholar

  23. Zahorec R. Ratio of neutrophil to lymphocyte counts-rapid and simple parameter of systemic inflammation and stress in critically ill. Bratisl Lek List. 2001;102:5–14.

    CAS  Google Scholar

  24. Hanahan D, Weinberg RA. Hallmarks of cancer: the next generation. Cell. 2011;144:646–74. https://doi.org/10.1016/j.cell.2011.02.013.

    Article  CAS  PubMed  Google Scholar

  25. Fouad YA, Aanei C. Revisiting the hallmarks of cancer. Am J Cancer Res. 2017;7:1016–36.

    CAS  PubMed  PubMed Central  Google Scholar

  26. Candido J, Hagemann T. Cancer-related inflammation. J Clin Immunol. 2013;33:79–84. https://doi.org/10.1007/s10875-012-9847-0.

    Article  CAS  Google Scholar

  27. Estrade F, Lescure C, Muzellec L, Pedrono M, Palard X, Pracht M, et al. Lymphocytes and neutrophil-to-lymphocyte ratio variations after selective internal radiation treatment for HCC: a retrospective cohort study. Cardiovasc Intervent Radiol. 2020;43:1175–81. https://doi.org/10.1007/s00270-020-02467-9.

    Article  PubMed  Google Scholar

  28. Ohlendorf F, Werner RA, Henkenberens C, Ross TL, Christiansen H, Bengel FM, et al. Predictive and prognostic impact of blood-based inflammatory biomarkers in patients with gastroenteropancreatic neuroendocrine tumors commencing peptide receptor radionuclide therapy. Diagnostics. 2021;11:504. https://doi.org/10.3390/diagnostics11030504.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  29. Pinato DJ, Stebbing J, Ishizuka M, Khan SA, Wasan HS, North BV, et al. A novel and validated prognostic index in hepatocellular carcinoma: the inflammation based index (IBI). J Hepatol. 2012;57:1013–20. https://doi.org/10.1016/J.JHEP.2012.06.022.

    Article  PubMed  Google Scholar

  30. Black JRM, Atkinson SR, Singh A, Evans J, Sharma R. The Inflammation-based index can predict response and improve patient selection in NETs treated with PRRT: a pilot study. J Clin Endocrinol Metab. 2019;104:285–92. https://doi.org/10.1210/JC.2018-01214.

    Article  PubMed  Google Scholar

  31. Hofland J, Brabander T, De Herder WW. Letter to the editor: “The inflammation-based index can predict response and improve patient selection in NETs treated with PRRT: a pilot study.” J Clin Endocrinol Metab. 2019;104:5104–5. https://doi.org/10.1210/JC.2019-00681.

    Article  PubMed  Google Scholar

  32. Black JR, Atkinson SR, Singh A, Evans J, Sharma R. CORRIGENDUM FOR “The inflammation-based index can predict response and improve patient selection in NETs treated with PRRT: a pilot study.” J Clin Endocrinol Metab. 2019;104:2151. https://doi.org/10.1210/JC.2019-00844.

    Article  Google Scholar

  33. Smits MLJ, Elschot M, Sze DY, Kao YH, Nijsen JFW, Iagaru AH, et al. Radioembolization dosimetry: the road ahead. Cardiovasc Intervent Radiol. 2015;38:261–9. https://doi.org/10.1007/s00270-014-1042-7.

    Article  PubMed  Google Scholar

Download references

Funding

No additional funding was issued for this study.

Author information

Authors and Affiliations

  1. Department of Radiology and Nuclear Medicine, University Medical Center Utrecht, Heidelberglaan 100, 3584 CX, Utrecht, The Netherlands

    Sander C. Ebbers, Manon N. G. J. A. Braat, Frank J. Wessels, Maarten W. Barentsz, Marnix G. E. H. Lam & Arthur J. A. T. Braat

  2. Department of Radiology and Nuclear Medicine, Erasmus Medical Center, Doctor Molewaterplein 40, 3015 GD, Rotterdam, The Netherlands

    Tessa Brabander

  3. Department of Medical Oncology, Netherlands Cancer Institute, Plesmanlaan 121, 1066 CX, Amsterdam, The Netherlands

    Margot E. T. Tesselaar

  4. Department of Internal Medicine, Erasmus Medical Center, Doctor Molewaterplein 40, 3015 GD, Rotterdam, The Netherlands

    Johannes Hofland

Authors
  1. Sander C. Ebbers
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Tessa Brabander
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Margot E. T. Tesselaar
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Johannes Hofland
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Manon N. G. J. A. Braat
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Frank J. Wessels
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Maarten W. Barentsz
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Marnix G. E. H. Lam
    View author publications

    You can also search for this author in PubMed Google Scholar

  9. Arthur J. A. T. Braat
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

SE was responsible for setting up the first draft of the manuscript and finalizing the manuscript after all other authors’ contributions. AB and ML were in charge of the conduct of the clinical study. MNB and FW analyzed all imaging and scored tumor response. TB, MT, JH, ML and AB were all involved in the clinical treatment of patients and inclusion of patients in the study. Statistical analysis was done by SE under supervision of MWB and AB. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Arthur J. A. T. Braat.

Ethics declarations

Ethics approval and consent to participate

The authors state that the research was carried out in compliance with internationally-accepted standards and the Helsinki Declaration. The study was approved by the local ethics committee of the University Medical Center Utrecht (reference number 13-622), and subjects have given their written informed consent.

Consent for publication

Not applicable.

Competing interests

ML has acted as consultant for BTG/Boston Scientific and Terumo/Quirem Medical, and receives research support by Novatis/AAA. AB has acted as consultant for BTG/Boston Scientific and Terumo/Quirem Medical. All other authors declare that they have no conflicts of interest.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1.

Mixed model analysis of lymphocyte levels at 3 weeks follow-up.

Additional file 2.

Test characteristics of NLR and TLR.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
