Open Access

Comparison of Tc-99m maraciclatide and Tc-99m sestamibi molecular breast imaging in patients with suspected breast cancer

  • Michael K. O’Connor1Email author,
  • Melissa M. B. Morrow2,
  • Katie N. Hunt1,
  • Judy C. Boughey3,
  • Dietlind L. Wahner-Roedler4,
  • Amy Lynn Conners1,
  • Deborah J. Rhodes4 and
  • Carrie B. Hruska1
EJNMMI Research20177:5

https://doi.org/10.1186/s13550-017-0255-6

Received: 29 November 2016

Accepted: 5 January 2017

Published: 14 January 2017

Abstract

Background

Molecular breast imaging (MBI) performed with 99mTc sestamibi has been shown to be a valuable technique for the detection of breast cancer. Alternative radiotracers such as 99mTc maraciclatide may offer improved uptake in breast lesions. The purpose of this study was to compare relative performance of 99mTc sestamibi and 99mTc maraciclatide in patients with suspected breast cancer, using a high-resolution dedicated gamma camera for MBI. Women with breast lesions suspicious for malignancy were recruited to undergo two MBI examinations—one with 99mTc sestamibi and one with 99mTc maraciclatide. A radiologist interpreted MBI studies in a randomized, blinded fashion to assign an assessment score (1–5) and measured lesion size. Lesion-to-background (L/B) ratio was measured with region-of-interest analysis.

Results

Among 39 analyzable patients, 21 malignant tumors were identified in 21 patients. Eighteen of 21 tumors (86%) were seen on 99mTc sestamibi MBI and 19 of 21 (90%) were seen on 99mTc maraciclatide MBI (p = 1). Tumor extent measured with both radiopharmaceuticals correlated strongly with pathologic size (99mTc sestamibi, r = 0.84; 99mTc maraciclatide, r = 0.81). The L/B ratio in detected breast cancers was similar for the two radiopharmaceuticals: 1.55 ± 0.36 (mean ± S.D.) for 99mTc sestamibi and 1.62 ± 0.37 (mean ± S.D.) for 99mTc maraciclatide (p = 0.53). No correlation was found between the L/B ratio and molecular subtype for 99mTc sestamibi (r s  = 0.12, p = 0.63) or 99mTc maraciclatide (r s  = −0.12, p = 0.64). Of 20 benign lesions, 10 (50%) were seen on 99mTc sestamibi and 9 of 20 (45%) were seen on 99mTc maraciclatide images (p = 0.1). The average L/B ratio for benign lesions was 1.34 ±0.40 (mean ±S.D.) for 99mTc sestamibi and 1.41 ±0.52 (mean ±S.D.) for 99mTc maraciclatide (p = 0.75). Overall diagnostic performance was similar for both radiopharmaceuticals. AUC from ROC analysis was 0.83 for 99mTc sestamibi and 0.87 for 99mTc maraciclatide (p = 0.64).

Conclusions

99mTc maraciclatide offered comparable lesion uptake to 99mTc sestamibi, in both malignant and benign lesions. There was good correlation between lesion extent and uptake measured from both radiopharmaceuticals. 99mTc maraciclatide offered a marginal (but not significant) improvement in sensitivity over 99mTc sestamibi. Our findings did not support an association between the uptake of either radiopharmaceutical and tumor molecular subtype.

Trial registration

ClinicalTrials.gov, NCT00888589

Keywords

Tc-99m sestamibi Tc-99m maraciclatide Tc-99m NC100692 Breast cancer Molecular breast imaging

Background

Molecular breast imaging (MBI) is a nuclear medicine technique that utilizes a specialized gamma camera system optimized for breast imaging. Because MBI relies on the preferential uptake of a radiopharmaceutical in metabolically active cells to distinguish breast abnormalities from normal parenchyma, the sensitivity of this technique is not affected by mammographic breast density and has been shown to improve detection of mammographically occult cancers. In recent studies, supplemental screening with MBI has been shown to detect an additional 7.5 to 16.5 cancers per 1000 women screened [1].

To date, most studies of MBI have utilized the radiopharmaceutical 99mTc sestamibi, with only limited reports on the use of alternative radiopharmaceuticals for breast imaging [26]. Tc-99m sestamibi is primarily used as a perfusion agent for cardiac imaging, and was serendipitously discovered to also accumulate in breast cancer. The biodistribution of Tc-99m sestamibi is such that the relative uptake of Tc-99m sestamibi in breast cells is a factor of 20 lower than in myocardial cells [7], and hence only a small proportion of administered activity is sequestered in breast tissue. Despite this low uptake, MBI with Tc-99m sestamibi has been shown to be highly sensitive for the detection of breast cancers [1]. However some tumors are not well-visualized on MBI. In a series of 286 patients with 390 tumor foci, 49 (12%) were occult on MBI; most of the lesions that were occult on MBI with Tc-99m sestamibi were either small (5 mm or less) and potentially below the resolving power of the camera system or located outside the field of view; however, in 17 of 49 (35%), the reason for the absence of Tc-99m sestamibi uptake in the lesion was unknown [8].

An ideal alternative radiopharmaceutical to Tc-99m sestamibi would have a more favorable biodistribution to breast tissue and offer better visualization of breast tumors through higher uptake in breast malignancies relative to the amount of uptake in normal breast tissue. A radiopharmaceutical of particular interest is the imaging agent 99mTc-NC100692 (also known as Maraciclatide, GE Healthcare), which is a synthetic cyclic peptide with high affinity for specific integrins, such as αvβ3, that are upregulated during angiogenesis [9]. Angiogenesis is critical for the growth of solid tumors as tumor growth beyond a volume of 1–2 mm3 requires independent vasculature [10, 11]. An indirect approach to imaging angiogenesis has focused on radiotracers targeting the integrin αvβ3 receptors which are significantly upregulated in endothelial cells during angiogenesis and are known to be expressed in breast cancer [12].

The αvβ3 integrin is a membrane-spanning protein that is expressed preferentially on proliferating endothelial cells associated with neovascularization but is absent in quiescent blood vessels [13, 14]. The binding of 99mTc maraciclatide has been confirmed to be localized to endothelial cells in the regions of angiogenesis [15], and may provide a promising alternative radiopharmaceutical to 99mTc sestamibi. Bach-Gansmo et al. first reported on the use of a 99mTc-labeled angiogenesis agent (99mTc NC100692) for the detection of breast cancers using MBI [16, 17].

The purpose of this study was to compare relative performance of 99mTc sestamibi and 99mTc maraciclatide in patients with suspected breast cancer, using a high-resolution dedicated gamma camera for MBI.

Methods

Study population

This study was performed under an IRB-approved, Health Insurance Portability and Accountability Act-compliant research protocol, and written informed consent was obtained from all participants. As 99mTc maraciclatide is a not an FDA-approved radiopharmaceutical, this study was performed under an investigator IND cross-referred to the IND held by the radiopharmaceutical manufacturer, GE Healthcare Life Sciences (Pittsburgh, PA).

Female patients with known or suspected breast cancer were offered participation in the study. Eligible patients included those with at least one breast lesion identified by clinical findings, mammography, targeted ultrasound, or magnetic resonance imaging that was considered suspicious or highly suggestive of malignancy on the American College of Radiology Breast Imaging Reporting and Data System (BI-RADS) scale [18] and scheduled for biopsy. MBI examinations were performed prior to breast biopsy when possible (N = 32). Patients were also eligible to have MBI performed after breast biopsy if the lesion was pathologically proven as malignant and estimated to be at least 1.5 cm in maximum diameter (N = 7). This requirement on lesion size was to avoid recruitment of patients in whom a significant portion of the lesion would likely be removed at the time of biopsy.

Molecular breast imaging examinations

Patients underwent two MBI examinations—one with 99mTc sestamibi and one with 99mTc maraciclatide. MBI was performed on a dual-head system that comprised two compact cadmium zinc telluride detectors with 1.6 × 1.6 mm pixels (LumaGem system, Gamma Medica, Salem, NH) and was equipped with high sensitivity registered tungsten collimators [19]. An energy acceptance window of 110–154 keV was used [20, 21].

When possible, patients were scheduled for 99mTc sestamibi and 99mTc maraciclatide MBI examinations on separate days (2-day protocol; N = 20). If the patient schedule did not permit a 2-day protocol, then a 1-day protocol was followed (N = 19), as described below. For logistical reasons related to preparation and quality control of the 99mTc maraciclatide and to the wait time after injection of the 99mTc maraciclatide, the order of the tests was not randomized. For all patients, MBI with 99mTc sestamibi was performed first, followed by MBI with 99mTc maraciclatide. Between 24–72 h after injection of the 99mTc maraciclatide, patients were contacted to determine if any adverse events (AEs) occurred.

2-day protocol

Patients received an intravenous injection of 300 MBq (8 mCi) 99mTc sestamibi for the first MBI scan on day 1 and 300 MBq (8 mCi) 99mTc maraciclatide for the second MBI scan on day 2, performed at least 16 h after the day 1 examination. Injections were given in the contralateral arm to the breast with the suspected lesion and residual syringe activity was measured after injection. The times at which the injections were performed, imaging was commenced, and dose activities were measured, were recorded to permit accurate correction for decay of the 99mTc and computation of administered activities. Imaging commenced approximately 5 min post-injection with 99mTc sestamibi and approximately 45 min post-injection with 99mTc maraciclatide. The difference in wait time before imaging with 99mTc sestamibi and 99mTc maraciclatide was to allow for known differences in rate of uptake of these radiopharmaceuticals in breast tumors [16]. Bilateral cranio-caudal (CC) and medio-lateral oblique (MLO) analogous views were obtained under light compression for 10 min per view for a total imaging time of 40 min. The compressed breast thickness for each view acquired during the 99mTc sestamibi MBI examination was recorded and replicated at the 99mTc maraciclatide MBI examination to assist with consistent positioning of the breast between studies.

1-day protocol

The 1-day protocol procedure was similar to that described above, except that after completion of the first MBI scan, performed with 300-MBq (8 mCi) injection of 99mTc sestamibi, patients were immediately injected with 740 MBq (20 mCi) 99mTc maraciclatide for the second MBI scan. Approximately 45 min post-injection of the 99mTc maraciclatide, images were acquired as described above.

The rationale for the higher administered dose of 99mTc maraciclatide for the 1-day protocol was to minimize the contribution of 99mTc sestamibi to the second scan. The time interval from injection of the 99mTc sestamibi to acquisition of the 99mTc maraciclatide images was approximately 90 min for each patient (45 min 99mTc sestamibi injection and imaging, 45 min wait after injection of 99mTc maraciclatide) allowing for physical decay of the 99mTc sestamibi to at least 250 MBq, and physical decay of the 99mTc maraciclatide to 680 MBq. No adjustment was made for any biological washout. Therefore, the relative contribution of counts from the 99mTc maraciclatide and 99mTc sestamibi injections in the second MBI scan was anticipated to be approximately 2.7:1 (~680 MBq 99mTc maraciclatide/~250 MBq 99mTc sestamibi).

Histopathology

Histopathologic classification was by the most severe of findings from surgical excision or by core needle or vacuum-assisted biopsy. Tumor size was obtained from the maximum tumor extent reported on pathology. Molecular subtype of malignant lesions was characterized as luminal (ER+ and HER2−), HER2-enriched (HER2+/ER−/PR−), or triple negative (ER−/PR−/HER2−).

Image analysis

Image manipulation and region of interest (ROI) analysis were performed on the 99mTc maraciclatide and 99mTc sestamibi MBI images using an Xeleris workstation (GE Healthcare, Milwaukee, WI).

Radiopharmaceutical uptake in breast lesions was measured as a lesion-to-background (L/B) ratio, performed as follows. A 3 × 3 median filter was first applied to all images to minimize noise. An ROI was manually drawn to encompass the area of focal uptake corresponding to the lesion using the upper or lower detector CC or MLO view that best visualized the lesion. This lesion ROI was copied to the complementary upper or lower detector image. The maximum count in each lesion ROI was obtained and a geometric mean (GM) of the two counts was calculated. Background activity was measured from a second circumferential ROI that was drawn over a region of normal tissue surrounding the lesion. This background ROI was again copied to the corresponding area of normal tissue on the upper or lower detector image. The average count in each background ROI was obtained and a geometric mean value was calculated. L/B ratio was defined as
$$ \mathrm{L}/\mathrm{B}\ \mathrm{ratio} = \mathrm{G}\mathrm{M}\ \left(\mathrm{maximum}\ \mathrm{counts}\ \mathrm{in}\ \mathrm{lesion}\right)\ /\ \mathrm{G}\mathrm{M}\ \left(\mathrm{average}\ \mathrm{counts}\ \mathrm{in}\ \mathrm{background}\right) $$

For the 1-day protocol studies, a cross-talk correction was applied as follows. Count measurements from the lesion and background ROIs from the 99mTc sestamibi images were decay corrected for the time interval between the 99mTc maraciclatide and 99mTc sestamibi acquisitions and reduced further by a factor of 0.94 (to adjust for biological washout of the 99mTc sestamibi from breast tissue) [22]. These counts were then subtracted from counts in the 99mTc maraciclatide images. No cross-talk correction was necessary for the 2-day protocol.

MBI interpretation

A breast imaging fellowship-trained radiologist with 4 years of experience interpreting MBI (KNH) performed two independent reading sessions, separated by 4 weeks, of the MBI studies. Each session comprised a random order of 99mTc sestamibi and 99mTc maraciclatide studies; only one study appeared for each patient per session. The radiologist was blinded to the radiopharmaceutical, other imaging findings, and all clinical information including pathology findings. MBI studies were interpreted according to a validated lexicon for gamma imaging of the breast [23, 24].

The radiologist identified breast lesions and assigned a final assessment on a per-breast basis using a 1 to 5 scale that parallels BI-RADS assessment categories. Assessments were as follows: 1 (negative), 2 (benign), 3 (probably benign), and 4 (suspicious) or 5 (highly suggestive of malignancy) [23]. Assessments of 3 or higher were considered positive. Lesion size was measured from the CC or MLO views that best demonstrated the full extent of disease. The radiologist also gave an overall assessment of image quality on a 4-category scale (poor, suboptimal, acceptable, good).

Statistical analysis

The proportions of malignant tumors and benign lesions detected by 99mTc maraciclatide and 99mTc sestamibi were compared using McNemar’s test for correlated proportions. A Wilcoxon signed-rank test was used to determine whether assessment scores differed between the 99mTc maraciclatide and 99mTc sestamibi studies.

Tumor extent measured on 99mTc maraciclatide and 99mTc sestamibi imaging was compared using a paired t test. The correlations between tumor extent measured on imaging and lesion extent measured at pathology were determined by Pearson correlation coefficient (r).

L/B ratios of lesions detected on 99mTc maraciclatide and 99mTc sestamibi imaging were compared using paired t-tests. A student’s t-test was used to compare L/B ratio between malignant and benign lesions for each radiopharmaceutical. Correlation in L/B ratio measured on 99mTc maraciclatide and 99mTc sestamibi MBI were also determined by Pearson correlation coefficient (r). Area under the curve (AUC), obtained from ROC analysis of both radiopharmaceuticals, was used to determine the value of the L/B ratio in discriminating between malignant and benign lesions. Correlation of L/B ratios with tumor subtype, considered as three ordinal categories (luminal, HER-2 enriched, triple negative), was determined by Spearman correlation coefficient (r s ).

Statistical analyses were two sided with a significance level of 0.05.

Results

A total of 40 patients were enrolled in this study. One patient withdrew after the initial MBI scan; thus, 39 patients successfully completed both MBI studies. In the analyzable 39 patients, average age was 56.5 years (SD 12.3, range 41–82). There were no reported adverse reactions.

Image quality was rated as good in all 39 99mTc maraciclatide studies. In the 39 99mTc sestamibi studies, 32 (82%) were rated as having good image quality and 7 (18%) were ranked as having acceptable image quality. Review of the lesion and background counts recorded from the images in patients who underwent the 1-day protocol, showed a 99mTc maraciclatide/99mTc sestamibi ratio of 2.4:1 in lesions and 2.3:1 in background. These ratios are slightly lower than the anticipated ratio of 2.7:1.

Malignant lesions

A total of 21 patients had a diagnosis of breast cancer with a total of 21 malignant lesions identified (Table 1). Eighteen of 21 tumors (86%) were seen on 99mTc sestamibi MBI and 19 of 21 (90%) were seen on 99mTc maraciclatide MBI (p = 1). Eighteen tumors were seen with both radiopharmaceuticals, 1 was seen only on 99mTc maraciclatide MBI, and 2 were not detected by MBI with either radiopharmaceutical. The tumor detected only by 99mTc maraciclatide was an invasive lobular carcinoma that was 2.5 cm on pathology but had an apparent extent of 9.3 cm on maraciclatide MBI (Table 1, tumor #21; Fig. 1). The two malignant tumors not seen with either radiotracer included a 6-mm and a 7-mm invasive ductal carcinoma (Table 1, tumors #2 and #3).
Table 1

Summary of 21 cancers identified in 21 patients

Tumor number

Histopathology

Pathologic size (cm)

Molecular subtype

Assessment

Tumor extent (cm)

L/B ratio

99mTc sestamibi

99mTc maraciclatide

99mTc sestamibi

99mTc maraciclatide

99mTc sestamibi

99mTc maraciclatide

1

DCIS

7.0

Not applicable

4

4

10.3

8.3

1.54

1.79

2

IDC

0.6

Luminal

1

1

N/A

N/A

N/A

N/A

3

IDC

0.7

Luminal

1

2

N/A

N/A

1.02

1.15

4

IDC

0.8

Triple negative

3

4

1.2

1.1

1.16

1.15

5

IDC

0.9

Luminal

4

4

1.1

1.3

1.29

1.37

6

IDC

1.2

Luminal

4

4

3.1

3.1

1.59

1.71

7

IDC

1.5

HER-2 positive

4

5

1.5

1.3

1.62

1.60

8

IDC

1.6

HER-2 positive

5

4

2.1

1.7

1.93

2.70

9

IDC

1.7

Luminal

4

4

1.0

1.8

1.12

1.11

10

IDC

1.8

Triple negative

4

5

1.7

1.3

1.71

1.67

11

IDC

2.6

HER-2 positive

4

4

3.0

3.0

2.02

1.62

12

IDC

3.5

HER-2 positive

4

4

7.0

7.5

1.27

1.30

13

IDC

5.2

Luminal

4

4

3.0

3.3

1.57

1.50

14

IDC

5.4

Luminal

4

4

5.9

2.7

1.31

1.61

15

IDC

7.0

Luminal

5

4

3.0

3.0

1.63

1.79

16

IDC

9.2

Triple negative

4

4

11.0

9.2

1.43

1.42

17

Mixed IDC/ILC

1.1

Luminal

4

4

1.0

1.1

1.41

1.55

18

Mixed IDC/ILC

1.6

Luminal

4

4

6.5

6.3

1.68

1.68

19

Mixed IDC/ILC

3.7

Luminal

4

4

2.8

5.4

2.17

2.07

20

Mixed IDC/ILC

13.1

Luminal

5

5

11.4

12.5

2.31

2.09

21

ILC

2.5

Luminal

1

4

N/A

9.3

1.15

1.49

DCIS ductal carcinoma in situ, IDC invasive ductal carcinoma, ILC invasive lobular carcinoma in situ

Fig. 1

Molecular breast images in the mediolateral oblique projection from a 73-year-old patient with biopsy-proven invasive lobular carcinoma (Table 1, tumor #21). At blinded review, MBI performed with 300 MBq 99mTc sestamibi (a) was interpreted as negative; MBI performed 3 days later with 300 MBq 99mTc maraciclatide (b) was interpreted as assessment category 4. The lesion extent was 9.3 cm (arrows). Final pathology revealed grade I invasive lobular carcinoma of luminal A subtype, forming a 2.5-cm mass

The overall distribution of assessment scores differed between 99mTc sestamibi and 99mTc maraciclatide (Fig. 2a; p < 0.001). However, this difference appears to be primarily due to the higher number of benign assessments (category 2) seen with 99mTc maraciclatide relative to 99mTc sestamibi and the corresponding lower number of negative assessments (category 1) seen with 99mTc maraciclatide, as no difference was observed in assessment scores in the subset of patients with breast cancer (Fig. 2b; p = N.S.).
Fig. 2

Distribution of assessment scores in a all 78 breasts and b 21 breasts with proven breast cancer

Average tumor size on pathology was 3.5 cm (SD 3.3 cm; range 0.6 to 13.1 cm). Tumor extent measured on MBI was similar for the two radiopharmaceuticals; average tumor size was 4.3 cm (SD 3.6 cm) on the 99mTc sestamibi images and 4.3 cm (SD 3.5 cm) on the 99mTc maraciclatide images (p = 0.62). Tumor extent measurements strongly correlated with pathology size (r = 0.82 for 99mTc sestamibi and r = 0.74 for 99mTc maraciclatide; Fig. 3a, b). Figure 3c shows the correlation between tumor extent measured from the 99mTc sestamibi and 99mTc maraciclatide images (r = 0.93). In one patient who underwent neoadjuvant chemotherapy (Fig. 4), no pathologic estimate of tumor size was available. Tumor extent from contrast-enhanced breast MRI performed prior to chemotherapy was used as a reference standard in this case.
Fig. 3

a Correlation between largest tumor extent recorded from pathology and largest tumor extent measured from 99mTc sestamibi images in 18 malignant tumors seen on MBI (r = 0.82). Open square = neoadjuvant chemotherapy, size estimated from MRI. b Correlation between largest tumor extent recorded from pathology and largest tumor extent measured from 99mTc maraciclatide images in 19 malignant tumors seen on MBI (r = 0.74). Open square = neoadjuvant chemotherapy, size estimated from MRI. c Correlation between tumor extent measured from 99mTc sestamibi images and from 99mTc maraciclatide images in 18 malignant tumors detected on both scans (r = 0.93)

Fig. 4

Molecular breast images in the mediolateral oblique projection from a 53-year-old patient with a palpable lesion that was suspicious on diagnostic mammography and scheduled for biopsy (Table 1, tumor #16). At blinded review, MBI performed with 300 MBq 99mTc sestamibi (a) was interpreted as having moderate intensity radiotracer uptake in a segmental distribution with maximum extent of 11.0 cm. An assessment of 4 was assigned. MBI performed 1 day later with 300 MBq 99mTc maraciclatide (b) was also interpreted as assessment 4 with lesion extent measuring 9.2 cm. Pathology revealed grade III invasive ductal carcinoma. Patient underwent subsequent neoadjuvant chemotherapy. Tumor extent measured on contrast-enhanced MRI prior to neoadjuvant chemotherapy was estimated at 9.2 cm

Benign lesions

Benign biopsy findings were found in 20 patients (Table 2). Nine of 20 (45%) benign lesions were seen on 99mTc sestamibi MBI and on 99mTc maraciclatide MBI. Eight benign lesions were seen with both radiopharmaceuticals, 1 atypical ductal hyperplasia was seen only with 99mTc maraciclatide, and 1 intramammary lymph node was seen only with 99mTc sestamibi. Ten were not detected by MBI with either radiopharmaceutical. Figure 5 shows an example of the relative findings on MBI with both 99mTc sestamibi and 99mTc maraciclatide in a patient with necrotizing granulomatous inflammation.
Table 2

Summary of 20 benign lesions in 20 patients

Benign lesion number

Histopathology

L/B ratio

Assessment

99mTc sestamibi

99mTc maraciclatide

99mTc sestamibi

99mTc maraciclatide

1

ADH

1.24

1.28

3

3

2

ADHa

Not seen

1.34

1

4

3

Benign fibrocystic changes

Not seen

Not seen

1

2

4

Benign fibrocystic changes

Not seen

Not seen

1

1

5

Benign fibrocystic changes

Not seen

Not seen

1

2

6

Benign fibrocystic changes

Not seen

Not seen

1

1

7

Benign fibrocystic changes

Not seen

Not seen

1

2

8

Benign fibrocystic changes

Not seen

Not seen

1

1

9

Fibroadenoma

1.52

1.35

3

3

10

Fibroadenoma

Not seen

Not seen

1

2

11

Fibroadenoma

Not seen

Not seen

1

1

12

Fibroadenoma

Not seen

Not seen

1

2

13

Fibroadenoma

1.24

1.13

3

4

14

Fibroadenoma

1.14

1.25

2

3

15

Fibroadenomab

1.12

1.11

4

4

16

Inflammatory tissue

1.25

1.36

4

4

17

Intramammary lymph node

1.14

Not seen

4

2

18

Papilloma

Not seen

Not seen

2

2

19

Papilloma

1.07

1.13

2

2

20

PASH

2.35

2.76

2

2

ADH atypical ductal hyperplasia, PASH pseudoangiomatous stromal hyperplasia

aPatient with invasive ductal carcinoma had ADH diagnosed in the contralateral breast

bPatient with invasive ductal carcinoma had a fibroadenoma in the ipsilateral breast

Fig. 5

Molecular breast images in the mediolateral oblique projection from a 41-year-old patient with a palpable lesion that was suspicious on diagnostic mammography and scheduled for biopsy (Table 2, benign lesion #16). At blinded review, MBI performed with 300 MBq 99mTc sestamibi (a) was interpreted as having a focal area of moderate intensity radiotracer uptake with maximum extent of 1.3 cm. An assessment of 4 was assigned. MBI performed the same day with 740 MBq 99mTc maraciclatide (b) was also interpreted as assessment 4 with lesion extent measuring 1.6 cm. Biopsy revealed necrotizing granulomatous inflammation and fibrosis

L/B ratio

The L/B ratio in detected breast cancers was similar for the two radiopharmaceuticals: 1.55 ± 0.36 (mean ± SD) for 99mTc sestamibi and 1.62 ± 0.37 (mean ± SD) for 99mTc maraciclatide (p = 0.53) and strongly correlated (Fig. 6a; r = 0.82). The average L/B ratio for benign lesions was also similar for the two radiopharmaceuticals: 1.34 (SD 0.4) for 99mTc sestamibi and 1.41 (S.D. 0.52) for 99mTc maraciclatide (p = 0.75). The average L/B ratio for malignant lesions was higher than that for benign lesions for both 99mTc sestamibi, (1.55 vs 1.34, p = 0.18.) and 99mTc maraciclatide (1.62 vs. 1.41, p = 0.23), but the difference did not reach significance.
Fig. 6

a Correlation between L/B ratio measured on malignant and benign lesions from 99mTc sestamibi and 99mTc maraciclatide images (malignant, r = 0.82; benign, r = 0.96; all lesions, r = 0.87). b Correlation between L/B ratio in malignant and benign lesions from 99mTc sestamibi and 99mTc maraciclatide images measured using the 1-day and 2-day protocols (1-day protocol, r = 0.89, solid line; 2-day protocol, r = 0.85, dotted line)

Figure 6b illustrates the correlation between lesion uptake (both malignant and benign) for 99mTc sestamibi and 99mTc maraciclatide as a function of the acquisition protocol. No apparent bias in terms of L/B ratio as a function of the type of protocol used to acquire the studies was observed.

Figure 7 shows the results of the ROC analysis for 99mTc sestamibi and 99mTc maraciclatide. The overall diagnostic performance did not differ between the two radiopharmaceuticals. The AUC was 0.83 for 99mTc sestamibi and 0.87 for 99mTc maraciclatide (p = 0.64). A cut-off value of L/B = 1.2 yielded a sensitivity of 76% and a specificity of 75% for 99mTc sestamibi and a sensitivity of 81% and a specificity of 70% for 99mTc maraciclatide.
Fig. 7

ROC analysis of L/B ratio comparing the sensitivity and specificity of 99mTc sestamibi and 99mTc maraciclatide images. The AUC was 0.83 and 0.87 for 99mTc sestamibi and 99mTc maraciclatide respectively (p = 0.64)

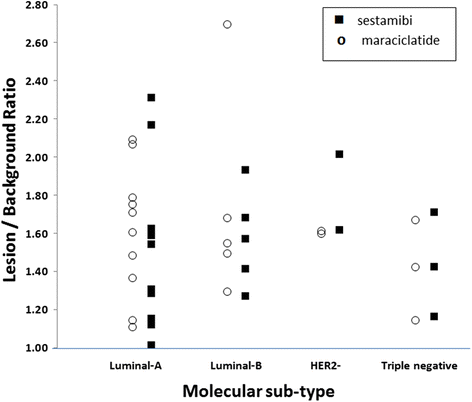

Figure 8 shows the distribution of the lesion to background (L/B) ratios measured from the 99mTc sestamibi and 99mTc maraciclatide images as a function of molecular subtype. No correlation was found between the L/B ratio and molecular subtype for 99mTc sestamibi (r s  = 0.12, p = 0.63) or 99mTc maraciclatide (r s  = −0.12, p = 0.64).
Fig. 8

Distribution of L/B ratios by molecular subtype in the 20 known invasive cancers for 99mTc sestamibi (r s  = 0.12, p = 0.63) and 99mTc maraciclatide (r s  = −0.12, p = 0.64)

Discussion

The overall results of this study show that 99mTc maraciclatide offers comparable uptake in breast tumors to 99mTc sestamibi. Lesion extent and L/B ratio measured from the 99mTc maraciclatide images correlated closely with values measured from the 99mTc sestamibi images. Our findings suggest that 99mTc maraciclatide offers only a marginal improvement in sensitivity over 99mTc sestamibi that did not reach significance in this study.

Both radiopharmaceuticals demonstrated comparable uptake in benign lesions. It was hoped that the degree of uptake of the 99mTc maraciclatide in these lesions would be less than that of 99mTc sestamibi, thereby providing better discrimination between benign and malignant lesions. However, factors that contribute to the uptake of 99mTc sestamibi in some benign lesions appear to equally influence the uptake of 99mTc maraciclatide. Previous studies have shown that angiogenesis in breast tissue is initiated at the start of hyperplasia before there is any morphological evidence of malignancy [25]. Hence, it is not unexpected that there would be uptake of 99mTc maraciclatide in benign lesions. The uptake is similar to that observed with 99mTc sestamibi, thereby offering little or no improvement in discriminating power between benign and malignant lesions. ROC analysis (Fig. 7) showed only a marginal, and non-significant, difference in the ability of the two radiopharmaceuticals to distinguish benign from malignant lesions.

Bach-Gansmo et al. [15, 16] were the first to report on the high sensitivity of 99mTc maraciclatide for the detection of breast cancer. In their studies, no comparison of the relative uptake of 99mTc maraciclatide with 99mTc sestamibi was performed. Ma et al showed that an analog of maraciclatide, 99mTc RGD, demonstrated marginally better uptake in breast cancers than 99mTc sestamibi, but that difference was not statistically significant. Furthermore they found that 99mTc RGD did not provide any significant advantage over 99mTc sestamibi in distinguishing benign from malignant lesions [6]. In agreement with the findings of Ma et al, we found a good correlation between the uptakes of the 2 radiopharmaceuticals and no difference in the ability of either radiopharmaceutical to distinguish malignant from benign lesions (Fig. 7). Likewise, apparent lesion extent appeared to be similar with both radiopharmaceuticals.

99mTc sestamibi is currently the only radiopharmaceutical that is FDA-approved for breast imaging [26]. Several recent studies have shown its clinical use as an imaging agent for the detection of breast cancer in the screening environment [2729]. 99mTc sestamibi also offers a practical advantage over 99mTc maraciclatide in that it does not require a 45-min wait period post injection. With an excellent safety record and no serious adverse events associated with over 30 years of clinical use [30], 99mTc sestamibi has essentially become the primary radiotracer used in the majority of MBI studies. Uptake of 99mTc sestamibi in tumors is primarily dependent on blood flow to the tumor bed and on increased uptake in the mitochondria of the tumor cells [31]. As such, it has served as a general-purpose imaging agent for the detection of breast cancer, but these same characteristics also result in uptake in benign lesions and conditions such as fibroadenomata, papillomas, areas of inflammation, necrosis, and benign fibrocystic changes [32, 33].

99mTc maraciclatide may offer some advantages over 99mTc sestamibi for breast imaging. 99mTc sestamibi is known to have significantly lower uptake in invasive lobular carcinomas than in invasive ductal carcinomas [8]. Figure 1 would indicate that 99mTc maraciclatide may be a better imaging agent than 99mTc sestamibi for the detection of invasive lobular carcinomas. However, the same figure shows that 99mTc maraciclatide can occasionally overestimate disease. The reason for this overestimation is unknown but may reflect hyperplasia in the breast tissue surrounding the lesion. 99mTc maraciclatide is extracted primarily through the hepatobiliary system with no uptake in the myocardium. In some patients, this may result in better breast image quality as the absence of myocardial activity adjacent to the breast may result in less scatter in the breast images. This point is well demonstrated in Fig. 5 where increased activity close to the chest wall is evident on the 99mTc sestamibi image but absent from the 99mTc maraciclatide image. Both radiopharmaceuticals have a comparable radiation dosimetry profile. The effective radiation dose from 99mTc maraciclatide is 7.8 uSv/MBq [34] which is comparable to that from 99mTc sestamibi (7.1 uSv/MBq) [35]. However, no efforts have been expended to determine if the uptake of 99mTc maraciclatide in breast tissue could be modulated through patient preparation as has been done with 99mTc sestamibi [22].

One potential role for breast imaging with MBI is in patients undergoing neoadjuvant chemotherapy (NAC) where early prediction of response to NAC offers a potential opportunity to change treatment strategy in cases of inadequate response. Previous studies have shown that quantitative assessment of tumor uptake of 99mTc sestamibi demonstrated the ability to differentiate between pathological responders and non-responders as early as 3–5 weeks after initiation of NAC [36]. To date, there is little understanding of what these changes in tumor uptake represent. Our findings did not support an association between the uptake of either radiopharmaceutical and molecular subtype. While the Luminal cancers had some of the lowest L/B ratios, there was no clear relationship between uptake and molecular subtype. Additional studies will be needed to determine what relationship, if any, exists between the degree of uptake of either radiopharmaceutical in a tumor and molecular subtype or tumor histopathology.

This study had some limitations. The sample size of 40 patients limits our ability to detect small differences in the sensitivity of the two radiopharmaceuticals. A second limitation was the use of a 1-day protocol in approximately half of patients, imposed by limitations in patient’s availability and inability to return for a 2-day protocol. Figure 6b showed no evidence that L/B ratios measured using the 1-day protocol were biased high or low relative to L/B ratios measured using the 2-day protocol. However, in those patients who underwent the 1-day protocol, image quality with the 99mTc maraciclatide images may have been better than that observed in the 99mTc sestamibi images due to the increased administered dose and corresponding reduced noise in the clinical images. All of the MBI examinations acquired for this study were considered to be of adequate image quality for diagnostic interpretation and appropriate adjustments to image counts were made for ROI analyses. The order of MBI examinations with the two radiopharmaceuticals was not randomized due to restrictions with preparation of the 99mTc maraciclatide; however, MBI studies were reviewed in a randomized order with the radiologist blinded to radiopharmaceutical and all clinical information in order to avoid biasing the interpretation.

Conclusions

99mTc maraciclatide was found to offer comparable lesion uptake to 99mTc sestamibi, in both malignant and benign lesions. Lesion extent and uptake measured from the 99mTc maraciclatide images correlated closely with values measured from the 99mTc sestamibi images. Our findings suggest that 99mTc maraciclatide offers only a marginal improvement in sensitivity over 99mTc sestamibi that did not reach significance. Our findings did not support an association between the uptake of either radiopharmaceutical and molecular subtype of tumors.

Declarations

Funding

This study was funded in part by grants from Mayo Foundation and GE Healthcare.

Authors’ contributions

MKO, CBH, MMBM, KNH, ALC, and JCB analyzed the data. MKO, CBH, and MMBM prepared the manuscript. MKO, JCB, DLWR, and DJR carried out the protocol development and patient recruitment. All authors edited and reviewed the manuscript. All authors read and approved the final manuscript.

Competing interests

Two of the authors and the Mayo Foundation have a conflict of interest with regard to the technology described in this article. Both Drs Hruska and O’Connor hold several patents in the area of molecular breast imaging. These patents have been licensed by the Mayo Foundation to Gamma Medica, the manufacturer of the MBI system described in this article. Both Drs. Hruska and O’Connor receive royalties indirectly through the Mayo Foundation as a consequence of this licensing agreement. None of the other authors have any conflict of interest.

Ethics approval and consent to participate

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards. This study was performed under an IRB-approved, Health Insurance Portability and Accountability Act-compliant research protocol. Written informed consent was obtained from all individual participants included in the study.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Radiology, Mayo Clinic
(2)
Health Sciences Research and the Kern Center for the Science of Healthcare Delivery, Mayo Clinic
(3)
Department of Surgery, Mayo Clinic
(4)
Department of Internal Medicine, Mayo Clinic

References

  1. Hruska CB. Molecular breast imaging for screening in dense breasts: state of the art and future directions. AJR Am J Roentgenol. 2016:1–9. doi:https://doi.org/10.2214/AJR.16.17131.
  2. Spanu A, Dettori G, Nuvoli S, Porcu A, Falchi A, Cottu P, et al. (99)mTc-tetrofosmin SPET in the detection of both primary breast cancer and axillary lymph node metastasis. Eur J Nucl Med. 2001;28:1781–94. doi:https://doi.org/10.1007/s00259-001-0657-5.View ArticlePubMedGoogle Scholar
  3. Kim IJ, Kim SJ, Kim YK. Comparison of double phase Tc-99m MIBI and Tc-99m tetrofosmin scintimammography for characterization of breast lesions: visual and quantitative analyses. Neoplasma. 2008;55:526–31.PubMedGoogle Scholar
  4. Papantoniou V, Christodoulidou J, Papadaki E, Valotassiou V, Stipsanelli A, Louvrou A, et al. 99mTc-(V)DMSA scintimammography in the assessment of breast lesions: comparative study with 99mTc-MIBI. Eur J Nucl Med. 2001;28:923–8.View ArticlePubMedGoogle Scholar
  5. Arslan N, Ozturk E, Ilgan S, Narin Y, Dundar S, Tufan T, et al. The comparison of dual phase Tc-99m MIBI and tc-99m MDP scintimammography in the evaluation of breast masses: preliminary report. Ann Nucl Med. 2000;14:39–46.View ArticlePubMedGoogle Scholar
  6. Ma Q, Chen B, Gao S, Ji T, Wen Q, Song Y, et al. (99m)Tc-3P(4)-RGD(2) scintimammography in the assessment of breast lesions: comparative study with (99m)Tc-MIBI. PLoS One. 2014;9:e108349. doi:https://doi.org/10.1371/journal.pone.0108349.View ArticlePubMedPubMed CentralGoogle Scholar
  7. Bernard BF, Krenning EP, Breeman WA, Ensing G, Benjamins H, Bakker WH, et al. 99mTc-MIBI, 99mTc-tetrofosmin and 99mTc-Q12 in vitro and in vivo. Nucl Med Biol. 1998;25:233–40.View ArticlePubMedGoogle Scholar
  8. Conners AL, Jones KN, Hruska CB, Geske JR, Boughey JC, Rhodes DJ. Direct-conversion molecular breast imaging of invasive breast cancer: imaging features, extent of invasive disease, and comparison between invasive ductal and lobular histology. Am J Roentgenol. 2015;205:W374–81. doi:https://doi.org/10.2214/ajr.14.13502.View ArticleGoogle Scholar
  9. Dearling JLJ, Barnes JW, Panigrahy D, Zimmerman RE, Fahey F, Treves ST, et al. Specific uptake of 99mTc-NC100692, an αvβ3-targeted imaging probe, in subcutaneous and orthotopic tumors. Nucl Med Biol. 2013;40:788–94. http://dx.doi.org/10.1016/j.nucmedbio.2013.04.006.View ArticlePubMedPubMed CentralGoogle Scholar
  10. Rak J. Angiogenesis. In: Tannock IF, Hill RP, Bristow RG, Harrington L, editors. The basic science of oncology. 5e ed. New York: McGraw-Hill; 2013.Google Scholar
  11. Folkman J. Tumor angiogenesis: therapeutic implications. N Engl J Med. 1971;285:1182–6. doi:https://doi.org/10.1056/NEJM197111182852108.View ArticlePubMedGoogle Scholar
  12. Cai W, Wu Y, Chen K, Cao Q, Tice DA, Chen X. In vitro and in vivo characterization of 64Cu-labeled Abegrin, a humanized monoclonal antibody against integrin alpha v beta 3. Cancer Res. 2006;66:9673–81. doi:https://doi.org/10.1158/0008-5472.CAN-06-1480.View ArticlePubMedGoogle Scholar
  13. Brooks PC, Clark RA, Cheresh DA. Requirement of vascular integrin alpha v beta 3 for angiogenesis. Science. 1994;264:569–71.View ArticlePubMedGoogle Scholar
  14. Line BR, Mitra A, Nan A, Ghandehari H. Targeting tumor angiogenesis: comparison of peptide and polymer-peptide conjugates. J Nucl Med. 2005;46:1552–60.PubMedGoogle Scholar
  15. Hua J, Dobrucki LW, Sadeghi MM, Zhang J, Bourke BN, Cavaliere P, et al. Noninvasive imaging of angiogenesis with a 99mTc-labeled peptide targeted at alphavbeta3 integrin after murine hindlimb ischemia. Circulation. 2005;111:3255–60. doi:https://doi.org/10.1161/CIRCULATIONAHA.104.485029.View ArticlePubMedGoogle Scholar
  16. Bach-Gansmo T, Danielsson R, Saracco A, Wilczek B, Bogsrud TV, Fangberget A, et al. Integrin receptor imaging of breast cancer: a proof-of-concept study to evaluate 99mTc-NC100692. J Nucl Med. 2006;47:1434–9.PubMedGoogle Scholar
  17. Bach-Gansmo T, Bogsrud TV, Skretting A. Integrin scintimammography using a dedicated breast imaging, solid-state gamma-camera and (99m)Tc-labelled NC100692. Clin Physiol Funct Imaging. 2008;28:235–9. doi:https://doi.org/10.1111/j.1475-097X.2008.00801.x.View ArticlePubMedGoogle Scholar
  18. Sickles EA, D’Orsi CJ, Bassett LW. ACR BI-RADS® mammography. In: ACR BI-RADS® Atlas, Breast Imaging Reporting and Data System. 5th ed. Reston: American College of Radiology; 2013.Google Scholar
  19. Weinmann AL, Hruska CB, O’Connor MK. Design of optimal collimation for dedicated molecular breast imaging systems. Med Phys. 2009;36:845–56. doi:https://doi.org/10.1118/1.3077119.View ArticlePubMedPubMed CentralGoogle Scholar
  20. Hruska CB, Weinmann AL, O’Connor MK. Proof of concept for low-dose molecular breast imaging with a dual-head CZT gamma camera. Part I. Evaluation in phantoms. Med Phys. 2012;39:3466–75.View ArticlePubMedPubMed CentralGoogle Scholar
  21. Hruska CB, Weinmann AL, Tello Skjerseth CM, Wagenaar EM, Conners AL, Tortorelli CL, et al. Proof of concept for low-dose molecular breast imaging with a dual-head CZT gamma camera. Part II. Evaluation in patients. Med Phys. 2012;39:3476–83. doi:https://doi.org/10.1118/1.4719959.View ArticlePubMedPubMed CentralGoogle Scholar
  22. O’Connor MK, Hruska CB, Tran TD, Swanson T, Conners AL, Jones K, et al. Factors influencing the uptake of 99mTc-sestamibi in breast tissue on molecular breast imaging. J Nucl Med Technol. 2015;43:13–20. doi:https://doi.org/10.2967/jnmt.114.150128.View ArticlePubMedGoogle Scholar
  23. Conners AL, Hruska CB, Tortorelli CL, Maxwell RW, Rhodes DJ, Boughey JC, et al. Lexicon for standardized interpretation of gamma camera molecular breast imaging: observer agreement and diagnostic accuracy. Eur J Nucl Med Mol Imaging. 2012;39:971–82. doi:https://doi.org/10.1007/s00259-011-2054-z.View ArticlePubMedGoogle Scholar
  24. Conners AL, Maxwell RW, Tortorelli CL, Hruska CB, Rhodes DJ, Boughey JC, et al. Gamma camera breast imaging lexicon. AJR Am J Roentgenol. 2012;199:W767–74. doi:https://doi.org/10.2214/AJR.11.8298.View ArticlePubMedGoogle Scholar
  25. Bluff JE, Menakuru SR, Cross SS, Higham SE, Balasubramanian SP, Brown NJ, et al. Angiogenesis is associated with the onset of hyperplasia in human ductal breast disease. Br J Cancer. 2009;101:666–72. doi:https://doi.org/10.1038/sj.bjc.6605196.View ArticlePubMedPubMed CentralGoogle Scholar
  26. Kit for the preparation of technetium Tc 99m sestamibi injection package insert. Hazelwood: Mallinckrodt Inc; 2006.Google Scholar
  27. Rhodes DJ, Hruska CB, Conners AL, Tortorelli CL, Maxwell RW, Jones KN, et al. Journal club: molecular breast imaging at reduced radiation dose for supplemental screening in mammographically dense breasts. Am J Roentgenol. 2015;204:241–51. doi:https://doi.org/10.2214/ajr.14.13357.View ArticleGoogle Scholar
  28. Shermis RB, Wilson KD, Doyle MT, Martin TS, Merryman D, Kudrolli H, et al. Supplemental breast cancer screening with molecular breast imaging for women with dense breast tissue. Am J Roentgenol. 2016:1-8. doi:https://doi.org/10.2214/AJR.15.15924.
  29. Brem RF, Ruda RC, Yang JL, Coffey CM, Rapelyea JA. Breast-specific gamma-imaging for the detection of mammographically occult breast cancer in women at increased risk. J Nucl Med. 2016;57:678–84. doi:https://doi.org/10.2967/jnumed.115.168385.View ArticlePubMedGoogle Scholar
  30. Silberstein EB. Prevalence of adverse events to radiopharmaceuticals from 2007 to 2011. J Nucl Med. 2014;55:1308–10. doi:https://doi.org/10.2967/jnumed.114.138057.View ArticlePubMedGoogle Scholar
  31. Piwnica-Worms D, Holman BL. Noncardiac applications of hexakis(alkylisonitrile) technetium-99m complexes. J Nucl Med. 1990;31:1166–7.PubMedGoogle Scholar
  32. Rhodes DJ, O’Connor MK, Phillips SW, Smith RL, Collins DA. Molecular breast imaging: a new technique using technetium Tc 99m scintimammography to detect small tumors of the breast. Mayo Clin Proc. 2005;80:24–30. doi:https://doi.org/10.1016/S0025-6196(11)62953-4.View ArticlePubMedGoogle Scholar
  33. Hruska CB, Phillips SW, Whaley DH, Rhodes DJ, O’Connor MK. Molecular breast imaging: use of a dual-head dedicated gamma camera to detect small breast tumors. AJR Am J Roentgenol. 2008;191:1805–15. doi:https://doi.org/10.2214/AJR.07.3693.View ArticlePubMedGoogle Scholar
  34. NC100692 Kit (for the preparation of technetium (99mTc) NC100692 injection) [package insert]. 3.0 ed. Little Chalfont, Buckinghamshire: GE Healthcare Limited.Google Scholar
  35. Andersson M. Erratum to: effective dose to adult patients from 338 radiopharmaceuticals estimated using ICRP biokinetic data, ICRP/ICRU computational reference phantoms and ICRP 2007 tissue weighting factors. EJNMMI Phys. 2015;2:22. doi:https://doi.org/10.1186/s40658-015-0121-4.View ArticlePubMedPubMed CentralGoogle Scholar
  36. Mitchell D, Hruska CB, Boughey JC, Wahner-Roedler DL, Jones KN, Tortorelli C, et al. 99mTc-sestamibi using a direct conversion molecular breast imaging system to assess tumor response to neoadjuvant chemotherapy in women with locally advanced breast cancer. Clin Nucl Med. 2013;38:949–56. doi:https://doi.org/10.1097/RLU.0000000000000248.View ArticlePubMedPubMed CentralGoogle Scholar

Copyright

© The Author(s). 2017
