Contribution of Auger/conversion electrons to renal side effects after radionuclide therapy: preclinical comparison of 161Tb-folate and 177Lu-folate

  • Stephanie Haller1,
  • Giovanni Pellegrini2,
  • Christiaan Vermeulen1,
  • Nicholas P. van der Meulen1, 3,
  • Ulli Köster4,
  • Peter Bernhardt5,
  • Roger Schibli1, 6 and
  • Cristina Müller1Email author
EJNMMI Research20166:13

DOI: 10.1186/s13550-016-0171-1

Received: 22 December 2015

Accepted: 2 February 2016

Published: 9 February 2016

Abstract

Background

The radiolanthanide 161Tb has, in recent years, attracted increasing interest due to its favorable characteristics for medical application. 161Tb exhibits similar properties to the widely-used therapeutic radionuclide 177Lu. In contrast to 177Lu, 161Tb yields a significant number of short-ranging Auger/conversion electrons (≤50 keV) during its decay process. 161Tb has been shown to be more effective for tumor therapy than 177Lu if applied using the same activity. The purpose of this study was to investigate long-term damage to the kidneys after application of 161Tb-folate and compare it to the renal effects caused by 177Lu-folate.

Methods

Renal side effects were investigated in nude mice after the application of different activities of 161Tb-folate (10, 20, and 30 MBq per mouse) over a period of 8 months. Renal function was monitored by the determination of 99mTc-DMSA uptake in the kidneys and by measuring blood urea nitrogen and creatinine levels in the plasma. Histopathological analysis was performed by scoring of the tissue damage observed in HE-stained kidney sections from euthanized mice.

Results

Due to the co-emitted Auger/conversion electrons, the mean absorbed renal dose of 161Tb-folate (3.0 Gy/MBq) was about 24 % higher than that of 177Lu-folate (2.3 Gy/MBq). After application of 161Tb-folate, kidney function was reduced in a dose- and time-dependent manner, as indicated by the decreased renal uptake of 99mTc-DMSA and the increased levels of blood urea nitrogen and creatinine. Similar results were obtained when 177Lu-folate was applied at the same activity. Histopathological investigations confirmed comparable renal cortical damage after application of the same activities of 161Tb-folate and 177Lu-folate. This was characterized by collapsed tubules and enlarged glomeruli with fibrin deposition in moderately injured kidneys and glomerulosclerosis in severely damaged kidneys.

Conclusions

Tb-folate induced dose-dependent radionephropathy over time, but did not result in more severe damage than 177Lu-folate when applied at the same activity. These data are an indication that Auger/conversion electrons do not exacerbate overall renal damage after application with 161Tb-folate as compared to 177Lu-folate, even though they result in an increased dose deposition in the renal tissue. Global toxicity affecting other tissues than kidneys remains to be investigated after 161Tb-based therapy, however.

Keywords

Radionuclide therapy 161Tb 177Lu Auger/conversion electrons Radionephropathy Kidney Radiofolate

Background

The radiolanthanide terbium-161 (161Tb) has garnered increasing interest in recent years due to its favorable properties for medical application [1]. 161Tb has similar chemical properties to the clinically established lutetium-177 (177Lu), which enables stable coordination using a DOTA-chelator and, consequently, its application with well-established targeting agents [2]. The physical properties of 161Tb are also similar to those of 177Lu (T1/2 = 6.7 d, Eβ av = 134 keV, linear energy transfer (LET) of about 0.34 keV/μm [3]). 161Tb decays, with a half-life of 6.9 days, by the emission of low-energy β-particles (Eβ av = 154 keV [3]) with a maximal tissue range of 0.29 mm and a LET of around 0.32 keV/μm, which is suitable for the treatment of metastasized malignancies. Importantly, 161Tb exhibits a co-emission of γ-radiation, enabling imaging using single photon emission computed tomography (SPECT) (Table 1). The decay process of 161Tb also releases a significant number of Auger/conversion electrons of an energy ≤50 keV (~12.4 e, 46.5 keV per decay) [4], which are postulated to contribute to therapeutic anti-tumor effects [2]. This may be an advantage over 177Lu which emits a negligible number of Auger/conversion electrons in comparison (~1.11 e, 1.0 keV per decay, Table 1) [4]. High-energy electrons emitted during β-decay have a LET of about 0.2 keV/μm and a tissue range of 0.5–12 mm, suitable for larger metastases [5]. The high LET (~4–26 keV/μm) and short tissue range (~2–500 nm) of Auger/conversion electrons may be of particular value for the treatment of single tumor cells or tumor cell clusters [5]. This assumption has been corroborated by dosimetric calculations published by Uusijärvi et al., which clearly indicate the superiority of 161Tb over 177Lu for the treatment of small lesions (<200 μm) [6].
Table 1

Decay properties of 161Tb and 177Lu [3]

Radionuclide

161Tb

177Lu

Half-life

6.9 d

6.7 d

av (intensity)

154 keV (1.00)

134 keV (1.00)

Eγ (intensity)

25.7 keV (0.23)

112.9 keV (0.062)



45 (0.18)*

208.4 keV (0.104)

48.9 keV (0.17)

74.6 keV (0.10)

E of Auger and conversion electrons (intensity)

0–0.1 keV (0.72)

0–0.1 keV (0.27)

0.1–1 keV (7.38)

0.1–1 keV (0.55)

1–10 keV (3.03)

1–10 keV (0.30)

10–20 keV (0.42)



20–30 keV (0.18)



30–40 keV (0.39)



30–40 keV (0.72)



40–50 keV (0.23)

40–50 keV (0.05)

0–50 keV (12.4)

0–50 keV (1.11)

*x-ray

Another advantage of 161Tb may be the fact that other Tb nuclides exist that emit diagnostic radiation only, potentially allowing pre-therapeutic dosimetry and monitoring therapy response with chemically identical imaging agents using SPECT (155Tb) and positron emission tomography (PET) (152Tb) [7].

The few studies in which 161Tb was applied thus far, focused on basic in vivo behavior of 161Tb-labeled biomolecules [8] and their effects on the malignant tissue in comparison to 177Lu [2, 9]. These preliminary therapy studies revealed that the therapeutic effect of 161Tb-labeled compounds was superior to the effect of their 177Lu-labeled counterparts, if applied at the same activities as indicated by dosimetric calculations [2].

Potential differences between undesired side effects of 161Tb and 177Lu have not been elucidated, however. The most critical organs in terms of side effects after radionuclide therapy are the bone marrow, populated by the highly radiosensitive hematopoietic cells, and the kidneys, which accumulate radioactivity of small molecular weight targeting agent at a high extent [10]. In the present study, we focused on the investigation of renal damage after exposure to therapeutic doses of 161Tb and 177Lu using a folate-based small molecular targeting agent.

The folate receptor (FR) has been found expressed in a wide variety of different tumor types, including cancer of the ovaries, endometrium, lungs, and kidneys [11]. It has therefore been exploited (pre)clinically for targeting with folate-based radioconjugates for nuclear imaging purposes [12, 13]. Following receptor binding on the cell surface, folic acid and its conjugates are internalized via FR-mediated endocytosis [14, 15]. This uptake mechanism makes folic acid also attractive for FR-targeted chemotherapy [16]. Recently, FR-targeted radionuclide therapy was exemplified using a DOTA-folate conjugate which was labeled with 177Lu [17]. It was shown that the application of ≥20 MBq of 177Lu-folate resulted in complete tumor remission in mice bearing KB tumor xenografts.

Targeted tumor therapy with folic acid-based radioconjugates is, however, known to present a risk of damage to the kidneys, since radiofolates accumulate specifically in the proximal tubule cells where the FR is expressed [11, 18]. This topic has been addressed recently, in a detailed investigation of radionephropathy after administration of 177Lu-folates with different in vivo distribution profiles [19].

The purpose of the current long-term study was to explore undesired side effects to the kidneys of mice after radionuclide therapy with high doses of 161Tb-folate and compare its nephrotoxic profile with the results obtained with 177Lu-folate. Histopathological changes of the renal tissue were examined after treatment with 161Tb-folate and compared to the results obtained with 177Lu-folate. Time-dependent monitoring of kidney function was performed over the whole period of investigation by the determination of blood plasma parameters, which are indicative for renal damage. Moreover, renal uptake of 99mTc-DMSA was quantified using SPECT. This has proven to be a reliable method to determine kidney function in mice non-invasively after radionuclide therapy. The results of plasma parameters and SPECT were correlated with the data obtained from histological evaluation.

Methods

Preparation of 161Tb-folate and 177Lu-folate

The DOTA-folate conjugate (cm09), herein referred to as “folate,” was kindly provided by Merck & Cie (Schaffhausen, Switzerland) [17]. No-carrier-added 161Tb was produced at the spallation-induced neutron source (SINQ) at Paul Scherrer Institut (PSI) (Villigen-PSI, Switzerland) or at the high-flux reactor of the Institut Laue-Langevin (ILL, Grenoble, France) using various quantities of enriched 160Gd targets. Separation of 161Tb from the target material was carried out at PSI using cation exchange chromatography, as previously reported [1, 7]. No-carrier-added 177Lu was purchased from Isotope Technologies Garching (ITG GmbH, Garching, Germany). The radionuclidic purity of 161Tb and 177Lu, respectively, was ≥99 %. A HCl solution (0.05 M) of 161TbCl3 or 177LuCl3 (500 MBq, 100 μL) was mixed with sodium acetate (0.5 M, pH 8, 20 μL) to obtain a pH of ~4.5. After the addition of the folate conjugate (25 μL, 1 mM), the reaction mixture was incubated for 10 min at 95 °C. The resulting specific activity of the radiofolates was 20 MBq/nmol. Quality control was performed using HPLC as previously reported [17]. Before in vivo application, the radioconjugate solution was diluted with phosphate buffered saline (PBS) (pH 7.4) and Na-DTPA (10 μL, 5 mM, pH 5) was added for the complexation of potential traces of unreacted 161Tb(III) or 177Lu(III).

Animal studies

The in vivo experiments were approved by the local veterinarian department and conducted in accordance with the Swiss law of animal protection. Female athymic nude mice (Crl:CD1-Foxn1nu, 5- to 7-week-old) were purchased from Charles River Laboratories (Sulzfeld, Germany). The mice received a folate-deficient rodent chow (ssniff Spezialdiäten GmbH, Soest, Germany), starting 1 week prior to the injection of the radiofolates. The folate-free diet was replaced by a standard rodent diet (Kliba Nafag, Kaiseraugst, Switzerland) 3 weeks after application of the radiofolates.

Dosimetry

Dosimetric calculations were performed based on biodistribution data, which were previously obtained after the injection of 161Tb-folate and 177Lu-folate (2–3 MBq/0.5 nmol per mouse) using the same strain of mice (Crl:CD1-Foxn1nu) [2, 17, 19]. To estimate the mean absorbed radiation dose of 161Tb-folate and 177Lu-folate in the renal tissue, calculations were performed as follows: the cumulative radioactivity was calculated by fitting a bi-exponential curve to the non-decay-corrected biodistribution data (% IA/g). The area under the curve (MBq∙s) was determined by integrating the bi-exponential function to infinity. The mean absorbed dose to the kidneys was assessed for a kidney mass of 125 mg, having an elliptical shape and uniform activity distribution [20]. For the calculation of the absorbed fraction, the Monte Carlo code PENELOPE was used, resulting in an absorbed fraction of 0.93. In the simulation, detailed simulation mode was employed and the electron-absorption energy was 100 eV [21]. The mean absorbed dose (Gy/MBq) was calculated by multiplying the area under the curve normalized to 1 MBq injected activity (IA), with the absorbed fraction and the emitted energy per decay for 161Tb and 177Lu [3] and multiplied with a conversion factor.

Long-term side effects after application of 161Tb-folate and 177Lu-folate

Effects of 161Tb-folate and 177Lu-folate, applied to non-tumor-bearing mice at therapeutic doses, were investigated over a period of 8 months. Control mice were intravenously (i.v.) injected with only saline (group A, n = 9). Three groups of six mice each were i.v. injected with 161Tb-folate of different activities (group B: 10 MBq, 0.5 nmol folate; group C: 20 MBq, 1 nmol folate; and group D: 30 MBq, 1.5 nmol folate). The same activites of 177Lu-folate were i.v. injected into three additional groups of six mice each (group E: 10 MBq, 0.5 nmol folate; group F: 20 MBq, 1 nmol folate; and group G: 30 MBq, 1.5 nmol folate). End-point criteria were defined as weight loss of >15 % of the initial body weight and/or signs of unease. Body weights were measured once a week for the determination of the relative body weight (RBW = W X /W 0; with W X  = body weight at day x and W 0 = body weight at day 0) and indicated as average RBW for each group.

Determination of renal uptake of 99mTc-DMSA using SPECT

The renal function of mice was monitored by the determination of the renal uptake of 99mTc-DMSA using SPECT, as previously reported [22, 23]. DMSA (TechneScan®, Mallinckrodt, Petten, The Netherlands) was radiolabeled with 99mTc (radionuclidic purity >99.9 %), obtained from a 99Mo/99mTc-generator (Mallinckrodt, Petten, The Netherlands) at an activity concentration of 3 GBq in 5 mL. Quality control performed by TLC revealed a radiochemical purity of >95 %. SPECT acquisitions were performed 2 h after the injection of 99mTc-DMSA (30-40 MBq per mouse) using a NanoSPECT/CT™ (Mediso Medical Imaging Systems, Budapest, Hungary) and Nucline Software (version 1.02, Bioscan Inc., Poway, USA). For this purpose, the energy window of 99mTc was set to 140.5 ± 14 keV. The acquired data were reconstructed using HiSPECT software (version 1.4.3049, Scivis GmbH, Göttingen, Germany), and the renal uptake of 99mTc-DMSA was determined, as previously reported, using the VivoQuant post-processing software (version 1.23, inviCRO Imaging Services and Software, Boston, USA) [19]. The determined activities were decay-corrected and expressed as percentage of injected activity (% IA) per kidney.

Determination of blood plasma parameters

Blood urea nitrogen and creatinine were measured in weeks 8, 19, and 26 and at the day of euthanasia of the mice. Blood was taken from the sublingual vein of each mouse, collected in heparinized vials, and centrifuged. Blood plasma samples were analyzed using a Fuji Dri-Chem 4000i analyzer (Polymed Medical Center AG, Glattbrugg, Switzerland).

Histological analysis

All animals were euthanized with CO2, followed by exsanguination. The kidneys were removed and fixed in 4 % buffered formalin (Formafix buffered 4 %, Switzerland AG, Hittnau, Switzerland). The tissue was trimmed, dehydrated, and embedded in paraffin wax. Sections of 3–5 μm thickness were prepared, mounted on glass slides, deparaffinized in xylene, and rehydrated through graded alcohols, before staining with hematoxylin and eosin (HE) for the histological examination. Renal injury was assessed by light microscopy. Glomerular, tubular, and interstitial lesions were evaluated separately using pre-defined criteria (Table 2), adapted from previously published studies [19, 24]. The values obtained for each compartment were summed to obtain a cumulative score. The cumulative score was then converted to a final score ranging from 0 to 5 (Table 3). No damage (score 0) indicated normal histology, while variably severe renal injury ranged from minimal damage (score 1), characterized by mildly reduced numbers of capillaries within the glomerular tuft and patchy tubular collapse, to severe renal damage (score 5), dominated by widespread glomerulosclerosis and prominent cortical parenchymal shrinkage. A phosphotungstic acid-hematoxylin (PTAH) staining was performed on tissues of selected mice for the identification of fibrin.
Table 2

Histological partial scoring, with each compartment (glomeruli, tubules, interstitium) evaluated separately

Partial score

Pathological changes

1

Glomeruli: mild deposition of PTAH-positive eosinophilic material (fibrin) and reduced number of capillaries in a few glomeruli.

Tubules: <10 % of cortical tubules collapsed or degenerated.

Interstitium: few small mononuclear cell infiltrates and/or minimal fibrosis in the cortex.

2

Glomeruli: mild/moderate fibrin deposition and reduced number of capillaries in numerous glomeruli.

Tubules: 10–25 % of cortical tubules collapsed or degenerated.

Interstitium: multifocal small mononuclear cell infiltrates and/or mild fibrosis in the cortex.

3

Glomeruli: marked fibrin deposition and reduced number of capillaries in numerous glomeruli.

Tubules: 25–50 % of cortical tubules collapsed or degenerated.

Interstitium: multifocal larger mononuclear cell infiltrates and/or moderate fibrosis in the cortex.

4

Glomeruli: marked fibrin deposition and reduced number of capillaries in numerous glomeruli; glomerulosclerosis in a few to several glomeruli.

Tubules: 50–75 % of cortical tubules collapsed or degenerated; numerous dilated tubules.

Interstitium: multifocal larger mononuclear cell infiltrates and/or moderate fibrosis in the cortex and medulla; mild/moderate parenchymal collapse.

5

Glomeruli: majority of glomeruli sclerotic.

Tubules: >75 % of cortical tubules collapsed or degenerated; numerous dilated tubules.

Interstitium: severe parenchymal collapse, affecting cortex and medulla.

Table 3

The partial scoring of each compartment (glomeruli, tubules, and interstitium) was summed to obtain the cumulative score

Cumulative score (glomeruli, tubules, interstitium)

Final score

Renal injury

0–0.9

0

No histological abnormality

1.0–2.9

1

Minimal

3.0–6.9

2

Mild

7.0–10.9

3

Moderate

11.0–13.9

4

Marked

14.0–15.0

5

Severe

The cumulative score was then converted to a final score indicating the degree of renal injury

Statistical analysis

Data are presented as mean ± standard deviation. Statistics were conducted by using one-way ANOVA with Bonferroni’s multiple comparison post-test (GraphPad Prism, version 5.01).

Results

Radiolabeling

The radiolabeling of the folic acid conjugate was successfully achieved with 161Tb and 177Lu, respectively, at a specific activity of 20 MBq/nmol. Quality control performed by HPLC revealed a radiochemical yield >97 %.

Dosimetric calculations

The mean absorbed kidney dose was estimated at 3.0 Gy/MBq for 161Tb-folate, of which ~76 % (2.3 Gy/MBq) was due to the β-particles and ~24 % (0.7 Gy/MBq) due to Auger/conversion electrons. For 177Lu-folate, the total absorbed dose was estimated at 2.3 Gy/MBq, caused primarily by β-particles, with only <1 % being due to Auger/conversion electrons (Table 4).
Table 4

Estimated mean absorbed kidney doses in mice after injection of 161Tb-folate and 177Lu-folate



Control

161Tb-folate

177Lu-folate

Group

A

B

C

D

E

F

G

Injected activity (MBq)

0

10

20

30

10

20

30

Mean absorbed kidney dose (Gy)

0

30

60

90

23

46

68

Body weight and survival

All mice gained weight over the first month of the experiment, as a consequence of normal growth. Mice which were injected with 10 or 20 MBq of 161Tb-folate and 177Lu-folate, respectively, showed body weight gain within the first 6 weeks, followed by stabilization of the body weight in the range of 1.1 to 1.3 RBW (Fig. 1a). The majority of these mice (>50 %), as well as the control mice (groups A, B, C, E, and F), survived until the end of the study in week 34, and consequently, the survival time remained undefined (Fig. 1b). Four mice in these groups had to be euthanized in weeks 14, 19, 28, and 32, respectively, due to end-point criteria being reached, however. Mice that received high activities (30 MBq) of 161Tb-folate (group D) and 177Lu-folate (group G), respectively, lost body weight from week 15 on and showed signs of unease. This prompted euthanasia, in most of the cases, between weeks 15 and 26. The median survival time of 161Tb-folate treated mice (group D) was 17 weeks, whereas for 177Lu-folate treated mice (group G), the median survival was 23.5 weeks (Fig. 1b). This difference was determined not to be significant.
Fig. 1

Average relative body weights (RBW) (a) and median survival (b) of mice from each group after the injection of different activities of 161Tb-folate and 177Lu-folate, respectively. RBWs are shown for each group for the time when at least two mice were alive (n ≥ 2)

Renal uptake of 99mTc-DMSA

When the study reached week 3, all treated mice showed comparable renal uptake of 99mTc-DMSA, which was in the same range as for the control mice of group A (data not shown). The mice injected with low activities of 161Tb-folate (group B; 10 MBq) and 177Lu-folate (group E; 10 MBq), respectively, showed reduced 99mTc-DMSA uptake only 30 weeks after radiofolate injection, whereas no significant deviation from controls was observed at earlier time points (Fig. 2). In mice which were treated with 20 MBq of 161Tb-folate and 177Lu-folate, respectively, the uptake of 99mTc-DMSA was 7.6 ± 0.5 % IA/kidney (group C) and 8.5 ± 1.2 % IA/kidney (group F) in week 15 and, thus, slightly lower than the value obtained for control mice (11 ± 1.8 % IA/kidney). In these mice (groups C and F), renal uptake of 99mTc-DMSA decreased further in week 22 and week 30 (Fig. 2). The reduction of 99mTc-DMSA was, however, comparable in mice injected with 161Tb-folate and 177Lu-folate (10 and 20 MBq), respectively.
Fig. 2

SPECT-based quantification of renal 99mTc-DMSA uptake (% IA) in Week 15 (a), 22 (b), and 30 (c) after injection of 161Tb- and 177Lu-folate. *P < 0.05, **P < 0.01, ***P < 0.001

Mice injected with the highest activity of 161Tb-folate (group D; 30 MBq) and 177Lu-folate (group G; 30 MBq) showed a significantly reduced renal uptake of 99mTc-DMSA when compared to controls (group A) already in week 15 (Fig. 2). The determination of 99mTc-DMSA uptake in week 15 revealed a significantly reduced value for mice injected with 30 MBq 161Tb-folate, compared to mice, which received 30 MBq 177Lu-folate. At later time points, the obtained values were, however, always comparable between these mice (groups D and G).

Renal plasma parameters

Values of blood urea nitrogen and creatinine were not significantly different for control mice and mice treated with 10 MBq 161Tb-folate (groups B) over the entire period of investigation (Table 5). Mice which received 20 MBq 161Tb-folate (group C) showed slightly, but not significantly, increased levels of blood urea nitrogen as compared to control mice from week 26 on. Animals that received higher activities of 161Tb-folate (30 MBq, group D), however, showed significantly increased levels of blood urea nitrogen at terminal bleeding (42 ± 8.1 mM (n = 4) and > 50 mM (n = 2)) as compared to control mice (group A: 8.4 ± 1.4 mM). In the 177Lu-folate-treated groups, increasing levels of blood urea nitrogen were also observed in mice injected with 30 MBq (>50 mM). Moreover, significantly increased levels of blood urea nitrogen were also determined at terminal stage in mice that received only 20 MBq of 177Lu-folate (group G: 38 ± 4.1 mM; Table 5).
Table 5

Blood urea nitrogen and creatinine levels in blood plasma of mice injected with 161Tb-folate or 177Lu-folate



Control

161Tb-folate

177Lu-folate

Week

Group A

Group B: 10 MBq

Group C: 20 MBq

Group D: 30 MBq

Group E: 10 MBq

Group F: 20 MBq

Group G: 30 MBq

Blood urea nitrogen (mM)

8

8.8 ± 0.8 (n = 7)

9.0 ± 1.3 (n = 5)

8.6 ± 0.6 (n = 6)

14 ± 7.5* (n = 6)

11 ± 0.8 (n = 6)

8.3 ± 0.6 (n = 6)

8.8 ± 0.6 (n = 4)

19

9.8 ± 0.6 (n = 9)

9.4 ± 0.6 (n = 6)

11 ± 1.6 (n = 5)

23 (n = 1)

10 ± 0.7 (n = 6)

9.3 ± 2.5 (n = 6)

26 ± 13*** (n = 6)

26

8.5 ± 0.8 (n = 9)

8.6 ± 1.6 (n = 6)

16 ± 12 (n = 5)

n.d.

9.2 ± 0.5 (n = 5)

21 ± 7.2 (n = 5)

>50*** (n = 1)

Terminal

8.4 ± 1.4 (n = 9)

9.2 ± 3.0 (n = 6)

>50 (n = 1)

>50 (n = 2)

10 ± 2.6 (n = 5)

38 ± 4.1*** (n = 4)

>50*** (n = 5)

13 ± 3.2 (n = 5)

42 ± 8.1*** (n = 4)

Creatinine (μM)

8

<18 (n = 3)

<18 (n = 3)

<18 (n = 6)

<18 (n = 1)

<18 (n = 3)

<18 (n = 3)

<18 (n = 4)

21 ± 3.5 (n = 4)

32 ± 1.4 (n = 2)

31 ± 14 (n = 5)

20 ± 1.0 (n = 3)

18 (n = 1)

19

26 ± 9.6 (n = 8)

<18 (n = 2)

<18 (n = 3)

32 (n = 1)

<18 (n = 3)

<18 (n = 2)

25 ± 6.3 (n = 6)

25 ± 7.3 (n = 4)

21 ± 4.9 (n = 2)

22 ± 0.6 (n = 3)

18 ± 0 (n = 3)

26

<18 (n = 4)

<18 (n = 4)

<18 (n = 2)

n.d.

30 ± 19 (n = 5)

33 ± 7.6 (n = 5)

46 (n = 1)



20 ± 1.7 (n = 4)

22 ± 0.7 (n = 2)

33 ± 5.9 (n = 3)

Terminal

<18 (n = 3)

21 ± 3.8 (n = 6)

<18 (n = 1)

77 ± 17* (n = 6)

25 ± 7.6 (n = 5)

<18 (n = 2)

107 ± 35** (n = 5)

24 ± 5.1 (n = 6)

51 ± 48 (n = 5)

63 ± 46 (n = 2)

The blood plasma parameters were determined in Week 8, 19, 26 and before euthanasia (terminal)

Abbreviations: n.d. not determined (already euthanized), n number of mice

Statistics: comparison of treated animals to control; *P < 0.05, **P < 0.01, ***P < 0.001

Detection limits: blood urea nitrogen: 50 mM; creatinine: 18 μM

Application of high activities of 161Tb-folate (group D, 30 MBq) resulted in a significant increase of creatinine plasma levels (77 ± 17 μM), as compared to control mice of group A (24 ± 5.1 μM (n = 6), <18 μM (n = 3)) at terminal state and the same observation (creatinine level of 107 ± 35 μM) was also made for 177Lu-folate treated mice (group G, 30 MBq). In mice which received 20 MBq 161Tb-folate (group C) and 177Lu-folate (group F), respectively, slightly, but not significantly, increased levels of creatinine were determined in Week 26 and at terminal bleeding.

Renal histopathology

The application of 161Tb-folate and 177Lu-folate resulted in a dose-dependent renal damage consistent with radiation nephropathy (Table 6). The kidneys of the control animals did not show histological abnormality and received a final score of 0. The renal tissue of mice injected with increasing activities of radiofolates showed progressively more severe kidney damage, which was graded with final scores between 1 and 5 (Fig. 3). For the mice treated with 161Tb-folate, final scores of 1 (group B, 10 MBq), 3 (group C, 20 MBq), and 4 (group D, 30 MBq) were determined. In the case of 177Lu-folate application, renal damage was scored with 2 (group E, 10 MBq), 3 (group F, 20 MBq), and 4 (group G, 30 MBq). Lower scores were characterized by localized tubular collapse, high proportions of viable tubules, and enlarged glomeruli with reduced numbers of capillaries. These changes became more prominent in the severely injured kidneys, where occasional to frequent glomerulosclerosis was also observed (Fig. 3). Moreover, a gradual thinning of the cortex with increasing amounts of applied radiofolate was observed during the investigation of renal cross sections (Fig. 3).
Table 6

Histological evaluation of renal radiation injury in mice injected with 161Tb-folate or 177Lu-folate, indicated with partial scores for glomeruli, tubules, and interstitium



Control

161Tb-folate

177Lu-folate

Group Aa(n = 9)

Group B: 10 MBq

Group C: 20 MBq

Group D: 30 MBq

Group E: 10 MBq

Group F: 20 MBq

Group G:30 MBq

(n = 5)a

(n = 5)a

(n = 2)b

(n = 5)a

(n = 4)a

(n = 5)b

Glomeruli

0

1.1

3.4

5.0

2.0

3.8

5.0

Tubules

0

0.9

2.4

4.5

1.5

3.3

4.2

Interstitium

0

0.4

1.8

4.0

0.4

3.3

4.6

Cumulative score

0

2.4

7.6

13.5

3.9

10.4

13.8

Final score

0

1

3

4

2

3

4

The sum of the partial scores determined the cumulative scores, which were then converted to the final score as a measure for the different degrees of renal injury

aMice euthanized in Week 34

bMice euthanized between Weeks 15 and 26

Fig. 3

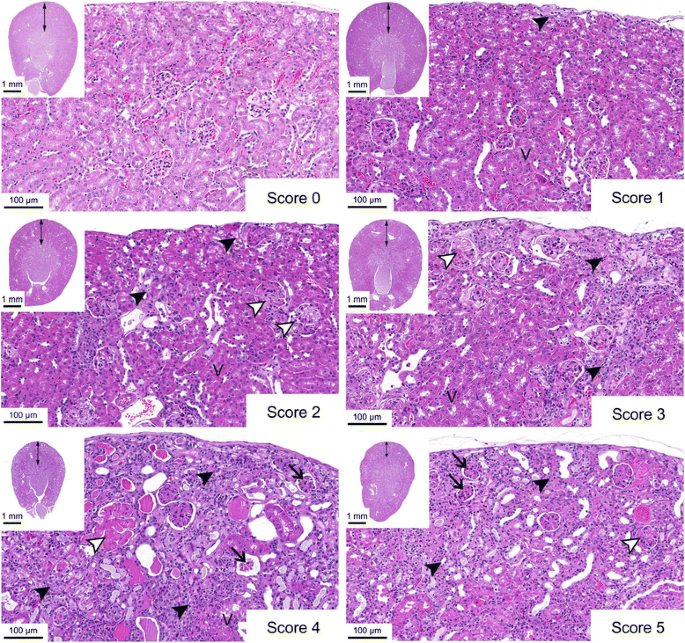

Histology (HE staining) of radiation-induced nephropathy in mice. Representative histological images (×20 magnification) of kidneys from untreated controls (final score 0) and progressively severe kidney damage (final scores 1–5) from mice injected with different activities of 161Tb-folate (▲ = localized tubular collapse; v = viable tubules; Δ = enlarged glomeruli with reduced numbers of capillaries; → = glomerulosclerosis). In the insets, cross sections of the kidneys are presented (×2 magnification) indicating gradual thinning of the cortex (↔) with increasing scores

Correlation of kidney function tests and renal histopathology

Retrospectively, renal function parameters determined shortly before euthanasia were correlated with the histology scores on an individual basis (Fig. 4). Increasing blood urea nitrogen levels correlated (r 2 = 0.87) well with rising scores of radiation nephropathy (Fig. 4a). The creatinine levels indicated, however, only a slight trend in the same direction as they showed poor correlation with the scoring results (r 2 = 0.52). A relatively good correlation (r 2 = 0.68) was found between the determination of renal damage using 99mTc-DMSA/SPECT and the overall score determined by histopathological evaluation of the renal damage.
Fig. 4

Correlation of individual results for kidney function tests and histological scores of the corresponding renal tissue sample. a Correlation of the histological scores and terminal blood urea nitrogen levels; b Correlation of the histological scores and terminal creatinine levels; c Inverse correlation of the histological scores and 99mTc-DMSA uptake in the kidneys

Discussion

A cumulative renal dose of >25 Gy as a result of 177Lu- or 90Y-based radionuclide therapy comprises a high risk of renal damage in patients [25]. In contrast, radionuclide therapy based on Auger/conversion electrons using 111In-octreotide did not impair kidney function up to a renal dose of 45 Gy [26]. It was hypothesized that, because of their short tissue range, Auger/conversion electrons are unable to damage the radiosensitive glomeruli and potential cell damage would, therefore, be limited to the more radioresistant tubular cells, in which the radioconjugates accumulate [26]. Thus, it was speculated that the accumulation of activity into specific organ structures, yielding a local energy deposit for short-ranged electrons, might be the reason for the reduced impairment of renal function after therapy with short-ranged Auger/conversion electrons, as compared to treatment with the long-ranged β-particles.

In this work, we investigated potential radionephrotoxicity caused by therapeutic doses of 161Tb-folate in mice. The data were compared with those previously obtained with 177Lu-folate [19]. The slightly higher β-energy of 161Tb (Eβ av = 154 keV) compared to 177Lu (Eβ av = 134 keV) and, predominantly, the co-emitted Auger/conversion electrons of 161Tb resulted in about 1.3-fold increased mean absorbed kidney dose (3.0 vs. 2.3 Gy/MBq), if the same activities of 161Tb-folate and 177Lu-folate were employed. The Auger/conversion electrons contributed with about 24 % of the mean absorbed renal dose upon the injection of 161Tb-folate. In this experimental setting, the applied mean absorbed renal dose of 161Tb-folate ranged from 30 Gy (10 MBq) to 90 Gy (30 MBq). The corresponding dose for 177Lu-folate, applied at the same activity, ranged from 23 Gy (10 MBq), as the safe limit, to 68 Gy (30 MBq), which is known to induce renal damage [19]. The absorbed doses that are presented refer to the whole mean absorbed kidney dose, as it is most often presented in clinical studies [10]. Furthermore, an even more detailed description of the activity deposited into the proximal tubular cells might differentiate the absorbed dose profiles for 161Tb and 177Lu due to different emission of low-energy electrons. A detailed nephron-based model of the absorbed dose to the kidneys has recently been described by Hobbs et al. for α-emitters [27]. A similar approach will be utilized in the future for the characterization of the absorbed dose profiles for 161Tb and 177Lu, together with detailed autoradiography studies at different time points after injection.

The injection of high activities of 161Tb-folate (30 MBq), which resulted in a mean absorbed kidney dose of 90 Gy (and as discussed above, might be 1.5-fold higher, if all activity is considered to be located in the cortex), was not well tolerated and resulted in body weight loss, which required euthanasia in the second half of the study (Fig. 1). End-point criteria were reached earlier in 161Tb-folate treated mice (group D) than in mice which received the same activities of 177Lu-folate (30 MBq, ~68 Gy, group G). The severity of renal damage, assessed by kidney function tests and histological evaluation, was, however, comparable between mice injected with 161Tb-folate (group D) and 177Lu-folate (group G). The reason why the relative body weight and survival rate did not correlate well with the severity of renal damage in these high-dose treatment groups remains unknown and might involve other factors referring to global toxicity, which were not investigated in this study.

99mTc-DMSA uptake studies performed 3 weeks after radiofolate application showed comparable results in all groups indicating normal kidney function. In Week 15, impaired kidney function was observed in mice which were exposed to 20 and 30 MBq of 161Tb-folate or 30 MBq of 177Lu-folate (groups C, D, and G) based on the results obtained with 99mTc-DMSA (Fig. 2a). About 7 months after radiofolate treatment, the mice which were exposed to lower renal doses (groups B, E, and F) also showed a significantly reduced uptake of 99mTc-DMSA in comparison to untreated control mice (Fig. 2c). Parallel analyses of blood urea nitrogen and creatinine plasma levels confirmed the dose-dependent impairment of kidney function which was observed in studies with 99mTc-DMSA-based SPECT.

The same activity of 161Tb-folate and 177Lu-folate did not cause significant differences regarding renal uptake of 99mTc-DMSA and rising levels of plasma parameters, indicative for kidney function, over the whole period of investigation. This observation indicates that the impairment of renal function runs in parallel for 161Tb-folate and 177Lu-folate. A significantly lower renal accumulation of 99mTc-DMSA was only found in week 15 for mice treated with 30 MBq 161Tb-folate (Group D) compared to mice injected with 30 MBq 177Lu-folate (Group G). Other than that, the determination of blood urea nitrogen and creatinine plasma levels did not confirm a significant difference of the renal function in mice of groups D and G at any time of the study. In contrast, at terminal state, there was even a tendency of increased blood urea nitrogen and creatinine levels in 177Lu-folate-treated mice (Group G) as compared to the levels determined in 161Tb-folate-treated mice (Group D).

Histopathological changes were investigated with renal tissue of euthanized mice, when an end-point criterion was reached or after termination of the study in Week 34. A reduced renal mass and thinning of the renal cortex was observed along with increasing tissue damage in the renal cortex, where radiofolates accumulate because of FR-expression in the proximal tubular cells [11, 18]. Evaluation of the partial and cumulative scores in the tubules, glomeruli, and interstitium showed equal distribution and location of renal damage independent on the radionuclide which was employed (Table 6). This means that the application of 161Tb-folate resulted in renal damage that was comparable to that observed after the application of 177Lu-folate at the same activity, in spite of the 1.3-fold higher dose which was deposited in the case of 161Tb-folate. These data are in line with the hypothesis that the additional dose of 161Tb-folate, due to Auger/conversion electrons, has no adverse effect on renal function and morphology. This theory appears plausible for radiopharmaceuticals that accumulate primarily in tubular cells, as it is the case for folate- and peptide-based radioconjugates [18, 2830]. Auger/conversion electrons deposit energy over subcellular dimensions only and, hence, no other parts of the kidneys will be reached other than the tubules. Our observation is in agreement with the theory that in the case of kidneys which is defined as flexible tissue (in contrast to hierarchical tissues [31]), the irradiated volume and affected suborgan unit are critical factors for the final renal injury [32, 33].

The above reported results are corroborated by the fact that values determined for blood urea nitrogen levels correlated well with the histopathological analysis which was performed in an independent setting (Fig. 4). The value of creatinine levels for predicting renal damage appears to be questionable due to high variability and poor correlation with the histopathological changes. The unreliable value of creatinine as an indicator for renal damage was previously reported in the literature [34]. From a methodological point of view, 99mTc-DMSA/SPECT is undoubtedly the most sensitive method for non-invasive monitoring of renal function.

Conclusions

The functional and histopathological analysis of the kidneys after application of 161Tb-folate revealed a dose-dependent damage which was comparable to the damage caused by 177Lu-folate applied using the same activity. These observations are in line with the hypothesis that Auger electrons and low energy conversion electrons do not result in additional renal injury, as previously observed during therapeutic application of 111In-octreotide in patients. The confirmation of these results, in more detailed future studies, will support the clinical application of 161Tb-based therapy, which could contribute to increase the success rate of the treatment without causing additional renal side effects.

Compliance with ethical standards

This article does not contain any studies with human participants performed by any of the authors.

All applicable international, national, and/or institutional guidelines for the care and use of test animals were followed.

Abbreviations

DMSA:

dimercaptosuccinic acid

DTPA:

diethylene triamine pentaacetic acid

FR:

folate receptor

HE:

hematoxylin and eosin

HPLC:

high performance liquid chromatography

IA:

injected activity

PBS:

phosphate buffered saline pH 7.4

PET:

positron emission tomography

RBW:

relative body weight

SPECT:

single photon emission computed tomography

TLC:

thin layer chromatography

Declarations

Acknowledgements

The authors thank Klaudia Siwowska, Katharina Domnanich, Holger Dorrer, Raffaella Schmid, Susan Cohrs, Alexandra Ulli, and Kirstin Atrott for their technical assistance and helpful advice. We thank Dr. Viola Groehn (Merck & Cie) for synthesizing the folate derivative.

Funding

This work was financially supported by the Swiss Cancer League (KLS-02762-02-2011) and by the Swiss National Science Foundation (Ambizione PZ00P3_138834/1). Peter Bernhardt was supported by the Swedish National Cancer Society, Swedish Radiation Safety Authority, and the King Gustav V Jubilee Cancer Research Foundation.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Center for Radiopharmaceutical Sciences ETH-PSI-USZ, Paul Scherrer Institut
(2)
Laboratory for Animal Model Pathology, Institute of Veterinary Pathology, Vetsuisse Faculty, University of Zurich
(3)
Laboratory of Radiochemistry, Paul Scherrer Institut
(4)
Institut Laue-Langevin
(5)
Department of Radiation Physics, The Sahlgrenska Academy, University of Gothenburg
(6)
Department of Chemistry and Applied Biosciences, ETH Zurich

References

  1. Lehenberger S, Barkhausen C, Cohrs S, Fischer E, Grünberg J, Hohn A, et al. The low-energy β- and electron emitter 161Tb as an alternative to 177Lu for targeted radionuclide therapy. Nucl Med Biol. 2011;38(6):917–24. doi:10.1016/j.nucmedbio.2011.02.007.View ArticlePubMedGoogle Scholar
  2. Müller C, Reber J, Haller S, Dorrer H, Bernhardt P, Zhernosekov K, et al. Direct in vitro and in vivo comparison of 161Tb and 177Lu using a tumour-targeting folate conjugate. Eur J Nucl Med Mol Imaging. 2014;41(3):476–85. doi:10.1007/s00259-013-2563-z.View ArticlePubMedGoogle Scholar
  3. Nuclear National Data Center (Upton N.Y.) NuDat 2.6. http://www.nndc.bnl.gov/nudat2/.
  4. Eckerman K, Endo A. ICRP Publication 107. Nuclear decay data for dosimetric calculations. Ann ICRP. 2008;38(3):7–96. doi:10.1016/j.icrp.2008.10.004.View ArticlePubMedGoogle Scholar
  5. Kassis AI. Radiotargeting agents for cancer therapy. Expert Opin Drug Deliv. 2005;2(6):981–91. doi:10.1517/17425247.2.6.981.View ArticlePubMedGoogle Scholar
  6. Uusijärvi H, Bernhardt P, Rösch F, Maecke HR, Forssell-Aronsson E. Electron- and positron-emitting radiolanthanides for therapy: aspects of dosimetry and production. J Nucl Med. 2006;47(5):807–14.PubMedGoogle Scholar
  7. Müller C, Zhernosekov K, Köster U, Johnston K, Dorrer H, Hohn A, et al. A unique matched quadruplet of terbium radioisotopes for PET and SPECT and for α- and β-radionuclide therapy: an in vivo proof-of-concept study with a new receptor-targeted folate derivative. J Nucl Med. 2012;53(12):1951–9. doi:10.2967/jnumed.112.107540.View ArticlePubMedGoogle Scholar
  8. de Jong M, Breeman WA, Bernard BF, Rolleman EJ, Hofland LJ, Visser TJ, et al. Evaluation in vitro and in rats of 161Tb-DTPA-octreotide, a somatostatin analogue with potential for intraoperative scanning and radiotherapy. Eur J Nucl Med. 1995;22(7):608–16.View ArticlePubMedGoogle Scholar
  9. Grünberg J, Lindenblatt D, Dorrer H, Cohrs S, Zhernosekov K, Köster U, et al. Anti-L1CAM radioimmunotherapy is more effective with the radiolanthanide terbium-161 compared to lutetium-177 in an ovarian cancer model. Eur J Nucl Med Mol Imaging. 2014;41(10):1907–15. doi:10.1007/s00259-014-2798-3.View ArticlePubMedGoogle Scholar
  10. Svensson J, Berg G, Wangberg B, Larsson M, Forssell-Aronsson E, Bernhardt P. Renal function affects absorbed dose to the kidneys and haematological toxicity during 177Lu-DOTATATE treatment. Eur J Nucl Med Mol Imaging. 2015;42(6):947–55. doi:10.1007/s00259-015-3001-1.PubMed CentralView ArticlePubMedGoogle Scholar
  11. Parker N, Turk MJ, Westrick E, Lewis JD, Low PS, Leamon CP. Folate receptor expression in carcinomas and normal tissues determined by a quantitative radioligand binding assay. AnalBiochem. 2005;338(2):284–93. doi:10.1016/j.ab.2004.12.026.Google Scholar
  12. Müller C. Folate based radiopharmaceuticals for imaging and therapy of cancer and inflammation. Curr Pharm Design. 2012;18(8):1058–83.View ArticleGoogle Scholar
  13. Müller C. Folate-based radiotracers for PET imaging—update and perspectives. Molecules. 2013;18(5):5005–31. doi:10.3390/molecules18055005.View ArticlePubMedGoogle Scholar
  14. Antony AC. The biological chemistry of folate receptors. Blood. 1992;79(11):2807–20.PubMedGoogle Scholar
  15. Low PS, Henne WA, Doorneweerd DD. Discovery and development of folic-acid-based receptor targeting for imaging and therapy of cancer and inflammatory diseases. Acc Chem Research. 2008;41(1):120–9. doi:10.1021/ar7000815.View ArticleGoogle Scholar
  16. Leamon CP, Reddy JA. Folate-targeted chemotherapy. Adv Drug Deliv Reviews. 2004;56(8):1127–41. doi:10.1016/j.addr.2004.01.008.View ArticleGoogle Scholar
  17. Müller C, Struthers H, Winiger C, Zhernosekov K, Schibli R. DOTA conjugate with an albumin-binding entity enables the first folic acid-targeted 177Lu-radionuclide tumor therapy in mice. J Nucl Med. 2013;54(1):124–31. doi:10.2967/jnumed.112.107235.View ArticlePubMedGoogle Scholar
  18. Birn H, Spiegelstein O, Christensen EI, Finnell RH. Renal tubular reabsorption of folate mediated by folate binding protein 1. J Am Soc Nephrol JASN. 2005;16(3):608–15. doi:10.1681/ASN.2004080711.View ArticlePubMedGoogle Scholar
  19. Haller S, Reber J, Brandt S, Bernhardt P, Groehn V, Schibli R, et al. Folate receptor-targeted radionuclide therapy: preclinical investigation of anti-tumor effects and potential radionephropathy. Nucl Med Biol. 2015;42(10):770–9. doi:10.1016/j.nucmedbio.2015.06.006.View ArticlePubMedGoogle Scholar
  20. Svensson J, Molne J, Forssell-Aronsson E, Konijnenberg M, Bernhardt P. Nephrotoxicity profiles and threshold dose values for [177Lu]-DOTATATE in nude mice. Nucl Med Biol. 2012. doi:10.1016/j.nucmedbio.2012.02.003.PubMedGoogle Scholar
  21. Uusijärvi H, Bernhardt P, Ericsson T, Forssell-Aronsson E. Dosimetric characterization of radionuclides for systemic tumor therapy: influence of particle range, photon emission, and subcellular distribution. Med Phys. 2006;33(9):3260–9.View ArticlePubMedGoogle Scholar
  22. Reber J, Haller S, Leamon CP, Müller C. 177Lu-EC0800 combined with the antifolate pemetrexed: preclinical pilot study of folate receptor targeted radionuclide tumor therapy. Mol Cancer Ther. 2013;12(11):2436–45. doi:10.1158/1535-7163.MCT-13-0422-T.View ArticlePubMedGoogle Scholar
  23. Forrer F, Valkema R, Bernard B, Schramm NU, Hoppin JW, Rolleman E, et al. In vivo radionuclide uptake quantification using a multi-pinhole SPECT system to predict renal function in small animals. Eur J Nucl Med Mol Imaging. 2006;33(10):1214–7. doi:10.1007/s00259-006-0178-3.View ArticlePubMedGoogle Scholar
  24. Forrer F, Rolleman E, Bijster M, Melis M, Bernard B, Krenning EP, et al. From outside to inside? Dose-dependent renal tubular damage after high-dose peptide receptor radionuclide therapy in rats measured with in vivo 99mTc-DMSA-SPECT and molecular imaging. Cancer Biother & Radiopharm. 2007;22(1):40–9. doi:10.1089/cbr.2006.353.View ArticleGoogle Scholar
  25. Valkema R, Pauwels SA, Kvols LK, Kwekkeboom DJ, Jamar F, de Jong M, et al. Long-term follow-up of renal function after peptide receptor radiation therapy with 90Y-DOTA0,Tyr3-octreotide and 177Lu-DOTA0,Tyr3-octreotate. J Nucl Med. 2005;46 Suppl 1:83S–91.PubMedGoogle Scholar
  26. Valkema R, De Jong M, Bakker WH, Breeman WA, Kooij PP, Lugtenburg PJ, et al. Phase I study of peptide receptor radionuclide therapy with [111In-DTPA0]octreotide: the Rotterdam experience. Semin Nucl Med. 2002;32(2):110–22.View ArticlePubMedGoogle Scholar
  27. Hobbs RF, Song H, Huso DL, Sundel MH, Sgouros G. A nephron-based model of the kidneys for macro-to-micro α-particle dosimetry. Physics Med Biol. 2012;57(13):4403–24. doi:10.1088/0031-9155/57/13/4403.View ArticleGoogle Scholar
  28. Holm J, Hansen SI, Hoier-Madsen M, Bostad L. A high-affinity folate binding protein in proximal tubule cells of human kidney. Kidney Int. 1992;41(1):50–5.View ArticlePubMedGoogle Scholar
  29. Vegt E, de Jong M, Wetzels JF, Masereeuw R, Melis M, Oyen WJ, et al. Renal toxicity of radiolabeled peptides and antibody fragments: mechanisms, impact on radionuclide therapy, and strategies for prevention. J Nucl Med. 2010;51(7):1049–58. doi:10.2967/jnumed.110.075101.View ArticlePubMedGoogle Scholar
  30. Melis M, Krenning EP, Bernard BF, Barone R, Visser TJ, de Jong M. Localisation and mechanism of renal retention of radiolabelled somatostatin analogues. Eur J Nucl Med. 2005;32(10):1136–43. doi:10.1007/s00259-005-1793-0.View ArticleGoogle Scholar
  31. Macia IGM, Lucas Calduch A, Lopez EC. Radiobiology of the acute radiation syndrome. Rep Pract Oncol Radiother. 2011;16(4):123–30. doi:10.1016/j.rpor.2011.06.001.View ArticleGoogle Scholar
  32. Michalowski A. Effects of radiation on normal tissues: hypothetical mechanisms and limitations of in situ assays of clonogenicity. Radiat Environ Biophys. 1981;19(3):157–72.View ArticlePubMedGoogle Scholar
  33. Hall EJ, Giaccia AJ. Radiobiology for the radiologist. 7th ed. Philadelphia: Wolters Kluwer Health/Lippincott Williams & Wilkins; 2012.Google Scholar
  34. Dieterle F, Perentes E, Cordier A, Roth DR, Verdes P, Grenet O, et al. Urinary clusterin, cystatin C, β2-microglobulin and total protein as markers to detect drug-induced kidney injury. Nature Biotech. 2010;28(5):463–9. doi:10.1038/nbt.1622.View ArticleGoogle Scholar

Copyright

© Haller et al. 2016
