Abstract

Background

Heterogeneous ventilation in lungs of individuals with allergies, cigarette smokers, asthmatics and chronic obstructive pulmonary disease (COPD) patients has been demonstrated using imaging modalities such as positron emission tomography (PET), magnetic resonance imaging (MRI) and single-photon emission computed tomography (SPECT). These individuals suffer from narrow and/or closed airways to various extents. By calculating regional heterogeneity in lung ventilation SPECT images as the coefficient of variation (CV) in small elements of the lung, heterogeneity maps and CV-density curves can be generated and used to quantitatively measure heterogeneity. This work explores the potential to use such measurements to detect mild ventilation heterogeneities in lung-healthy subjects.

Method

Fourteen healthy subjects without documented lung disease or respiratory symptoms, and two patients with documented airway disease, inhaled on average approximately 90 MBq 99mTc-Technegas immediately prior to the 20-min SPECT acquisition. Variation in activity uptake between subjects was compensated for in resulting CV values. The area under the compensated CV density curve (AUC), for CV values greater than a threshold value CVT, AUC(CV > CVT), was used as the measure of ventilation heterogeneity.

Results

Patients with lung function abnormalities, according to lung function tests, generated higher AUC(CV > 20%) values compared to healthy subjects (p = 0.006). Strong linear correlations with the AUC(CV > 20%) values were found for age (p = 0.006) and height (p = 0.001). These demonstrated that ventilation heterogeneities increased with age and that they depend on lung size. Strong linear correlations were found for the lung function value related to indices of airway closure/air trapping, residual volume/total lung capacity (RV/TLC; p = 0.009), and diffusion capacity of the lung for carbon monoxide adjusted for haemoglobin concentration in the blood (DLCOc; p = 0.009), a value partly related to supposed ventilation/perfusion mismatch. These findings support the association between conventional lung function tests and the AUC(CV > 20%) value.

Conclusions

Among the healthy subjects, there is a group with increased AUC(CV > 20%) values, but with normal lung function tests, which implies that it might be possible to differentiate ventilation heterogeneities earlier in a disease process than by lung function tests.

Keywords

SPECT Quantitative evaluation Lung diseases Computer-assisted image analysis Respiratory function tests

Background

Single-photon emission computed tomography (SPECT) is increasingly used as a tool in respiratory research and clinical application. Quantitative lung SPECT has been shown to be useful for assessment of regional severity of emphysema [1],[2], aerosol deposition and clearance [3], ventilation and perfusion ratios [2],[4], early radiation-induced lung injury [5], regional perfusion and ventilation [6],[7], and of ventilation heterogeneity [8].

Heterogeneous, uneven or patchy ventilation in the lungs of individuals with allergies, cigarette smokers, asthmatics and COPD patients has been demonstrated using various imaging techniques such as positron emission tomography (PET), magnetic resonance imaging (MRI) and SPECT [9]–[15]. These patients suffer from narrow and/or closed airways by varying degrees. Narrowing of the airways is caused by inflammation, secretions and the shortening of muscle fibres around the bronchial walls, which obstructs airflow. Emami et al. [13] showed that asymptomatic smokers had a more heterogeneous ventilation distribution compared to healthy non-smokers. Patchiness can be caused by narrowing of both larger and smaller airways. Sovijarvi et al. [14] suggested that although larger asthmatic airways are dilated by isoprenaline inhalations, residual bronchial obstruction may still remain in some smaller airways, maintaining a heterogeneous distribution. Furthermore, Tgavalekos et al. [9] concluded that the heterogeneous and patchy distribution of ventilation in asthma patients is a manifestation of the complex behaviour of the airway system, rather than the independent behaviour of individual airways. Closure of the airways by air trapping occurs when the small airways, the bronchioles, collapse. According to Ozer et al. [16], air trapping can be present even before pulmonary function tests reveal abnormal results, or pulmonary symptoms become apparent. Possible causes of air trapping are aging, smoking and various obstructive diseases such as asthma [11],[16]. The severity of air trapping has been shown to increase with age and smoking [17].

Regional heterogeneity in lung ventilation SPECT images may be determined by calculating the coefficient of variation (CV) in small elements of the lung [8],[18]. Heterogeneity maps and density curves can then be generated based on the CV values. This method was used in earlier work, whereby density curves were evaluated using our proposed CVT method [8]. Using the revised method, the proportion of CV values greater than a threshold value CVT may be determined. The purpose of the CVT-method is to discriminate between activity distributions in the lungs of healthy subjects and subjects with affected ventilation. The method has been shown to be capable of identifying simulated mild COPD in an anthropomorphic phantom, and to differentiate patients with severe COPD from healthy subjects. The next step is to evaluate the ability of the CVT method to detect genuine abnormalities in subjects who are ‘borderline normal’, according to lung function tests. Since the outcome of a lung function test is a summation of the status of the whole lung, quite significant changes in lung function may occur before a deviation from the norm can be identified. A method that can reliably detect lung abnormalities earlier than lung function tests would therefore be beneficial.

This work explores the potential advantages of quantitative heterogeneity measurements by performing a pilot study of the CV measurements with healthy human subjects, i.e. those without documented lung disease, respiratory symptoms or lung function abnormalities. The outcome is discussed in relation to gender, age, lung size, subtle findings on lung function tests and reported allergies, and smoking history.

Methods

Human subjects

Fourteen human subjects were included who were without documented lung disease or respiratory symptoms, and who were more than 40 years old. The 14 subjects were examined by lung SPECT and lung function tests at the Department of Clinical Physiology, Linkoping University Hospital during 2012 to 2013. The subjects were also asked to fill in a health questionnaire. In addition, two patients with documented airway disease or pulmonary symptoms underwent the same examination procedure (referred to as P1 and P2 in Table 1). P1 suffered from asthma and homozygote alfa-1-antitrypsin deficiency and P2 had advanced COPD with emphysema, according to both lung function tests and high-resolution computed tomography (HRCT). Gender, age, height, weight, body mass index (BMI), smoking status, history of allergy and the result of lung function tests for these 16 subjects are presented in Tables 1 and 2. All subjects were informed and written consent was obtained. The regional Ethics Review Board in Linkoping approved the study protocol.
Table 1

Characteristics of the subjects in order of increasing AUC(CV > 20%) value

Subject

Gender

Age (year)

Height (cm)

Weight (kg)

Body mass index

Smoking status

Passive smoker

Allergy

Airways affected by allergic reaction

Lung function abnormalities (lung function tests)

AUC(CV > 9.5%) [%]

AUC(CV > 20%) [%]

S1

M

49

191

82

22.5

Never

No

Yesd

Upperj

Nom

76

29

S2

M

49

185

77

22.5

Never

No

Yese

Upperj

No

77

30

S3

M

50

190

85

23.5

Never

No

Yesf

Upperj

No

78

30

S4

M

48

187

75

21.4

Never

Yesa

No

-

No

77

31

S5

M

50

178

72

22.7

Never

No

No

-

No

78

33

S6

M

69

181

100

30.5

Never

Yesa

No

-

No

78

34

S7

M

60

188

85

24.0

Current

-

No

-

Non

78

34

S8

F

65

177

66

21.1

Current

-

Yesg

Lowerk

No

80

34

S9

F

51

170

85

29.4

Never

Yesa

No

-

No

78

36

S10

M

75

175

92

30.0

Never

No

Yesh

Upperj

Noo

79

39

S11

M

73

175

77

24.9

Ex-smoker

-

No

-

No

80

41

S12

F

67

172

78

26.4

Never

Yesb

No

-

Nop

83

47

S13

F

67

167

79

28.3

Never

Yesc

Yesi

Lowerl

Noq

84

47

P1

M

55

176

85

27.4

Never

-

-

-

Yeso,r,s

83

43

P2

M

81

167

58

20.8

Ex-smoker

-

-

-

Yes

90

61

a20 years during childhood; b14 years during childhood and occupational; c10 years occupational; dgrass, pollen and dust; efur animals and grass; ffur animals and pollen; gstrong fragrances; hcat and chocolate; ibirch pollen, timothy, grass, nuts, penicillin and sulfonamide; jrhinoconjunctivitis; kcough; lshortness of breath; msubject medicated with nasal spray of Budesonide at time of examination; nbased on FEV1, FVC, FEV1/FVC, TLC and RV without bronchodilation; obased on DLCOc before and FEV1, FVC, FEV1/FVC, TLC and RV after bronchodilation; ppossible early signs of emphysema based on a reduced DLCOc value (see Table 2) and an elevated haemoglobin concentration in the blood; qbased on FEV1, FVC and FEV1/FVC without bronchodilation; rsubject medicated with inhalation of Budesonide and Formoterol in combination at time of examination; smoderate obstruction and signs of reversibility.

Table 2

Lung function values of subjects S10 to S13 and P1 to P2

Subject

FEV1 (% pred)

FVC (% pred)

FEV1/FVC (% pred)

TLC (% pred)

RV (%pred)

RV/TLC (%pred)

DLCOc (%pred)

Significant (≥12%) change of FEV1 after bronchodilator

AUC(CV > 20%) [%]

S10

125

119

107

-

-

-

85

No

39

S11

114

114

102

103

96

93

95

No

41

S12

89

91

98

106

128

120

76

No

47

S13

91

94

98

-

-

-

-

-

47

P1

79

107

74

-

-

-

85

Yes

43

P2

40

57

72

132

214

165

38

No

61

Subjects with AUC(CV > 20%) values of more than 37%. Subjects S10 to S13 are listed in order of increasing AUC(CV > 20%) value. FEV1, forced expiratory volume over one second; FVC, forced vital capacity; TLC, total lung capacity; RV, residual volume; DLCOc, single breath dilution carbon monoxide test adjusted for haemoglobin concentration in the blood. Lung function values without bronchodilator use are reported as percentage of predicted reference values (% pred).

Health questionnaire

The questionnaire covered pulmonary symptoms, smoking history, history of health checks and hospitalisations, allergies, hypersensitivity and medications.

Lung function tests

The lung function tests consisted of:

Dynamic flow rate and static lung volume measurements before and after inhalation of bronchodilator (Salbutamol, 1.6 alt 0.8 mg):

FEV1: forced expiratory volume over 1 s

FVC: forced vital capacity

RV: residual volume

TLC: total lung capacity

Based on these results, the ratios FEV1/FVC and RV/TLC were determined.

DLCOc: gas exchange across alveolar capillary membrane (without bronchodilator). This is measured by means of single breath test of diffusion capacity for carbon monoxide adjusted for haemoglobin concentration in the blood.

The measurements were performed according to the ATS criteria [19]–[21]. The measurements were performed and documented using a Jaeger MasterScreen (Body and Diffusion) (CareFusion Germany 234 GmbH, Hoechberg, Germany). A nose clip was used during all lung function tests. Previously published reference values for gender, age and height were used [22],[23], according to clinical routine. In Table 2, lung function values recorded without previous bronchodilation are given as percentage of predicted reference values, e.g. FEV1 % predicted. One experienced physician evaluated the data of the lung function tests, blinded to the results of this quantitative SPECT-study and also blinded to the identity of the subjects and patients.

Ventilation SPECT, acquisition and reconstruction

The lung SPECT examinations were performed as described previously [8]. Briefly, starting from functional residual capacity, the subjects took a deep inhale of Technegas and held their breath for 2 to 5 s and then exhaled. If necessary, this procedure was repeated. On average, approximately 90 MBq of Technegas was deposited in the lungs of each subject. The subjects inhaled the gas in a supine position, and a ventilation SPECT was immediately acquired in the same position, using a low-energy high-resolution collimator on a GE Infinia (Milwaukee, WI, USA). A low-dose computed tomography (CT) scan was also performed in the same position using the X-ray source and detector mounted on the gamma camera. The effective dose for this protocol is estimated to be 3.1 mSv (1.3 mSv for SPECT [24] and 2 mSv for CT), which required a total acquisition time of 25 min.

Three-dimensional (3D) SPECT images were reconstructed using the iterative ordered subset expectation maximisation reconstruction software developed at Johns Hopkins University, Baltimore, MD, USA. The reconstruction included correction for attenuation, scatter and collimator detector response (CDR). The CT scans were used for attenuation correction. Scatter correction was performed using the effective source scatter estimation (ESSE) [25],[26]. An analytic, geometrical model for CDR compensation was used. Reconstructions were performed using four iterations and 16 subsets [27]. The side length of the cubic voxels in the reconstructed image was 3.45 mm. The reconstructed images were post-filtered using a Butterworth filter [28] with a cut-off frequency of 0.6 cm−1 and a power of 6.

Defining the extension of the lung and sub-volumes

To define the extension of the lung, a semi-automated procedure was used for each subject based on the individual CT acquisition and an empirical linear attenuation coefficient threshold value of 0.12 cm−1. This segmented lung volume was used for analysis unless otherwise stated. An inner volume of interest was created by eroding the outer boundary of the segmented lung by three voxels [29]. The outer volume of interest was created by subtracting the inner volume from the original, segmented lung.

Method for analysis of heterogeneities

The density curve and the CV-based measure

The density curve method applied has been described in detail previously [8]. Briefly, the coefficient of variation (CV) is calculated for overlapping cubic volumes (1 cm3) covering the 3D reconstructed activity distribution in the segmented lung, creating a 3D CV matrix. The variation of activity uptake between subjects was compensated for in the calculation of CV values, based on the assumption that each subject had a healthy lung volume and that the healthy volumes in all subjects should generate equivalent CV values (for a detailed description, see the Appendix). The compensated CV values of the matrix were plotted as density curves (normalised CV distributions) with an area under the curve (AUC) of 100%, for each subject. A CV-threshold value was defined, CVT. The area under the density curve (AUC) for CV values greater than the threshold value was then calculated for all subjects, i.e. AUC(CV > CVT).

Statistics

Linear regression analysis was used to determine associations between AUC(CV > CVT) and the explanatory variables age, height, BMI, smoking status and allergy, respectively. The assumptions for linear regression analysis were verified (normality and constant variance among the residuals). Linear correlations were also determined in the same way for AUC(CV > CVT) and each of the lung function values recorded in healthy subjects: RV, RV/TLC and DLCOc. Lung function values recorded without previous bronchodilation and expressed in non-normalised values, i.e. not % predicted, were used to compare with AUC(CVT) data, since lung SPECT examinations were performed and expressed accordingly. Furthermore, the relationship between lung function abnormalities (yes or no, according to interpreted lung function tests) and the AUC(CV > CVT) value was assessed in the same manner; but in this case, both healthy subjects and patients were included.

Results

The 13 subjects (S1 to S13) included in the analysis are listed in Table 1, together with corresponding values for patient P1 and P2. One subject, who did not successfully inhale an adequate amount of Technegas, was excluded. In general, the youngest and tallest non-smokers (who never smoked) in the study generated the lowest AUC(CV > CVT) values (S1 to S4). Thereafter, the AUC(CV > CVT) value increased with age and decreasing height. Finally, the highest AUC(CV > CVT) values were found in the subject with signs of lung function abnormalities (subject S12) and in the two patients (P1 and P2) who had documented lung diseases.

The density curves for subjects S1 to S4 were plotted in Figure 1a. A mean density curve was subsequently constructed based on these subjects (hereafter called the mean curve). Subjects S1 to S4 were well represented by the mean curve. These subjects were all males in the same age (48 to 50 years), height (185 to 191 cm) and weight (75 to 85 kg) brackets. All had never smoked, and had normal lung function. Subjects S1 to S3 reported allergies to dust, grass, birch pollen or fur animals, but with manifestations in the upper respiratory tract only (i.e. rhinitis with or without conjunctivitis). Subject S4 reported no allergies. Subject S1 had symptoms of rhinitis, and was medicated with nasal spray of Budesonide, at the time of examination. Based on the mean curve and the CVT method from earlier studies [8],[27], we defined CVT = 9.5% as the mode of the mean curve, and calculated and listed the AUC(CV > 9.5%) for all subjects and patients in Table 1.
Figure 1

Density curves for low AUC(CV > 20%) subjects and patients (P1 and P2). (a) Density curves corresponding to subject S1 (solid line), S2 (dotted line), S3 (dashed line) and S4 (dashed-dotted line), together with their constructed mean curve in green. (b) Density curves of patient P1 (dotted line) and P2 (dashed line) together with the mean curve (green line). AUC for CV values greater than 20%, i.e. AUC(CV > 20%), for the mean curve is marked as light green.

The density curves of the patients P1 and P2 are substantially different from the mean curve, as shown in Figure 1b, especially for patient P2, with advanced COPD. The density curve of P1, a patient with documented airway disease, is associated with a larger proportion of high CV values compared to the mean curve, but is not as pronounced as the density curve of P2. Based on Figure 1b, an additional threshold value was defined, CVT= 20%, approximately at the point where the patient curves and the mean curve intersect. AUC(CV > 20%) values were calculated for all subjects and patients, and are listed in Table 1. AUC(CV > 20%) for the mean curve is marked as light green in Figure 1b. Since AUC(CV > 20%) resulted in a favourably larger range (29% to 47%) compared to the range of AUC(CV > 9.5%) values (76% to 84%) for the included healthy subjects, CVT = 20% was used hereafter. Listing the subjects in order of increasing AUC(CV > 9.5%) value would introduce shifts between adjacent subjects in Table 1, which implies the chosen threshold has only a minor affect on outcome.

The remaining healthy subjects were divided into two groups, S5 to S9 and S10 to 13, depending on their density curves, which are shown in Figure 2a,b, respectively. The density curves of subjects S5 to S9 exhibited small differences from the mean curve. This group consisted of subjects with a broader range of characteristics compared to subjects S1 to S4; males and females, aged 50 to 69 years, with a height range of 170 to 188 cm and a weight range of 66 to 100 kg. All subjects in this group had normal lung function, but were current smokers or never smoked and were with or without an allergy. Subject S8 reported hypersensitivity to nickel and strong fragrances. The latter associated with symptoms from the lower respiratory tract (coughing), but at the time of examination, no such symptoms occurred. In contrast, the density curves of subjects S10 to S13 displayed larger differences from the mean curve. This group was also more heterogeneous regarding their characteristics and consisted of males and females, aged 67 to 75 years, with a height range of 167 to 175 cm and a weight range of 77 to 92 kg. They were ex-smokers or had never smoked and were with or without stated allergies. None of these subjects with reported allergies had symptoms at the time of examination. The results of thorough lung function tests were interpreted as normal, with or without early signs of lung function abnormalities. Results of lung function testing of subjects S10 to S13 and P1 and P2 are presented in Table 2.
Figure 2

Density curves for intermediate-AUC(CV > 20%) subjects (S5-S9) and high-AUC(CV > 20%) subjects (S10 to S13). (a) Five density curves corresponding to intermediate AUC(CV > 20%) values; subject S5 (solid line), S6 (dotted line), S7 (dashed line), S8 (dashed-dotted line) and S9 (dashed-dotted-dotted line), together with the mean curve (green line). (b) Four density curves corresponding to the highest AUC(CV > 20%) values of subjects; subject S10 (solid line), S11 (dotted line), S12 (dashed-dotted line) and S13 (dashed line), together with the mean curve (green line).

Significantly higher AUC(CV > 20%) values were found for subjects with abnormal lung function tests compared to those with normal test results (p = 0.006). Strong linear correlations were found between the AUC(CV > 20%) value and height and age, respectively, for the 13 healthy subjects, listed in Table 3 and plotted in Figure 3. Sixty-seven percent (see r2 in Table 3) of the variation in AUC(CV > 20%) can be explained by height and 51% by age. The correlations were statistically significant between AUC(CV > 20%) and both height (p = 0.001) and age (p = 0.006). For each centimetre increase in height, AUC(CV > 20%) decreased by an average of 0.61 (0.33 to 0.90) units (see B in Table 3). For each additional year of life, the AUC(CV > 20%) value increased by an average of 0.41 (0.15 to 0.68) units. The lung function values RV/TLC and DLCOc were also found to have strong linear correlations with AUC(CV > 20%), also with high statistical significance (p = 0.009) (see Table 3 and Figure 3c,d). Ten and 11 of the healthy subjects (in Table 1) had DLCOc and RV/TLC, respectively, measured before treatment with bronchodilator, and were therefore included in the analysis. Males on average had lower AUC(CV > 20%) values than females (p = 0.034). No statistically significant differences were found between subjects who never smoked, current smokers and ex-smokers. However, there was a tendency for ex-smokers to have higher AUC(CV > 20%) values compared to non-smokers and current smokers. No difference between healthy subjects with or without stated allergies was observed, but in a sub-group analysis among subjects with allergies, a tendency of higher AUC(CV > 20%) values was found for subjects with symptoms from the lower respiratory tract, compared to the upper respiratory tract. No correlation with AUC(CV > 20%) was found for BMI or RV.
Table 3

Univariate linear regression analysis

Variables

r

B with 95% CI

r 2

p

n

Height (cm)

−0.82

−61 (−90,−33)

0.67

0.001

13

DLCOc (mmol min−1 kPa−1)

−0.77

−1.9 (−3.2, −0.6)

0.60

0.009

10

RV/TLC (%)

0.74

0.57 (0.18, 0.97)

0.55

0.009

11

Age (years)

0.72

0.41 (0.15,0.68)

0.51

0.006

13

Analysis of the correlation of the AUC(CV > 20%) value with height, age and lung volumes related to closed airways and air trapping (RV/TLC) and ventilation/perfusion mismatch (DLCOc), respectively. Only lung function values obtained without bronchodilator of healthy subjects were used in the analysis. The results are listed in order of decreasing absolute value of the Pearson's correlation coefficient, r. B is the gradient of the regression line, given together with lower and upper boundary of the 95% confidence interval. The coefficient of determination, r2, the associated significance value, p, and the number of healthy subjects, n, included in the calculations are also included.

Figure 3

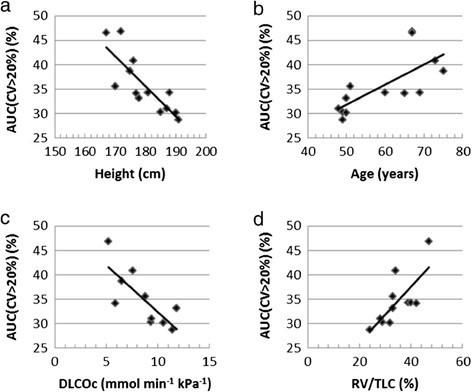

Correlation between AUC(CV > 20%) and (a) height, (b) age, (c) DLCOc and (d) RV/TLC. For subjects (S1 to S13). Spread of data to the regression line is shown for each parameter in (a-d).

One of the strengths of image-based methods is the ability to visualise where quantified heterogeneities are situated. To illustrate where different CV values are generally positioned, we show CV values below 9.5% as green, between 9.5% and 20% as yellow and above 20% in red, for two subjects (Figure 4). Areas in green and yellow are in the peak of the mean curve and are found in the centre of the lung for both subjects. Due to the moderate spatial resolution of the gamma camera system, (false) high CV values are generated in the periphery of the lung of a healthy subject (the periphery or edge effect [8]). Therefore, red areas are found in the periphery of the lungs of both subjects, but a larger proportion is found in subject S12 compared to subject S1.
Figure 4

Coronal slices of CV matrices for subjects S1 and S12. CV slices with CV values below 9.5% in green, between 9.5% and 20% in yellow and above 20% in red for subject S1 to the left and subject S12 to the right.

To illustrate the differences in the CV distributions of the inner and outer volume of the segmented lung for subject S12, we created two density curves based on each sub-volume. For comparison, the same procedure was applied to the mean density curve (Figure 5). The main difference in the CV distributions of the mean curve for subjects S1 to S4 and S12 is a shift of CV values in the outer volume, but not in the inner volume. For subject S12, the outer volume is 60% of the total volume, and 50%, 51%, 53% and 56% for the subjects used to calculate the mean curve.
Figure 5

Entire, inner, peripheral density curves for mean (S1 to S4) and S12, and coronal inner/peripheral contours. The segmented lung divided into inner and outer volumes, (a) the mean density curve (solid green line), and its inner (light green area), and outer (dark green area) volume components, as well as the S12 density curve (solid black line), and its inner (black dashed line) and outer (black dash-dotted line) volume components. (b) Coronal slices of the CV matrix for S1 (left, used to calculate the mean) and S12 (right). Contours indicate the inner and outer volumes.

Discussion

In this study, we used a previously reported CVT method [8] and introduced an adaptation that compensates for subject-to-subject variation, making the CV values from healthy lung volumes of different subjects comparable. This adaptation makes it possible to better evaluate the ability of the CVT method to discriminate between subjects with less pronounced differences in ventilation heterogeneity. In a previous study, we showed that significantly higher AUC(>mode) values resulted from patients with severe COPD, compared to healthy subjects who had never smoked [8]. Therefore, we expect subjects with gradually less altered lung function to generate gradually lower AUC(CV > 20%) values. We found the result of this pilot study very promising since the list of subjects placed in order of increasing AUC(CV > 20%) value (Table 1), calculated with the improved method, supports this idea.

In this study, we have shown that patients (P1 and P2) generated significant higher AUC(CV > 20%) values compared to healthy subjects (S1 to S13) (p = 0.006), which is consistent with the result of a previous study [8]. Subjects S10 to S13 showed deviating density curves compared to the mean curve (calculated from subjects S1 to S4), and consequently higher AUC(CV > 20%) values, without abnormalities detected by lung function tests. This implies that it might be possible to detect ventilation heterogeneities by the AUC(CVT) method earlier in a disease process than by lung function tests. The fact that one of the 13 healthy subjects, who exhibited possible early signs of emphysema (S12), also showed abnormal AUC(CV > 20%), tends to support the notion that the AUC(CVT) method is more sensitive to minor pulmonary abnormalities than conventional lung function tests.

Despite the low sample size in this pilot study, a group of subjects was identified who never smoked and were of the same gender (male), age bracket (48 to 50 years) and physique (height 185 to 191 cm and weight 75 to 85 kg), namely subjects S1 to S4 (Table 1). These subjects displayed the lowest AUC(CV > 20%) values. Three of them (S1 to S3) had allergies with symptoms from the nose only, i.e. the upper respiratory tract, occurring seasonally or after allergen exposure. Therefore, we assume that the reported allergies had no impact on the outcome of the lung function tests or lung SPECT examinations. Subjects S2 and S3 had no symptoms at the time of examination; however, S1 suffered from persistent but subtle symptoms (rhinitis) and this was treated with nasal spray of a corticosteroid at the time of spirometry and lung SPECT examinations.

Lung function values are normalised to a reference distribution depending on gender, age and height. This study has shown that AUC(CV > 20%) also has a dependence on age and height.

Aging is associated with increased chest wall stiffness [30] and an increase in residual volume, which reduces the vital capacity. The effect of aging on lung tissue is an increase in lung compliance, which results in reduced parenchymal recoil on the airways, reducing airway calibre and increasing airway closure and gas trapping [16],[17],[30]. Such changes would result in a more uneven ventilation distribution in an older, healthy subject, compared to a younger, healthy one, which corresponds to an increasing AUC(CV > 20%) value with age. The proposed method confirms this expected increase in AUC(CV > 20%) with age, compatible with the notion of age-dependent alterations of lung compliance (see Table 3).

The geometrical resolution of the SPECT system is limited; and therefore, high CV values will always be found in the periphery of the lung, even in subjects with a healthy lung (Figure 4). This periphery effect results in a size dependence of the AUC(CV > 20%) value, since the peripheral volume of the small lungs is a larger proportion of the total lung volume, compared to the larger lungs (cf. Figure 4). Therefore, small lungs would generate a larger proportion of high AUC(CV > 20%) values compared to larger lungs. Generally, a short person has smaller lungs than that of a taller person. This study demonstrated the expected decrease of AUC(CV > 20%) values with increasing height (see Table 3). Since the lung SPECT examination is performed with the subject in supine position, the volume of the lung should also depend on how much pressure is placed on the diaphragm by the abdomen. This effect would be greater for subjects with a larger BMI. This study, however, found no BMI dependence.

Generally, as in this study, males are taller than females, which might explain why, on average, males resulted in lower AUC(CV > 20%) values than females. The possibility to analyse the outer part of the lungs separately makes it possible to discriminate between healthy and non-healthy distributions in this region (see Figures 4 and 5).

We found a strong correlation between AUC(CV > 20%) and RV/TLC, as well as between AUC(CV > 20%) and DLCOc (see Table 3). The former supports the value of measuring heterogeneities in ventilation lung SPECT images, since this lung function parameter measure the volume with closed airways and air trapping (RV/TLC). The fact that all CV-density curves are normalised to generate the same total area under the curve (100%), might explain why RV/TLC, but not RV per se, showed a strong association with AUC(CV > 20%). One might argue that these correlation studies would speak against the value of lung-SPECT measurements in comparison to lung function testing. However, in this context, it is important to note that all except one of the subjects (S12) was considered fully ‘normal’ by a physician, who is a recognised expert on lung function tests. Furthermore, lung SPECT provides the possibility to visualise the location of the malfunctioning volumes in the lungs (see Figures 4 and 5), unlike lung function tests.

Smoking may lead to increased sputum production, decreased ciliary movement, inflammation of both large and small airways, constriction of the encircling smooth muscle and collapsed airways, resulting in obstructed airways and air trapping [16],[17]. Also, involuntary exposure of non-smokers to tobacco smoke has a negative effect on the lungs, especially for exposed children [31]. Such changes would result in a more uneven ventilation distribution compared to healthy subjects who never smoked [13] and therefore an increased AUC(CV > 20%) value. In this small pilot study, we found a tendency of ex-smokers to have a higher AUC(CV > 20%) value than subjects who never smoked and current smokers.

Allergies with symptoms in the upper respiratory tract, such as allergic rhinitis, is not expected to affect the AUC(CV > 20%) value, while allergies with symptoms in the lower respiratory tract may well, at least during allergy season or after allergen exposure. According to Hens and Hellings, the increasing recognition over recent decades that allergic rhinitis and allergic asthma frequently co-exist has led to the concept of ‘united airways’, and that these disorders are manifestations of the same disease expressed to a greater or lesser extent in either the upper or the lower airways [32]. In some patients, rhinitis predominates and asthma is undiagnosed or sub-clinical; in others, the situation is reversed, while in many cases, both are clinically expressed [33]. In a sub-group analysis among subjects with allergies, a tendency of higher AUC(CV > 20%) values was found for subjects with symptoms from the lower respiratory tract compared to that of the upper respiratory tract.

In this work, Technegas was inhaled with a single full inhalation, but subsequent imaging was performed with the subject breathing normally in supine position. This resulted in a higher activity region in the posterior parts of the lung; the so called ‘rind effect’, caused by gravity compressing the posterior airways that increased the measured CV values in this region. Schembri et al. [34] noted that the ‘rind effect’ was reduced when imaging was done in prone position and with tidal breathing during ventilation. Inhaling the Technegas as a normal breath (with a 5-s breath-hold) might therefore reduce this ‘rind effect’ and thus its effect on the CV values. No attempt was made to exclude possible ‘hot spots’ caused by turbulence in the conducting airways, since ‘hot spots’ are rare in healthy subjects.

One limitation of this study is the low number of participants, and consequently a single observation had a large impact on the linear correlation. With a larger number of subjects with different smoking histories and subjects with allergy symptoms from both the upper and lower respiratory tract, the tendencies found in this pilot study might find statistical significance. The information of possible air trapping and emphysema from HRCT could have been beneficial for this study. The relatively high effective dose from this procedure prevented us from performing HRCT on the healthy subjects.

Conclusion

Using the adapted CVT method, with the newly implemented compensation technique, we showed that patients with lung function abnormalities detected by conventional lung function tests generated significantly higher AUC(CV > 20%) values compared to healthy subjects with normal lung function tests (p = 0.006). Increased AUC(CV > 20%) values were also detected among subjects who had normal lung function tests but indications of conditions associated with ventilation disturbances. The results suggest that our present SPECT method has the capacity to identify minor lung function abnormalities earlier in a disease process than conventional lung function tests. Our positive findings have provided the motivation to extend this pilot study to a full study with a larger number of subjects.

Appendix

The compensation method

Our main objective was to adapt an existing method, which is based on the coefficient of variation, CV, to be able to differentiate between varying grades of ventilation heterogeneities in healthy human subjects, according to lung function tests. In both this study and earlier work [8], it was found that for healthy subjects, the positioning of the calculated CV density curves on the CV axis varied to such an extent that it was impossible to discriminate between small heterogeneity variations between subjects (see Figure 6a). Monte Carlo simulations and various predefined activity distributions in a phantom lung were used to analyse properties of the density curve. We tested the density curves for different types of distributions, based on either an entirely uniform (homogeneous) activity distribution, or a partly uniform/partly heterogeneous activity distribution. We noticed that they had the same starting point on the CV axis and the same mode value of their density peaks, provided that the number of 99mTc particles per unit volume in the uniform (‘healthy’) parts of the lungs was the same (see Figure 6b). A simulated density curve of an activity distribution with no uniform regions does not show this pattern (see red line in Figure 6b). The density curves in Figure 6b also illustrate that the low CV values, positioned in the density peaks of the ‘healthy’ and ‘partly healthy’ lungs (black lines in Figure 6b) correspond to the uniform part of the activity distributions, while the heterogeneous parts of the activity distributions are represented by higher CV values.
Figure 6

Density curves, uncompensated for subjects and simulated for phantom activity distributions. (a) Density curves of the 14 examined healthy subjects: S1 to S4 (green) and S5 to S13 (black), together with the excluded subject (black dash-dott-dott-dotted) and the two patients (red). (b) Density curves based on the phantom lung activity distributions that were entirely uniform (solid black line), partly uniform/partly heterogeneous (dotted black line) (with equal activity concentration in the healthy, uniform regions), and entirely heterogeneous (red line).

The CV values for a uniform activity distribution depend on the number of 99mTc particles per unit volume (activity concentration). Density curves for the central voxels (with the periphery effect excluded) of two uniform activity distributions with different concentration levels can be transformed to the same shape and position on the CV axis as that corresponding to the highest activity concentration. This is done by multiplying the CV values of the density curve for the lower activity concentration by the ratio of the mode values of the respective density curves (see Equation 1).
A high T 99 m c concentration = A low T 99 m c concentration M high T 99 m c concentration M low T 99 m c concentration
(1)

where A is the vector of CV values generating the density curve and M is the mode value. The indices ‘high’ and ‘low’ indicate the level of activity concentration.

A phantom lung was used with spherical regions of reduced activity, compared to the surroundings [8]. The original density curves are asymmetric, with a distinct peak at low CV values (corresponding to the healthy parts of the lung) and a tail at higher CV values (corresponding to the heterogeneities). By reducing the activity, the density curve becomes a symmetric bell (Figure 7). This change in shape is caused by the gradual ‘loss of information’ by the SPECT system due to the increase in statistical noise. If Equation 1 were applied to transform the density curve based on a low to a higher average particle concentration, it would not fully succeed. This is because the tail end, containing the heterogeneity information, cannot be restored (see Figure 7); the transformed CV distribution would look like that of a uniform activity distribution. Furthermore, when transforming a density curve based on a high to a lower average particle concentration, the resulting density curve would contain too long a tail of CV values. Therefore, any transformation has to be performed with caution.
Figure 7

Density curves for a phantom lung with heterogeneities, with decreasing activity levels. Density curves based on three decreasing average number of 99mTc particles per unit volume are shown, with the highest (left solid line), middle (centre dotted line) and the lowest (right dashed line).

The compensation method we propose is an attempt to compensate for subject-to-subject variation in activity uptake, and is based on the observations described above. The basic assumption is that each subject has a healthy lung volume that is large enough to generate a distinct peak in the density curve. Since the aim of the study was to find mild ventilation heterogeneities in subjects with normal lung function, according to lung function tests, we assume that subjects with no healthy lung regions are rare.

The compensation procedure was performed in two steps. First, a shift of all density curves was made so that the left flank of the density curves passed through a well-chosen point in the plot, namely a density of 0.5% at 3 CV% (hereafter called the fix point). This point was chosen because many of the uncompensated density curves passed close to this point (Figure 6a). A hypothetical healthy subject with a density curve resembling the mean curve, as defined in the results of this study, that intersects the fixed point is referred to here as the norm. This curve needs no compensation. Secondly, a transformation of the shape of the density curves was performed according to Equation 2.
A compensated = A shifted 9.5 9.5 shift
(2)

where Acompensated is the vector of CV values generating the compensated density curve and Ashifted is the shifted CV vector. The mode value of the mean curve defined in the ‘Results’ section is 9.5%. The shift is negative if the subject has a lower activity concentration in its healthy regions compared to the norm.

Compensations according to Equation 2 result in less pronounced changes in the shape of the density curve compared to using Equation 1. The density curves of subject S13, before and after compensation, are shown in Figure 8a. In this case, the effect of the compensation was small. The effect of the compensation can sometimes be too large, even though we have chosen a compensation method that has a lower impact on the density curve compared to that using Equation 1. Therefore, there is a limiting minimum activity concentration for which the compensation method is useful. This is illustrated in Figure 8b. The subject was excluded from the study due to a relatively low concentration of 99mTc particles in the lungs. When the proposed compensation method was applied to the density function of this subject, the resulting AUC(CV > 20%) value was even lower than that for the subjects representing the mean curve. This is a misleading result.
Figure 8

Density curves before and after compensation for (a) S13 and (b) S (excluded); both with mean (S1 to S4). For both subjects, curves are shown for before (black dashed line), after (black solid line) compensation, together with the compensated mean curve (green solid line). The subject in (b) was excluded due to a relatively low concentration of Tc particles per unit volume in the lung.

Abbreviations

AUC:

area under the curve

AUC(CVT):

area under the curve for CV values greater than CVT

BMI:

body mass index

CDR:

collimator-detector response

COPD:

chronic obstructive pulmonary disease

CV:

coefficient of variation

CVT

CV threshold value

DLCOc:

diffusion capacity of the lung for carbon monoxide adjusted for haemoglobin concentration in the blood

ESSE:

effective source scatter estimation

FEV1:

forced expiratory volume in one second

HRCT:

high-resolution computed tomography

RV:

residual volume

SPECT:

single-photon emission computed tomography

TLC:

total lung capacity

FVC:

forced vital capacity

Declarations

Acknowledgements

This work has been conducted within the Center for Medical Image Science and Visualization (CMIV) at Linköping University, Sweden. CMIV is acknowledged for provision of financial support and access to a leading edge research infrastructure. Reconstruction software developed at John Hopkins University, Baltimore, USA, has been used in this work. Financial support was provided by the County Council of Östergötland, Sweden (ALF 2013-2014; grants to AG, BS and HLP), the Medical Research Council of Southeast Sweden (FORSS 2013; grant to AG) and Lions research fund for common diseases, Sweden (2013; grant to PN). The required scatter kernel files for the ESSE model were generated by Michael Ljungberg from Lund University, Sweden. Furthermore, the authors thank the staff of the Department of Clinical Physiology, County Council of Östergötland, Linköping, Sweden, especially Julia Studeny, Helene Brundin and Gunvor Josefsson for acquisition of SPECT data and performing the lung function tests.

Authors’ Affiliations

(1)
Medical Radiation Physics, County Council of Östergötland
(2)
Center for Medical Image Science and Visualization (CMIV), Linköping University
(3)
Department of Respiratory Medicine and Department of Medical and Health Sciences, Linköping University
(4)
Department of Clinical Physiology and Department of Medical and Health Sciences, Linköping University
(5)
Department of Medical and Health Sciences, Linköping University
(6)
Department of Computer and Information Science, Linköping University
(7)
Department of Medical Physics, Karolinska University Hospital

References

  1. Nagao M, Murase K, Ichiki T, Sakai S, Yasuhara Y, Ikezoe J: Quantitative analysis of Technegas SPECT: evaluation of regional severity of emphysema. J Nucl Med 2000, 41: 590–595.PubMedGoogle Scholar
  2. Suga K, Kawakami Y, Koike H, Iwanaga H, Tokuda O, Okada M, Matsunaga N: Lung ventilation-perfusion imbalance in pulmonary emphysema: assessment with automated V/Q quotient SPECT. Ann Nucl Med 2010, 24: 269–277. 10.1007/s12149-010-0369-7View ArticlePubMedGoogle Scholar
  3. Eberl S, Chan HK, Daviskas E: SPECT imaging for radioaerosol deposition and clearance studies. J Aerosol Med 2006, 19: 8–20. 10.1089/jam.2006.19.8View ArticlePubMedGoogle Scholar
  4. Sando Y, Inoue T, Nagai R, Endo K: Ventilation/perfusion ratios and simultaneous dual-radionuclide single-photon emission tomography with krypton-81 m and technetium-99 m macroaggregated albumin. Eur J Nucl Med 1997, 24: 1237–1244. 10.1007/s002590050147View ArticlePubMedGoogle Scholar
  5. Zhang W, Wang J, Tang M, Pan J, Bai P, Lin D, Qian F, Lin F, Yang X, Zhang S: Quantitative study of lung perfusion SPECT scanning and pulmonary function testing for early radiation-induced lung injury in patients with locally advanced non-small cell lung cancer. Exp Ther Med 2012, 3: 631–635.PubMed CentralPubMedGoogle Scholar
  6. Petersson J, Rohdin M, Sanchez-Crespo A, Nyren S, Jacobsson H, Larsson SA, Lindahl SG, Linnarsson D, Glenny RW, Mure M: Paradoxical redistribution of pulmonary blood flow in prone and supine humans exposed to hypergravity. J Appl Physiol 2006, 100: 240–248. 10.1152/japplphysiol.01430.2004View ArticlePubMedGoogle Scholar
  7. Ax M, Karlsson LL, Sanchez-Crespo A, Lindahl SG, Linnarsson D, Mure M, Petersson J: Regional lung ventilation in humans during hypergravity studied with quantitative SPECT. Respir Physiol Neurobiol 2013, 189: 558–564. 10.1016/j.resp.2013.08.007View ArticlePubMedGoogle Scholar
  8. Norberg P, Persson HL, Carlsson GA, Bake B, Kentson M, Sandborg M, Gustafsson A: Quantitative lung SPECT applied on simulated early COPD and humans with advanced COPD. EJNMMI Res 2013, 3: 28. 10.1186/2191-219X-3-28PubMed CentralView ArticlePubMedGoogle Scholar
  9. Tgavalekos NT, Musch G, Harris RS, Vidal Melo MF, Winkler T, Schroeder T, Callahan R, Lutchen KR, Venegas JG: Relationship between airway narrowing, patchy ventilation and lung mechanics in asthmatics. Eur Respir J 2007, 29: 1174–1181. 10.1183/09031936.00113606View ArticlePubMedGoogle Scholar
  10. Altes TA, Powers PL, Knight-Scott J, Rakes G, Platts-Mills TA, de Lange EE, Alford BA, Mugler JP 3rd, Brookeman JR: Hyperpolarized 3He MR lung ventilation imaging in asthmatics: preliminary findings. J Magn Reson Imaging 2001, 13: 378–384. 10.1002/jmri.1054View ArticlePubMedGoogle Scholar
  11. Samee S, Altes T, Powers P, de Lange EE, Knight-Scott J, Rakes G, Mugler JP 3rd, Ciambotti JM, Alford BA, Brookeman JR, Platts-Mills TA: Imaging the lungs in asthmatic patients by using hyperpolarized helium-3 magnetic resonance: assessment of response to methacholine and exercise challenge. J Allergy Clin Immunol 2003, 111: 1205–1211. 10.1067/mai.2003.1544View ArticlePubMedGoogle Scholar
  12. Venegas JG, Winkler T, Musch G, Vidal Melo MF, Layfield D, Tgavalekos N, Fischman AJ, Callahan RJ, Bellani G, Harris RS: Self-organized patchiness in asthma as a prelude to catastrophic shifts. Nature 2005, 434: 777–782. 10.1038/nature03490View ArticlePubMedGoogle Scholar
  13. Emami K, Hamedani H, Kadlecek S, Han B, Xin Y, Ishii M, Rossman M, Rizi RR: Hyperpolarized gas fractional ventilation imaging study in healthy subjects, asymtomatic smokers and obstructive pulmonary disease patients- preliminary results. 2013.Google Scholar
  14. Sovijarvi AR, Poyhonen L, Kellomaki L, Muittari A: Effects of acute and long-term bronchodilator treatment on regional lung function in asthma assessed with krypton-81 m and technetium-99 m-labelled macroaggregates. Thorax 1982, 37: 516–520. 10.1136/thx.37.7.516PubMed CentralView ArticlePubMedGoogle Scholar
  15. Jogi J, Ekberg M, Jonson B, Bozovic G, Bajc M: Ventilation/perfusion SPECT in chronic obstructive pulmonary disease: an evaluation by reference to symptoms, spirometric lung function and emphysema, as assessed with HRCT. Eur J Nucl Med Mol Imaging 2011, 38: 1344–1352. 10.1007/s00259-011-1757-5View ArticlePubMedGoogle Scholar
  16. Ozer C, Duce MN, Ulubas B, Bicer A, Tursen U, Apaydin FD, Yildiz A, Camdeviren H: Inspiratory and expiratory HRCT findings in Behcet’s disease and correlation with pulmonary function tests. Eur J Radiol 2005, 56: 43–47. 10.1016/j.ejrad.2005.03.026View ArticlePubMedGoogle Scholar
  17. Lee KW, Chung SY, Yang I, Lee Y, Ko EY, Park MJ: Correlation of aging and smoking with air trapping at thin-section CT of the lung in asymptomatic subjects. Radiology 2000, 214: 831–836. 10.1148/radiology.214.3.r00mr05831View ArticlePubMedGoogle Scholar
  18. Xu J, Moonen M, Johansson A, Gustafsson A, Bake B: Quantitative analysis of inhomogeneity in ventilation SPET. Eur J Nucl Med 2001, 28: 1795–1800. 10.1007/s002590100649View ArticlePubMedGoogle Scholar
  19. Macintyre N, Crapo RO, Viegi G, Johnson DC, van der Grinten CP, Brusasco V, Burgos F, Casaburi R, Coates A, Enright P, Gustafsson P, Hankinson J, Jensen R, McKay R, Miller MR, Navajas D, Pedersen OF, Pellegrino R, Wanger J: Standardisation of the single-breath determination of carbon monoxide uptake in the lung. Eur Respir J 2005, 26: 720–735. 10.1183/09031936.05.00034905View ArticlePubMedGoogle Scholar
  20. Miller MR, Hankinson J, Brusasco V, Burgos F, Casaburi R, Coates A, Crapo R, Enright P, van der Grinten CP, Gustafsson P, Jensen R, Johnson DC, MacIntyre N, McKay R, Navajas D, Pedersen OF, Pellegrino R, Viegi G, Wanger J, Force AET: Standardisation of spirometry. Eur Respir J 2005, 26: 319–338. 10.1183/09031936.05.00034805View ArticlePubMedGoogle Scholar
  21. Wanger J, Clausen JL, Coates A, Pedersen OF, Brusasco V, Burgos F, Casaburi R, Crapo R, Enright P, van der Grinten CP, Gustafsson P, Hankinson J, Jensen R, Johnson D, Macintyre N, McKay R, Miller MR, Navajas D, Pellegrino R, Viegi G: Standardisation of the measurement of lung volumes. Eur Respir J 2005, 26: 511–522. 10.1183/09031936.05.00035005View ArticlePubMedGoogle Scholar
  22. Hedenström H, Malmberg P, Agarwal K: Reference values for lung function tests in females. Regression equations with smoking variables. Bull Eur Physiopatol Respir 1985, 21: 551–557.Google Scholar
  23. Hedenström H, Malmberg P, Fridriksson H: Reference values for lung function tests in men: regression equations with smoking variables. Upsala J Med Sci 1986, 91: 299–310. 10.3109/03009738609178670View ArticlePubMedGoogle Scholar
  24. ICRP: Radiation dose to patients from radiopharmaceuticals. In International Commission on Radiological Protection. ICRP Publication 80; 2000.Google Scholar
  25. Larsson A, Mo SJ, Ljungberg M, Riklund K: Dopamine D2 receptor SPECT with (123)I-IBZM: evaluation of collimator and post-filtering when using model-based compensation-a Monte Carlo study. Phys Med Biol 2010, 55: 1971–1988. 10.1088/0031-9155/55/7/012View ArticlePubMedGoogle Scholar
  26. Frey EC, Tsui BMW: A new method for modelling the spatially-variant, object-dependant scatter response function in SPECT. 1996, 1082–1086.Google Scholar
  27. Norberg P, Olsson A, Carlsson GA, Sandborg M, Gustafsson A: Optimisation of quantitative lung SPECT applied to mild COPD: a Monte Carlo-based analysis. In 2013. Submitted to Phys Med Biol.Google Scholar
  28. RJ Ott MF, Babich JW, Marsden PK: The physics of radioistope imaging. In The physics of medical imaging, Volume 142. Edited by: Webb S. IOP Publishing Ltd, London; 1988:318.Google Scholar
  29. Jobse BN, Rhem RG, McCurry CA, Wang IQ, Labiris NR: Imaging lung function in mice using SPECT/CT and per-voxel analysis. PLoS One 2012, 7: e42187. 10.1371/journal.pone.0042187PubMed CentralView ArticlePubMedGoogle Scholar
  30. Sharma G, Goodwin J: Effect of aging on respiratory system physiology and immunology. Clin Interv Aging 2006, 1: 253–260. 10.2147/ciia.2006.1.3.253PubMed CentralView ArticlePubMedGoogle Scholar
  31. U.S. Department of Health and Human Services: The Health Consequences of Involuntary Exposure to Tobacco Smoke: A Report of the Surgeon General—Executive Summary. U.S. Department of Health and Human Services, Centers for Disease Control and Prevention, Coordinating Center for Health Promotion, National Center for Chronic Disease Prevention and Health Promotion, Office on Smoking and Health; 2006.Google Scholar
  32. Hens G, Hellings PW: The nose: gatekeeper and trigger of bronchial disease. Rhinology 2006, 44: 179–187.PubMedGoogle Scholar
  33. Bousquet J, Van Cauwenberge P, Khaltaev N, Aria Workshop G, World Health O: Allergic rhinitis and its impact on asthma. J Allergy Clin Immunol 2001, 108: S147–334. 10.1067/mai.2001.118891View ArticlePubMedGoogle Scholar
  34. Schembri G, Harris B, Roach P, Bailey D, Bailey E, Walsh C, King G: V/Q SPECT: What causes the posterior ventilation “rind” effect? J Nucl Med Meet Abstracts 2008, 49: 91P-a.Google Scholar

Copyright

© Norberg et al.; licensee Springer 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
