Significant reduction of activity retention in the kidneys via optimized linker sequences in radiohybrid-based minigastrin analogs

Abstract

Background

We recently introduced radiohybrid (rh)-based minigastrin analogs e.g., DOTA-rhCCK-18 (DOTA-D-Dap(p-SiFA)-(D-γ-Glu)₈-Ala-Tyr-Gly-Trp-Nle-Asp-Phe-NH₂), that revealed substantially increased activity retention in the tumor. However, one major drawback of these first generation rh-based cholecystokinin-2 receptor (CCK-2R) ligands is their elevated activity levels in the kidneys, especially at later time points (24 h p.i.). Therefore, this study aimed to reduce kidney retention with regard to a therapeutic use via substitution of negatively charged D-glutamic acid moieties by hydrophilic uncharged polyethylene glycol (PEG) linkers of various length ((PEG)₄ to (PEG)₁₁). Furthermore, the influence of differently charged silicon-based fluoride acceptor (SiFA)-moieties (p-SiFA: neutral, SiFA-ipa: negatively charged, and SiFAlin: positively charged) on in vitro properties of minigastrin analogs was evaluated. Out of all compounds evaluated in vitro, the two most promising minigastrin analogs were further investigated in vivo.

Results

CCK-2R affinity of most compounds evaluated was found to be in a range of 8–20 nM (by means of apparent IC₅₀), while ligands containing a SiFA-ipa moiety displayed elevated IC₅₀ values. Lipophilicity was noticeably lower for compounds containing a D-γ-glutamate (D-γ-Glu) moiety next to the D-Dap(SiFA) unit as compared to their counterparts lacking the additional negative charge. Within this study, combining the most favorable CCK-2R affinity and lipophilicity, [^177/natLu]Lu-DOTA-rhCCK-70 (DOTA-D-Dap(p-SiFA)-D-γ-Glu-(PEG)₇-D-γ-Glu-(PEG)₃-Trp-(N-Me)Nle-Asp-1-Nal-NH₂; IC₅₀: 12.6 ± 2.0 nM; logD_7.4: − 1.67 ± 0.08) and [^177/natLu]Lu-DOTA-rhCCK-91 (DOTA-D-Dap(SiFAlin)-D-γ-Glu-(PEG)₄-D-γ-Glu-(PEG)₃-Trp-(N-Me)Nle-Asp-1-Nal-NH₂; IC₅₀: 8.6 ± 0.7 nM; logD_7.4 =  − 1.66 ± 0.07) were further evaluated in vivo. Biodistribution data of both compounds revealed significantly reduced (p < 0.0001) activity accumulation in the kidneys compared to [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 at 24 h p.i., leading to enhanced tumor-to-kidney ratios despite lower tumor uptake. However, overall tumor-to-background ratios of the novel compounds were lower than those of [¹⁷⁷Lu]Lu-DOTA-rhCCK-18.

Conclusion

We could show that the reduction of negative charges within the linker section of radiohybrid-based minigastrin analogs led to decreased activity levels in the kidneys at 24 h p.i., while maintaining a good tumor uptake. Thus, favorable tumor-to-kidney ratios were accomplished in vivo. However, further optimization has to be done in order to improve tumor retention and general biodistribution profile.

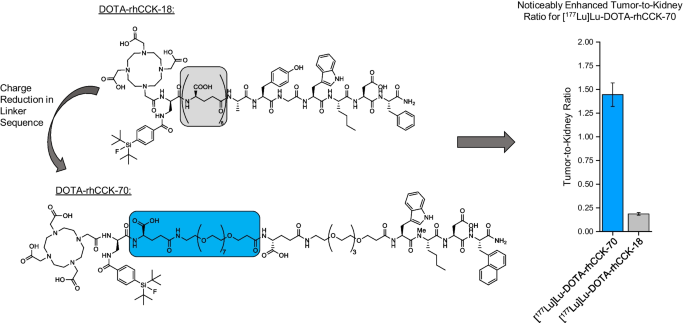

Graphical abstract

Introduction

Even though medullary thyroid carcinoma (MTC) is a rather rare form of thyroid disease [1], limited 10-year survival rates of less than 40% for patients suffering from locally advanced or progressive disease lead to a growing clinical interest in novel therapeutic approaches [2, 3]. Thus, over the past three decades research on peptide-based radiopharmaceuticals targeting the cholecystokinin-2 receptor (CCK-2R), which is overexpressed in over 90% of all MTC patients [4], has been progressing.

Only in 2019, the minigastrin analog DOTA-PP-F11N (DOTA-(D-Glu)₆-Ala-Tyr-Gly-Trp-Nle-Asp-Phe-NH₂) was evaluated ¹⁷⁷Lu-labeled in clinical trials as one of the first lead structures for radioligand therapy of MTC [5, 6]. In addition, final results of a GRAN-T-MTC phase I clinical trial of the structurally similar compound [¹¹¹In]In-CP04 (DOTA-(D-Glu)₆-Ala-Tyr-Gly-Trp-Met-Asp-Phe-NH₂) were recently published. Compared to conventional imaging strategies of MTC, such as 2-deoxy-2-[¹⁸F]fluoro-D-glucose (= [¹⁸F]FDG) as well as 6-[¹⁸F]-L-fluoro-L-3, 4-dihydroxyphenylalanine (= [¹⁸F]F-DOPA) positron emission tomography (PET)/computed tomography (CT), equivalent, complementary as well as superior performance of [¹¹¹In]In-CP04 single-photon emission computed tomography (SPECT)/CT was reported in 16 patients, underlining the high potential of theranostic minigastrin analogs for patient management [7]. However, moderate metabolic stability and accelerated clearance kinetics of both DOTA-PP-F11N and CP04 limit their therapeutic efficacy [7,8,9,10]. One approach to circumvent stability issues in situ is the co-administration of [¹⁷⁷Lu]Lu-DOTA-PP-F11N in combination with neutral endopeptidase (NEP)-1 inhibitors such as sacubitril, which has been evaluated in clinical trials with pending results (NCT03647657), while another theranostic clinical study using [¹⁷⁷Lu]Lu-DOTA-PP-F11N (NCT02088645) is currently recruiting [11, 12].

Another approach is stabilization by chemical design, which was done for DOTA-PP-F11N and led to DOTA-MGS5 (DOTA-D-Glu-Ala-Tyr-Gly-Trp-(N-Me)Nle-Asp-1-Nal-NH₂), a minigastrin analog comprising 1-Nal instead of Phe and (N-Me)Nle instead of Nle, as well as only one D-Glu moiety in the linker section [13]. Due to its high CCK-2R affinity accompanied by a favorable biodistribution profile in mice [13], first clinical results of [⁶⁸ Ga]Ga-DOTA-MGS5 looked promising in MTC patients [14, 15]. Very recently, we further modified the DOTA-MGS5 sequence in order to address the Gly-Trp cleavage site, which resulted in DOTA-CCK-66 (DOTA-D-γ-Glu-(PEG)₃-Trp-(N-Me)Nle-Asp-1-Nal-NH₂), a simplified minigastrin analog displaying higher metabolic stability and thus, improved activity clearance and tumor-to-background ratios in animals, and which has already been successfully translated into the clinic [16, 17].

However, all compounds mentioned above are limited to radiometallation and do not allow for ¹⁸F-labeling, lacking the benefits of ¹⁸F-based PET [18]. In order to design an ¹⁸F-labeled minigastrin analog, we transferred the radiohybrid (rh) concept, which was successfully applied for prostate-specific membrane antigen-targeted compounds [19], to CCK-2R ligands in a previous study. This resulted in DOTA-rhCCK-18 (DOTA-D-Dap(p-SiFA)-(D-γ-Glu)₈-Ala-Tyr-Gly-Trp-Nle-Asp-Phe-NH₂), a rh-based minigastrin analog that enables both ¹⁷⁷Lu- and ¹⁸F-labeling [20]. Both µSPECT/CT and µPET/CT imaging studies of the chemical identical compounds [¹⁹F]F-[¹⁷⁷Lu]Lu-DOTA-rhCCK-18 as well as [¹⁸F]F-[^natLu]Lu-DOTA-rhCCK-18, respectively, confirmed a similar biodistribution pattern in AR42J tumor-bearing mice at 1 h p.i. Compared to earlier generations of minigastrin analogs e.g., [¹⁷⁷Lu]Lu-DOTA-MGS5 and [¹⁷⁷Lu]Lu-DOTA-PP-F11N, [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 displayed 2- to 13-fold increased activity levels in the CCK-2R positive AR42J tumor at 24 h p.i. However, this was accompanied by unfavorably increased activity uptake in the kidneys, most likely due to the charge distribution in proximity to the silicon-based fluoride acceptor (SiFA) moiety [20]. Worth mentioning, we suspect a synergistic effect of the SiFA unit and the several negative charges in its proximity to be responsible for the substantial kidney retention observed for our previously developed rh-based CCK-2R-targeted (rhCCK) compounds such as [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 [8, 20]. We believe so, as [¹⁷⁷Lu]Lu-DOTA-PP-F11N, which comprises a similar peptide sequence and a similar number of negative charges, did not reveal elevated activity levels in the kidneys at 24 h p.i. [8].

Hence, in this study we aimed to reduce kidney retention of rhCCK derivatives, while maintaining high activity levels in the tumor, with a strong focus on a potential therapeutic application. The presence of a poly-L-glutamate chain of minigastrin analogs has already been described as one of the main reasons for high kidney accumulation, which has successfully been addressed by various groups via the substitution of said chain by uncharged amino acids or PEG linkers [21, 22]. Therefore, we focused on the substitution of the poly-D-γ-glutamate linker section of our previously developed rhCCK derivatives by hydrophilic, uncharged PEG linkers of various length (4 to 11). Comparative evaluation of PEG linkers in combination with or without a D-γ-Glu moiety in proximity to the D-Dap(p-SiFA) building block (Fig. 1) was performed to assess the influence of an additional D-γ-Glu on the lipophilicity of the peptides, as compounds from previous works benefited from the introduction of the D-γ-Glu moiety with regard to metabolic stability and lipophilicity [16]. Worth mentioning, due to the high lipophilic character and the bulkiness of the SiFA building blocks, it is a challenge to maintain both high CCK-2R affinity and low lipophilicity for the whole compound. On the one hand, we observed that the distance between the SiFA moiety and the binding unit should be large to achieve high CCK-2R affinity [8]. On the other hand, previous works demonstrated that a lot of hydrophilic units are required to compensate the high lipophilicity of the p-SiFA group.

Fig. 1

General composition of minigastrin analogs evaluated in this study. Yellow: linker sequences; Green: SiFA moieties

In order to reduce lipophilicity of the SiFA building block itself, thus demanding less hydrophilic moieties to compensate, we additionally evaluated the influence of negatively and positively charged SiFA moieties. We introduced either the SiFAlin moiety (positively charged), which was already used in somatostatin-based compounds [23], or 5-(di-tert-butylfluorosilyl)isophthalic acid (SiFA-ipa, negatively charged), which was recently developed in our group (Fischer et al., unpublished data). In order to ensure high general CCK-2R affinity and metabolic stability, we used the stabilized peptide sequence of DOTA-CCK-66 (H–D-γ-Glu-(PEG)₃-Trp-(N-Me)Nle-Asp-1-Nal-NH₂) previously developed in our group for all compounds evaluated [16]. In this study we evaluated the effect of the different modifications on in vitro properties of our compounds first, and later on in vivo properties at 24 h p.i for the two most promising ligands, especially with regard to kidney retention.

Materials and methods

Evaluation of peptide identity and integrity is provided in the Additional file 1 (Fig. S1–S12). An expression^L CMS mass spectrometer (Advion Ltd., Harlow, UK) was used for characterization of the substances.

Chemical synthesis and labeling procedures

Synthesis of the compounds was conducted as previously published [8, 20]. In brief, peptides were synthesized via standard fluorenylmethoxycarbonyl (Fmoc)-based solid phase peptide synthesis (SPPS) protocols using a H-Rink Amide ChemMatrix® resin (35–100 mesh particle size, 0.4–0.6 mmol/g loading, Merck KGaA, Darmstadt, Germany).

(4-(Bromomethyl)phenyl)di-tert-butylfluorosilane (SiFA-Br), which was used for generating the SiFAlin building block, was synthesized according to a published protocol [23]. Synthesis of 4-(di-tert-butylfluorosilyl)benzoic acid (p-SiFA) was completed according to an established protocol [24]. Chemical synthesis of the SiFA-ipa moiety is described in the Additional file 1 (Scheme S1). Coupling of p-SiFA was conducted in analogy to amino acid couplings to the side chain of a D-2,3-diaminopropionic acid (D-Dap). Conjugation of the SiFA-ipa moiety to the D-Dap side chain was accomplished similarly, yet using a threefold excess of SiFA-ipa to prevent dimerization. A threefold excess of SiFA-Br dissolved in CH₂Cl₂ was used to conjugate it to the N-terminus of N,N-dimethylglycine under basic conditions, resulting in a SiFAlin moiety.

^nat/177Lu-Labeling of the peptide precursors was carried out according to protocols described in detail in the Additional file 1. In brief, ^natLu-labeling was performed by adding an excess of [^natLu]LuCl₃ to the peptide precursor dissolved in H₂O at 90 °C for 15 min. A final concentration of 0.1 nM of the ^natLu-labeled peptide was achieved by the addition of H₂O. ¹⁷⁷Lu-labeling was conducted at 80 °C within 10 min (1.0 M NaOAc buffer, pH = 5.5).

In vitro experiments

CCK-2R affinity (by means of apparent half-maximal inhibitory concentrations; IC₅₀; using AR42J cells, 3 h incubation at 37 °C, 10^–11 to 10^–5 M ^natLu-labeled peptide (in triplicate), 0.3 pmol [¹⁷⁷Lu]Lu-DOTA-PP-F11N as radiolabeled reference, n = 3) as well as lipophilicity (expressed as n-octanol/phosphate buffered saline (PBS) (1/1) distribution coefficient; logD_7.4, 1.0 MBq ¹⁷⁷Lu-labeled peptide, n ≥ 5) were determined as previously published [8, 20].

For affinity determination, AR42J cells (2.0 × 10⁵ cells/well) were seeded into 24-well plates 24 ± 2 h prior to the experiment adding 1 mL of nutrient medium (RPMI 1640, 5 mM L-Gln, 5 mL non-essential amino acids (100 ×), 10% FCS) and incubating the well plates at 37 °C in a humidified atmosphere (5% CO₂). On the next day, medium was removed, cells were washed with PBS (300 µL) and fresh nutrient medium supplemented with 5% BSA (200 µL) was added. The peptide of interest (25 µL in nutrient medium) in increasing concentrations (10⁻¹⁰ to 10⁻⁴ M) in triplicate as well as [¹⁷⁷Lu]Lu-DOTA-PP-F11N (25 μL, 0.3 pmol) were added to the cells and the assay was incubated for 3 h at 37 °C. Subsequently, the supernatant was collected, cells were washed with PBS (300 µL) and both fractions were unified. Cell lysis was conducted by addition of NaOH (300 µL, 1 N) and incubation for at least 20 min at room temperature. The supernatant was collected, the respective wells were washed with NaOH (300 µL, 1 N) and both fractions were unified. Radioactivity of all fractions collected was quantified using a γ-counter (PerkinElmer Inc., Waltham, United States). Apparent half-maximal inhibitory concentration (IC₅₀) was calculated via the GraphPad PRISM software (GraphPad Software Inc., La Jolla, United States).

For determination of lipophilicity, the respective ¹⁷⁷Lu-Labeled peptide precursor (~ 1 MBq, 10 µL in 0.04 M HCl) was added to a solution of n-octanol/PBS (1/1, v/v, 1 mL) and vigourously mixed for 3 min at room temperature (n ≥ 5). Afterwards both phases were seperated using a Biofuge 15 centrifuge (Heraus Sepatech GmbH, Osterode, Germany) at 9,000 rpm for 5 min. 200 µL aliquots of both layers were collected separately, measured in a γ-counter (Perkin Elmer, Waltham, MA, USA) and the logD_7.4 value was obtained.

Human serum albumin (HSA) binding was determined via high performance affinity chromatography (HPAC), according to previously published protocols [16, 25, 26]. Human serum albumin interaction was calculated according to the retention time (n = 1) of our compounds on a Chiralpak HSA column in dependence of nine reference compounds with known HSA interaction.

A detailed description of all in vitro experiments can be found in the Additional file 1.

In vivo experiments

Animal experiments were carried out according to the general animal welfare regulations in Germany (German animal protection act, in the edition of the announcement, dated 18 May 2006, as amended by Article 280 of 19 June 2020, approval no. ROB-55.2–1-2532.Vet_02-18–109 by the General Administration of Upper Bavaria) and the institutional guidelines for the care and use of animals. Therefore, CB17-SCID mice of both genders and aged 2–4 months (Charles River Laboratories International Inc., Sulzfeld, Germany) were used. After arrival at the in-house facilities, mice were allowed to acclimate for a minimum of one week before inoculation of AR42J cells. AR42J cells (6.0 × 10⁶ cells per 200 μL) were suspended in a mixture (v/v = 1/1) of nutrient medium and Cultrex® Basement Membrane Matrix Type 3 (Trevigen Inc., Gaithersburg, MD, USA) and inoculated subcutaneously onto the right shoulder of CB17-SCID mice according to a previously reported protocol [8]. Animals were excluded from the study when reaching one of the following endpoints: a weight loss higher than 20%, a tumor size above 1500 mm³, an ulceration of the tumor, respiratory distress or change of behavior [8]. None of these criteria applied to any animal from the experiment. Neither randomization nor blinding was applied in the allocation of the experiments. Health status of the animals is specific pathogen free according to Federation of European Laboratory Animal Science Associations recommendation.

Biodistribution studies (n = 4) and µSPECT/CT imaging (n = 1) at 24 h p.i. were carried out as previously published [8]. For all in vivo experiments, approximately 2–3 MBq (100 pmol) of the respective ¹⁷⁷Lu-labeled peptide were administered.

Acquired data were statistically analyzed by performing a Student’s t-test via Excel (Microsoft Corporation, Redmond, WA, USA) and OriginPro software (version 9.7) from OriginLab Corporation (Northampton, MA, USA). Acquired p values of less than 0.05 were considered statistically significant.

Results

Synthesis and radiolabeling

Fmoc-based SPPS with concomitant purification via reversed phase high performance liquid chromatography (RP-HPLC) yielded 5–20% peptide precursor (chemical purity > 95%, determined by RP-HPLC at λ = 220 nm). Quantitative ^natLu-labeling was performed at 90 °C for 15 min using a 2.5-fold excess of [^natLu]LuCl_3. No further purification step prior usage was required, as the remaining free Lu³⁺ was shown to have no impact on IC₅₀ determinations [27]. ¹⁷⁷Lu-Labeling of all compounds resulted in quantitative radiochemical yields (RCY), radiochemical purities (RCP) higher than 95% as well as molar activities (A_m) of 30 ± 10 GBq/µmol. Confirmation of peptide integrity and quality controls are provided in the Additional file 1 (Fig. S1–12). The names as well as the peptide structures of all compounds evaluated is shown in Table 1.

Table 1 Names and peptide structures of all novel radiohybrid-based minigastrin analogs evaluated within this study (colour figure online)

All compounds comprise the binding unit B = D-γ-Glu-(PEG)₃-Trp-(N-Me)Nle-Asp-1-Nal-NH₂ as well as a DOTA chelating moiety. p-SiFA is depicted in green, SiFAlin in pink and SiFA-ipa in purple, whereas (PEG)₄ is colored in red, (PEG)₇ in blue and (PEG)₁₁ in orange.

In vitro characterization

Affinity and lipophilicity data of all compounds evaluated are summarized in Fig. 2 and Additional file 1: Table S1.

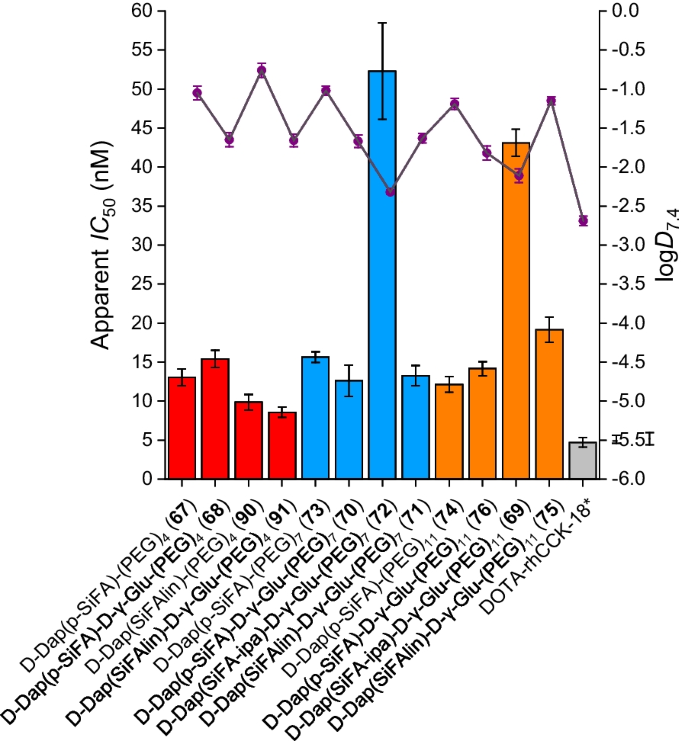

Fig. 2

Affinity (apparent IC₅₀) data (depicted in bars) and lipophilicity (logD_7.4) data (depicted in purple dots) of the PEG₄ containing compounds, [^nat/177Lu]Lu-DOTA-rhCCK-67 -68, -90 and -91 (red), the PEG₇ containing compounds, [^nat/177Lu]Lu-DOTA-rhCCK-70 to -73 (blue), as well as the PEG₁₁ containing compounds, [^nat/177Lu]Lu-DOTA-rhCCK-74 to -76 and -69 (orange), compared to the reference [^nat/177Lu]Lu-DOTA-rhCCK-18 (grey, [20]). All novel compounds comprise a [^177/natLu]Lu-DOTA complex as well as a D-γ-Glu-(PEG)₃-Trp-(N-Me)Nle-Asp-1-Nal-NH₂ binding unit linked together by a spacer sequence X (defined on the X-axis). * data taken from Günther et al. [20]. These data have been determined in our lab under identical conditions

Apparent IC₅₀ values of most rh-based minigastrin analogs evaluated ([^natLu]Lu-DOTA-rhCCK-67, − 68, − 70, − 71, − 73 to − 76 and − 90) were found to be in a range between 10 to 20 nM. For compounds containing a SiFA-ipa moiety ([^natLu]Lu-DOTA-rhCCK-69 and -72), noticeably increased apparent IC₅₀ values were observed. [^natLu]Lu-DOTA-rhCCK-91, comprising a PEG₄ linker in combination with a SiFAlin building block, displayed the highest CCK-2R affinity within this study (apparent IC₅₀ = 8.56 ± 0.66 nM). However, compared to the reference compound, [^natLu]Lu-DOTA-rhCCK-18 (apparent IC₅₀ = 4.71 ± 0.62 nM, [20]), CCK-2R affinity of 91 was significantly decreased (p < 0.0014).

In general, all compounds lacking a D-γ-Glu moiety in proximity to the SiFA building block revealed a significantly higher lipophilicity than their counterparts comprising a D-γ-Glu moiety in said position (logD_7.4 = –1.2 to − 0.8 vs. − 1.9 to –1.6; p < 0.0001), with [¹⁷⁷Lu]Lu-DOTA-D-Dap(SiFAlin)-D-γ-Glu-(PEG)₁₁-D-γ-Glu-(PEG)₃-Trp-(N-Me)Nle-Asp-1-Nal-NH₂ being the only exception. In addition, compounds containing a SiFA-ipa building block displayed the lowest lipophilicity among all compounds (logD_7.4: − 2.4 to − 2.1), which was found to be slightly higher than that of [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 (logD_7.4 = –2.71 ± 0.04, [20]).

HSA binding was found to be in a range between 85 and 95% for all compounds evaluated (Table S1). Except for [^natLu]Lu-DOTA-rhCCK-75, an extended PEG linker length led to slightly reduced HSA binding. No trends regarding the influence of different silicon-based fluoride acceptors on HSA interaction were noticed. In comparison, the reference compound, [^natLu]Lu-DOTA-rhCCK-18 (87.1%), displayed similar HSA binding to the novel rhCCK derivatives.

In vivo characterization

In order to investigate the effect of a SiFA building block paired with a lower number of negative charges in its direct neighborhood on kidney retention, we selected the most favorable compound with regard to in vitro data (displaying both high CCK-2R affinity and low lipophilicity) comprising either a p-SiFA or SiFAlin moiety. Hence, [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 (apparent IC₅₀ = 12.6 ± 2.0 nM, logD_7.4 =  − 1.67 ± 0.08), bearing a p-SiFA moiety, and [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 (apparent IC₅₀ = 8.6 ± 0.7 nM, logD_7.4 =  − 1.66 ± 0.08), comprising a SiFAlin moiety, were further evaluated in vivo (Fig. 3, Additional file 1: Table S2 and S3) and compared to [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 [20].

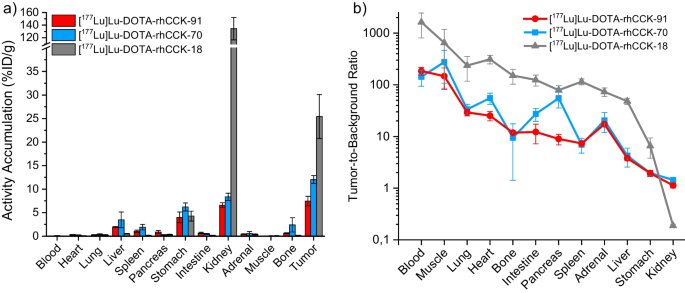

Fig. 3

a Biodistribution data and b tumor-to-background ratios of [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 (red) and [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 (blue) in selected organs (depicted in percentage injected dose per gram; %ID/g) at 24 h p.i. in comparison to [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 (grey, [20]) in AR42J tumor-bearing CB17-SCID mice (100 pmol each). Data of [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 taken from Günther et al. [20]. These data have been determined in our lab under identical conditions

Activity levels in the AR42J tumor xenograft of 12.0 ± 0.8%ID/g and 7.5 ± 1.0%ID/g were found at 24 h p.i. for [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 and -91, respectively. Furthermore, activity uptake in the kidneys was observed to be low for both compounds (8.4 ± 0.8 and 6.6 ± 0.5%ID/g) evaluated. In addition, activity levels in liver (3.5 ± 1.7 and 2.0 ± 0.1%ID/g) and spleen (1.9 ± 0.6 and 1.0 ± 0.3%ID/g) were observed to be elevated. Activity accumulation in the CCK-2R-expressing stomach was increased (6.2 ± 0.9 and 4.0 ± 1.2%ID/g). Compared to the reference [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 (25.4 ± 4.7%ID/g, [20]), activity levels in the tumor were decreased 2- to threefold for [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 and -91, respectively. However, kidney accumulation and retention of the novel compounds was reduced 16- to 20-fold, respectively (p < 0.0001), thus resulting in enhanced tumor-to-kidney ratios (0.19 ± 0.01 vs. 1.44 ± 0.14 and 1.14 ± 0.12, respectively).

µSPECT/CT imaging studies of [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 and [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 at 24 h p.i. corroborated the biodistribution data well, revealing high activity levels in the tumor accompanied by reduced activity accumulation in the kidneys (Fig. 4).

Fig. 4

Representative µSPECT/CT images of AR42J tumor-bearing CB17-SCID mice at 24 h p.i. injected either with [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 (left) or [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 (right) (100 pmol each). Tumors (T) and kidneys (K) are indicated by white arrows. Mean activity levels in the kidneys (K) and the tumor (T) are shown at the bottom.

Discussion

In the past few years, the rh concept was successfully implemented for prostate-specific membrane antigen targeted compounds, enabling the generation of chemically identical ligands that are either ¹⁸F- or ¹⁷⁷Lu-labeled [19, 28]. These so called “true theranostics” allow for the design of chemical identical pairs, such as ¹⁸F/^natLu (PET/CT) and ¹⁹F/¹⁷⁷Lu (therapy), by combining a chelator as well as a SiFA moiety within the peptide structure. In May 2023, rhPSMA-7.3 (Posluma®) has been approved by the FDA for diagnosis of suspected metastatic as well as recurrent prostate cancer. In addition, clinical trials using rhPSMA-10.1 for therapeutic approaches are ongoing [29,30,31,32].

As currently applied CCK-2R-targeted compounds bear no option for ¹⁸F-labeling, we recently transferred the rh concept to minigastrin analogs via introduction of a D-Dap(p-SiFA) moiety into the peptide structure of DOTA-PP-F11N [8, 20]. The most promising rh-based minigastrin analog, [^18/19F]F-[^177/natLu]Lu-DOTA-rhCCK-18, displayed decelerated clearance kinetics accompanied by high activity levels in the tumor at 1 and 24 h p.i., rendering this compound a valuable asset for PET/CT imaging of MTC. However, unfavorably elevated renal activity retention of DOTA-rhCCK-18 [20] might be a limiting factor for radioligand therapy when ¹⁷⁷Lu-labeled, particularly with regard to the kidney as a dose-limiting organ.

In this study, we wanted to reduce activity retention in the kidneys for our rhCCK ligands while maintaining high activity levels in the tumor. Therefore, we first examined the influence of PEG linkers of various length (4 to 11) on in vitro properties of rh-based minigastrin analogs. Moreover, the influence of differently charged SiFA moieties e.g., p-SiFA (neutral), SiFAlin (positively charged) and SiFA-ipa (negatively charged) on overall lipophilicity was evaluated. In addition, lipophilicity of compounds with and without a D-γ-Glu unit in direct proximity to the D-Dap(p-SiFA) unit were evaluated.

Displaying apparent IC₅₀ values of 12 to 16 nM, no trend on CCK-2R affinity was observed for peptides comprising different PEG linker lengths (4 to 11; [^natLu]Lu-DOTA-rhCCK-67, -68, -70, -73, -74 and -76). Compounds that contain an additional D-γ-Glu moiety in proximity to the SiFA building block ([^natLu]Lu-68, -70 and -76) revealed similar apparent IC₅₀ values (12 to 16 nM) to their counterparts lacking said entity ([^natLu]Lu-67, -73 and -74). In contrast, substitution of p-SiFA by SiFA-ipa led to significantly elevated apparent IC₅₀ values (p < 0.0001, [^natLu]Lu-DOTA-rhCCK-69: 42.1 ± 1.7 nM and -72: 52.3 ± 6.3 nM), suggesting a low tolerability towards negative charges at the SiFA moiety. Replacing p-SiFA by a positively charged SiFAlin unit had a positive impact on CCK-2R affinity of compounds comprising a (PEG)₄ chain ([^natLu]Lu-DOTA-rhCCK -90 and -91: apparent IC₅₀ = 8 to 10 nM), whereas no influence as well as a negative influence on apparent IC₅₀ values of peptides containing a (PEG)₇ and (PEG)₁₁ chain ([^natLu]Lu-DOTA-rhCCK-71 and -75: apparent IC₅₀ = 13 to 19 nM), respectively, was observed.

Compared to the reference [^natLu]Lu-DOTA-rhCCK-18 (apparent IC₅₀ = 4.71 ± 0.62 nM, [20]), all compounds evaluated in this study revealed increased apparent IC₅₀ values (8 to 53 nM), indicating a negative impact of the reduction of negative charges within the linker sequence on CCK-2R affinity. However, the previously published compound [¹⁷⁷Lu]Lu-(R)-DOTAGA-rhCCK-16 ((R)-DOTAGA-D-Dap(p-SiFA)-(D-γ-Glu)₆-Ala-Tyr-Gly-Trp-Nle-Asp-Phe-NH₂), displaying an apparent IC₅₀ value of 20.4 ± 2.7 nM, revealed high activity levels in the tumor (18.0 ± 0.7%ID/g) at 24 h p.i. in AR42J tumor-bearing CB17-SCID mice, which could be attributed to its increased HSA binding and circulation in the blood, thus increasing the window for the delivery of the radiolabeled compound [8]. As all compounds evaluated in this study also comprised a SiFA building block and revealed high HSA binding, we considered apparent IC₅₀ values < 20 nM sufficient for further in vivo evaluation.

In line with previous findings, the additional negative charge of a D-γ-Glu moiety in proximity to the SiFA building block resulted in a lower lipophilicity for the respective peptides. Moreover, it could be observed that the impact of PEG linker length on overall lipophilicity of CCK2R-targeted compounds was low, which corroborates the data from Novak et al. [33]. Furthermore, peptides comprising a SiFA-ipa moiety displayed the most favorable lipophilicity (logD_7.4: − 2.3 to − 2.1). Surprisingly, the additional positive charge of the SiFAlin moiety had no impact on lipophilicity for [¹⁷⁷Lu]Lu-DOTA-rhCCK-71, [¹⁷⁷Lu]Lu-DOTA-rhCCK-90 and [¹⁷⁷Lu]Lu-DOTA-rhCCK-91, or even led to increased logD_7.4 values ([¹⁷⁷Lu]Lu-DOTA-rhCCK-75). We assume that this is attributed to the change of the overall charge of the peptides. Namely, introduction of a positive charge via a SiFAlin moiety into the mainly negatively charged minigastrin analog would lead to a decreased overall charge and thus, a less beneficial impact on lipophilicity. Except [¹⁷⁷Lu]Lu-DOTA-rhCCK-69 and -72, each comprising a SiFA-ipa moiety, no other peptides evaluated within this study displayed logD_7.4 values within a range of –3 to –2, which we usually consider ideal due to the favorable pharmacokinetic properties observed for several compounds in the field of nuclear medicine, among those [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 (logD_7.4 = − 2.69 ± 0.06 [20]) and [¹⁷⁷Lu]Lu-DOTA-MGS5 (logD_7.4 = − 2.21 ± 0.08 [34]) in case of CCK-2R ligands. However, currently clinically applied radiotracers e.g., [¹⁷⁷Lu]Lu-Pentixather (logD_7.4 = − 1.8 ± 0.2 [35]) for C-X-C chemokine receptor type 4 targeting and [¹⁷⁷Lu]Lu-NeoBOMB1 (logD_7.4 = − 0.57 ± 0.03 [27]) addressing the gastrin releasing peptide receptor, also display elevated lipophilicity (logD_7.4 values were evaluated in our group using a comparable experimental setup). Therefore, we decided to extend the range of suitable logD_7.4 values from − 2 to − 1.5, bearing in mind that enhanced hepatic accumulation and thus, effects on the biodistribution profile could occur.

HSA binding was observed to be high (85–95%) for all rhCCK derivatives tested. In comparison, the reference compound [^natLu]Lu-DOTA-rhCCK-18 (87%) displayed a similar HSA interaction. All compounds evaluated comprise a SiFA building block within their peptide structure, which was reported to increase HSA binding [29]. Elevated HSA binding is usually associated with a decelerated activity clearance and prolonged circulation of the compound in the blood stream, which can result in increased activity accumulation in the tumor [36,37,38]. This corroborates the observed tumor accumulation and retention for previous rhCCK derivatives, such as [¹⁷⁷Lu]Lu-(R)-DOTAGA-rhCCK-16 and [¹⁷⁷Lu]Lu-DOTA-rhCCK-18. Therefore, we anticipated a similarly beneficial effect on our novel rhCCK ligands.

In order to evaluate the influence of the different SiFA moieties paired with a reduced number of negative charges within the linker sequence of rhCCK derivatives on in vivo performance, particularly with regard to kidney retention, we decided to further investigate both [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 (apparent IC₅₀ = 12.6 ± 2.0 nM, logD_7.4 = − 1.67 ± 0.08) and [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 (apparent IC₅₀ = 8.7 ± 0.7 nM, logD_7.4 = − 1.66 ± 0.08) at 24 h p.i. in AR42J tumor-bearing mice, since both displayed acceptable CCK-2R affinity and lipophilicity. Compounds comprising a SiFA-ipa building block were excluded from further in vivo studies due to their insufficient CCK-2R affinity.

Biodistribution profiles of [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 and -91 confirmed our assumption that synergistic effects between the multiple negative charges of the poly-D-γ-glutamate linker section and the D-Dap(p-SiFA) building block led to elevated activity levels in the kidneys observed for earlier generations of rh-based minigastrin analogs, such as [¹⁷⁷Lu]Lu-(R)-DOTAGA-rhCCK-16 and [¹⁷⁷Lu]Lu-DOTA-rhCCK-18. In line with previously published data on minigastrin analogs [21, 22], the reduction of negative charges within the linker section from eight to two via substitution of D-γ-Glu moieties by PEG_X chains led to significantly decreased activity uptake in the kidneys for both [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 and [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 compared to [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 (8.4 ± 0.8%ID/g and 6.6 ± 0.5%ID/g vs. 134 ± 18%ID/g, [20], p < 0.0001). Hence, distinctly improved tumor-to-kidney ratios were observed for [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 (1.45 ± 0.12) and [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 (1.14 ± 0.12) opposed to [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 (0.19 ± 0.01, [20]).

However, the increased lipophilicity of [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 and [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 led to lower overall tumor-to-background ratios, particularly in the liver (3.48 ± 1.66%ID/g and 1.96 ± 0.08%ID/g vs. 0.22 ± 0.01%ID/g) and spleen (1.92 ± 0.60%ID/g and 1.04 ± 0.26%ID/g vs. 0.34 ± 0.09%ID/g). In addition, increased activity levels in the bone were observed, especially for [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 (2.4 ± 1.5%ID/g) in comparison to our reference compound [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 (0.20 ± 0.03%ID/g). This can be partly attributed to the ¹⁷⁷Lu-batch used for in vivo experiments performed within this study. While usually, radiolabeling with our rhCCK derivatives results in < 1% free lutetium-177 (e.g., [¹⁷⁷Lu]Lu-DOTA-rhCCK-18), in the study presented herein up to 3% of free lutetium-177 was detected, depending on the ¹⁷⁷Lu-batch used. Thereby, the amount of free lutetium-177 observed was found to correlate with activity levels in the bone, which was observed to be between 0.5 and 4.3%ID/g, resulting in a high standard deviation (± 1.5%).

Worth mentioning, tumor retention was also reduced noticeably for our novel compounds (12.0 ± 0.8%ID/g and 7.5 ± 1.0%ID/g vs. 25.4 ± 4.7%ID/g, 24 h p.i. [20]). We suggest that this is partly due to their reduced CCK-2R affinity. However, although both compounds revealed a higher CCK-2R affinity compared to [¹⁷⁷Lu]Lu-(R)-DOTAGA-rhCCK-16 (IC₅₀ = 20.4 ± 2.7 nM; activity levels in the tumor: 18.0 ± 0.7%ID/g [8]), significantly lower activity levels were found in the tumor. Therefore, a more detailed investigation on albumin binding has to be completed, as we expect a higher albumin binding and thus, slower activity clearance from the blood for [¹⁷⁷Lu]Lu-(R)-DOTAGA-rhCCK-16 (containing more negative charges in proximity to the SiFA moiety than both [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 and -91), which results in a prolonged bioavailability and thus, tumor accumulation of said compound. Similar effects on albumin binding were observed in our group for SiFA-comprising PSMA-targeted compounds [29, 39]. Furthermore, overall charge of the peptide is also an important factor, as [¹⁷⁷Lu]Lu-DOTA-rhCCK-91 displayed a higher CCK-2R affinity, yet decreased activity levels in the tumor compared to [¹⁷⁷Lu]Lu-DOTA-rhCCK-70. We thus suggest that the positively charged SiFAlin moiety has a negative effect on tumor accumulation, which has to be further elucidated in future studies. While the lower activity levels in the tumor can be attributed to the lower CCK-2R affinity, it was surprising that activity levels in the stomach, physiologically expressing the CCK-2R, were found to be increased and similar for our novel compounds compared to [¹⁷⁷Lu]Lu-DOTA-rhCCK-18 (70: 6.2 ± 0.9%ID/g and 91: 4.0 ± 1.2%ID/g vs. 4.3 ± 1.1%ID/g, [20]), respectively. Further experiments have to be carried out in future studies to elucidate the nature of this observation.

In summary, we could achieve our goal to design a rh-based minigastrin analog with substantially reduced kidney retention by modifying the linker section with regard to negatively charged residues. However, these pleasing results were accompanied by a negative impact on overall tumor accumulation compared to our internal benchmarks. Worth mentioning, [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 still revealed comparable, as well as higher activity levels in the tumor at 24 h p.i. than [¹⁷⁷Lu]Lu-DOTA-MGS5 (11.0 ± 1.2%ID/g, [16]) and [¹⁷⁷Lu]Lu-DOTA-PP-F11N (1.9 ± 0.8%ID/g, [8]), respectively; two compounds that are currently evaluated in clinical trials [5, 14]. However, kidney retention was observed to be slightly elevated (8.4 ± 0.8 vs. 1.3 ± 0.4 [16] and 3.1 ± 0.6%ID/g [8]), which resulted in decreased tumor-to-kidney ratios compared to [¹⁷⁷Lu]Lu-DOTA-MGS5 (1.4 ± 0.1 vs. 9.4 ± 3.3 [16]) but still higher tumor-to-kidney ratios compared to [¹⁷⁷Lu]Lu-DOTA-PP-F11N (1.4 ± 0.1 vs. 0.6 ± 0.3%ID/g). However, decreased tumor-to-stomach (2.0 ± 0.2 vs. 4.4 ± 0.7 [16] and 5.2 ± 2.2%ID/g) ratios, as well as increased lipophilicity (–1.67 ± 0.08 vs. − 4.75 ± 0.07 [16] and − 2.21 ± 0.08 [8]) was observed for [¹⁷⁷Lu]Lu-DOTA-rhCCK-70 when compared to the reference ligands. Particularly tumor-to-stomach ratios are important, as the stomach (apart from the kidneys) is also considered a dose-limiting organ due to the physiological expression of CCK-2R.

A limitation of this study is the lack of internalization studies in vitro to get more insight into uptake pattern of the receptor. Furthermore, competition studies in vivo should be performed in order to examine receptor specificity of tumor as well as stomach uptake of our novel rhCCK derivatives. Moreover, biodistribution studies at several time points should be carried out to assess pharmacokinetics over time. Lastly, metabolic stability should be investigated in order to draw conclusions on the in vivo behavior of the new compounds. These limitations will be addressed for future compounds but were not our main interest in this study, as we primarily aimed to reduce high kidney retention observed for previously developed rhCCK derivatives (DOTA-rhCCK-18) by circumventing the synergistic effect present for compounds that contain several negative charges in proximity of a SiFA building block. Our study could demonstrate that this strategy can significantly improve kidney retention, and that DOTA-rhCCK-70 is indeed a promising lead compound, yet further optimization is necessary to pave the way for a clinical translation of rh-based minigastrin analogs for theranostic applications.

Conclusion

In this study we could demonstrate that a reduction of negative charges within the linker section of rh-based minigastrin analogs via substitution of (D-γ-Glu)₈ by PEG moieties of various length led to a noticeably lower activity uptake in the kidneys compared with previous rh-based CCK-2R-targeted compounds. However, lower tumor accumulation and thus, overall tumor-to-background ratios in all organs apart from the kidneys were also observed, demanding further optimization of the most promising compound from this study with regard to target affinity, lipophilicity and biodistribution profile.
