Potential application of [18F]AlF-PSMA-11 PET/CT in radioiodine refractory thyroid carcinoma

EJNMMI Research volume 14, Article number: 82 (2024) Cite this article

Abstract

Background

Patients diagnosed with radioiodine refractory (RAI-R) thyroid carcinoma (TC) have a significantly worse prognosis than patients with radiosensitive TC. These refractory malignancies are often dedifferentiated, hindering the effectiveness of iodine-based imaging. Additionally, the role of metabolic imaging using [18F]FDG PET/CT is also limited in these cases, making adequate staging of RAI-R TC challenging. Recent case series have shown promising results regarding the role of the prostate-specific membrane antigen (PSMA) in TC. In this study we explored the value of [18F]AlF-PSMA-11 PET/CT in RAI-R TC.

Methods

In this phase II study, lesions detected on [18F]AlF-PSMA-11 PET were compared to findings from [18F]FDG PET/CT. Additionally, the serologic soluble prostate-specific membrane antigen (sPSMA) was measured using ELISA. PSMA-expression on tumor tissue in any available resection specimens was analysed with an immunostainer.

Results

Eight patients were included, with a total of 39 identified lesions based on PET imaging. [18F]AlF-PSMA-11 PET identified 30 of 39 lesions, and [18F]FDG PET identified 33 lesions, leading to a detection rate of 76.9% and 84.6%, respectively. Interestingly, while nine lesions were solely visualized on [18F]FDG, six were uniquely seen on [18F]AlF-PSMA-11 PET. While sPSMA was immeasurable in all female patients, no correlation was found between sPSMA in male patients and disease-related factors. In five out of eight patients immunohistology showed PSMA expression on the primary tumor.

Conclusions

Although not all lesions could be visualized, [18F]PSMA-11 PET identified multiple lesions imperceptible on [18F]FDG PET. These results display the potential additional diagnostic role of PSMA-targeted imaging in patients with RAI-R TC.

Trial registration number No. EudraCT 2021-000456-19.

Background

Differentiated thyroid carcinoma (DTC) is a type of cancer derived from the follicular cells of the thyroid and is the most common type of thyroid carcinoma (TC) [1, 2]. Even in metastasized setting, DTC generally has a good prognosis, partly due to the therapeutic option of 131I, a well-tolerated and effective therapy [2, 3]. However, some patients present with tumors that do not or no longer respond to 131I therapy; this may result from impaired sodium iodide symporter expression as part of a dedifferentiation process [4]. Survival rates in radioiodine refractory (RAI-R) tumors are worse than in radioiodine-sensitive patients, particularly in those with metastatic disease [5,6,7,8]. To improve outcome, early detection of locoregional progressive or metastatic disease is essential. As in all DTC, serum thyroglobulin (Tg) is used as a tumor marker in patients with RAI-R TC. In addition, ultrasound and magnetic resonance imaging (MRI) are used for monitoring locoregional disease, and computed tomography (CT) and [18F]fluorodeoxyglucose ([18F]FDG) PET scans are used for the detection and monitoring of metastatic disease [3]. However, due to tumor dedifferentiation, Tg proves less representative as a tumor marker in RAI-R TC, and the current imaging techniques cannot always reveal the source of supposed disease recurrence or progression, displaying the need for new diagnostic tests.

Recently, novel radiotracers have been developed targeting the prostate-specific membrane antigen (PSMA), a marker of prostate epithelium that is overexpressed in prostate cancer cells. The implementation of PSMA-targeting agents has altered the role of nuclear medicine in the imaging and therapy of patients with prostate cancer [9,10,11,12]. However, contrary to what its name suggests, PSMA is not prostate-specific, as the protein is also expressed on cancer-induced neovasculature in other solid malignancies, including TC [13,14,15,16,17]. Multiple case reports have described an increased tracer uptake in incidental TC on PSMA PET [18,19,20,21,22,23,24]. Furthermore, histological overexpression of PSMA has been described in RAI-R DTC, in distant metastases and in poorly differentiated and undifferentiated TC [15, 25]. In addition, PSMA expression in the primary tumor has been described as a predictive factor for disease recurrence, tumor aggressiveness and RAI refractoriness [26, 27].

Some small studies have explored the role of PSMA PET in TC, but with various histologic subtypes and varying results [28,29,30,31,32,33]. The present study aimed to evaluate the use of PSMA-targeted PET as compared to [18F]FDG PET in a cohort of patients with RAI-R TC. Additionally, we examined the diagnostic significance of soluble serum PSMA (sPSMA) and the PSMA expression in available tumor resection specimens and biopsies.

Materials and methods

Patient inclusion

The current prospective study was designed as a cross-sectional, open-label phase 2b study in patients with RAI-R TC. The study was performed at a single tertiary referral center and approved by the local ethics committee and the competent authorities before study initiation (NCT05175404). Patients were eligible for the study when (1) they were diagnosed with histologically confirmed TC, with biochemical or iconographic evidence of persistent or recurrent disease, (2) the tumor was considered RAI-R according to European Thyroid Association guidelines [34], (3) female patients were either post-menopausal, surgically sterile, or used highly effective contraceptives and (4) all patients had to have had a routine clinical [18F]FDG PET/CT at most two months before inclusion. Exclusion criteria were (1) a known other active malignancy, (2) breastfeeding, or (3) being mentally or legally incapacitated. Between February and September 2022, 16 patients were considered eligible for inclusion of which eight agreed to participate in the study. There were no dropouts after inclusion. Information on sex, age, pathological tumor type and TNM classification [35], American Thyroid Association (ATA) risk score at diagnosis [3], and most recent unstimulated Tg level was recorded from the electronic patient files.

[18F]AlF-PSMA-11 PET

The PSMA-tracer used in this study, [18F]AlF-PSMA-11, was produced in-house, as described elsewhere [36]. All patients received an [18F]AlF-PSMA-11 PET/CT, with an injected activity of 2.0 ± 0.2 MBq/kg body weight. A PET scan was performed 60 min (± 5 min) after tracer injection. PET imaging was preceded by a low-dose CT scan for attenuation correction and anatomical localization from the head to the mid-femoral region without administering intravenous contrast fluid. All [18F]AlF-PSMA-11 PET/CT scans were performed on a GE Discovery MI 3-ring PET scanner. The images were reconstructed using the QClear algorithm (GE Healthcare), a block sequential regularised expectation–maximization algorithm. Adverse events were monitored from the injection of the tracer until the patient left the nuclear medicine department.

[18F]FDG PET/CT

All patients underwent [18F]FDG PET with diagnostic CT images in a routine clinical setting as part of the inclusion criteria. The scans were conducted in accordance with the EANM procedure guidelines for tumor imaging [37], covering the head to mid-femoral region, except for one patient who was scanned from head to feet, approximately 60 min after injection of a standard dose of [18F]FDG (3.7 MBq per kg body weight + 37 MBq). A diagnostic CT was performed as part of the [18F]FDG PET/CT scan. In six out of eight patients intravenous contrast was administered.

Image analysis

All analyses on PET images were performed using Oasis software (Segami corp., Columbia, USA) on AGFA Impax (AGFA Healthcare, Mortsel, Belgium). All PET images were analyzed by a certified nuclear medicine physician with experience in reading [18F]FDG and [18F]AlF-PSMA-11 PET and were assessed for the presence of any lesions and their location. All CT images were analyzed by a certified radiologist with experience in head and neck imaging. Diagnostic CT images from the [18F]FDG PET/CT were used to correlate the findings on both [18F]AlF-PSMA-11 PET and [18F]FDG PET to accurately distinguish between suspicious lesions in the context of thyroid cancer and benign lesions or sites of normal physiological uptake such as degenerative bone lesions or urinary excretion. The CT images were also used to identify any suspicious lesion that would be negative on both [18F]AlF-PSMA-11 PET and [18F]FDG PET.

The number of lesions delineated in each organ was limited to 10 on each PET. For each lesion, the maximal standard uptake value (SUV), SUVmax, and metabolic tumor volume (MTV) were determined using a margin threshold set at 41% of the SUVpeak value. If needed, a manual adjustment of the delineation was made, for example, to exclude physiologic uptake in an adjacent region. Additionally, background SUVmean values were determined in the parotic glands, the mediastinal blood pool, and the liver. Dimensions on CT were measured along the short axial axis for lymph nodes and along the long axis for all other lesions. Houndsfield Units were measured on the CT without contrast of the PSMA PET scan.

sPSMA measurements

Before injection of the radiolabelled PSMA, a venous blood sample was taken from all patients. All samples were collected, centrifuged, and stored for batch processing. An enzyme-linked immunosorbent assay (ELISA; Assay Genie, Dublin, Ireland) was used to analyze sPSMA [38]. All measurements were made in duplicate and according to the manufacturer’s specifications. Intra-assay coefficient of variation was 5.36%, lower limit of quantification was 2.81 ng/mL.

Histology

For each case, 4-μm-thick sections from representative blocks of formalin-fixed, paraffin-embedded tumor tissue were used for immunohistochemical analysis. Immunohistochemistry was performed using an immunostainer (Benchmark XT, Ventana Medical Systems, Tucson, AZ, USA), according to the manufacturer’s instructions. The sections were immunostained with a primary monoclonal antibody against PSMA (1:25; EP192; Cell Marque). Visualization was achieved with ultraView Universal DAB Detection kit (Ventana Medical Systems, Tucson, AZ, USA). Appropriate positive and negative controls were used throughout the study. PSMA expression was evaluated by two expert pathologists on immunostained whole tissue sections (Olympus, BX53; 40 × magnification). The 3-point PSMA scale proposed by Bychkov et al. was used to score PSMA positivity [39]: no detectable endothelial expression or expression in < 5% of capillaries was defined as negative (score 0), PSMA expression in 6–50% of capillaries as moderately positive (score 1) and PSMA expression in > 50% of capillaries as strongly positive (score 2). PSMA expression was evaluated on the primary tumor in all eight patients and in available metastatic lesions in five patients, consisting of two bone metastases, one brain metastasis and two lung metastases.

Statistics

Descriptive statistics are expressed as mean ± standard deviation (SD) or median (range). The amount, type, SUVmax, and MTV of lesions on [18F]AlF-PSMA-11 PET were compared with the [18F]FDG PET using both a lesion-based and a patient-based approach. Detection rates were calculated for both [18F]AlF-PSMA-11 PET and [18F]FDG PET. The total number of suspicious lesions was defined as all suspicious lesions visible on [18F]AlF-PSMA-11 PET, [18F]FDG PET and/or CT. Spearman correlation coefficients were used to evaluate associations between semi-quantitative parameters on [18F]AlF-PSMA-11 and [18F]FDG PET, serological markers including unstimulated Tg levels and sPSMA, and immunohistochemistry results. All statistical analyses were performed using SPSS Statistics 28 (IBM, New York, USA), and p < 0.05 was considered statistically significant.

Results

Patient characteristics

Eight patients (four male, four female) were included in this study, with a mean age of 66 years (+ − 7 years). The included patients were diagnosed with follicular TC (n = 4), papillary TC (n = 2), follicular variant of papillary TC (n = 1) or poorly differentiated TC (n = 1). At the time of initial diagnosis (between 1988 and 2022), five patients had a high ATA risk score, one had an intermediate ATA risk score, and two had a low ATA risk score. The included patients were considered iodine refractory based on the absence of uptake of RAI in all (n = 2) or some (n = 1) lesions on a post-therapy scan, absence of uptake of RAI in all lesions on a diagnostic iodine scan (n = 3), progressive disease 6 months after treatment with RAI (n = 1), or persistent disease despite treatment with maximal dose of RAI (n = 1; cumulative dose 950 mCi). Seven patients were previously treated with RAI, with cumulative activities ranging from 100 to 950 mCi. Two patients were treated with a tyrosine kinase inhibitor at the time of inclusion (PT3: lenvatinib 10 mg and PT7: lenvatinib 14 mg). PT3 had previously been treated with sorafenib 200 mg but this treatment was discontinued due to intolerance. The most recent unstimulated Tg levels ranged from 1.13 µg/dl to 2270 µg/dl with a median of 132.25 µg/dl; none of the patients had Tg antibodies. An overview of the patient characteristics can be found in Table 1.

Table 1 Overview of patient characteristics
Full size table

[18F]AlF-PSMA-11 PET

The mean administered activity of [18F]AlF-PSMA-11 was 143.30 MBq (+—23.7 MBq). The time between tracer injection and start of the PET scan was exactly 60 min for each patient. The median time between the [18F]FDG PET and [18F]AlF-PSMA-11 PET was 4 days (range 2–35 days). No adverse events were recorded.

Background SUVmean in the liver on [18F]AlF-PSMA-11 PET has a median of 4,6 but with a wide range from 1.9 to 12.9. The mean background SUVmean in the parotid gland was 9.0 (+ − 0.9), excluding two patients with bilateral parotid atrophy and, as such, no uptake of PSMA. The mean SUVmean in the mediastinal blood pool was 1.1 (+ − 0.2).

For the lesion-based analysis, a total of 30 suspicious lesions were identified on [18F]AlF-PSMA-11 PET with a median SUVmax of 4.0 (range 1.2–14.8). On [18F]FDG PET, 33 lesions were found with a median SUVmax of 5.3 (range 2.3–44.9). In total, there were 39 lesions on [18F]AlF-PSMA-11 and [18F]FDG PET combined. No additional suspicious lesions were visualized on the CT part of the [18F]FDG PET/CT. These results provide a detection rate of 76.9% for [18F]AlF-PSMA-11 PET and a detection rate of 84.6% for [18F]FDG PET. Twenty-four lesions were visible on both [18F]AlF-PSMA-11 PET and [18F]FDG PET, including one locoregional recurrence, one lymph node, ten bone lesions and twelve lung lesions. Six lesions in five patients were only visible on [18F]AlF-PSMA-11 PET, of which two were located in the brain, one was a local recurrence, one was a lymph node, and two were bone lesions. Nine lesions in three patients were only visible on [18F]FDG PET, consisting of eight lung lesions and one lymph node (Fig. 1). Further characteristics, including lesion size and Houndsfield units on non-contrast enhanced CT, can be found in Table 2. In one patient with papillary TC, the only visible lesion was an FDG-positive, PSMA-negative lymph node; in another patient with follicular TC, the only lesion was a PSMA-positive, FDG-negative brain metastasis. Interestingly, a combination of both PSMA-positive, FDG-negative lesions and PSMA-negative, FDG-positive lesions was observed in one patient with follicular TC.

Fig. 1
figure 1

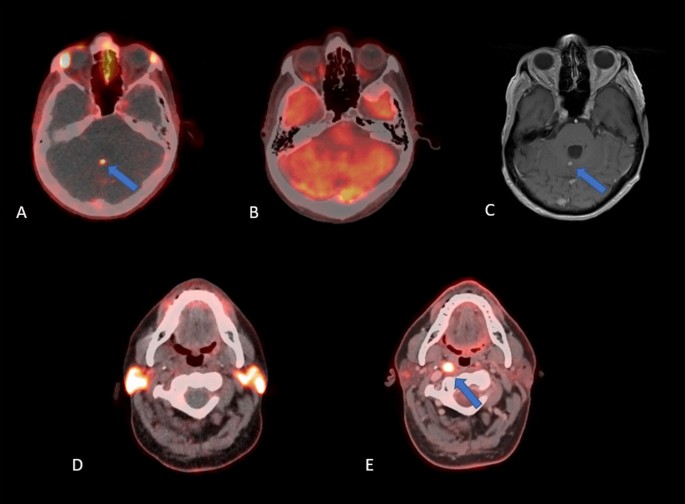

Example of a lesion that is only visible on PSMA PET (PT1) and a lesion that is only visible on FDG PET (PT 6). A PSMA PET/CT axial fusion images. B FDG PET/CT axial fusion images. C T1 weighted MRI images with gadolinium. D PSMA PET/CT axial fusion images. E FDG PET/CT axial fusion images; A–C shows focal uptake in the cerebellum on PSMA PET (blue arrow), not visible on FDG PET, corresponding with a known metastasis on MRI.; D, E shows intense focal uptake on FDG PET, without uptake on PSMA PET in a known pathologic retropharyngeal lymph node

Full size image
Table 2 Lesion characteristics on PSMA and FDG PET
Full size table

On a patient-based analysis, the median of the mean SUVmax of all lesions per patient was 10.34 (range 0–11.21) on [18F]AlF-PSMA-11 PET and 3.70 (range 0–20.72) on [18F]FDG PET. An overview of the patient-based analysis can be found in Table 3. Statistical analysis showed a significant correlation between total metabolic tumor volume (TMTV) of the lesions on [18F]PSMA and [18F]FDG PET (r(8) = 0.987; p =  < 0.001), as well as between TMTV on [18F]PSMA PET and thyroglobulin levels (r(8) = 0.852; p = 0.007) and between TMTV on [18F]FDG PET and thyroglobulin levels (r(8) = 0.912; p = 0.002).

Table 3 Patient-based analysis of PSMA and FDG PET, sPSMA and immunohistology
Full size table

sPSMA

sPSMA levels were measurable in the four male patients with a mean of 37.7 ± 17.56 ng/mL (range 20.3–55.9). The four female patients had undetectable sPSMA levels. Correlation analysis showed no significant correlations between sPSMA and TMTV or mean SUVmax on PSMA or FDG PET nor between sPSMA and Tg levels.

Histology

Immunostaining proved positive in five of the primary TC (PT1, PT2, PT3, PT7 and PT8) (63%) and negative in the remaining three (PT4, PT5 and PT6) (37%). Among the five positive cases, PSMA expression was scored moderately positive (score 1) in three cases (PT1, PT2 and PT3) and strongly positive (score 2) in two cases (PT7 and PT8). Endothelial expression of PSMA was exclusively localized within tumor tissue, but not in normal or non-neoplastic thyroid tissue. There were no significant correlations between the PSMA-score in the primary tumor and any parameters on either PSMA or FDG PET, or sPSMA levels.

Of the three patients without PSMA expression on the primary tumor, PT4 and PT5 did have PSMA-positive lesions at 6 years and 34 years after diagnosis. The third patient, PT6 had one FDG-positive lesion, but without PSMA-uptake.

Positive PSMA endothelial expression was observed in all five histologically examined metastases: strong (score 2) expression in 2 bone metastases (PT1 and PT8) and one brain metastasis (PT7) (Fig. 2), moderate (score 1) expression in 2 lung metastases (PT2 and PT3). No metastatic tissue samples were available for immunostaining of the patients that had no PSMA-expression on the primary tumor.

Fig. 2
figure 2

Example of strong PSMA expression in a primary tumor (PT8) and in a brain metastasis (PT7). A Strong PSMA expression (score 2) in thyroid resection specimen of poorly differentiated TC. B Strong PSMA expression (score 2) in brain metastasis of a follicular TC

Full size image

Discussion

The current study aimed to assess the performance of [18F]AlF-PSMA-11 PET compared to [18F]FDG PET in a homogeneous cohort of patients with RAI-R TC. A total of 39 lesions were identified as suspicious in the cohort of included patients. Of these, [18F]AlF-PSMA-11 PET detected 30 lesions, whereas [18F]FDG PET detected 33 lesions. As such, the detection rate of [18F]AlF-PSMA-11 PET was 76.9%, lower than the 84.6% with the current gold standard of [18F]FDG PET. However, despite the higher number and mean tracer uptake of lesions detected by [18F]FDG PET, [18F]AlF-PSMA-11 PET was able to detect 6 lesions that were not detected by [18F]FDG PET. Furthermore, in one out of eight patients, disease localization was achieved only by [18F]AlF-PSMA-11 PET. Our results are consistent with previous studies in DTC which also found a lower detection rate in [68Ga]Ga-PSMA-11 and [68Ga]Ga-HBED-CC-PSMA PET compared with [18F]FDG PET and in line with the study from Shi et al., which also included also a patient group with RAI-R DTC [28,29,30, 40].

Interestingly, we observed a distinction between the types of lesions detectable by both PET modalities. Generally, more bone lesions were visible on [18F]AlF-PSMA-11 PET compared to [18F]FDG PET, while the inverse was true for lung metastases. Furthermore, the two brain metastases were only detectable using [18F]AlF-PSMA-11 PET. Various factors could account for these observations. First, the high background activity of [18F]FDG in the brain may account for the discrepancies between [18F]FDG PET and [18F]AlF-PSMA-11 PET in detecting brain metastases. Second, the visualisation of bone metastases on [18F]AlF-PSMA-11 PET might be partly attributable to the fluor element rather than the PSMA moiety of the tracer. Indeed, 18F-labeled PSMA tracers are known for their higher skeletal uptake, including bone metastases and benign bone lesions, compared to their 68Ga-labeled counterparts [41,42,43]. Third, although angiogenesis is a hallmark of cancer, there have been speculations that not all cancer cells induce new blood vessel formation for their vascularisation but that some could utilize pre-existing blood vessels as a form of vessel co-option [44, 45]. Vessel co-option could be a common characteristic of lung metastases and a mode of resistance to anti-angiogenic therapy [44,45,46,47,48]. As for now, the occurrence of vessel co-option in TC metastases has not been examined yet. Since PSMA expression is only observed on the endothelial cells of the newly formed and not on normal vascular endothelial cells, vessel co-option might account for why lung metastases exhibit lower uptake in [18F]PSMA PET scan.

Taken together, PSMA and FDG PET seem to visualize different facets of the oncologic process, tumor glucose metabolism and neovascularization, suggesting that PSMA PET may complement FDG PET in the diagnosis and follow-up of RAI-R TC. For example, PSMA PET could assist in detecting the origin of an increasing tumor marker when standard imaging techniques are unsuccessful.

Remarkably, two patients without PSMA expression on the primary tumor had PSMA-positive lesions 6 and 34 years after resection of the primary tumor, suggesting that PSMA expression could be variable at one time point or may emerge progressively over time. Therefore, both our imaging and histology results may reflect tumoral heterogeneity.

In addition to the potential use of targeting PSMA using PET imaging, we also evaluated the value of measuring sPSMA in patients with RAI-R TC. We hypothesized that an increase in neovasculature formation could impact the amount of protein shed from the tumor, which could be a potential biomarker for tumor growth. However, in this small cohort, sPSMA was only detectable in male patients and showed no correlation with any of the FDG or PSMA PET parameters, while sPSMA remained below the detection limit in all female patients. Probably, rather than being a potential tumor marker, sPSMA seems to reflect the presence of prostate tissue.

In this proof-of-concept study, we aimed to evaluate the role of PSMA as a biomarker in RAI-R TC, by means of [18F]PSMA PET, sPSMA and immunohistology in a cohort of patients with RAI-R TC. However some limitations need to be acknowledged. The first limitation is the lack of histological confirmation for lesions that showed discrepancies between [18F]AlF-PSMA-11 and [18F]FDG PET results. Most of these lesions were already confirmed sites of disease recurrence or metastases, but some, such as bone lesions, were not previously identified. However, due to the invasive nature of biopsies, histological confirmation of previously unknown lesions was not part of this study. An important second limitation in this study is the small sample size. Even though this study was conducted in a tertiary reference center, only a few patients met the inclusion criteria and were included.

Nevertheless, the results of this small cohort corroborate the potential value of targeting PSMA in this relatively rare group of patients. Our findings do not provide conclusive results, so more in-depth research is necessary to develop a more nuanced understanding of the use of PSMA PET in the diagnosis and staging of RAI-R TC. Future studies should aim to include larger patient cohorts and address the limitations identified in our current work, thereby ensuring more generalizable results.

Conclusion

[18F]AlF-PSMA-11 PET imaging demonstrates encouraging results in patients with RAI-R TC. [18F]AlF-PSMA-11 PET detected six lesions that were not visible on [18F]FDG PET, including a solitary lesion in one patient. These discrepancies indicate a potential role for PSMA-targeted PET imaging in patients with RAI-R TC when other imaging techniques, including [18F]FDG PET fail to locate the source of disease progression. While larger prospective studies are required, these results add to the existing pool of data that may suggest an additional role for PSMA PET in thyroid carcinoma.
